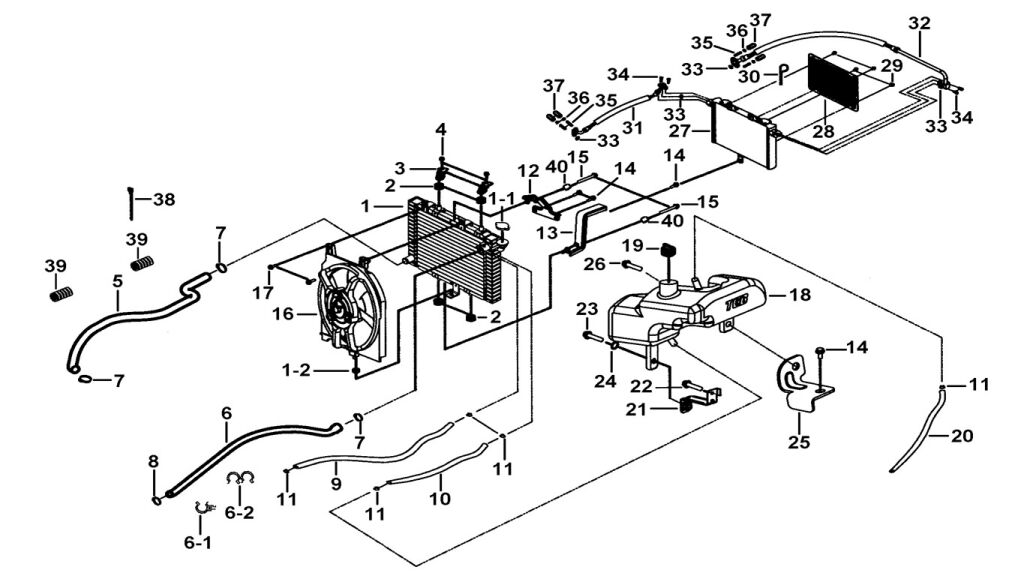

RADIATOR ASSY.、COOLING FAN (FOR EURO 5 )

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
28 PROTECTOR, OIL RADIATOR (Ref. č 28) 925082 PROTECTOR, OIL RADIATOR  1 € 34,88 € 42,20
SKLADOM
27 OIL RADIATOR ASSY. (Ref. č 27) 924722Y OIL RADIATOR ASSY.  1 € 238,18 € 288,20
NA DOPYT
26 BOLT M6X16L (Ref. č 26) S25602 BOLT M6X16L  1 € 2,40 € 2,90
SKLADOM
25 926290 BRACKET, RESERVOIR  1 € 11,57 € 14
NA DOPYT
24 WASHER (Ref. č 24) W99005 WASHER  1 € 2,40 € 2,90
SKLADOM
23 BOLT, FLANGE (Ref. č 23) S20814 BOLT, FLANGE  1 € 2,40 € 2,90
SKLADOM
22 BOLT,HEX HEAD (Ref. č 22) S20611 BOLT,HEX HEAD  1 € 2,40 € 2,90
SKLADOM
21 910481 BRACKET(FRONT)  1 € 9,42 € 11,40
NA DOPYT
20 925265 HOSE  1 € 14,88 € 18
NA DOPYT
29 BOLT, FLANGE (Ref. č 29) S21605 BOLT, FLANGE  4 € 2,40 € 2,90
SKLADOM
30 925350 CLIP " P "  1 € 10,99 € 13,30
NA DOPYT
39 926230 PROTECTION TUBE, HOSE(12cm)  2 € 3,64 € 4,40
NA DOPYT
38 CLAMP L300 (Ref. č 38) 518740 CLAMP L300  2 € 1,98 € 2,40
SKLADOM
37 NUT (Ref. č 37) N10605 NUT  4 € 2,89 € 3,50
SKLADOM
36 WASHER, SPRING M6 (Ref. č 36) GA504WS04 WASHER, SPRING M6  4 € 2,40 € 2,90
SKLADOM
35 STUD 6X18 (Ref. č 35) S95602 STUD 6X18  4 € 2,40 € 2,90
SKLADOM
34 SCREW, SOCKET HEAD M6X16 (Ref. č 34) S70609 SCREW, SOCKET HEAD M6X16  4 € 2,40 € 2,90
SKLADOM
33 GASKET (Ref. č 33) 926278 GASKET  4 € 5,95 € 7,20
SKLADOM
32 PIPE , ENGINE OIL(R) L 1095mm (Ref. č 32) 927424Y PIPE , ENGINE OIL(R) L 1095mm  1 € 107,44 € 130
SKLADOM
31 926293Y PIPE , ENGINE OIL(L) L 975mm  1 € 123,47 € 149,40
NA DOPYT
19 RESERVOIR CAP  (Ref. č 19) 924642 RESERVOIR CAP   1 € 2,40 € 2,90
SKLADOM
18 926286 RESERVOIR ASSY.  1 € 31,32 € 37,90
NA DOPYT
06.1 910844 CLAMP  1 € 1,98 € 2,40
NA DOPYT
06 924354-A HOSE, INLET(INCLUDING CLAMP, CLIP)  1 € 32,07 € 38,80
NA DOPYT
05 926317 HOSE, OUTLET  1
NA DOPYT
Detail
04 BOLT M10X20 (Ref. č 04) S21008 BOLT M10X20  2 € 2,40 € 2,90
SKLADOM

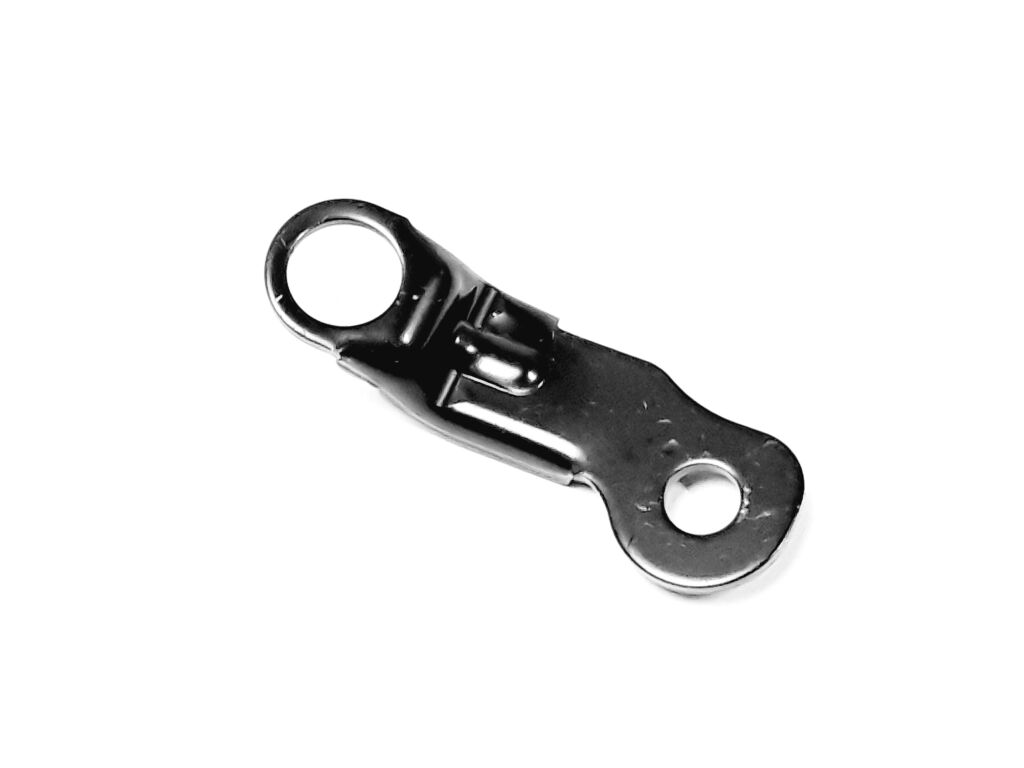

03 BRACKET (Ref. č 03) 910450 BRACKET  2 € 5,04 € 6,10
SKLADOM
02 Washer, Rubber (Ref. č 02) 402129 Washer, Rubber  4 € 2,40 € 2,90
SKLADOM
01.2 910594Y RUBBER  1 € 4,21 € 5,10
NA CESTE

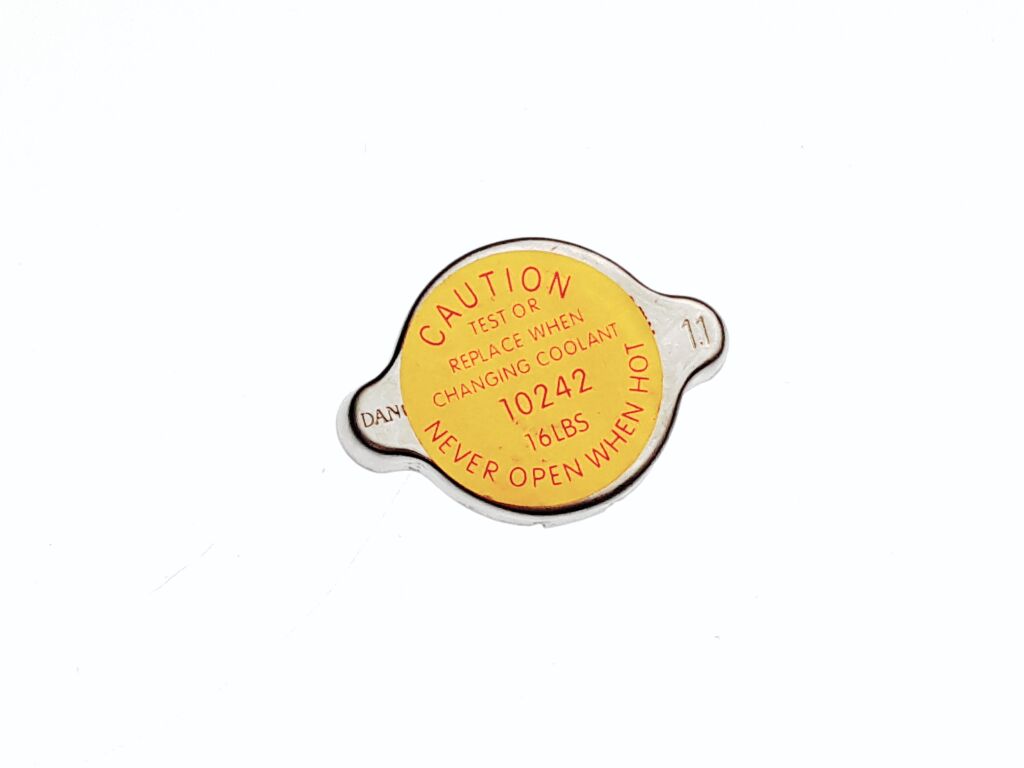

01.1 CAP, RADIATOR ASSY. (Ref. č 01-1) 911105Y CAP, RADIATOR ASSY.  1 € 19,59 € 23,70
SKLADOM
07 CLIP (Ref. č 07) R66701 CLIP  3 € 3,97 € 4,80
SKLADOM
08 CLIP (Ref. č 08) R65603 CLIP  1 € 2,64 € 3,20
SKLADOM
17 BOLT, FLANGE M6X16 (Ref. č 17) GA555SC05 BOLT, FLANGE M6X16  2 € 2,40 € 2,90
SKLADOM
16 COOLING FAN ASSY. (Ref. č 16) 910852 COOLING FAN ASSY.  1 € 245,95 € 297,60
SKLADOM
15 SCREW, SOCKET HEAD M6X50 (Ref. č 15) S70611 SCREW, SOCKET HEAD M6X50  2 € 2,40 € 2,90
SKLADOM
14 SCREW, FLANGE, HEX HEAD (Ref. č 14) S20603 SCREW, FLANGE, HEX HEAD  4 € 2,40 € 2,90
SKLADOM
13 926292 LOWER BRACKET, OIL RADIATOR  1 € 26,78 € 32,40
NA DOPYT
12 926291 UPPER BRACKET, OIL RADIATOR  1 € 31,16 € 37,70
NA DOPYT
11 CLIP  (Ref. č 11) R40201 CLIP   5 € 2,40 € 2,90
SKLADOM
10 HOSE (Ref. č 10) 925175 HOSE  1 € 14,13 € 17,10
SKLADOM
09 HOSE, RECIRCALATION (Ref. č 09) 924681 HOSE, RECIRCALATION  1 € 5,04 € 6,10
SKLADOM

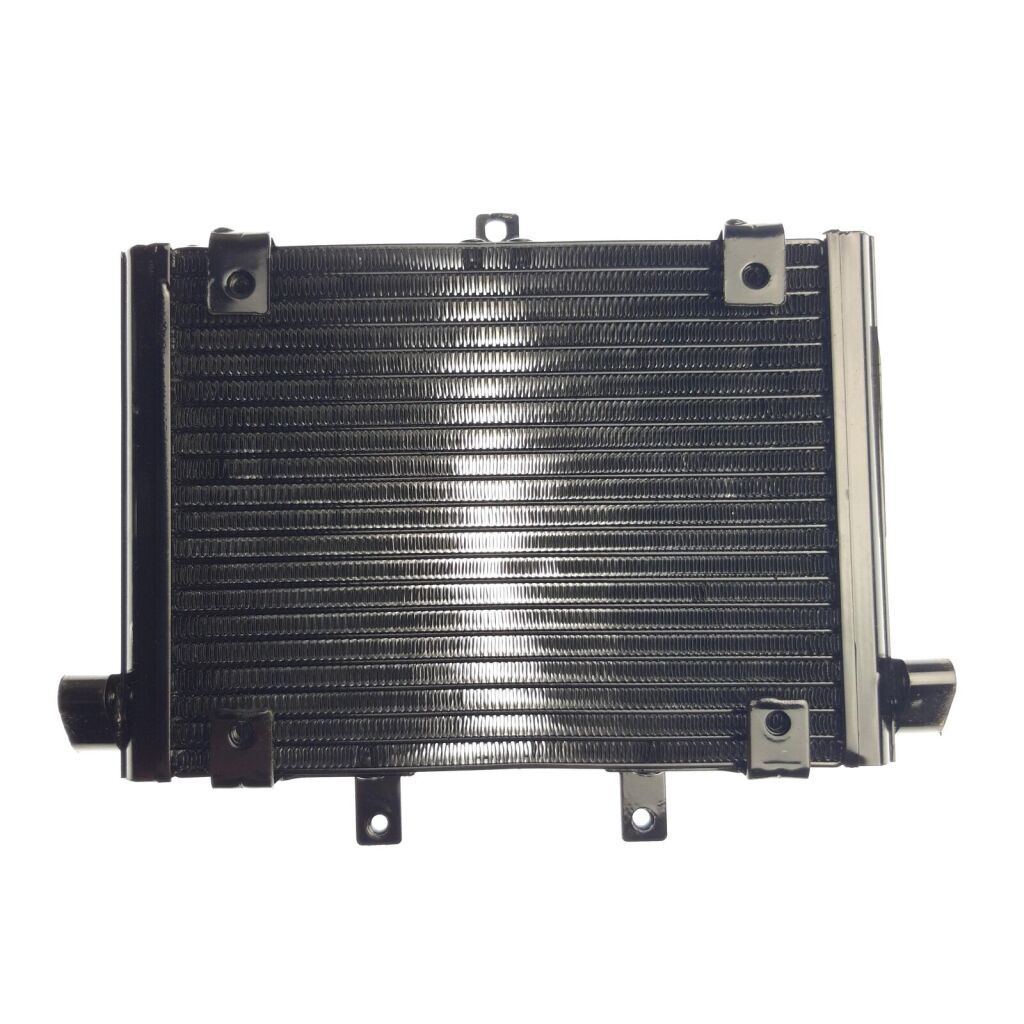

01 RADIATOR ASSY. (Ref. č 01) 926289Y RADIATOR ASSY.  1 € 285,87 € 345,90
SKLADOM
