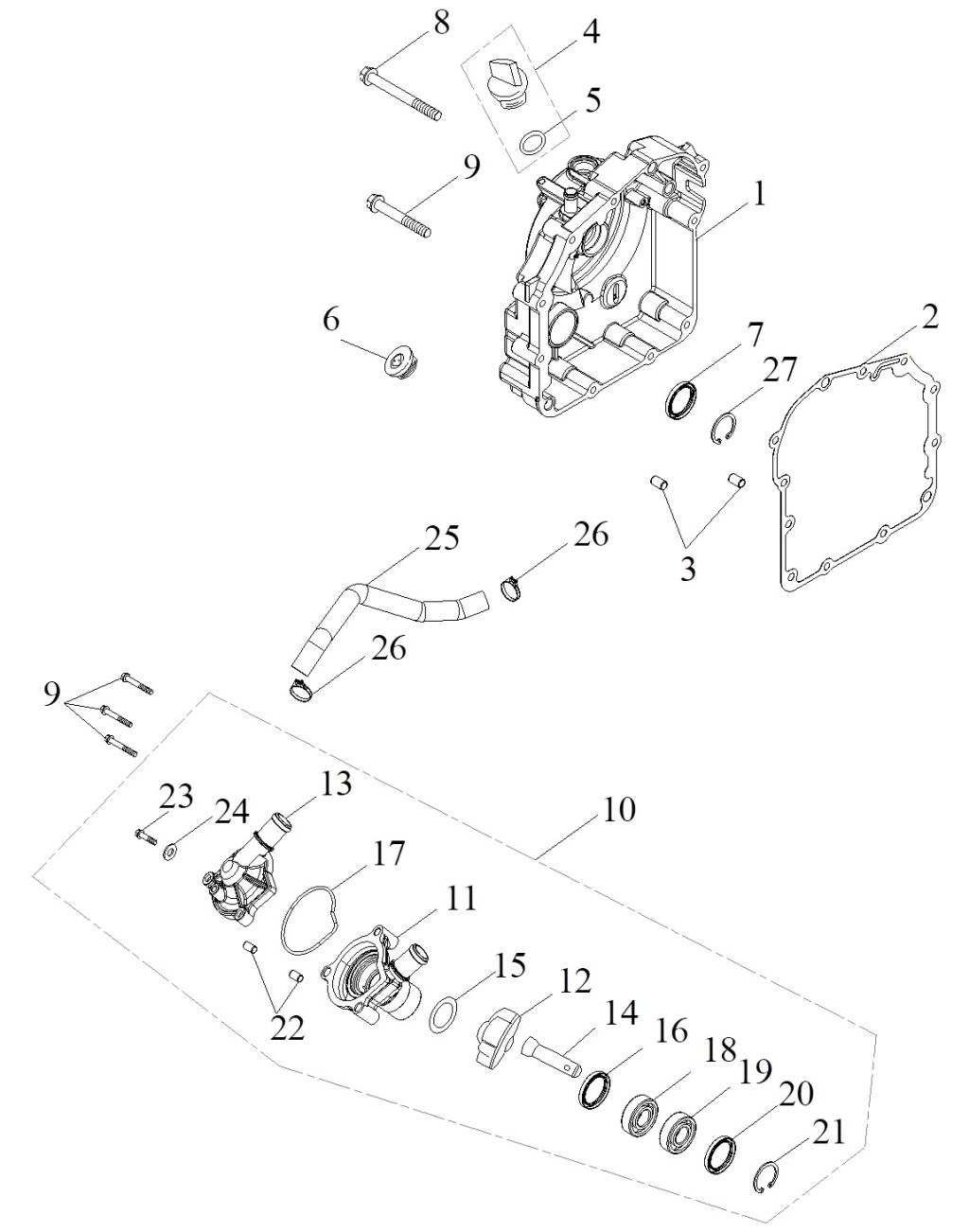

R.CRANKCASE, WATER PUMP

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 11350-E10-100 Cover, R. Crankcase  1
NA DOPYT
Detail
16 Mechanical Seal (Ref. č 16) 15220-E10-000 Mechanical Seal  1 € 19,83 € 24
SKLADOM
17 Gasket, Water Pump (unavailable) (Ref. č 17) 15218-E10-000 Gasket, Water Pump (unavailable)  1 € 2,48 € 3
Naskladňujeme
18 Bearing, Ball (Ref. č 18) 95100-T6901 Bearing, Ball  1 € 8,26 € 10
SKLADOM
19 Bearing, Ball (Ref. č 19) 95100-T6000 Bearing, Ball  1 € 4,13 € 5
SKLADOM
20 Seal, Oil (Ref. č 20) 96100-122207 Seal, Oil  1 € 7,44 € 9
SKLADOM
21 93405-RTW26 Clip, Inner  1 € 2,48 € 3
NA DOPYT
22 94001-08012 Pin, Dowel  2 € 2,48 € 3
NA DOPYT
23 91700-06010-08B Hex Washer Face Bolt (unavailable)  1
NA DOPYT
Detail
24 Washer, Plain (Copper) (Ref. č 24) P93102-65012-12 Washer, Plain (Copper)  1 € 2,48 € 3
NA DOPYT
25 Hose C, Liquid(Pump-Cylinder) (Ref. č 25) 15233-A03-020 Hose C, Liquid(Pump-Cylinder)  1 € 5,79 € 7
SKLADOM
26 Clip (Ref. č 26) 97411-230-12 Clip  2 € 2,48 € 3
SKLADOM
15 Oil Ring (Ref. č 15) 96200-290020 Oil Ring  1 € 2,48 € 3
SKLADOM
14 Water Pump Shaft (Ref. č 14) 15217-E10-000 Water Pump Shaft  1 € 14,05 € 17
SKLADOM
13 Cap, Water Pump (Ref. č 13) 15215-E10-000 Cap, Water Pump  1 € 14,88 € 18
SKLADOM
2 Gasket, R. Crankcase (Ref. č 2) 11393-E10-000 Gasket, R. Crankcase  1 € 7,44 € 9
SKLADOM
3 Pin, Dowel (Ref. č 3) 94001-100140 Pin, Dowel  2 € 2,48 € 3
SKLADOM
4 Oil Level Gauge (Ref. č 4) 15550-E10-000 Oil Level Gauge  1 € 2,48 € 3
SKLADOM
5 O Ring (Ref. č 5) 96200-180030 O Ring  1 € 2,48 € 3
SKLADOM
6 Oil Window (Ref. č 6) 96100-GW162510 Oil Window  1 € 4,13 € 5
SKLADOM
7 OIL SEAL, clutch release camshaft (Ref. č 7) 96100-122807 OIL SEAL, clutch release camshaft  1 € 6,61 € 8
SKLADOM
8 Hex Washer Face Bolt (Ref. č 8) P91700-06135-08G Hex Washer Face Bolt  7 € 2,48 € 3
SKLADOM
9 Hex Washer Face Bolt (Ref. č 9) P91700-06045-08G Hex Washer Face Bolt  8 € 2,48 € 3
SKLADOM
10 R/B 15200-E10-010, Water Pump Ass'y (Ref. č 10) 15200-E10-000 R/B 15200-E10-010, Water Pump Ass'y  1 € 71,07 € 86
NA DOPYT
11 Body, Water Pump (Ref. č 11) 15212-E10-000 Body, Water Pump  1 € 17,36 € 21
SKLADOM
12 15213-E10-000 Fan, Water Pump  1 € 10,74 € 13
NA DOPYT
27 Clip, Inner (Ref. č 27) 93405-IRTW28 Clip, Inner  1 € 2,48 € 3
SKLADOM
