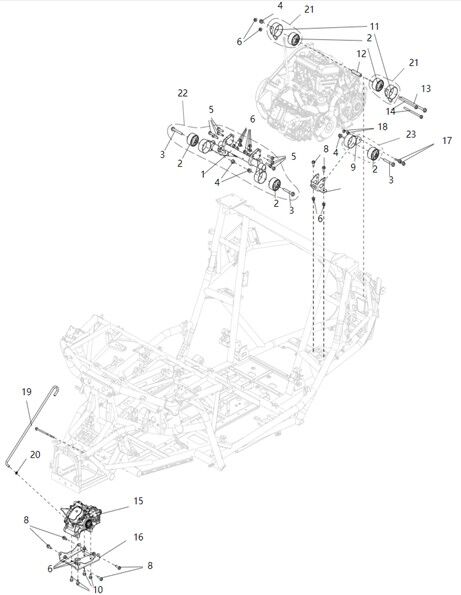

POWER INSTALLATION ASSEMBLY.

Výrobca SEGWAY
Kód produktu SEGWAY_1_126_UTV1000F-S8-24

Ref. č	Kód p.	Popis	p. ks	Cena za 1 ks	Dostupnost
1	S05-C006100-DB0-00	ENGINE FRONT BRACKET ASSEMBLY	1	Cena bez DPH € 61,57 Cena s DPH € 76	NA DOPYT
14	GBT005789101	HEX FLANGE BOLT M10×1.25×160	2	Cena bez DPH € 2,48 Cena s DPH € 3	NA DOPYT
15	Q03F00000002	FRONT AXLE ASSY	1	Cena bez DPH € 1 036,45 Cena s DPH € 1 275	SKLADOM
16	S05-C005000-DB0-00	LOWER BRACKET OF FRONT AXLE	1	Cena bez DPH € 21,49 Cena s DPH € 26	NA DOPYT
17	GBT005789031	HEXAGON FLANGE BOLT M10×1.25×50	2	Cena bez DPH € 2,48 Cena s DPH € 3	NA DOPYT
18	GBT061852001	NUT M10×1.25	2	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
19	A02A10002001	REAR AXLE SNORKEL	1	Cena bez DPH € 25,37 Cena s DPH € 31	SKLADOM

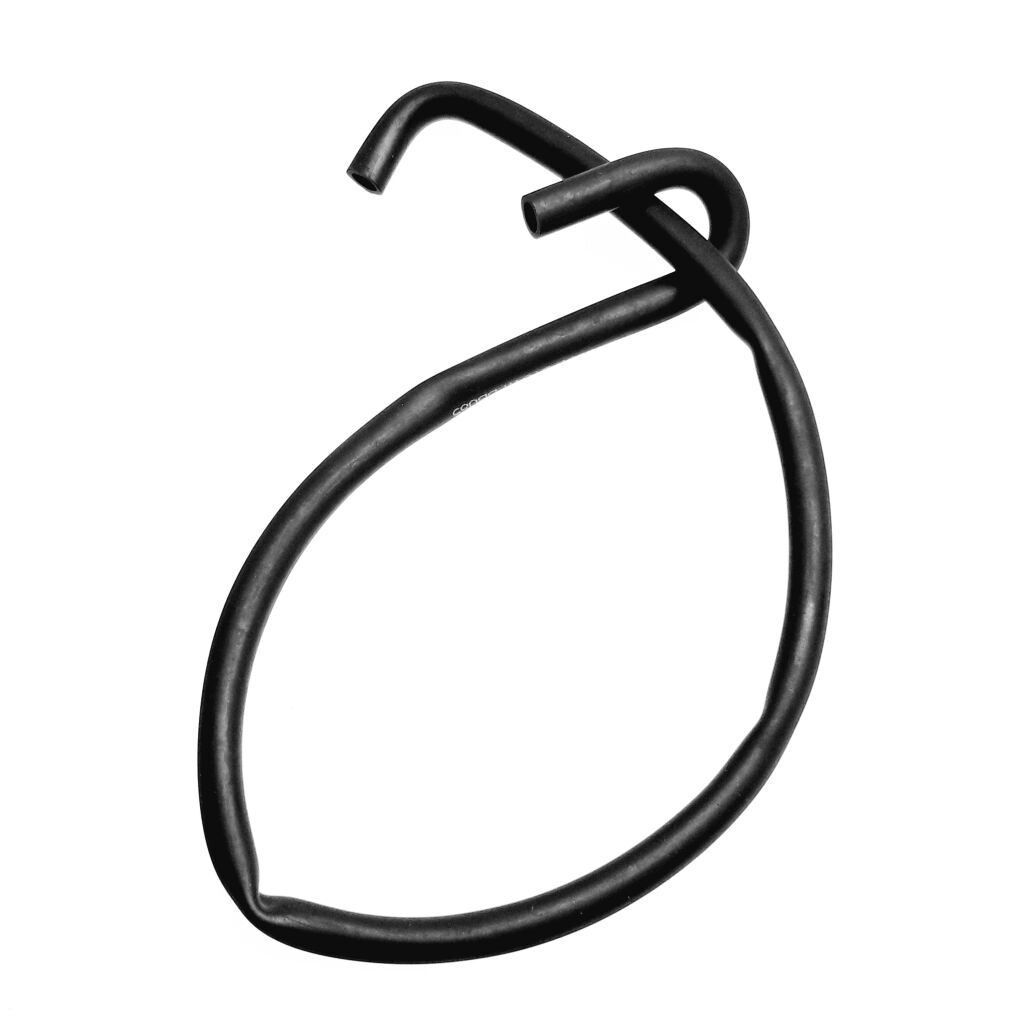

20	QCT006211003	CLAMP,SPRINGBAND 11	1	Cena bez DPH € 2,15 Cena s DPH € 3	SKLADOM
21	S05C01100001	ENGINE REAR MOUNTING SEAT ASSEMBLY	2	Cena bez DPH € 49,17 Cena s DPH € 60	NA DOPYT
22	S05-C006000-000-00	ENGINE FRONT MOUNTING SEAT ASSEMBLY	1	Cena bez DPH € 105,45 Cena s DPH € 130	NA DOPYT
13	GBT005789093	HEX FLANGE BOLT M12×1.25×220	1	Cena bez DPH € 3,06 Cena s DPH € 4	NA DOPYT
12	S05C00206002	ENGINE REAR LINER	1	Cena bez DPH € 12,07 Cena s DPH € 15	NA DOPYT
11	S05C00200002	ENGINE REAR LEFT BRACKET ASSEMBLY	2	Cena bez DPH € 22,64 Cena s DPH € 28	NA DOPYT

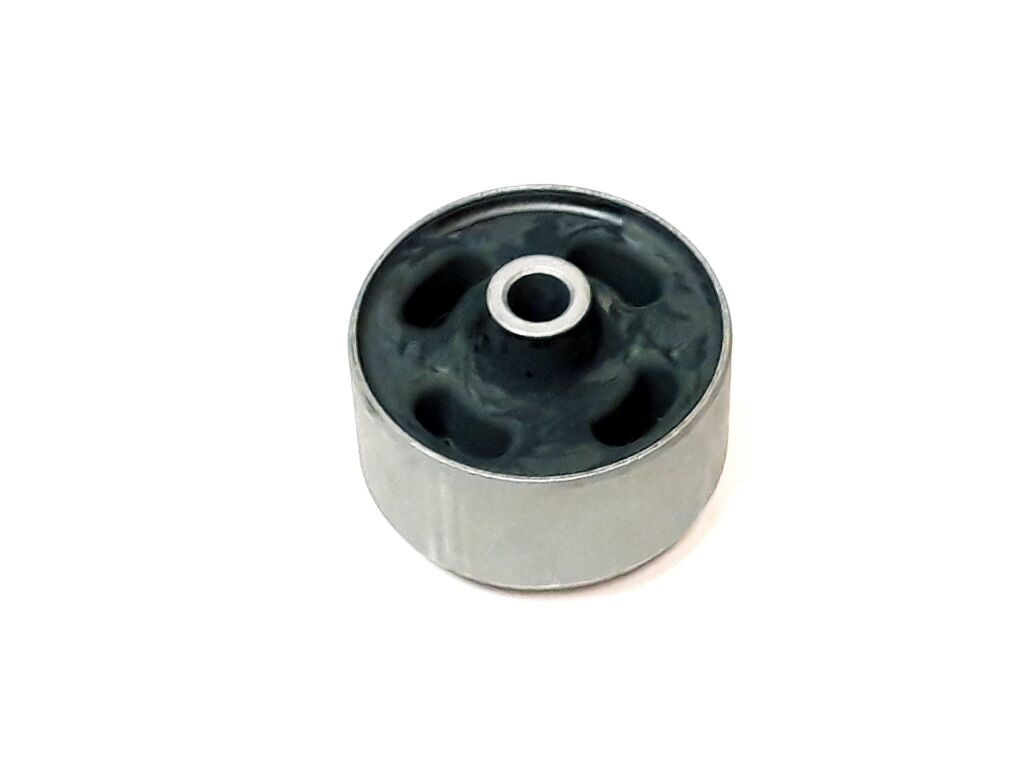

2	S05H20200001	S05 ENGINE DAMPING SET	5	Cena bez DPH € 15,04 Cena s DPH € 19	SKLADOM
3	GBT005789094	BOLT M12×1.25×85	3	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
4	GBT061832002	NUT M12×1.25	4	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
5	GBT005789029	HEXAGON FLANGE BOLT M10×1.25×40	4	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
6	GBT061832001	2-non-metallic insert hexagon flange bolt M10×1.25	10	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
7	S05C00500002	ENGINE LOWER MOUNTING SEAT	1	Cena bez DPH € 11,82 Cena s DPH € 15	NA DOPYT
8	GBT005789026	Hexagon flange bolt M10×1.25×25	2	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
9	S05C00400002	ENGINE LOWER BRACKET ASSEMBLY	1	Cena bez DPH € 24,13 Cena s DPH € 30	NA DOPYT
10	GBT005789025	HEXAGON FLANGE BOLT M10×1.25×20	6	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
23	S05C01200001	ENGINE LOWER MOUNTING SEAT ASSEMBLY	1	Cena bez DPH € 50,83 Cena s DPH € 63	NA DOPYT
