POWER INSTALLATION ASSEMBLY

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_123_UTV1000F-S3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 S05C00600002 ENGINE FRONT BRACKET ASSEMBLY  1 € 65,70 € 81
NA DOPYT
15 FRONT AXLE ASSY (Ref. č 15) Q03F00000002 FRONT AXLE ASSY  1 € 1 036,45 € 1 275
SKLADOM

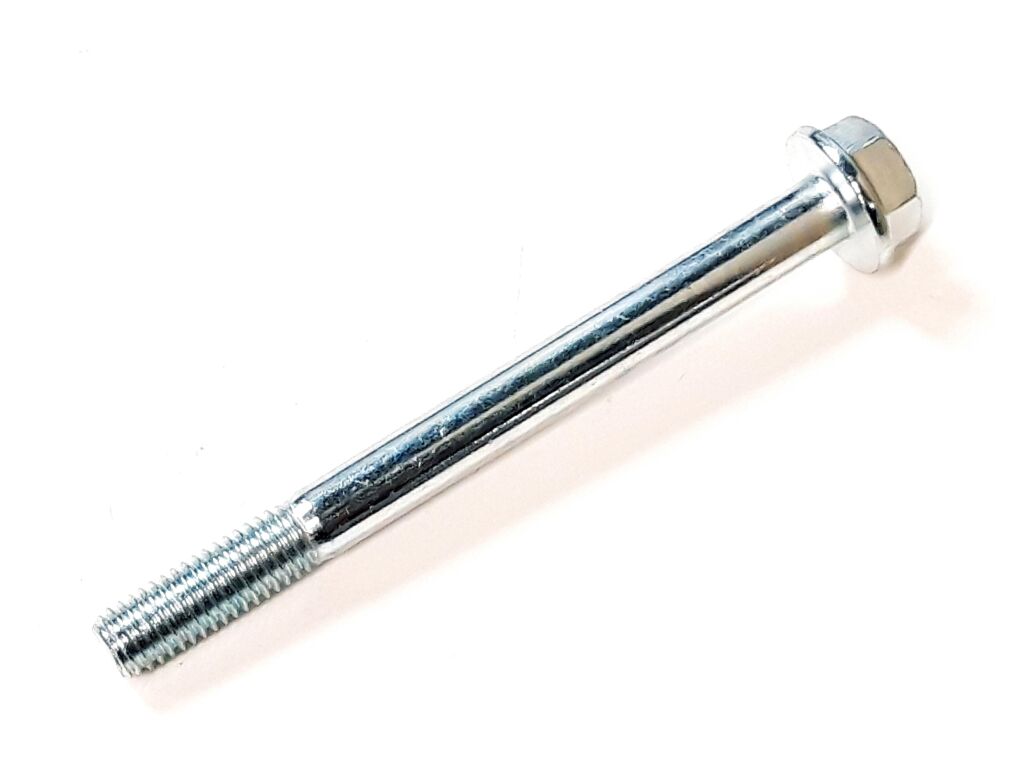

16 HEXAGON FLANGE BOLT M10×1.25×215 (Ref. č 16) GBT005789064 HEXAGON FLANGE BOLT M10×1.25×215  2 € 6,69 € 8
SKLADOM
17 BOLT M8×90 (Ref. č 17) GBT005789023 BOLT M8×90  1 € 2,48 € 3
SKLADOM
18 S05C00209002 FRONT AXLE LOWER BUSHING  4 € 2,48 € 3
NA DOPYT
19 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 19) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  1 € 2,18 € 3
SKLADOM
20 S01C00401002 MOUNTING BRACKET UNDER FRONT AXLE (BLACK)  1 € 17,19 € 21
NA DOPYT
21 S01C07200002 FRONT AXLE UPPER BRACKET  1 € 11,57 € 14
NA DOPYT
22 BOLT M8×20 (Ref. č 22) GBT005789015 BOLT M8×20  2 € 2,18 € 3
SKLADOM
23 REAR AXLE SNORKEL (Ref. č 23) A02A10002001 REAR AXLE SNORKEL  1 € 25,37 € 31
SKLADOM
24 CLAMP,SPRINGBAND 11 (Ref. č 24) QCT006211003 CLAMP,SPRINGBAND 11  1 € 2,15 € 3
SKLADOM
25 S05C01100001 ENGINE REAR MOUNTING SEAT ASSEMBLY  2 € 49,17 € 60
NA DOPYT
26 S05C00900001 ENGINE FRONT MOUNTING SEAT ASSEMBLY  1 € 107,19 € 132
SKLADOM
15 Q03F00000001 FRONT AXLE ASSEMBLY (WITH ABS/1000 PLANETARY DIFFERENTIAL AXLE)  1 € 1 103,06 € 1 357
NA DOPYT
14 GBT005789101 HEX FLANGE BOLT M10×1.25×160  2 € 2,48 € 3
NA DOPYT
2 S05 ENGINE DAMPING SET (Ref. č 2) S05H20200001 S05 ENGINE DAMPING SET  5 € 15,04 € 19
SKLADOM
3 BOLT M12×1.25×85 (Ref. č 3) GBT005789094 BOLT M12×1.25×85  3 € 2,48 € 3
SKLADOM
4 NUT M12×1.25 (Ref. č 4) GBT061832002 NUT M12×1.25  4 € 2,18 € 3
SKLADOM
5 HEXAGON FLANGE BOLT M10×1.25×40 (Ref. č 5) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  4 € 2,48 € 3
SKLADOM
6 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 6) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  10 € 2,18 € 3
SKLADOM
7 S05C00500002 ENGINE LOWER MOUNTING SEAT  1 € 11,82 € 15
NA DOPYT
8 Hexagon flange bolt M10×1.25×25 (Ref. č 8) GBT005789026 Hexagon flange bolt M10×1.25×25  2 € 2,48 € 3
SKLADOM
9 S05C00400002 ENGINE LOWER BRACKET ASSEMBLY  1 € 24,13 € 30
NA DOPYT
10 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 10) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  6 € 2,18 € 3
SKLADOM
11 S05C00200002 ENGINE REAR LEFT BRACKET ASSEMBLY  2 € 22,64 € 28
NA DOPYT
12 S05C00206002 ENGINE REAR LINER  1 € 12,07 € 15
NA DOPYT
13 GBT005789093 HEX FLANGE BOLT M12×1.25×220  1 € 3,06 € 4
NA DOPYT
27 S05C01200001 ENGINE LOWER MOUNTING SEAT ASSEMBLY  1 € 50,83 € 63
NA DOPYT
Kód produktu SEGWAY_1_123_UTV1000F-S3
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: Villain SxS
MODEL: Villain SX10 (xxxx-2022)
