POWER INSTALLATION

SEGWAY
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 ALL-METALLIC HEXAGON FLANGE NUT M10×1.25 (Ref. č 1) GBT061872001 ALL-METALLIC HEXAGON FLANGE NUT M10×1.25  5 € 2,48 € 3
SKLADOM
19 A02C00001001 R/B A02-C000300-DB0-00 TUBE  1 € 7,44 € 9
NA DOPYT
20.1 E01000000002 ENGINE ASSEMBLY(CVTech CVT)  1 € 4 528,10 € 5 570
NA DOPYT
20.2 E01000000005 R/B E01-0000001-000-01 ENGINE ASSEMBLY(CHANGXING CVT)  1 € 4 225,21 € 5 197
NA DOPYT
21 R/B A02C01000002 ENGINE HANGING (Ref. č 21) A02C01000001 R/B A02C01000002 ENGINE HANGING  1 € 2,48 € 3
NA DOPYT
22 HEXAGON FLANGE BOLT M10×1.25×215 (Ref. č 22) GBT005789064 HEXAGON FLANGE BOLT M10×1.25×215  1 € 6,69 € 8
SKLADOM

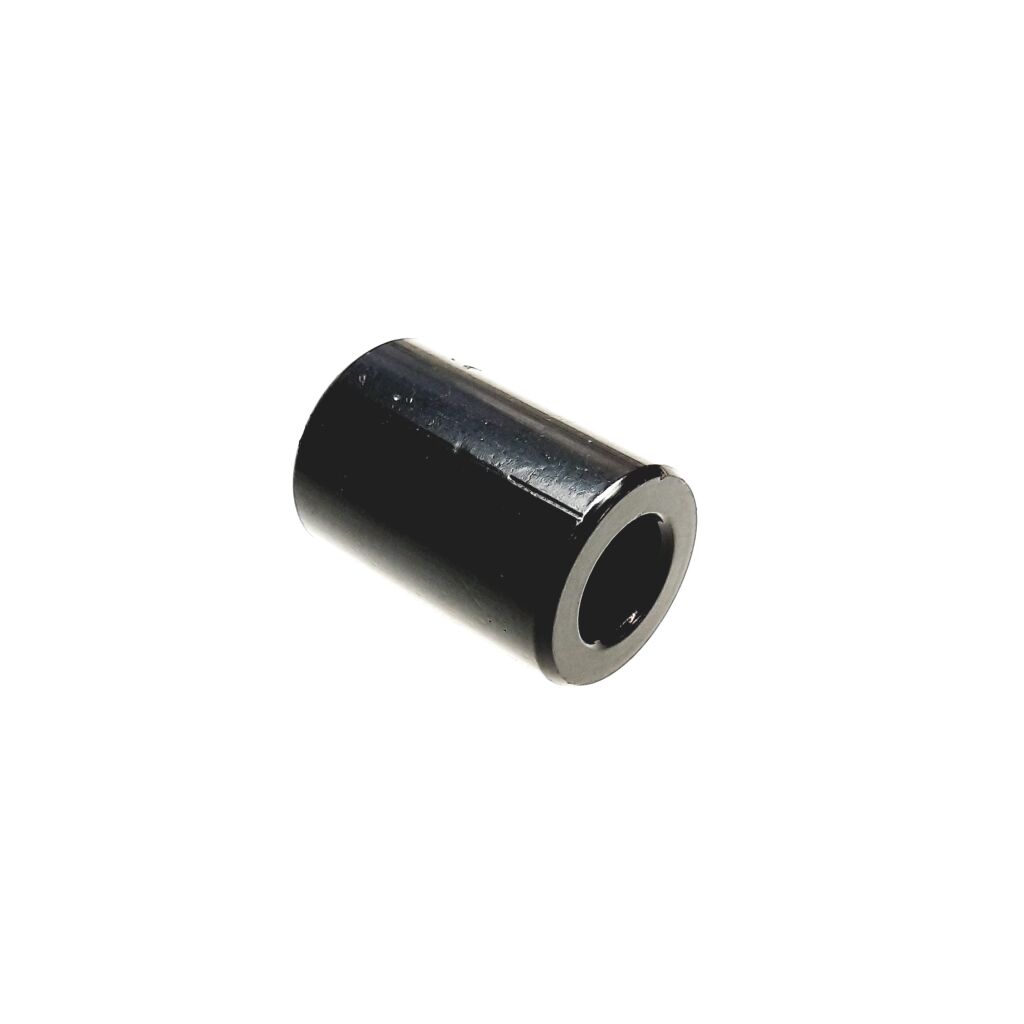

23 R/B T02000005002 REAR AXLE LEFT BUSHING (Ref. č 23) T02000005001 R/B T02000005002 REAR AXLE LEFT BUSHING  1 € 5,04 € 6
NA DOPYT
24 REAR AXLE SNORKEL (Ref. č 24) A02A10002001 REAR AXLE SNORKEL  1 € 25,37 € 31
SKLADOM
25 CLAMP,SPRINGBAND 11 (Ref. č 25) QCT006211003 CLAMP,SPRINGBAND 11  1 € 2,15 € 3
SKLADOM
26.1 REAR AXLE ASSEMBLY(no differential,no ABS,four brake) (Ref. č 26-1) Q02R00000002 REAR AXLE ASSEMBLY(no differential,no ABS,four brake)  1 € 823,80 € 1 013
NA DOPYT
26.2 Q02R00000004 REAR AXLE ASSEMBLY(no differential,NO ABS,three brake) (240ml)  1 € 944,71 € 1 162
SKLADOM

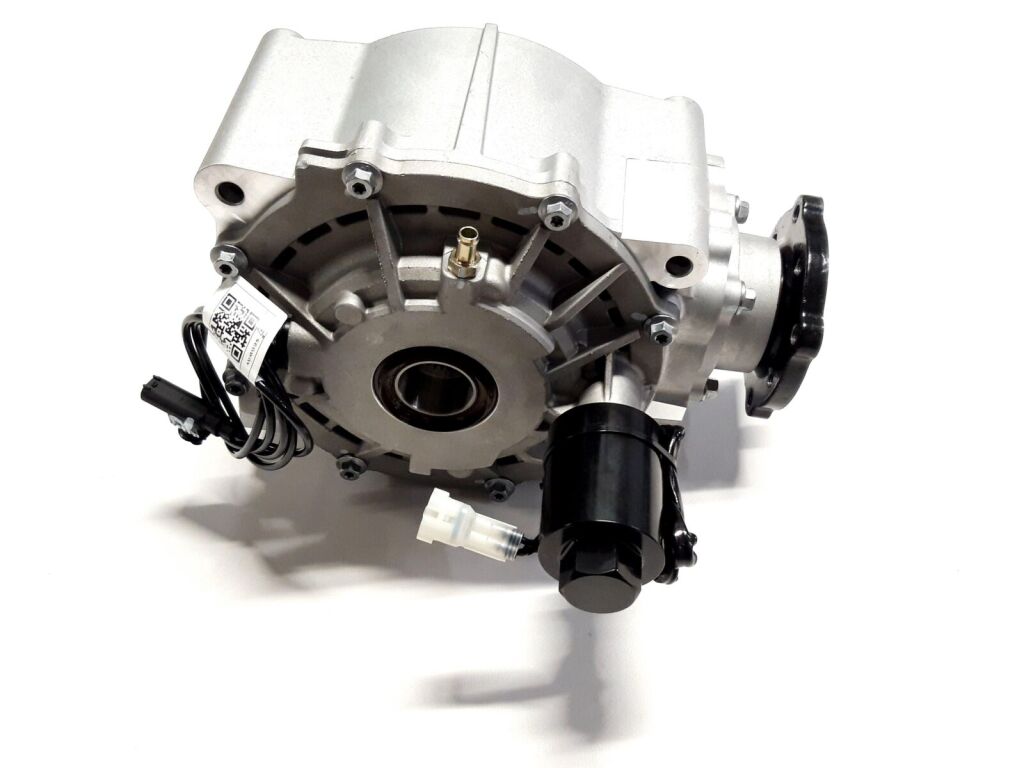

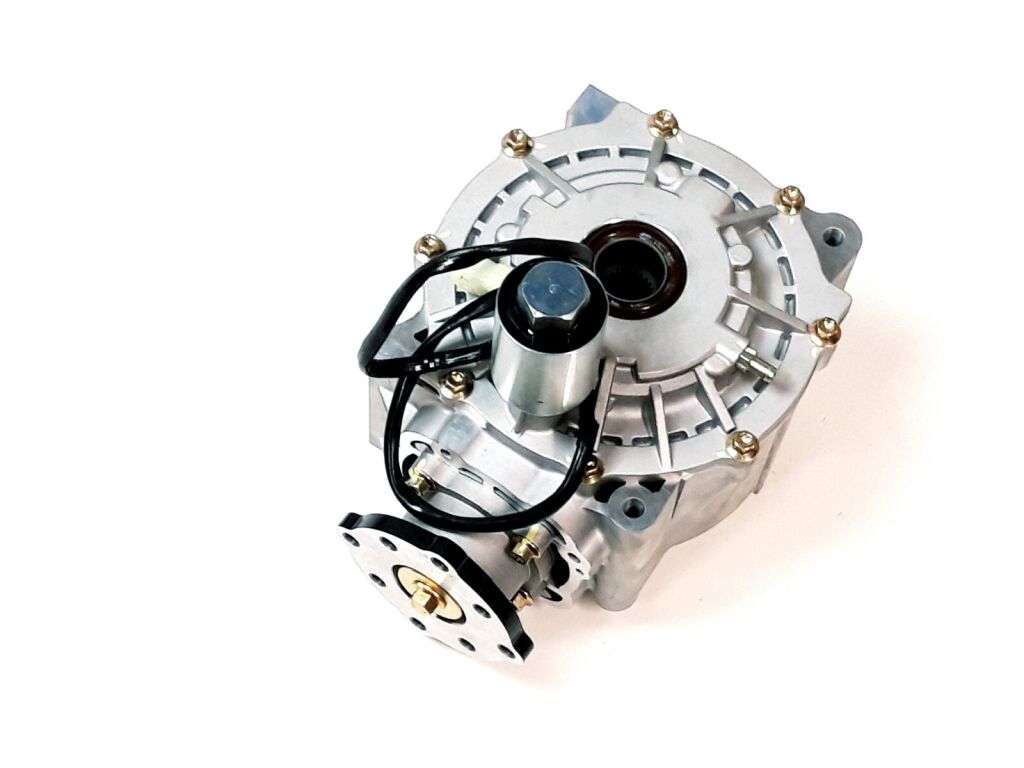

26.3 REAR AXLE ASSEMBLY(with differential and ABS) (Ref. č 26-3) Q01R00000002 REAR AXLE ASSEMBLY(with differential and ABS)  1 € 944,71 € 1 162
SKLADOM
26.4 REAR AXLE ASSEMBLY(with differential,no ABS) (Ref. č 26-4) Q01R00000004 REAR AXLE ASSEMBLY(with differential,no ABS)  1 € 944,71 € 1 162
SKLADOM
27 R/B T02000006002 REAR AXLE RIGHT BUSHING (Ref. č 27) T02000006001 R/B T02000006002 REAR AXLE RIGHT BUSHING  1 € 5,04 € 6
NA DOPYT
28 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 28) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  4 € 2,18 € 3
SKLADOM
29 HEXAGON FLANGE BOLT M8×40 (Ref. č 29) GBT005789019 HEXAGON FLANGE BOLT M8×40  2 € 2,18 € 3
SKLADOM
30 R/B U01-A3A3010-000-01 HANGING BUFFER SLEEVE (Ref. č 30) U01A30100001 R/B U01-A3A3010-000-01 HANGING BUFFER SLEEVE  1 € 15,04 € 19
NA DOPYT
18 SEAL (Ref. č 18) A02A10001001 SEAL  1 € 2,48 € 3
SKLADOM

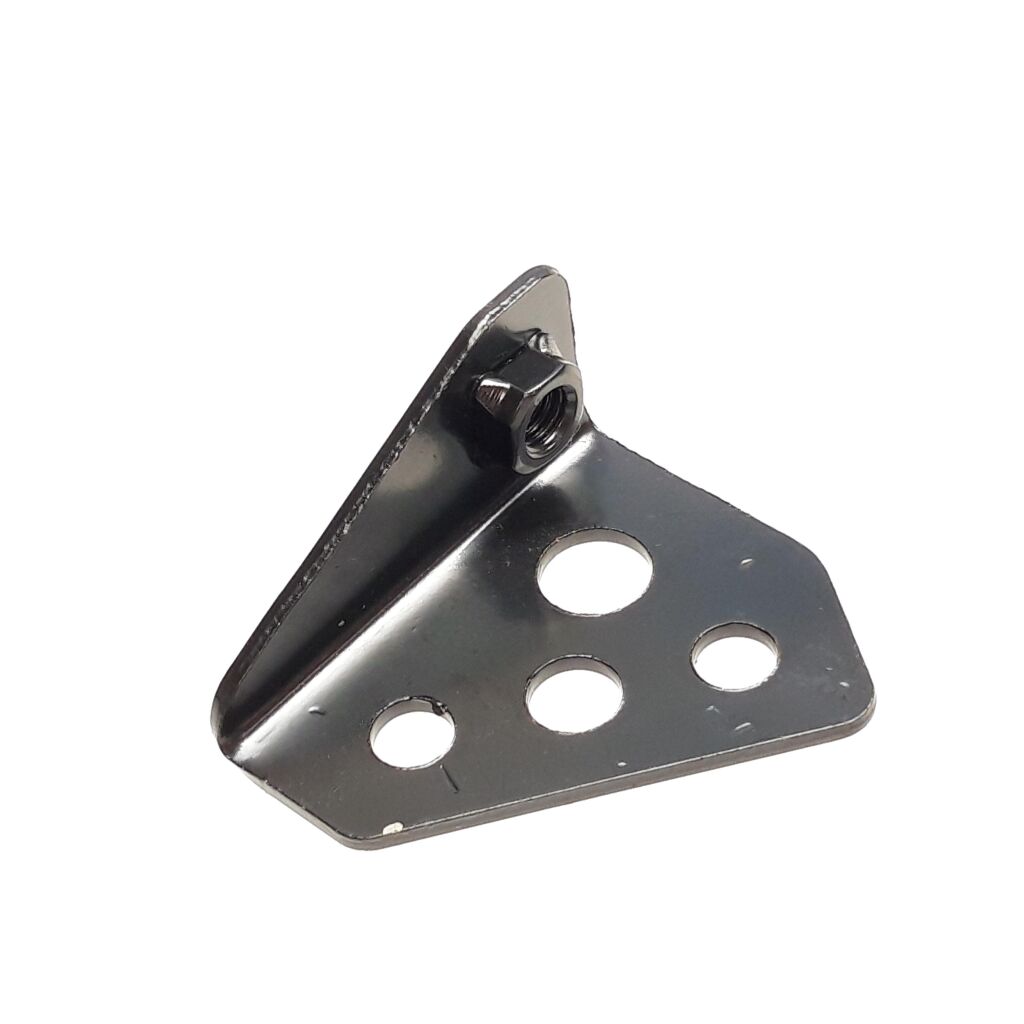

17 R/B A01C04000002 INSTALLATION PIECE (Ref. č 17) A02C00004001 R/B A01C04000002 INSTALLATION PIECE  1 € 15,70 € 19
SKLADOM
2 GBT005789031 HEXAGON FLANGE BOLT M10×1.25×50  1 € 2,48 € 3
NA DOPYT
3 T02000021001 R/B T02000021002 FRONT AXLE RIGHT BUSHING  1 € 5,79 € 7
NA DOPYT

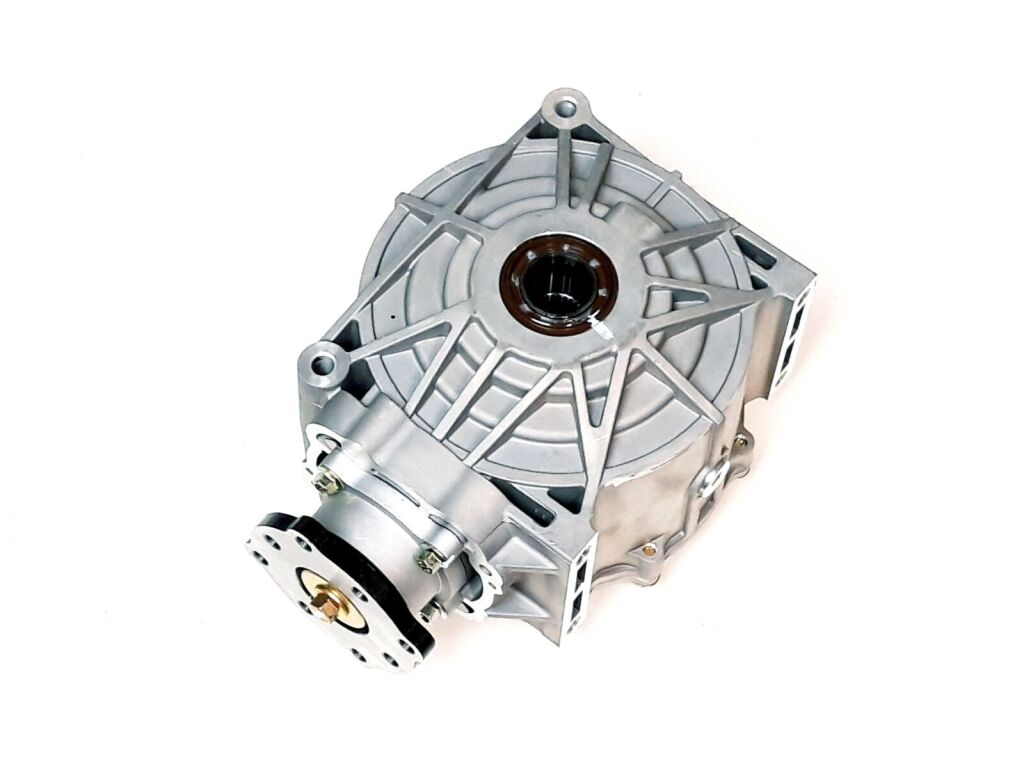

4 FRONT AXLE ASSEMBLY (260ml) (Ref. č 4) Q02F00000001 FRONT AXLE ASSEMBLY (260ml)  1 € 774,46 € 953
SKLADOM
5.1 A01B10000008 FRAME WELDING COMPONENTS（BRUSHLESS, SHORT VEHICLE）  1 € 3 289,92 € 4 047
NA DOPYT
5.2 A01B10000010 FRAME WELDING COMPONENTS（BRUSHED, SHORT VEHICLE）  1 € 3 335,37 € 4 103
SKLADOM
6 HEXAGON FLANGE BOLT M10×1.25×180 (Ref. č 6) GBT005789109 HEXAGON FLANGE BOLT M10×1.25×180  1 € 2,48 € 3
SKLADOM
7 R/B A02C13000002 FRONT AXLE BRACKET ASSEMBLY (Ref. č 7) A02C13000001 R/B A02C13000002 FRONT AXLE BRACKET ASSEMBLY  1 € 35,45 € 44
SKLADOM
8 BOLT M8×20 (Ref. č 8) GBT005789015 BOLT M8×20  3 € 2,18 € 3
SKLADOM
9 HEXAGON FLANGE BOLT M10×1.25×90 (Ref. č 9) GBT005789036 HEXAGON FLANGE BOLT M10×1.25×90  1 € 2,15 € 3
SKLADOM
10 GBT000701009 R/B GBT000701026 HEXAGON SOCKET HEAD SCREW M6×12  2 € 2,48 € 3
NA DOPYT
11 ALL-METALLIC HEXAGON FLANGE NUT M12×1.25 (Ref. č 11) GBT061872003 ALL-METALLIC HEXAGON FLANGE NUT M12×1.25  2 € 2,18 € 3
SKLADOM
12 ENGINE BUMP STOP (Ref. č 12) A01A10010001 ENGINE BUMP STOP  2 € 30,58 € 38
SKLADOM ZA 20 dní
13 HEXAGON FLANGE BOLT M12×1.25×210 (Ref. č 13) GBT005789050 HEXAGON FLANGE BOLT M12×1.25×210  1 € 7,69 € 9
SKLADOM
14 Bolt M8×16 (Ref. č 14) GBT005789014 Bolt M8×16  4 € 2,18 € 3
SKLADOM
15 ENGINE SHAFT 1 (Ref. č 15) A01A10030001 ENGINE SHAFT 1  1 € 12,40 € 15
SKLADOM
16 BUFFER SLEEVE (Ref. č 16) A02A10100001 BUFFER SLEEVE  2 € 14,63 € 18
NA DOPYT
31 HEXAGON FLANGE BOLT M10×1.25×30 (Ref. č 31) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  1 € 2,48 € 3
SKLADOM
Kód produktu SGW_2_263_ATV570F-A2

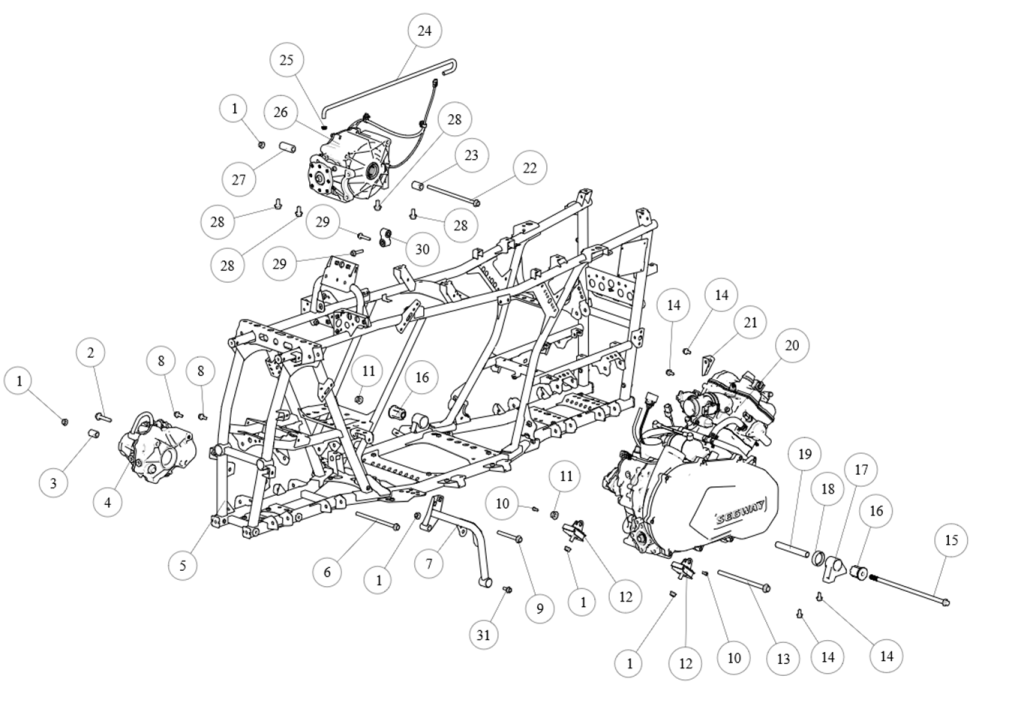

typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: AT6
MODEL: Snarler AT6 S T3b, Snarler AT6 S E5
