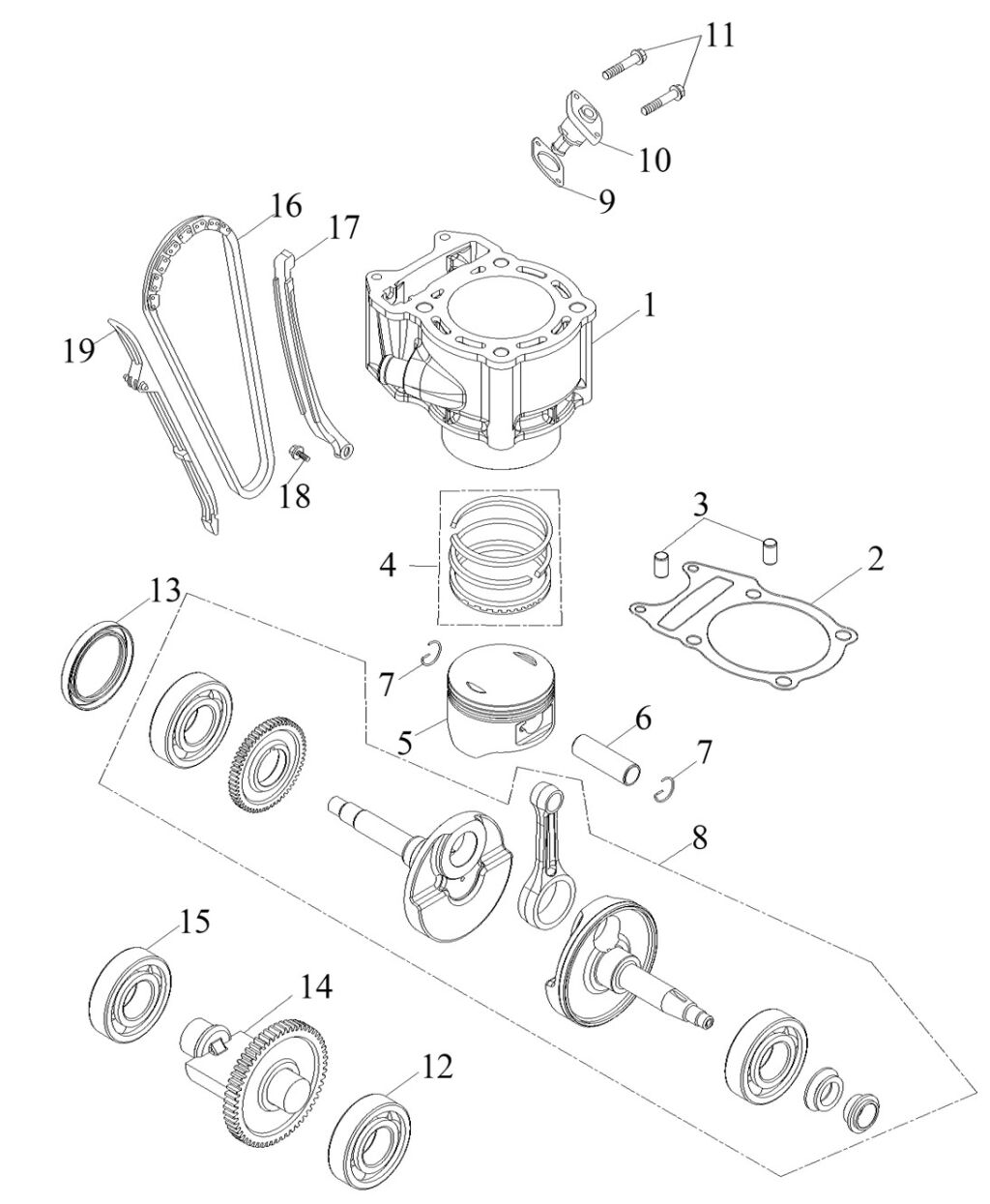

PISTON, CRANKSHAFT, CYLINDER

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  Access_E-3_Tomahawk-300
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

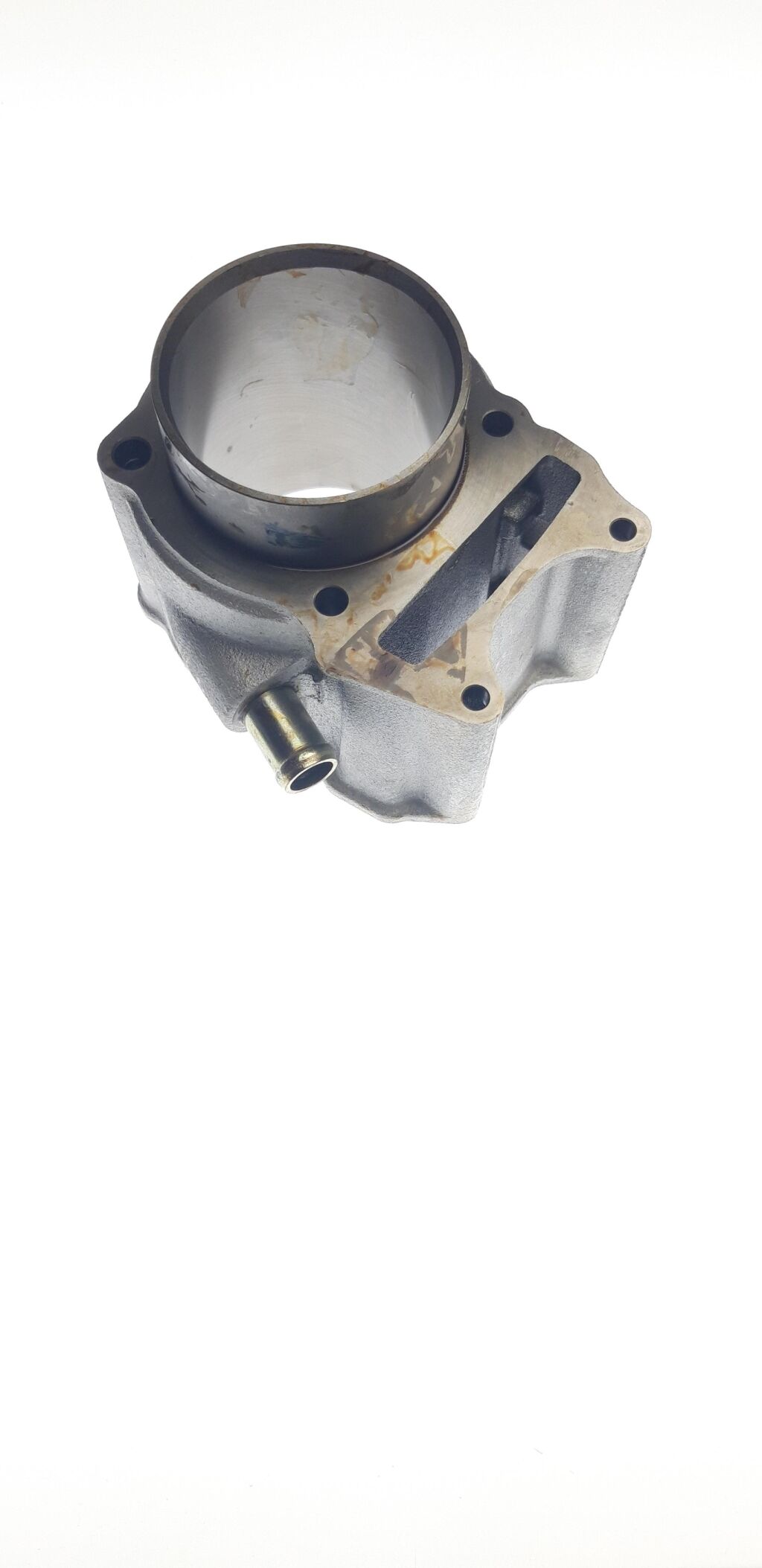

1 Cylinder E11 (Ref. č 1) 12100-E11-100 Cylinder E11  1 € 276,03 € 340
SKLADOM
18 Cam Chan Tensioner Pivot (Ref. č 18) 14505-E10-100 Cam Chan Tensioner Pivot  1 € 2,48 € 3
NA DOPYT
17 Cam Chan Tensioner (Ref. č 17) 14500-E10-000 Cam Chan Tensioner  1 € 32,23 € 40
NA DOPYT

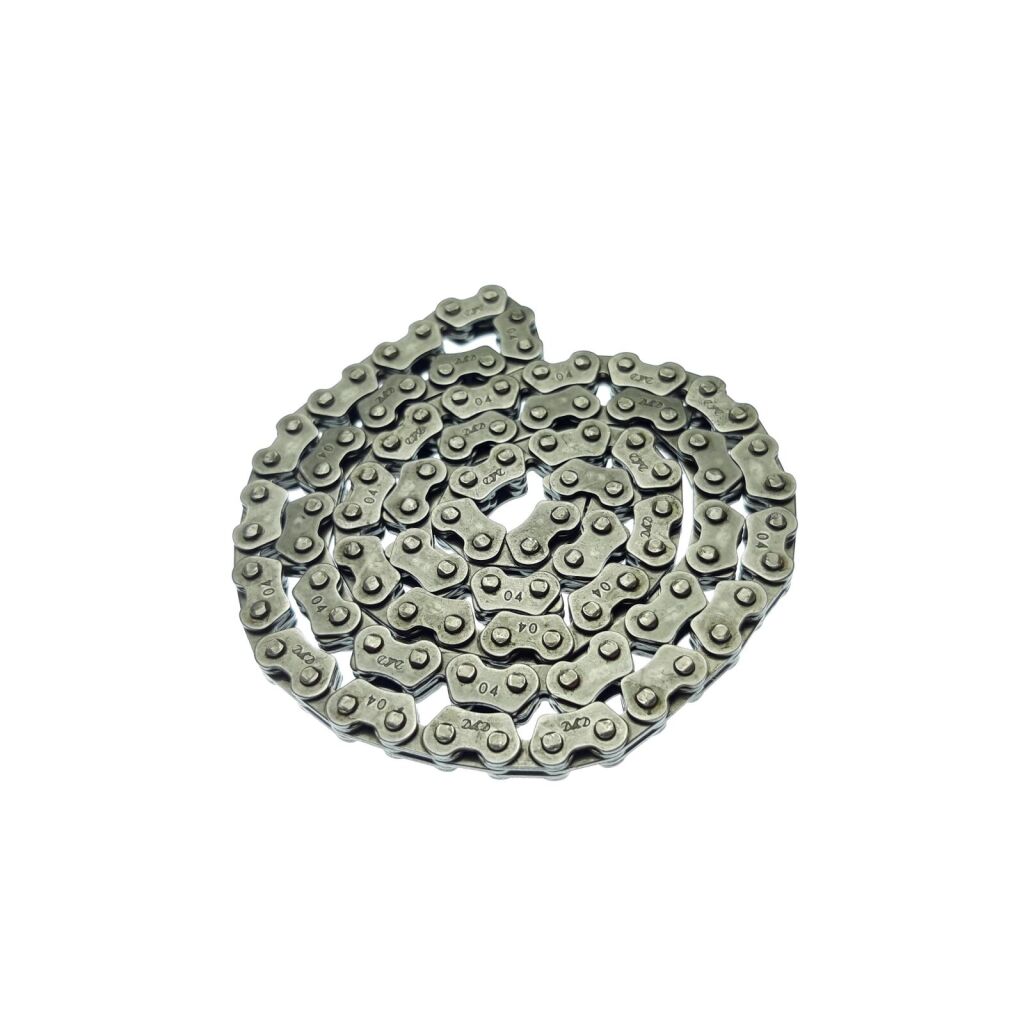

16 Chain, Cam (Ref. č 16) 23318-E11-100 Chain, Cam  1 € 20,66 € 25
SKLADOM
15 Bearing,Ball (Ref. č 15) 95100-T6205 Bearing,Ball  1 € 4,96 € 6
NA DOPYT
14 22370-E11-000 Shaft, Balance  1 € 76,03 € 94
NA DOPYT
13 Seal, Oil (Ref. č 13) 96100-274207 Seal, Oil  1 € 9,92 € 12
NA DOPYT
11 Hex.Washer Face Bolt (Ref. č 11) P91700-06016-08G Hex.Washer Face Bolt  2 € 2,48 € 3
SKLADOM

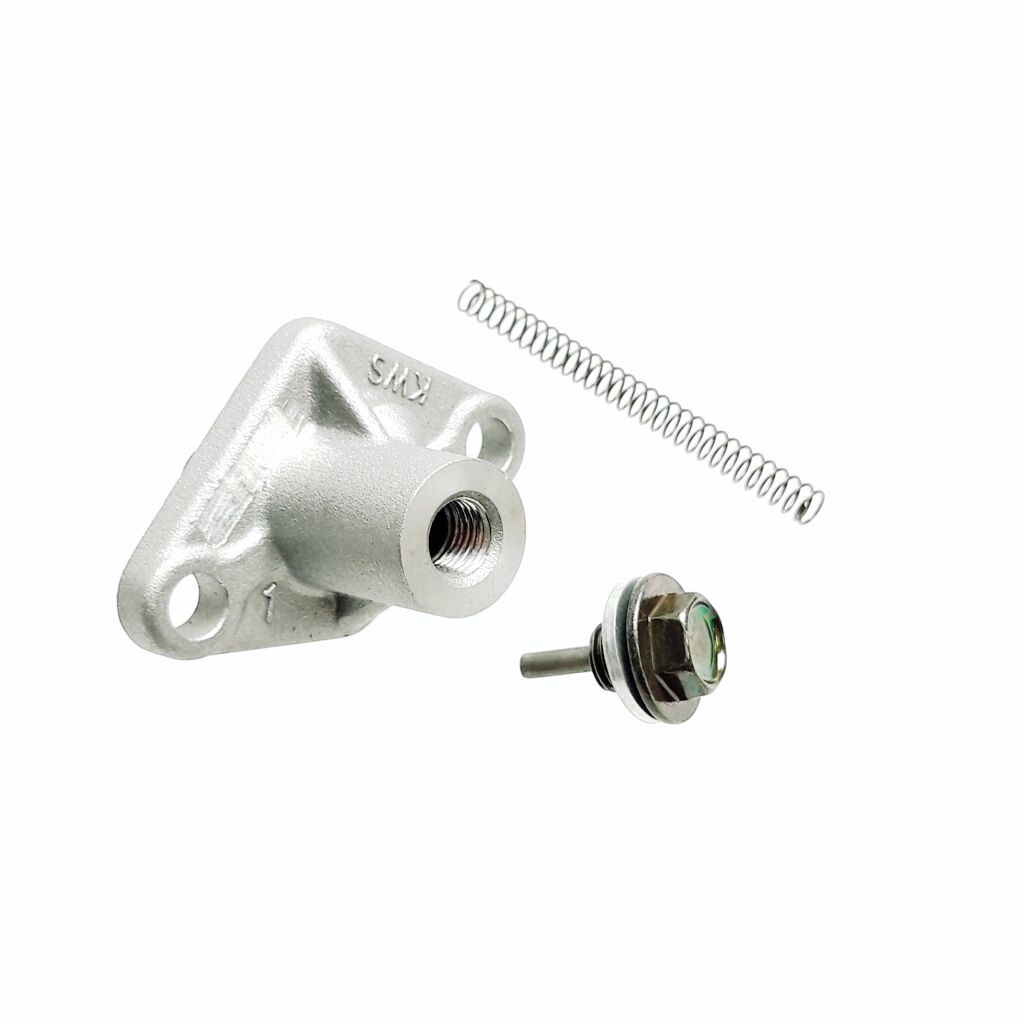

10 Adjuster, Chain (Ref. č 10) 14550-E10-100 Adjuster, Chain  1 € 16,53 € 20
SKLADOM

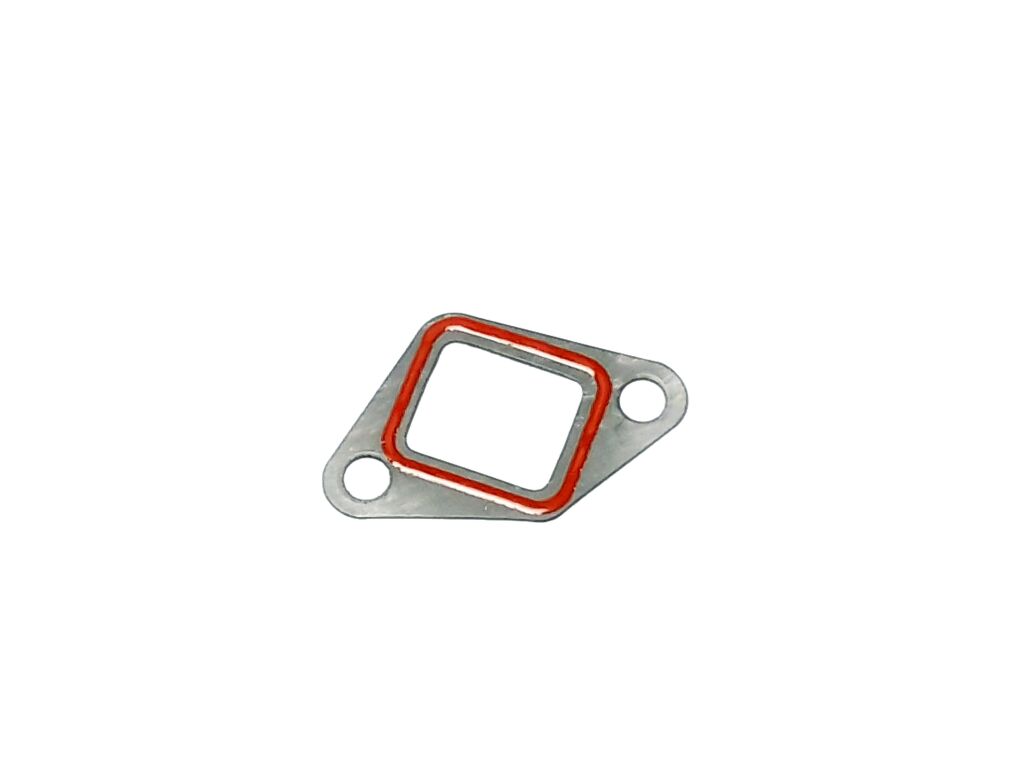

9 Gasket, Chain Tensioner (Ref. č 9) 14553-E10-000 Gasket, Chain Tensioner  1 € 2,48 € 3
SKLADOM
8 Crankshaft Ass'y 300cc (Ref. č 8) 13000-E11-A00 Crankshaft Ass'y 300cc  1 € 405,79 € 499
SKLADOM

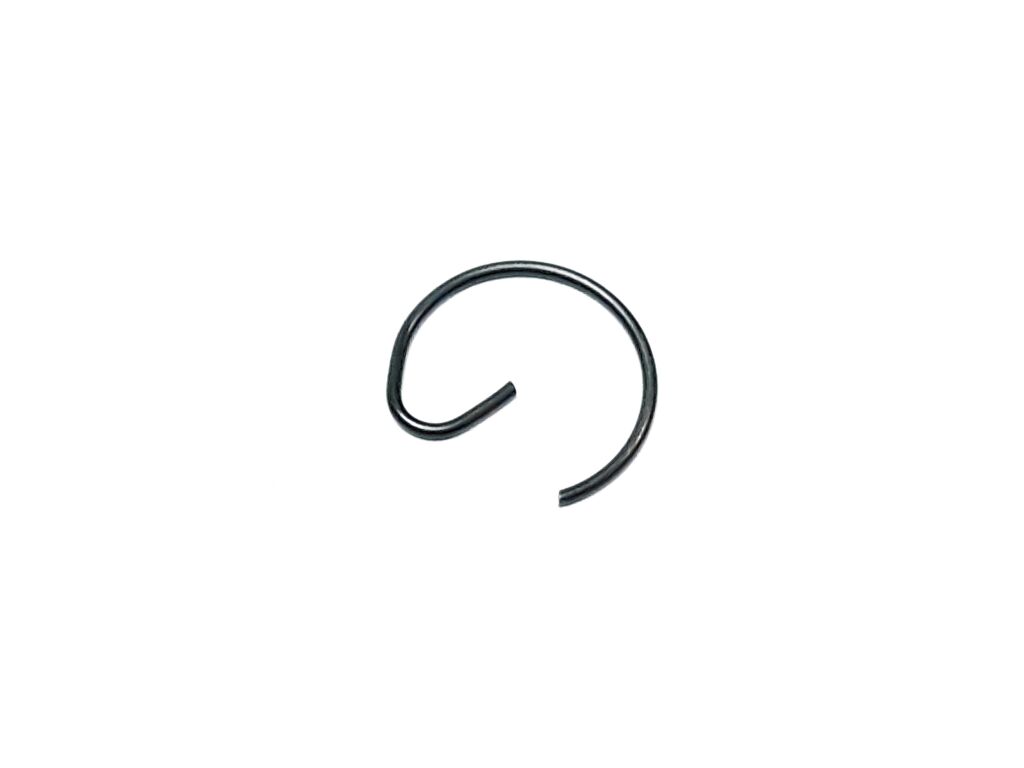

7 Clip, Piston Pin (Ref. č 7) 13410-E10-000 Clip, Piston Pin  2 € 2,48 € 3
SKLADOM
6 Pin, Piston (Ref. č 6) 13400-E11-100 Pin, Piston  1 € 4,96 € 6
SKLADOM

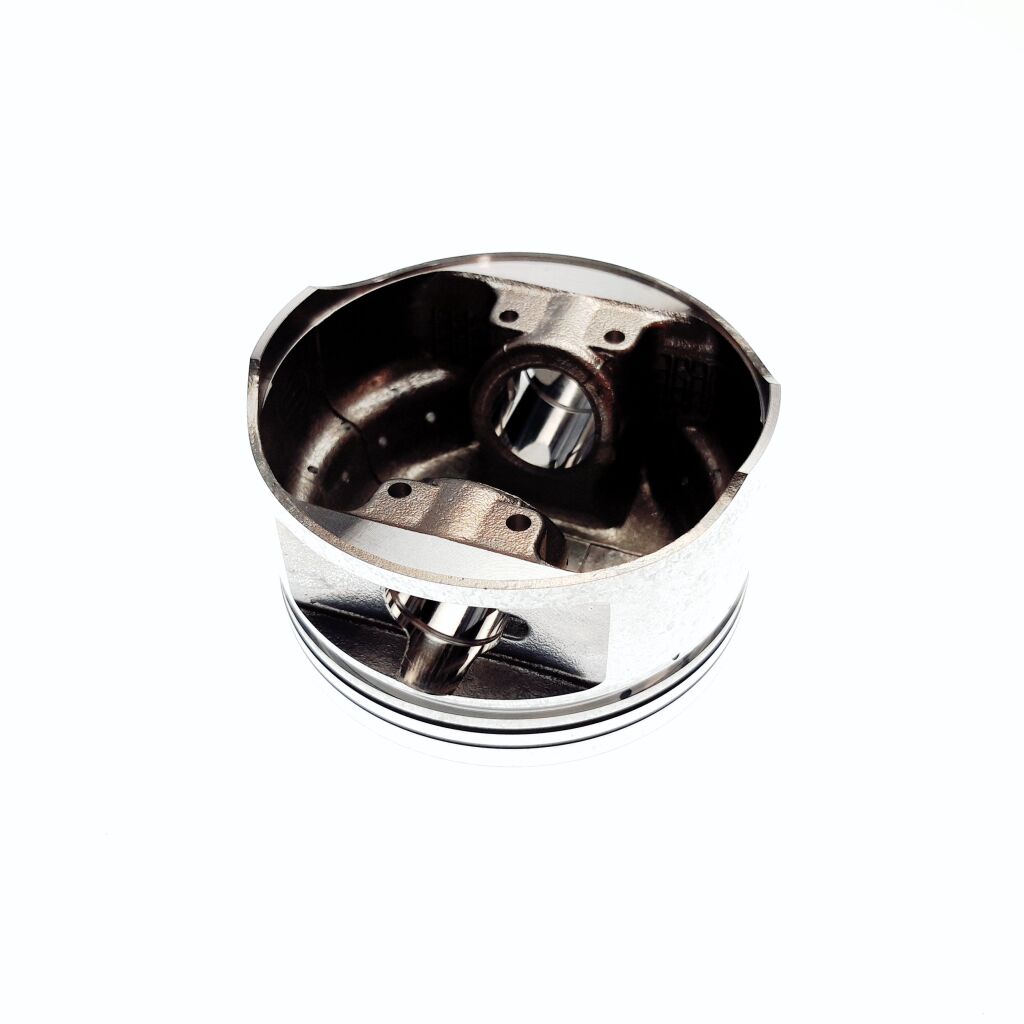

5 Piston(std.) E11 300cc (Ref. č 5) 13300-E11-000 Piston(std.) E11 300cc  1 € 29,75 € 37
SKLADOM
4 Rings, Piston (std.) E11 (Ref. č 4) 13310-E11-000 Rings, Piston (std.) E11  1 € 27,27 € 34
SKLADOM
3 Pin, Dowel (Ref. č 3) 94001-100140 Pin, Dowel  2 € 2,48 € 3
SKLADOM

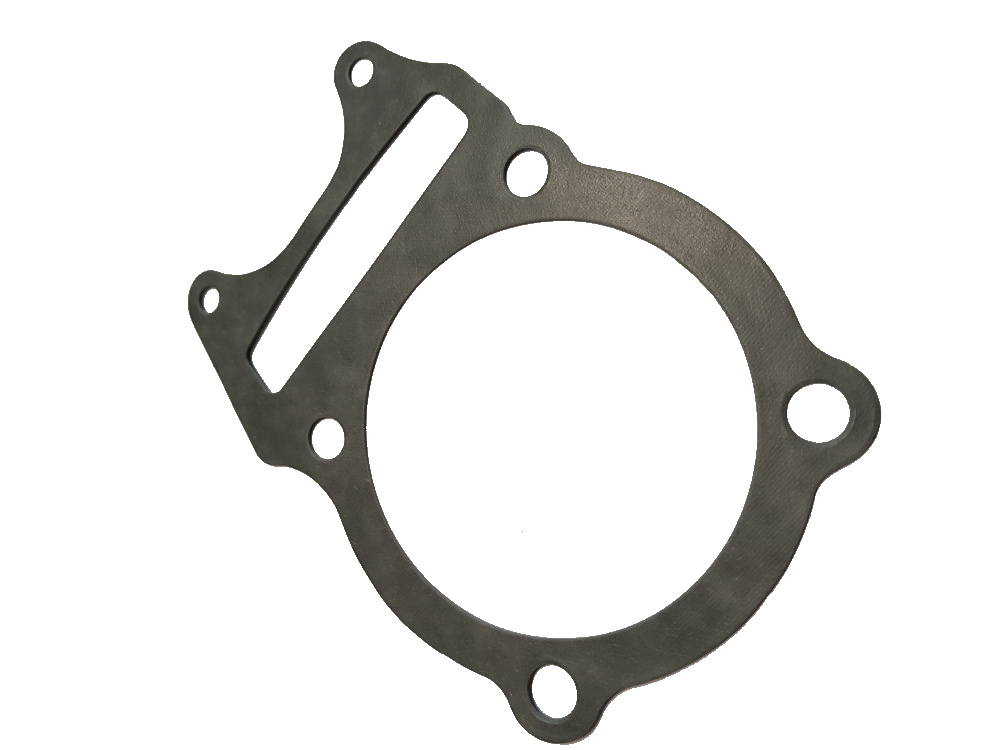

2 Gasket, Cylinder (Ref. č 2) 12191-E10-000 Gasket, Cylinder  1 € 4,13 € 5
SKLADOM

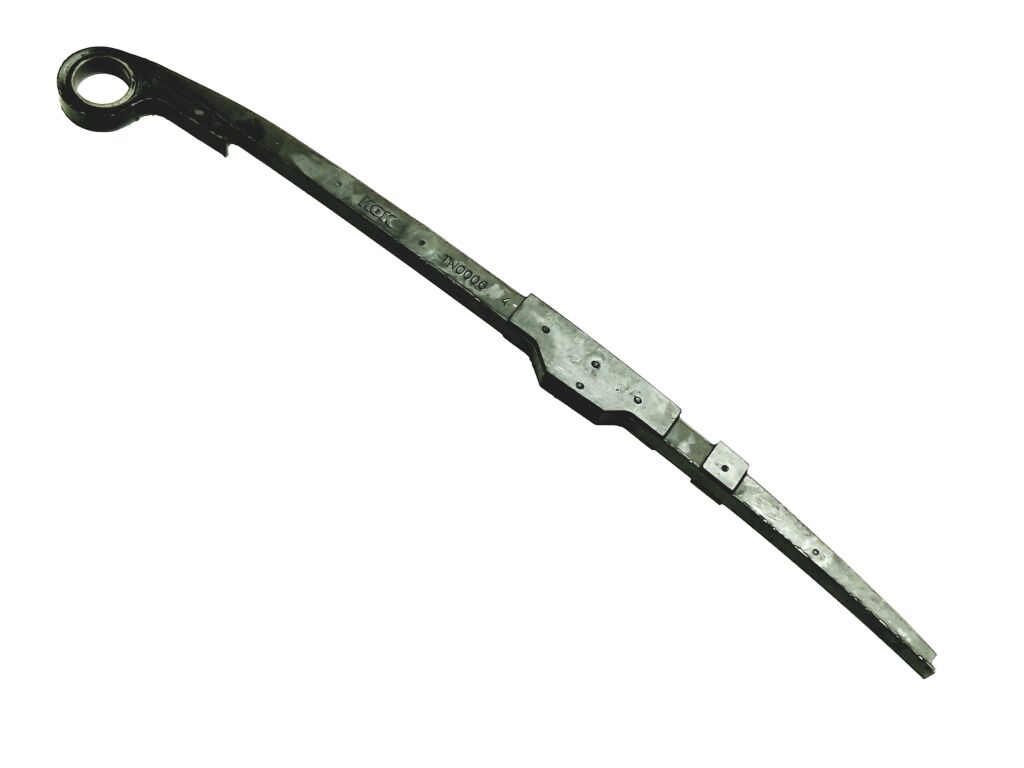

19 Cam Chan Guide Comp E11 (Ref. č 19) 14503-E11-000 Cam Chan Guide Comp E11  1 € 14,88 € 18
SKLADOM
Kód produktu Access_E-3_Tomahawk-300
typ rozkresu: ENGINE PARTS
ZNACKA: ACCESS
TYP: ACCESS Tomahawk
MODEL: TOMAHAWK 300
