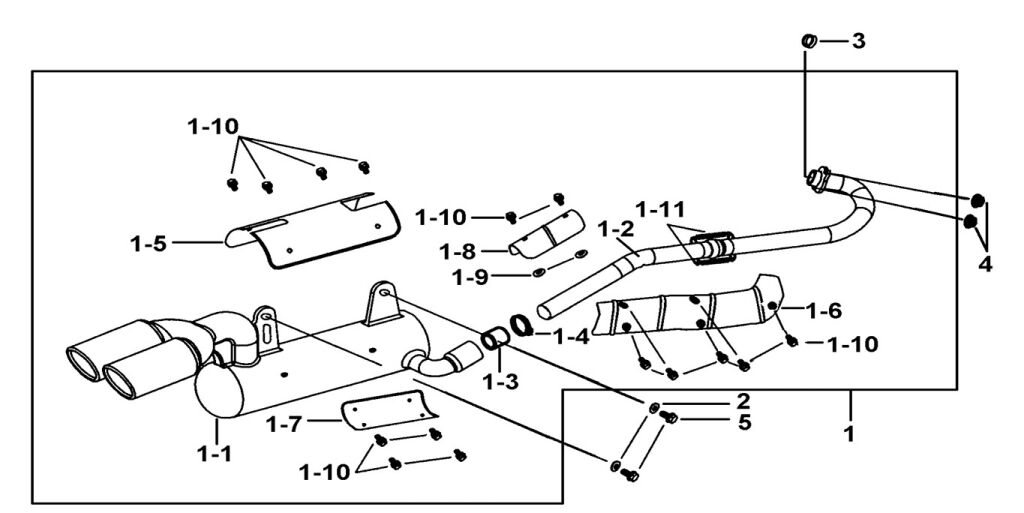

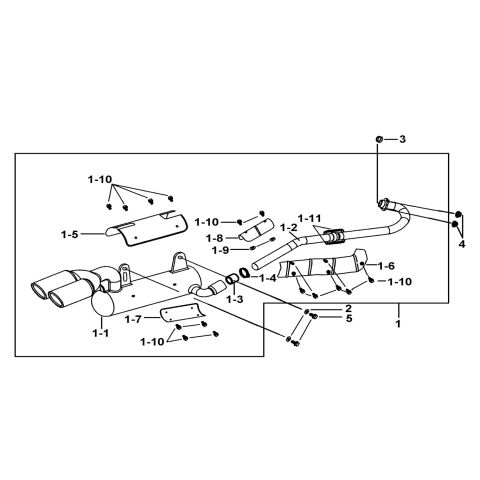

MUFFLER ASSY. (FOR BEFORE 004917 AND AFTER 006938)

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 925371 MUFFLER ASSY.

007031→

1 € 661,32 € 800,20
NA DOPYT
04 NUT,FLANGE 8mm (Ref. č 04) N10801 NUT,FLANGE 8mm  2 € 4,79 € 5,80
SKLADOM
03 GASKET, EXHAUST PIPE (Ref. č 03) 925198 GASKET, EXHAUST PIPE  1 € 14,88 € 18
SKLADOM
02 SPRING WASHER (Ref. č 02) GA556WS04 SPRING WASHER  2 € 2,40 € 2,90
SKLADOM
01.9 WASHER (Ref. č 01-9) W99506 WASHER  2 € 2,40 € 2,90
SKLADOM
01.8 925298 PROTECTOR COVER  1 € 41,32 € 50
NA DOPYT
01.7A 925548 PROTECTOR COVER

002705→

1 € 72,15 € 87,30
NA DOPYT
01.7 925292 PROTECTOR COVER

←002704

1 € 49,42 € 59,80
NA DOPYT
01.6 925567 PROTECTOR COVER  1 € 46,69 € 56,50
NA DOPYT
01.5 PROTECTOR COVER (Ref. č 01-5) 925222 PROTECTOR COVER  1 € 50,08 € 60,60
NA DOPYT
01.4 CLAMP (Ref. č 01-4) 925556 CLAMP  1 € 30,83 € 37,30
NA DOPYT
01.3 GASKET, PLUMBAGO (Ref. č 01-3) 925555 GASKET, PLUMBAGO  1 € 40,33 € 48,80
SKLADOM
01.2 925383 PIPE, MUFFLER

007031→

1 € 352,73 € 426,80
NA DOPYT
01.11 SPRING (Ref. č 01-11) 925320 SPRING  2 € 12,07 € 14,60
SKLADOM
01.10 SCREW SET, MUFFLER COVER (Ref. č 01-10) 925599 SCREW SET, MUFFLER COVER  15 € 6,61 € 8
SKLADOM
01.1 BODY COMP, MUFFLER (Ref. č 01-1) 925384 BODY COMP, MUFFLER  1 € 478,84 € 579,40
SKLADOM
05 BOLT, FLANGE (Ref. č 05) S20814 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
