MOTOR STARTING、FLYWHEEL MAGNETO、ECU

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_3_110_FBG-DE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

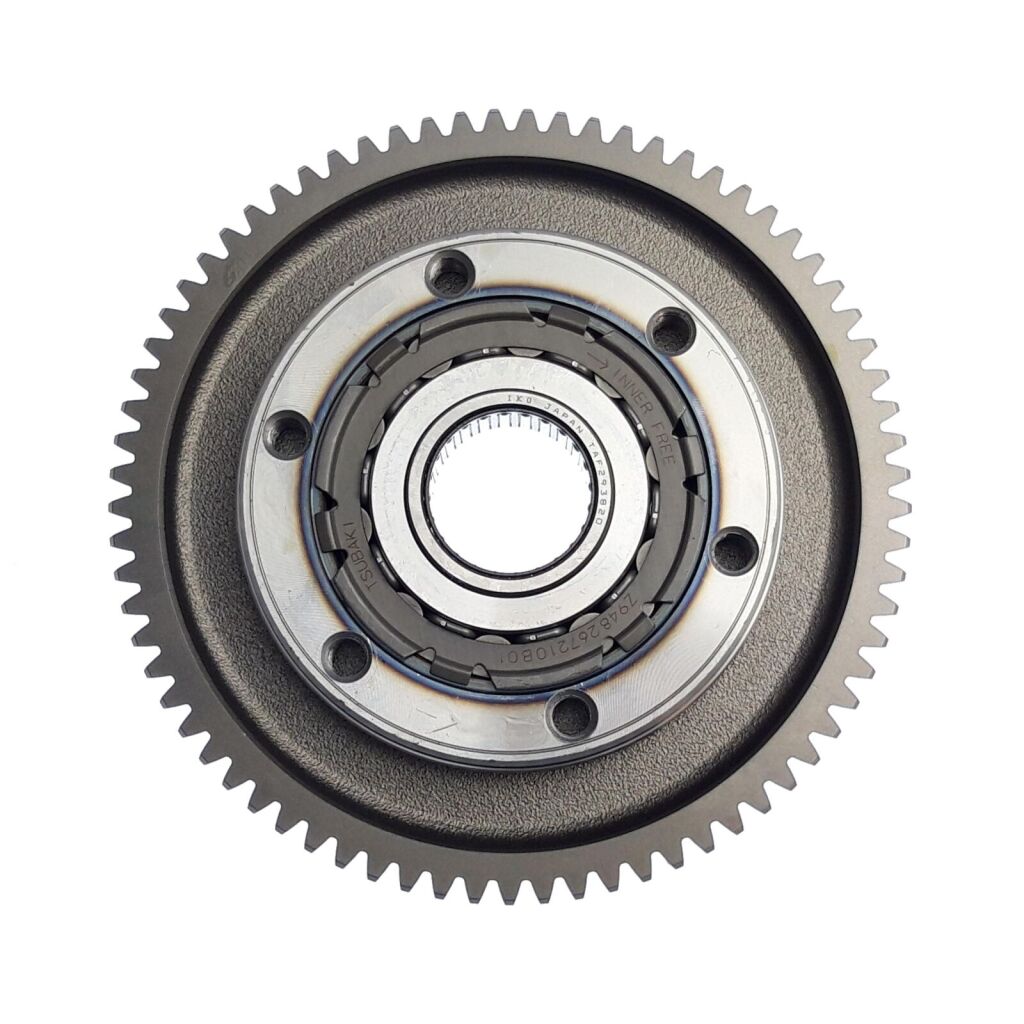

01 CLUTCH ASSY (STARTING) (Ref. č 01) 925668 CLUTCH ASSY (STARTING)  1 € 214,30 € 264
SKLADOM

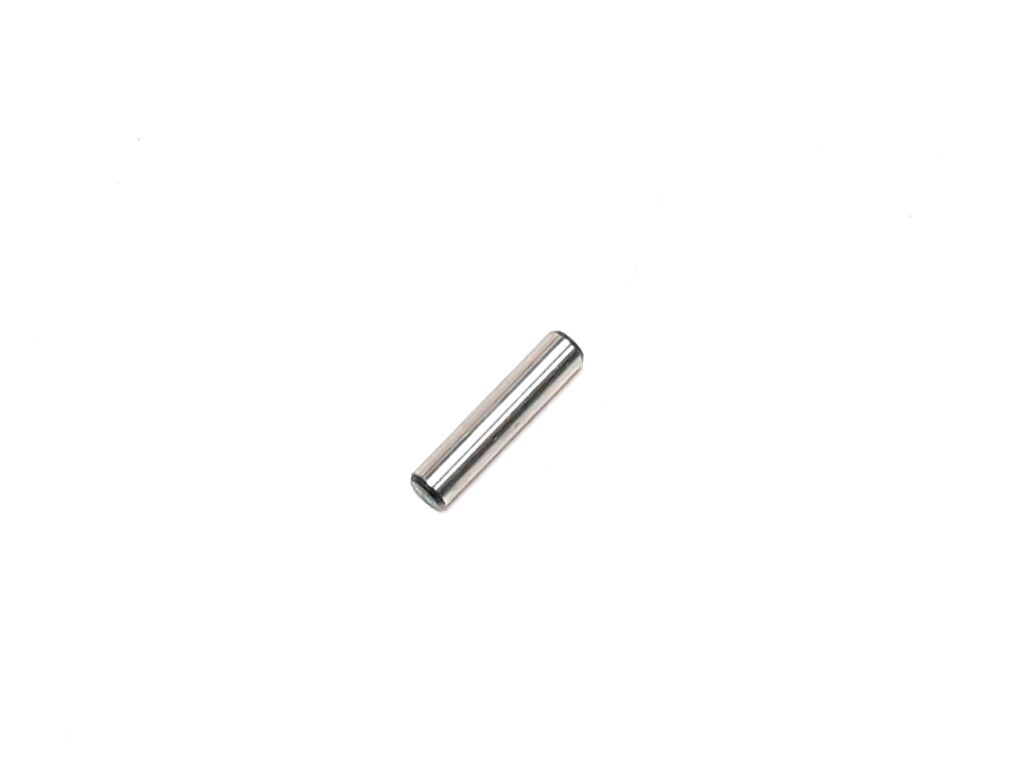

11.1 PIN (Ref. č 11-1) P30405 PIN  1 € 2,89 € 4
Naskladňujeme
11.2 GEAR, STARTER (Ref. č 11-2) 925302 GEAR, STARTER  1 € 25,87 € 32
SKLADOM
11.3 SNAP RING, C TYPE (Ref. č 11-3) R00201 SNAP RING, C TYPE  1 € 2,40 € 3
SKLADOM
12 BOLT, FLANGE 6X32 (Ref. č 12) S24607 BOLT, FLANGE 6X32  2 € 2,40 € 3
SKLADOM
13 GEAR SENSOR ASSY (Ref. č 13) 926748 GEAR SENSOR ASSY  1 € 37,85 € 47
SKLADOM
13.1 CONTACT, SWITCH, GEAR SELECT (Ref. č 13-1) 924246 CONTACT, SWITCH, GEAR SELECT  2 € 3,22 € 4
SKLADOM
13.2 SPRING, SWITCH, GEAR SELECT (Ref. č 13-2) 925858 SPRING, SWITCH, GEAR SELECT  2 € 2,40 € 3
SKLADOM

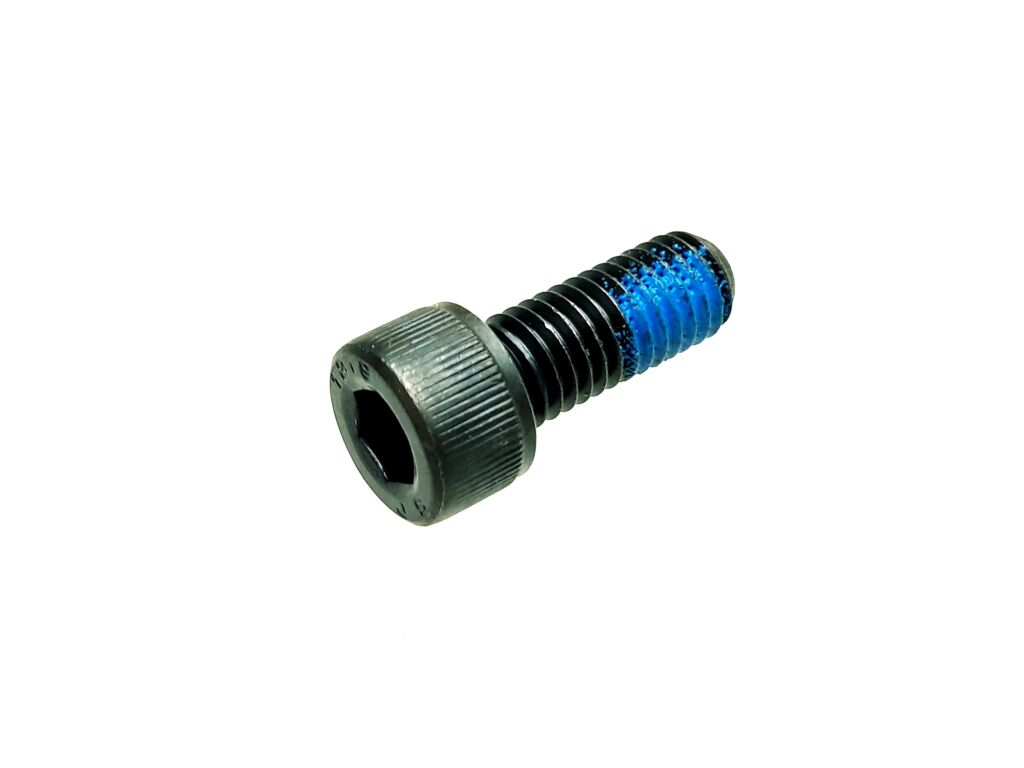

14 SCREW, SOCKET HEAD M5x16 (Ref. č 14) S79501 SCREW, SOCKET HEAD M5x16  2 € 2,40 € 3
SKLADOM

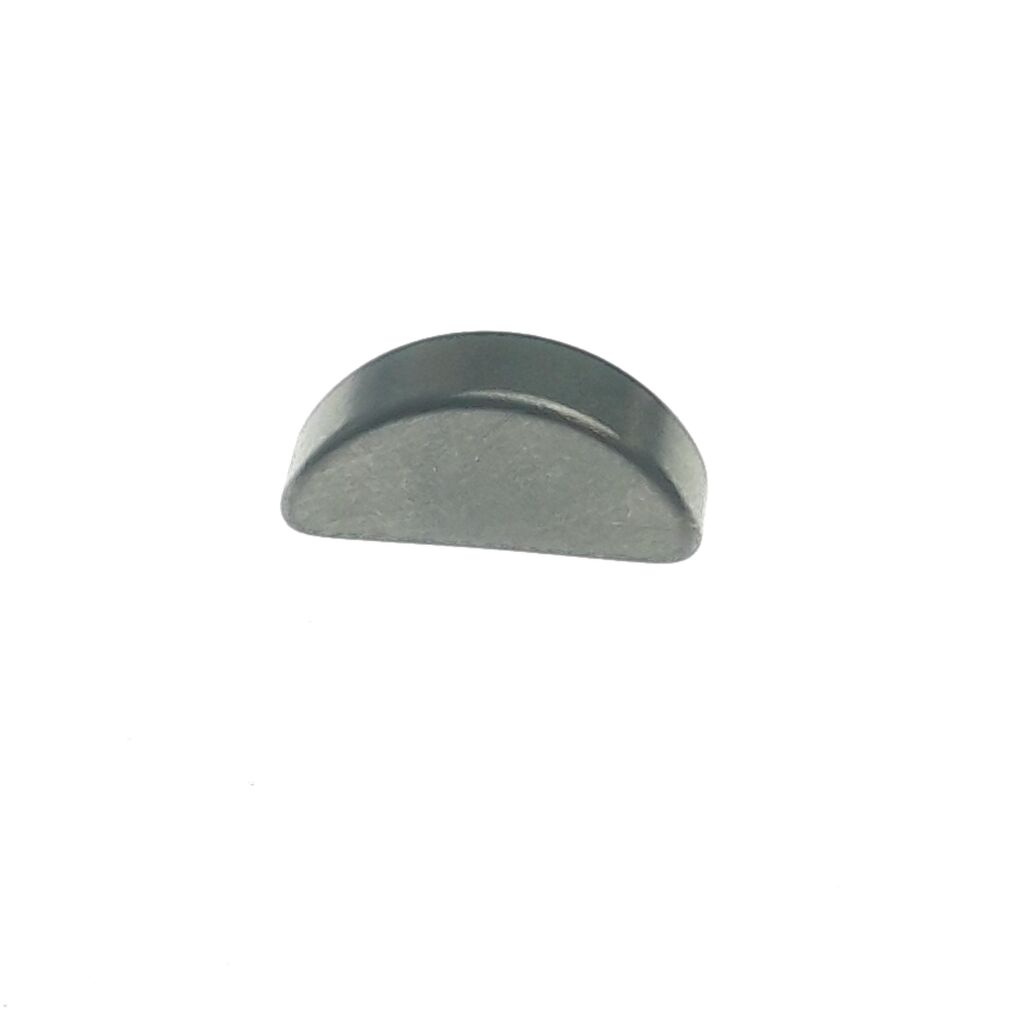

15 KEY (Ref. č 15) D9900040 KEY  1 € 4,13 € 5
SKLADOM
16 NUT, FLANGE (Ref. č 16) N10803 NUT, FLANGE  1 € 2,40 € 3
SKLADOM
17 924282 NO.2 CLAMP  1 € 2,15 € 3
NA DOPYT
11 START MOTOR ASSY (Ref. č 11) 924470E START MOTOR ASSY  1 € 193,47 € 238
SKLADOM
10 SCREW OVAL HEAD M5X10 (Ref. č 10) S13502 SCREW OVAL HEAD M5X10  3 € 2,40 € 3
SKLADOM
09 CLAMP (Ref. č 09) 924937 CLAMP  1 € 3,55 € 4
NA DOPYT
02 926023Y R/B 926023YA M3C ECU  1 € 456,03 € 561
NA DOPYT
03 926029M R/B 910715M - IGNITION HIGH TENSION LINE ASSY  1 € 48,10 € 59
NA DOPYT
03.1 SPARK PLUG ATTACHMENT (Ref. č 03-1) 926752 SPARK PLUG ATTACHMENT  1 € 32,81 € 40
SKLADOM

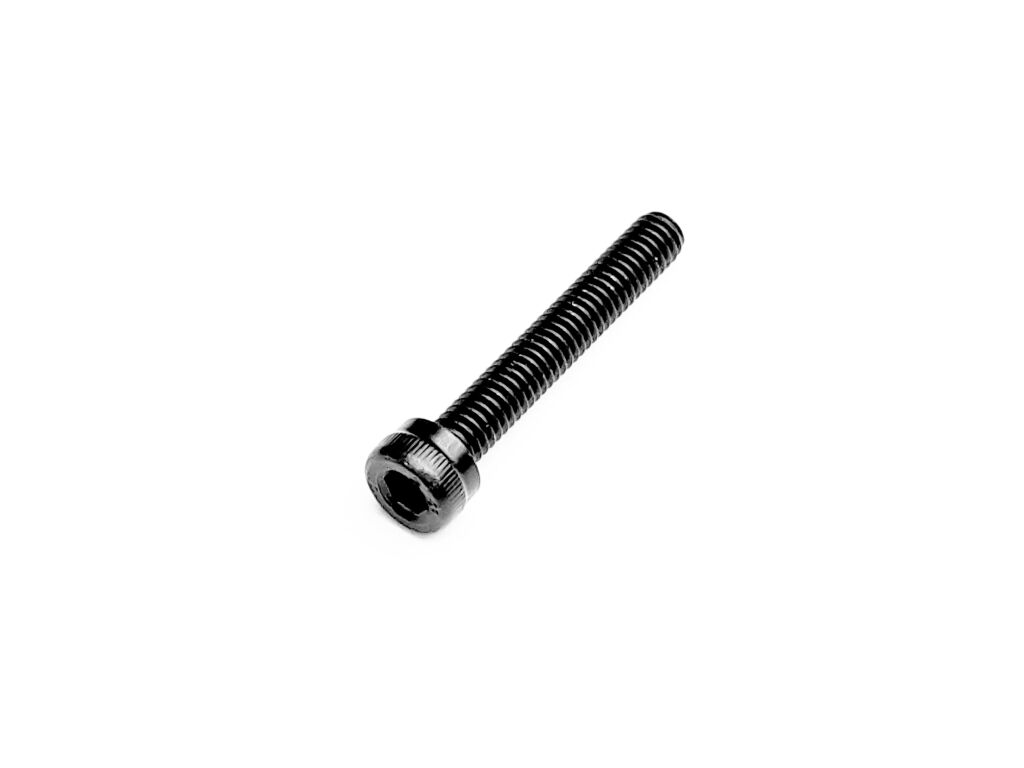

04 SCREW, SOCKET HEAD M4X25 (Ref. č 04) S70402 SCREW, SOCKET HEAD M4X25  2 € 2,40 € 3
SKLADOM
05 SCREW, SOCKET HEAD M6x20 (Ref. č 05) S70607 SCREW, SOCKET HEAD M6x20  4 € 2,40 € 3
SKLADOM
06 926714A FLYWHEEL MAGNETO ASSY  1 € 418,02 € 514
NA DOPYT
06.1 ROTOR ASSY (Ref. č 06-1) 926715 ROTOR ASSY  1 € 129,59 € 159
Naskladňujeme

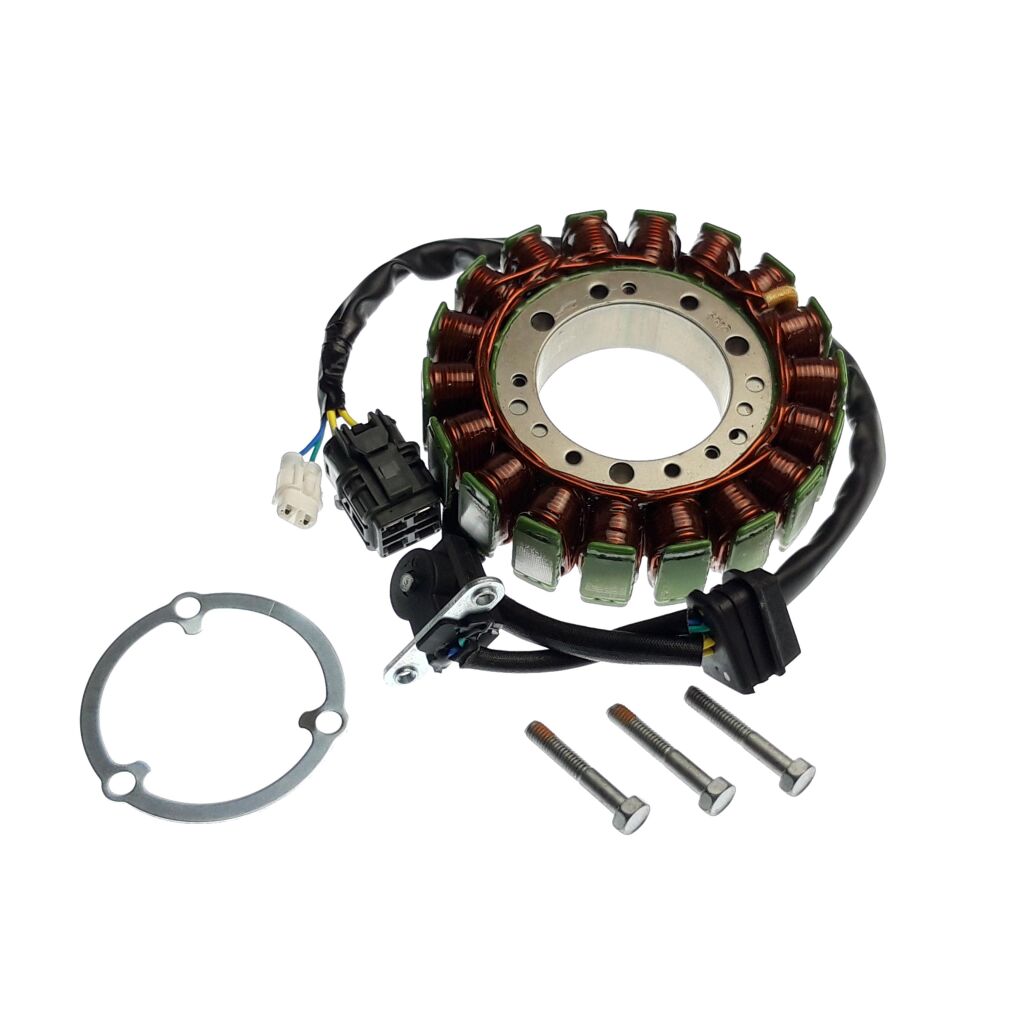

06.2 STATOR ASSY (Ref. č 06-2) 926716A STATOR ASSY  1 € 193,47 € 238
SKLADOM
06.2.1 FIXING PLATE (Ref. č 06-2-1) 925809 FIXING PLATE  1 € 3,55 € 4
SKLADOM
06.2.2 BOLT, FLANGE M6X36 (Ref. č 06-2-2) S99616 BOLT, FLANGE M6X36  3 € 2,40 € 3
SKLADOM
07 BOLT (Ref. č 07) S70811 BOLT  6 € 2,40 € 3
SKLADOM
18 CLAMP (Ref. č 18) 514410 CLAMP  3 € 2,40 € 3
SKLADOM
Kód produktu TGB_3_110_FBG-DE
typ rozkresu: ELECTRICAL PARTS
TYP: BLADE 550
ZNACKA: TGB
MODEL: BLADE 550EFI
