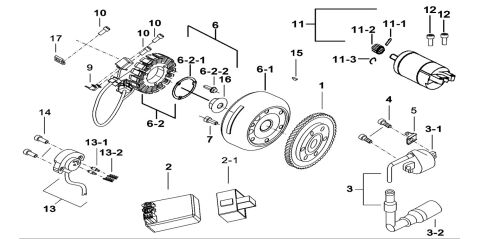

MOTOR STARTING、FLYWHEEL MAGNETO、C.D.I.

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_3_110_FBG-DL
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 CLUTCH ASSY (STARTING) (Ref. č 01) 925668 CLUTCH ASSY (STARTING)  1 € 214,30 € 264
SKLADOM
10 SCREW OVAL HEAD M5X10 (Ref. č 10) S13502 SCREW OVAL HEAD M5X10  3 € 2,40 € 3
SKLADOM
11 START MOTOR ASSY (Ref. č 11) 924470E START MOTOR ASSY  1 € 193,47 € 238
SKLADOM
11.1 PIN (Ref. č 11-1) P30405 PIN  1 € 2,89 € 4
Naskladňujeme
11.2 GEAR, STARTER (Ref. č 11-2) 925302 GEAR, STARTER  1 € 25,87 € 32
SKLADOM
11.3 SNAP RING, C TYPE (Ref. č 11-3) R00201 SNAP RING, C TYPE  1 € 2,40 € 3
SKLADOM
12 BOLT, FLANGE 6X32 (Ref. č 12) S24607 BOLT, FLANGE 6X32  2 € 2,40 € 3
SKLADOM
13 GEAR SENSOR ASSY (Ref. č 13) 926509 GEAR SENSOR ASSY  1 € 31,98 € 39
SKLADOM
13.1 CONTACT, SWITCH, GEAR SELECT (Ref. č 13-1) 924246 CONTACT, SWITCH, GEAR SELECT  2 € 3,22 € 4
SKLADOM
13.2 SPRING, SWITCH, GEAR SELECT (Ref. č 13-2) 925858 SPRING, SWITCH, GEAR SELECT  2 € 2,40 € 3
SKLADOM
14 SCREW, SOCKET HEAD M5x16 (Ref. č 14) S79501 SCREW, SOCKET HEAD M5x16  2 € 2,40 € 3
SKLADOM
15 KEY (Ref. č 15) D9900040 KEY  1 € 4,13 € 5
SKLADOM
16 NUT, FLANGE (Ref. č 16) N10803 NUT, FLANGE  1 € 2,40 € 3
SKLADOM
09 CLAMP (Ref. č 09) 924937 CLAMP  1 € 3,55 € 4
NA DOPYT
07 BOLT (Ref. č 07) S70811 BOLT  6 € 2,40 € 3
SKLADOM

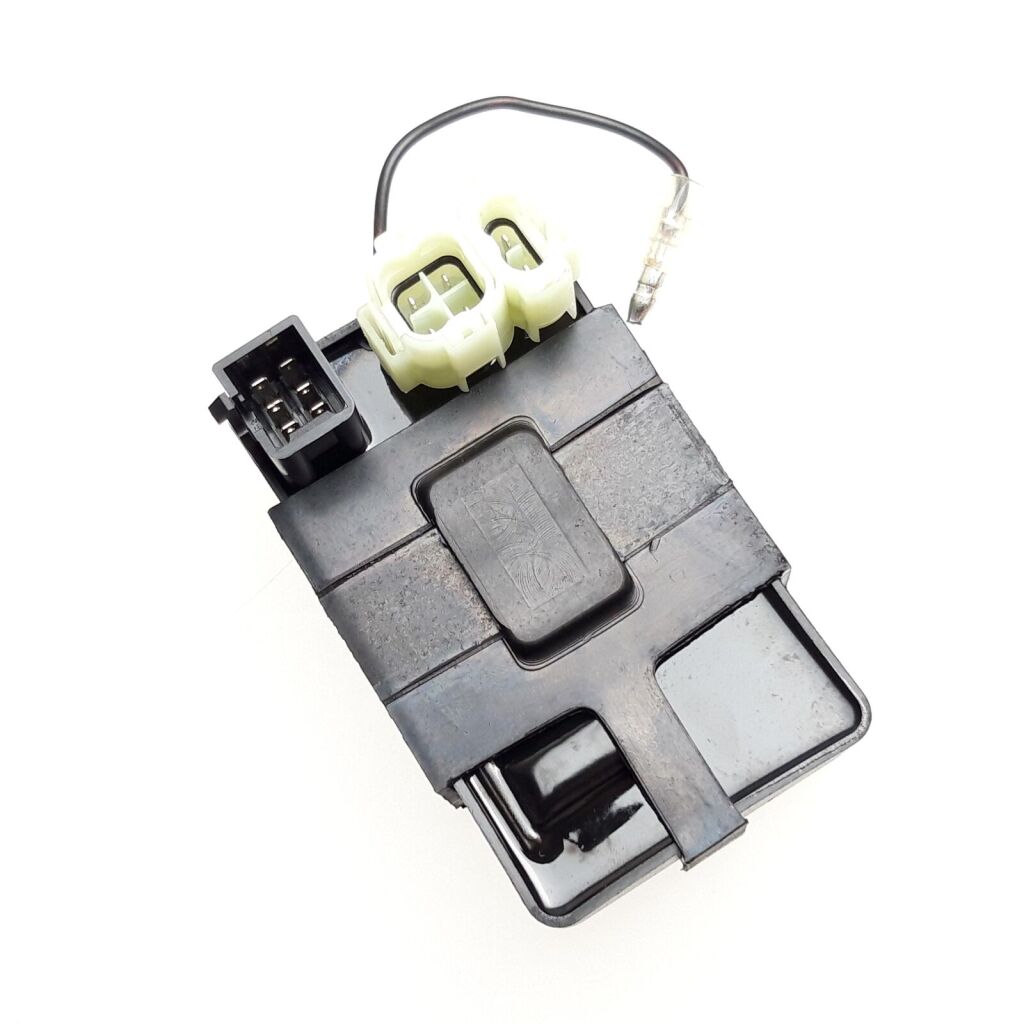

02 C.D.I. (Ref. č 02) 925842 C.D.I.  1 € 234,38 € 288
SKLADOM
02.1 BUSH, RUBBER (Ref. č 02-1) 924452 BUSH, RUBBER  1 € 5,45 € 7
SKLADOM
03 R/B 924413A LGNITION HIGH TENSION LINE ASSY. (unavailable) (Ref. č 03) 924413 R/B 924413A LGNITION HIGH TENSION LINE ASSY. (unavailable)  1 € 52,48 € 65
NA DOPYT
03.1 COIL SET, IGNITION (unavailable) (Ref. č 03-1) GE5139906 COIL SET, IGNITION (unavailable)  1 € 22,56 € 28
NA DOPYT
03.2 SPARK PLUG ATTACHMENT (Ref. č 03-2) 924285 SPARK PLUG ATTACHMENT  1 € 10,25 € 13
SKLADOM
04 SCREW, SOCKET HEAD M6x20 (Ref. č 04) S70607 SCREW, SOCKET HEAD M6x20  2 € 2,40 € 3
SKLADOM
05 EARTH TERMINAL (Ref. č 05) 440564 EARTH TERMINAL  1 € 2,40 € 3
SKLADOM
06 FLYWHEEL MAGNETO ASSY (Ref. č 06) D9900039A FLYWHEEL MAGNETO ASSY  1 € 306,45 € 377
SKLADOM
06.1 ROTOR ASSY (unavailable) (Ref. č 06-1) D9900033 ROTOR ASSY (unavailable)  1 € 129,42 € 159
NA DOPYT
06.2 STATOR ASSY. (unavailable) (Ref. č 06-2) 924415E STATOR ASSY. (unavailable)  1 € 255,04 € 314
NA DOPYT
06.2.1 FIXING PLATE (Ref. č 06-2-1) 925809 FIXING PLATE  1 € 3,55 € 4
SKLADOM
06.2.2 BOLT, FLANGE M6X36 (Ref. č 06-2-2) S99616 BOLT, FLANGE M6X36  3 € 2,40 € 3
SKLADOM
17 924282 NO.2 CLAMP  1 € 2,15 € 3
NA DOPYT
Kód produktu TGB_3_110_FBG-DL
typ rozkresu: ELECTRICAL PARTS
