Left crankcase cover sub-assembly

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_109_UT10_CREW_U5
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 LEFT CRANKCASE COVER GASKET (Ref. č 1) E02C20001001 LEFT CRANKCASE COVER GASKET  1 € 4,05 € 5
SKLADOM
16 BEARINGS 629-2RS (Ref. č 16) GBT000276027 BEARINGS 629-2RS  1 € 2,48 € 3
SKLADOM
17 BOLT M6×20 (Ref. č 17) F01000004001 BOLT M6×20  1 € 2,48 € 3
SKLADOM
18 CRANK POSITION SENSOR (CPS) (Ref. č 18) E01K00300001 CRANK POSITION SENSOR (CPS)  1 € 50 € 62
SKLADOM
19 O-Ring 17×2 (Ref. č 19) F01K00301001 O-Ring 17×2  1 € 2,48 € 3
SKLADOM
21 BOLT M6×25 (Ref. č 21) F01000005001 BOLT M6×25  9 € 2,48 € 3
SKLADOM
22 SENSOR WIRE CLAMP (Ref. č 22) F01K00003001 SENSOR WIRE CLAMP  1 € 2,48 € 3
SKLADOM
23 STATOR COVER PLUG (Ref. č 23) E01C20104001 STATOR COVER PLUG  1 € 18,93 € 23
SKLADOM
24 O-Ring 35×3.5 (Ref. č 24) E01C20107001 O-Ring 35×3.5  1 € 2,48 € 3
SKLADOM
25 BOLT M6×55 (Ref. č 25) F01000009001 BOLT M6×55  2 € 2,48 € 3
SKLADOM
26 E02-C201000-000-03 LEFT CRANKCASE COVER ASSEMBLY  1 € 81,65 € 100
NA DOPYT
27 E02C20003001 OIL PASSAGE PLUG  1 € 2,64 € 3
NA DOPYT

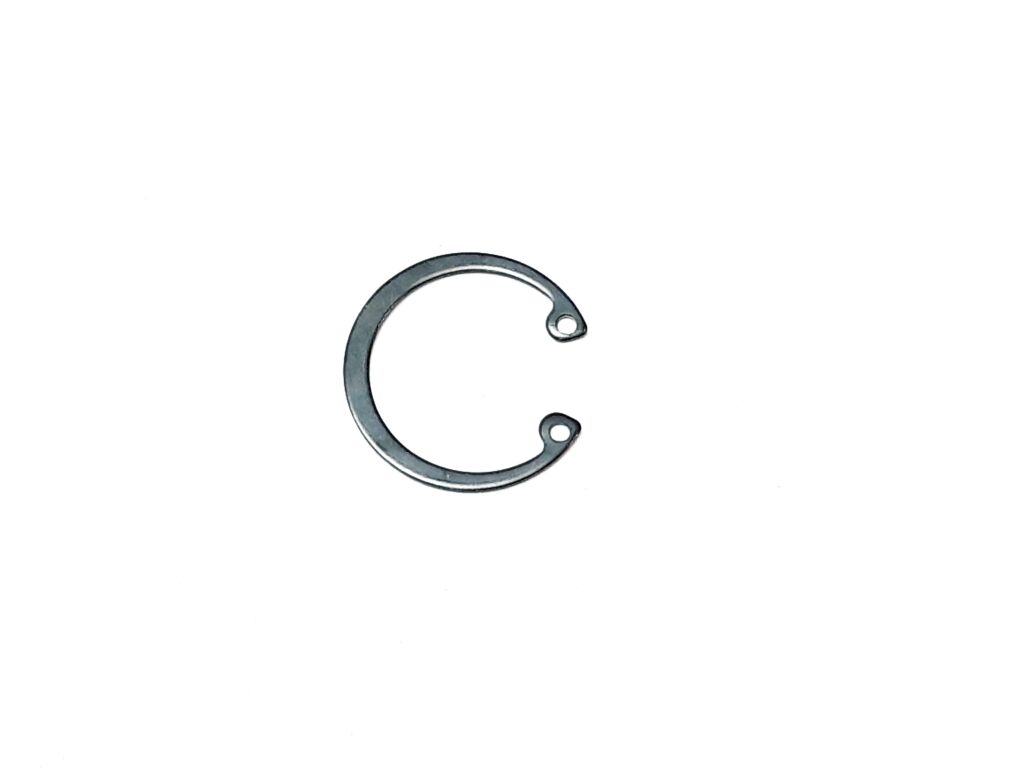

15 CIRCLIPS 26 (Ref. č 15) GBT000893005 CIRCLIPS 26  1 € 2,48 € 3
SKLADOM
14 MAGNETO CRIMPING PLATE (Ref. č 14) E02C20105001 MAGNETO CRIMPING PLATE  1 € 2,48 € 3
SKLADOM
13 WATER PIPE ADAPTER (Ref. č 13) F01H00008001 WATER PIPE ADAPTER  1 € 7,69 € 9
SKLADOM
2 BOLT M6×35 (Ref. č 2) F01000007001 BOLT M6×35  3 € 2,48 € 3
SKLADOM

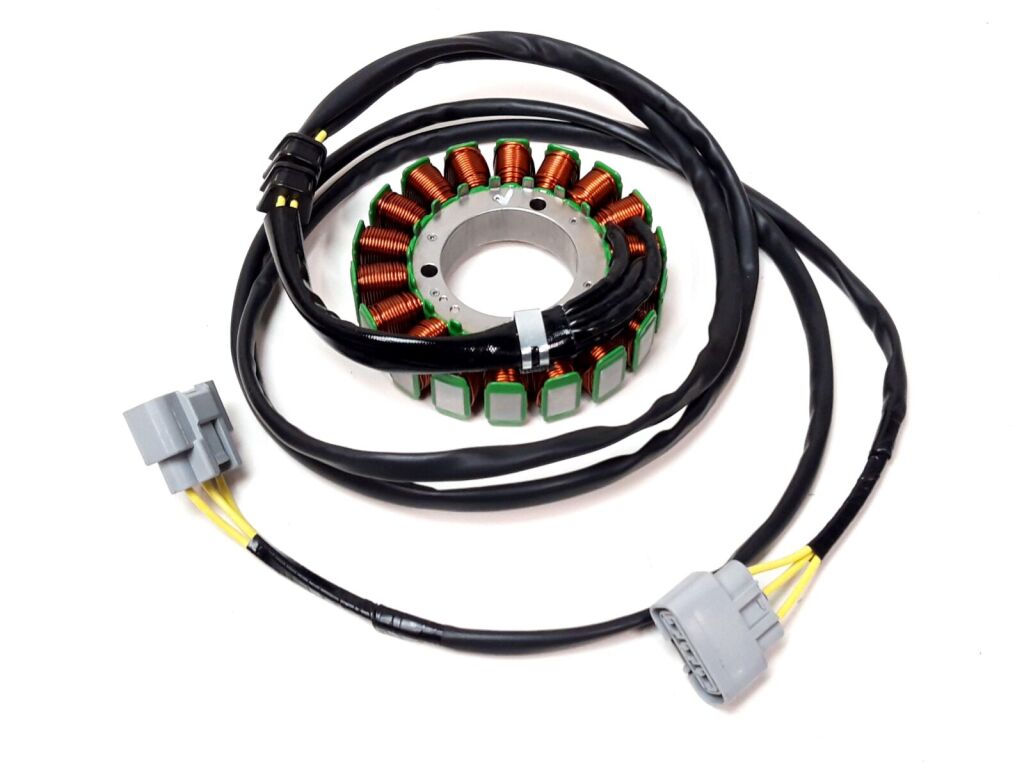

3 MAGNETO STATOR ASSEMBLY (Ref. č 3) E02-C311000-000-00 MAGNETO STATOR ASSEMBLY  1 € 206,12 € 254
SKLADOM
4 SPRINGBAND CLAMP (Ref. č 4) QCT006211009 SPRINGBAND CLAMP  2 € 2,18 € 3
SKLADOM
5 OIL COOLER INLET PIPE (Ref. č 5) F02C20004001 OIL COOLER INLET PIPE  1 € 4,55 € 6
SKLADOM
6 BOLT M6×12 (Ref. č 6) F01000001001 BOLT M6×12  3 € 2,48 € 3
SKLADOM
7 HOSE CLAMP (Ref. č 7) F01H00002001 HOSE CLAMP  1 € 2,48 € 3
SKLADOM
8 A TYPE WORM DRIVE HOSE HOOP 50 (Ref. č 8) QCT000620004 A TYPE WORM DRIVE HOSE HOOP 50  2 € 2,48 € 3
SKLADOM
9 WATER PUMP OUTLET PIPE (Ref. č 9) F02C20005001 WATER PUMP OUTLET PIPE  1 € 4,46 € 5
SKLADOM
10 OIL FILTER (Ref. č 10) E02-G005000-000-00 OIL FILTER  1 € 6,94 € 9
SKLADOM
11 OIL FILTER ADAPTER (Ref. č 11) F01G00001001 OIL FILTER ADAPTER  1 € 5,95 € 7
SKLADOM
12 DOWEL PIN 6×10 (Ref. č 12) GBT001192001 DOWEL PIN 6×10  2 € 2,48 € 3
SKLADOM
28 GASKET 14×21×1.5 (Ref. č 28) F01F10003001 GASKET 14×21×1.5  1 € 4,13 € 5
SKLADOM
Kód produktu SEGWAY_1_109_UT10_CREW_U5
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10 Crew U5
