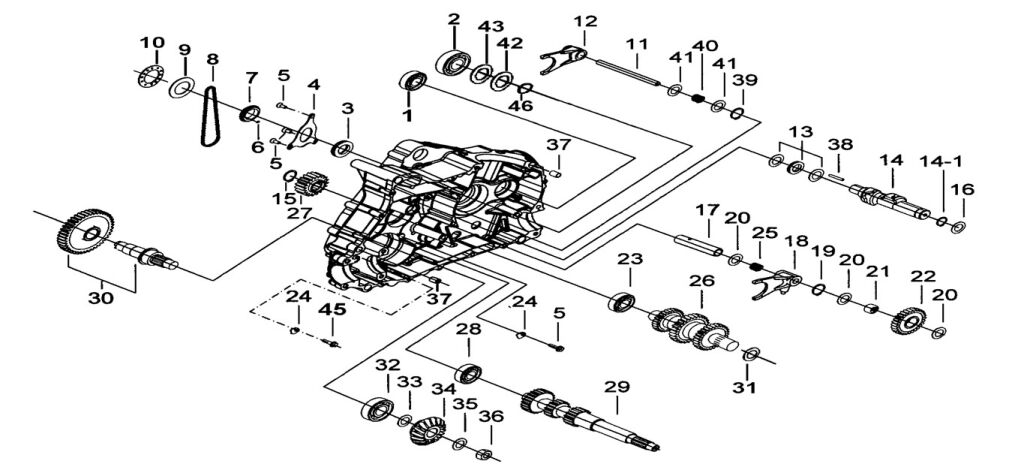

L CRANK CASE ( 2 )

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
46_ O RING (Ref. č 46_) 925746 O RING

012714→

1 € 4,63 € 6
SKLADOM
33B_ SHIM 24X48X0.3T (Ref. č 33B_) W99415 SHIM 24X48X0.3T  1 € 2,40 € 3
SKLADOM
33A_ SHIM 24X48X0.5T (Ref. č 33A_) W99414 SHIM 24X48X0.5T  1 € 2,40 € 3
SKLADOM
33_ SHIM 24X48X1T (Ref. č 33_) W99413 SHIM 24X48X1T  2 € 2,40 € 3
SKLADOM
32_ BEARING ?35X?72X17 (Ref. č 32_) 924066 BEARING ?35X?72X17  1 € 35,95 € 44
SKLADOM ZA 17 dní
31_ WASHER (Ref. č 31_) W99012 WASHER  1 € 2,40 € 3
SKLADOM
30_ OUTPUT COUNTERSHAFT ASSY. (Ref. č 30_) 924169 OUTPUT COUNTERSHAFT ASSY.  1 € 80,41 € 99
SKLADOM
29_ SHAFT, TRANSMISSION (Ref. č 29_) 924844 SHAFT, TRANSMISSION  1 € 137,85 € 170
SKLADOM
28_ BEARING ?20x47x14 (Ref. č 28_) 924180 BEARING ?20x47x14  1 € 12,23 € 15
SKLADOM
27_ GEAR(19T) (Ref. č 27_) 924175 GEAR(19T)  1 € 45,04 € 55
SKLADOM
26_ GEAR COMP, TRANSMISSION (Ref. č 26_) 924301-A GEAR COMP, TRANSMISSION  1 € 366,36 € 451
SKLADOM
33C_ SHIM 24X48X0.05T (Ref. č 33C_) W99417 SHIM 24X48X0.05T  1 € 2,40 € 3
SKLADOM
34_ GEAR, SEC DRIVE BEVEL(17T) (Ref. č 34_) 924203 GEAR, SEC DRIVE BEVEL(17T)  1 € 41,32 € 51
SKLADOM
35_ SHIM (Ref. č 35_) W99304 SHIM  1 € 2,40 € 3
SKLADOM
45_ SCREW M6 (Ref. č 45_) S46603 SCREW M6  2 € 2,40 € 3
SKLADOM
43A_ WASHER 0.2t (Ref. č 43A_) W99437 WASHER 0.2t

012714→

1 € 3,31 € 4
SKLADOM
43_ SHIM (Ref. č 43_) W99434 SHIM

←012713

1 € 2,40 € 3
SKLADOM
42_ WASHER (unavailable) (Ref. č 42_) 925321 WASHER (unavailable)  1 € 21,74 € 27
NA DOPYT
41_ WASHER (Ref. č 41_) W99015 WASHER  2 € 2,40 € 3
SKLADOM
40_ FORK SPRING (Ref. č 40_) 924700 FORK SPRING  1 € 2,40 € 3
SKLADOM ZA 17 dní
39_ "C" RING (Ref. č 39_) 924149 "C" RING  1 € 2,40 € 3
SKLADOM
38_ PIN, DOWEL (Ref. č 38_) 924645 PIN, DOWEL  1 € 3,80 € 5
SKLADOM
37_ PIN, DOWEL (Ref. č 37_) P40301 PIN, DOWEL  2 € 2,40 € 3
SKLADOM
36_ NUT, HEX HEAD (Ref. č 36_) N33803 NUT, HEX HEAD  1 € 7,19 € 9
NA DOPYT
25_ SPRING, FORK (Ref. č 25_) 924699 SPRING, FORK  1 € 2,89 € 4
SKLADOM
24_ CHUCK, BEARING (Ref. č 24_) 924185 CHUCK, BEARING  2 € 2,40 € 3
SKLADOM
23_ BEARING?25x52x15 (Ref. č 23_) 924182 BEARING?25x52x15  1 € 19,50 € 24
SKLADOM ZA 17 dní
10_ WASHER (Ref. č 10_) 924366 WASHER  1 € 2,40 € 3
NA DOPYT
09_ WASHER (Ref. č 09_) 924718 WASHER  1 € 6,20 € 8
SKLADOM
08_ CHAIN, WATER PUMP (Ref. č 08_) 924351 CHAIN, WATER PUMP  1 € 32,23 € 40
SKLADOM
07_ CHAIN WHEEL WATER PUMP. (Ref. č 07_) D9900071 CHAIN WHEEL WATER PUMP.  1 € 24,88 € 31
SKLADOM
06_ PIN, DOWEL (Ref. č 06_) P30303 PIN, DOWEL  1 € 2,40 € 3
SKLADOM
05_ SCREW (Ref. č 05_) S46601 SCREW  3 € 2,40 € 3
SKLADOM
04_ RETAINER, CRANK CASE LH (Ref. č 04_) 924069 RETAINER, CRANK CASE LH  1 € 6,78 € 8
SKLADOM
03_ OIL SEAL ?34X?52X6 (Ref. č 03_) 924068 OIL SEAL ?34X?52X6  1 € 14,96 € 18
NA DOPYT
02A_ BEARING, RIGHT (Ref. č 02A_) 924163 BEARING, RIGHT

012714→

1 € 112,15 € 138
SKLADOM
02_ BEARING, RIGHT (CONTAIN SPACER) (Ref. č 02_) 924163A BEARING, RIGHT (CONTAIN SPACER)

←012713

1 € 109,17 € 134
SKLADOM
11_ 924235 FORK POLE  1 € 6,36 € 8
NA DOPYT
12_ FORK (Ref. č 12_) 924237 FORK  1 € 41,65 € 51
NA DOPYT
13_ THRUST BEARING (Ref. č 13_) 924364 THRUST BEARING  1 € 15,54 € 19
SKLADOM
22_ 924187 R/B 925052 IDLER GEAR(28T)  1 € 35,54 € 44
SKLADOM
21_ BEARING?17x?24x15 (Ref. č 21_) 924643 BEARING?17x?24x15  1 € 24,21 € 30
SKLADOM
20_ WASHER?17X30X1t (Ref. č 20_) W99709 WASHER?17X30X1t  3 € 2,40 € 3
SKLADOM
19_ “C” CLIP (Ref. č 19_) R00501 “C” CLIP  1 € 2,40 € 3
SKLADOM
18_ FORK, REVERSE GEAR (Ref. č 18_) 924636 FORK, REVERSE GEAR  1 € 32,73 € 40
SKLADOM
17_ SHAFT, REVERSE GEAR (Ref. č 17_) 924186 SHAFT, REVERSE GEAR  1 € 12,56 € 15
SKLADOM
16_ SHIM, REVERSE SHAFT (Ref. č 16_) W99517 SHIM, REVERSE SHAFT  1 € 2,40 € 3
SKLADOM
15_ “C” CLIP, REVERSE GEAR (Ref. č 15_) R00206 “C” CLIP, REVERSE GEAR  1 € 2,40 € 3
SKLADOM
14_ CAM ASSY, GEAR SHAFT (Ref. č 14_) 924701 CAM ASSY, GEAR SHAFT  1 € 68,84 € 85
SKLADOM
01_ BEARING (Ref. č 01_) D9900067 BEARING  1 € 44,55 € 55
SKLADOM
Kód produktu TGB_1_112_VSG-D
typ rozkresu: ENGINE PARTS
ZNACKA: TGB
TYP: TARGET 525/550
MODEL: TARGET 550 IRS SNIPER
