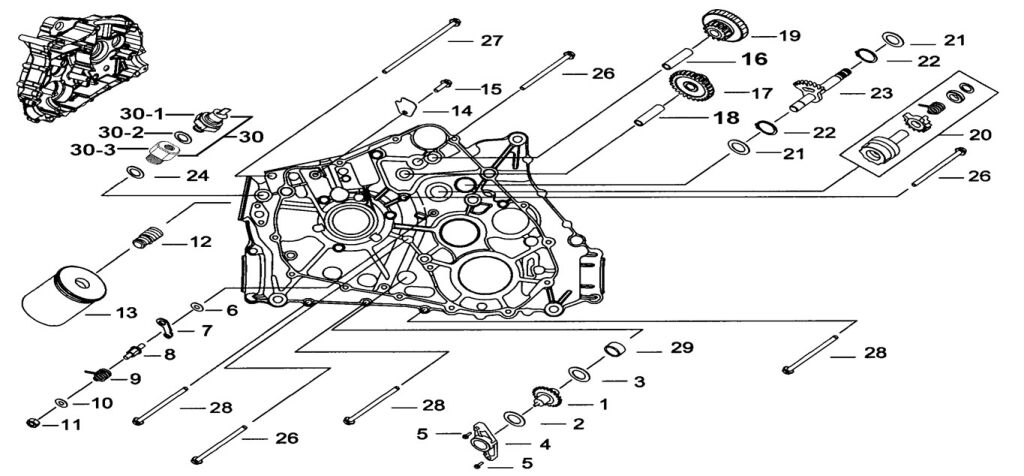

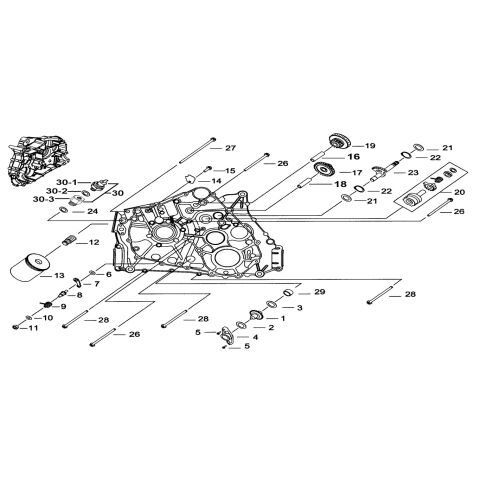

L CRANK CASE ( 1 )

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_1_111_VSG-DE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
CHAIN WHEEL WATER PUMP. (Ref. č ) D9900066 CHAIN WHEEL WATER PUMP.  € 40,91 € 50
SKLADOM
PIN (NO.1 STARTING IDLER) (Ref. č ) 924111 PIN (NO.1 STARTING IDLER)  € 3,22 € 4
SKLADOM
GEAR, STARTING IDLER (Ref. č ) 924835 GEAR, STARTING IDLER  € 78,68 € 97
SKLADOM
SHIFT CAMSHAFT COMP (Ref. č ) 925690 SHIFT CAMSHAFT COMP  € 54,63 € 67
SKLADOM
WASHER (Ref. č ) W99218 WASHER  € 2,40 € 3
SKLADOM
"C" RING (Ref. č ) R00703 "C" RING  € 2,40 € 3
SKLADOM
SECONDARY DIAL POLE (Ref. č ) 924236 SECONDARY DIAL POLE  € 14,63 € 18
SKLADOM
BOLT, FLANGEM6X74L (Ref. č ) S24627 BOLT, FLANGEM6X74L  € 2,40 € 3
SKLADOM
S21812 BOLT, FLANGE M8X97.5L  € 2,31 € 3
SKLADOM ZA 20 dní
BOLT, FLANGE 6X50 (Ref. č ) S24602 BOLT, FLANGE 6X50  € 2,40 € 3
SKLADOM
BUSHING (Ref. č ) 924739 BUSHING  € 2,40 € 3
SKLADOM
OIL PRESSURE SENSOR COMP. (Ref. č ) 925826A OIL PRESSURE SENSOR COMP.  € 41,98 € 52
SKLADOM
R/B 925826A OIL PRESSURE SENSOR (Ref. č ) 925826 R/B 925826A OIL PRESSURE SENSOR  € 42,56 € 52
SKLADOM
WASHER (Ref. č ) W99020 WASHER  € 2,40 € 3
SKLADOM
GEAR (Ref. č ) 924110 GEAR  € 32,56 € 40
SKLADOM
PIN (NO.2 STARTING IDLER) (Ref. č ) 924112 PIN (NO.2 STARTING IDLER)  € 5,54 € 7
SKLADOM
GASKET 14X32X1 (Ref. č ) W99412 GASKET 14X32X1  € 2,40 € 3
SKLADOM
WASHER 12.3x22x1t (Ref. č ) W99430 WASHER 12.3x22x1t  € 2,40 € 3
SKLADOM
RETAINER, WATER PUMP (Ref. č ) 924393 RETAINER, WATER PUMP  € 28,84 € 35
SKLADOM
SCREW, SOCKET HEAD M6X25 (Ref. č ) S70602 SCREW, SOCKET HEAD M6X25  € 2,40 € 3
SKLADOM
GASKET (Ref. č ) W99616 GASKET  € 2,40 € 3
SKLADOM
STOPPER, GEAR SHAFT CAM (Ref. č ) 924231 STOPPER, GEAR SHAFT CAM  € 4,13 € 5
NA DOPYT
SET SCREW ,GEAR CAM STOP DOG (Ref. č ) 924233 SET SCREW ,GEAR CAM STOP DOG  € 2,40 € 3
SKLADOM
SPRING (Ref. č ) 924232 SPRING  € 2,40 € 3
SKLADOM
WASHER, SPRING ABATEMENT (Ref. č ) W99617 WASHER, SPRING ABATEMENT  € 2,40 € 3
SKLADOM
NUT, FLANGE 6mm (Ref. č ) N10601 NUT, FLANGE 6mm  € 2,40 € 3
SKLADOM
STUD, OIL FILTER (Ref. č ) 924374 STUD, OIL FILTER  € 5,21 € 6
NA DOPYT
ENGINE OIL FILTER - TGB 425,525,550,600,600LTX (Ref. č ) 924153 ENGINE OIL FILTER - TGB 425,525,550,600,600LTX  € 21,32 € 26
SKLADOM
PLATE, OIL GUIDE (Ref. č ) 924048 PLATE, OIL GUIDE  € 2,40 € 3
SKLADOM
BOLT, FLANGE 6X12 (Ref. č ) S24604 BOLT, FLANGE 6X12  € 2,40 € 3
SKLADOM
BOLT M14-1.25X12L (Ref. č ) S96201 BOLT M14-1.25X12L  € 21,98 € 27
NA DOPYT
Kód produktu TGB_1_111_VSG-DE
typ rozkresu: ENGINE PARTS
ZNACKA: TGB
TYP: TARGET 525/550
MODEL: TARGET 550 EFI
