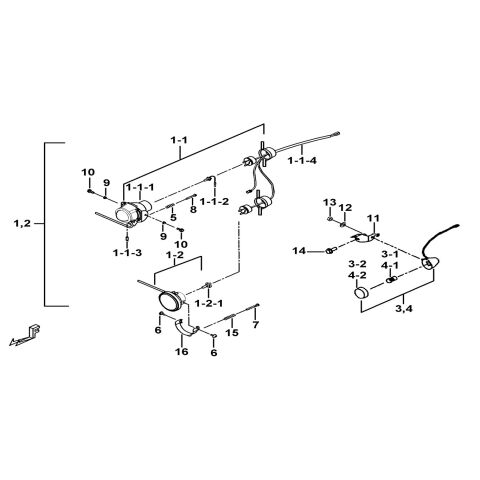

HEAD LAMP ASSY.

TGB
Výrobca: TGB
Kód produktu: TGB_3_202_FBG-DL
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 HEAD LAMP ASSY LH (Ref. č 01) 511776 HEAD LAMP ASSY LH  1 € 149,50 € 180,90
SKLADOM
05 511725 SPRING  2 € 2,15 € 2,60
NA DOPYT
06 511721 BOLT  4 € 2,15 € 2,60
NA DOPYT
07 S46507 BOLT M5X40L  2 € 2,98 € 3,60
NA DOPYT
08 S46505 BOLT  2 € 2,15 € 2,60
NA DOPYT
09 512431 SPACER  4 € 2,15 € 2,60
NA DOPYT
10 BOLT, FLANGE (Ref. č 10) S07601 BOLT, FLANGE  4 € 2,40 € 2,90
SKLADOM
11 511727 BRKT.  2 € 2,15 € 2,60
NA DOPYT
12 WASHER, SPRING (Ref. č 12) W10501 WASHER, SPRING  2 € 2,40 € 2,90
SKLADOM
13 NUT, FLANGE M5 (Ref. č 13) GA552NT05 NUT, FLANGE M5  2 € 2,40 € 2,90
SKLADOM
14 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 14) S57501 SCREW, OVAL HEAD, TAPPING M5X14  2 € 2,40 € 2,90
SKLADOM
15 511760 SPRING  2 € 6,03 € 7,30
NA DOPYT
04.2 LENS, TURN SIGNAL, RH (Ref. č 04-2) 515253 LENS, TURN SIGNAL, RH  1 € 13,22 € 16
SKLADOM
04.1 BULB (Ref. č 04-1) 514030 BULB  1 € 3,80 € 4,60
SKLADOM
03.1 BULB (Ref. č 03-1) 514030 BULB  1 € 3,80 € 4,60
SKLADOM
04 TURN SIGNAL LAMP COMP, RH (Ref. č 04) 511754 TURN SIGNAL LAMP COMP, RH  1 € 36,45 € 44,10
SKLADOM
01.1 MAIN-BEAM HEAD LAMP COMP., LH & RH (Ref. č 01-1) 515323 MAIN-BEAM HEAD LAMP COMP., LH & RH  1 € 130,33 € 157,70
SKLADOM
01.1.1 MAIN BEAM (Ref. č 01-1-1) 515004 MAIN BEAM  1 € 83,97 € 101,60
SKLADOM
01.1.2 BULB (Ref. č 01-1-2) 450058 BULB  1 € 5,21 € 6,30
SKLADOM
01.1.3 BULB (Ref. č 01-1-3) 514026 BULB  1 € 4,13 € 5
SKLADOM
01.1.4 WIRING ASSY, HEAD LAMP (Ref. č 01-1-4) 515043 WIRING ASSY, HEAD LAMP  1 € 19,92 € 24,10
SKLADOM
01.2 DIPPED-BEAN HEAD LAMP, LH a RH (Ref. č 01-2) 515322 DIPPED-BEAN HEAD LAMP, LH a RH  1 € 88,84 € 107,50
SKLADOM
01.2.1 BULB (Ref. č 01-2-1) 514029 BULB  1 € 37,44 € 45,30
SKLADOM
02 511777 HEAD LAMP ASSY. RH  1 € 190,17 € 230,10
NA DOPYT
03 TURN SIGNAL LAMP COMP, LH (Ref. č 03) 511753 TURN SIGNAL LAMP COMP, LH  1 € 35,79 € 43,30
NA DOPYT
03.2 LENS, TURN SIGNAL (Ref. č 03-2) 515157 LENS, TURN SIGNAL  1 € 8,51 € 10,30
SKLADOM
16 511761 ADJUST SEAT  2 € 14,13 € 17,10
NA DOPYT
