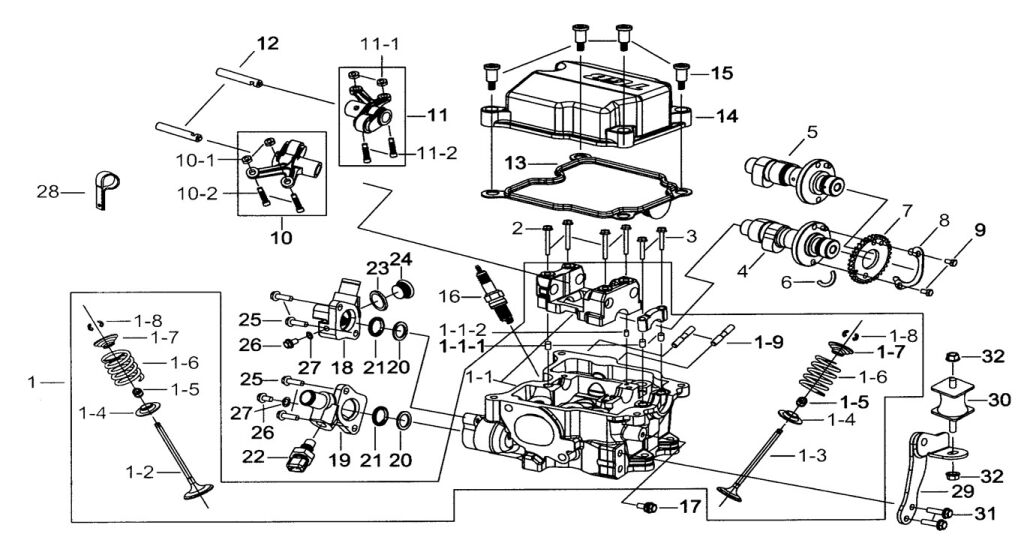

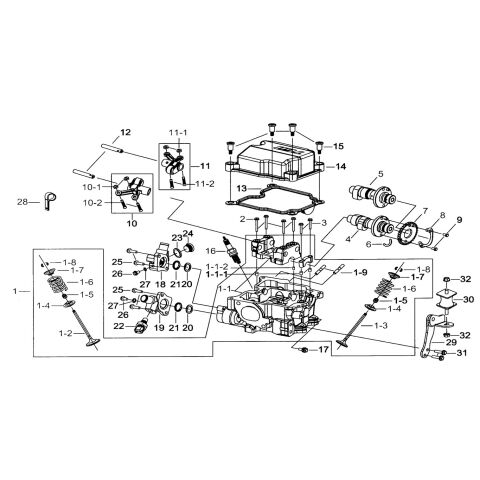

HEAD ASSY, CYLINDER(1)

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 HEAD ASSY., CYLINDER (Ref. č 01) 910596 HEAD ASSY., CYLINDER  2 € 559,34 € 676,80
SKLADOM
11 ROCKER ARM EXHAUST (Ref. č 11) 910268 ROCKER ARM EXHAUST  2 € 91,32 € 110,50
SKLADOM
13 R/B 911597 GASKET, CYLINDER HEAD (Ref. č 13) 910331 R/B 911597 GASKET, CYLINDER HEAD  2 € 22,40 € 27,10
NA DOPYT
14 COVER, HEAD CYLINDER (Ref. č 14) 910289 COVER, HEAD CYLINDER  2 € 40,83 € 49,40
SKLADOM
15 BOLT M7X31 (Ref. č 15) 924019 BOLT M7X31  8 € 2,40 € 2,90
SKLADOM
16 910528 SPARK PLUG (NGK DCPR8E) (unavailable)  2 € 36,94 € 44,70
NA DOPYT
17 S77601 BOLT ,FLANGE  1 € 6,28 € 7,60
NA DOPYT
21 SEAL (Ref. č 21) 910398 SEAL  2 € 2,31 € 2,80
SKLADOM
22 COOLANT TEMPERATURE SENSOR (Ref. č 22) 926022Y COOLANT TEMPERATURE SENSOR  1 € 39,59 € 47,90
SKLADOM
24 SCREW (Ref. č 24) 924339 SCREW  1 € 5,79 € 7
SKLADOM
25 SCREW, SOCKET HEAD M6x20 (Ref. č 25) S24616 SCREW, SOCKET HEAD M6x20  4 € 4,79 € 5,80
SKLADOM
27 WASHER (Ref. č 27) 925115 WASHER  2 € 2,40 € 2,90
SKLADOM
28 924833 CLIP "P"  1 € 8,51 € 10,30
NA DOPYT
30 CUSHIONING BUSH (Ref. č 30) 910638 CUSHIONING BUSH  1 € 22,89 € 27,70
SKLADOM
31 BOLT, FLANGE (Ref. č 31) S20814 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
10 ROCKER ARM INLET (Ref. č 10) 910267 ROCKER ARM INLET  2 € 91,32 € 110,50
SKLADOM
09 BOLT (Ref. č 09) S99605 BOLT  4 € 2,40 € 2,90
SKLADOM
01.1.1 PIN, DOWEL (Ref. č 01-1-1) P40803 PIN, DOWEL  6 € 2,40 € 2,90
SKLADOM
01.2 VALVE, INTAKE (Ref. č 01-2) 910283 VALVE, INTAKE  4 € 9,50 € 11,50
SKLADOM
01.3 VALVE, EXHAUST (Ref. č 01-3) 910284 VALVE, EXHAUST  4 € 19,67 € 23,80
SKLADOM
01.4 TRUST WASHER (Ref. č 01-4) 910270 TRUST WASHER  8 € 3,22 € 3,90
SKLADOM
01.5 SEAL, VALVE STEM (Ref. č 01-5) 924024 SEAL, VALVE STEM  8 € 6,78 € 8,20
SKLADOM
01.6 SPRING, VALVE (Ref. č 01-6) 910286 SPRING, VALVE  8 € 4,38 € 5,30
NA DOPYT
01.8 COTTER, VALVE (Ref. č 01-8) 400093 COTTER, VALVE  16 € 2,40 € 2,90
SKLADOM
01.9 S95808 STUD ?10.5  4 € 2,15 € 2,60
NA DOPYT
03 BOLT, FLANGE (Ref. č 03) S20616 BOLT, FLANGE  4 € 2,15 € 2,60
SKLADOM
04 CAM SHAFT COMP (Ref. č 04) 910281 CAM SHAFT COMP  1 € 114,38 € 138,40
SKLADOM
05 CAM SHAFT (B), REAR (Ref. č 05) 910282 CAM SHAFT (B), REAR  1 € 134,96 € 163,30
NA DOPYT
06 “C” RING (Ref. č 06) 924032 “C” RING  2 € 4,96 € 6
SKLADOM
07 TIMING GEAR 42T (Ref. č 07) 910062 TIMING GEAR 42T  2 € 33,47 € 40,50
SKLADOM
08 FIXING PLATE (Ref. č 08) 924031 FIXING PLATE  2 € 2,40 € 2,90
NA CESTE
32 N10804 NUT M8X1.25  2 € 2,15 € 2,60
NA DOPYT
