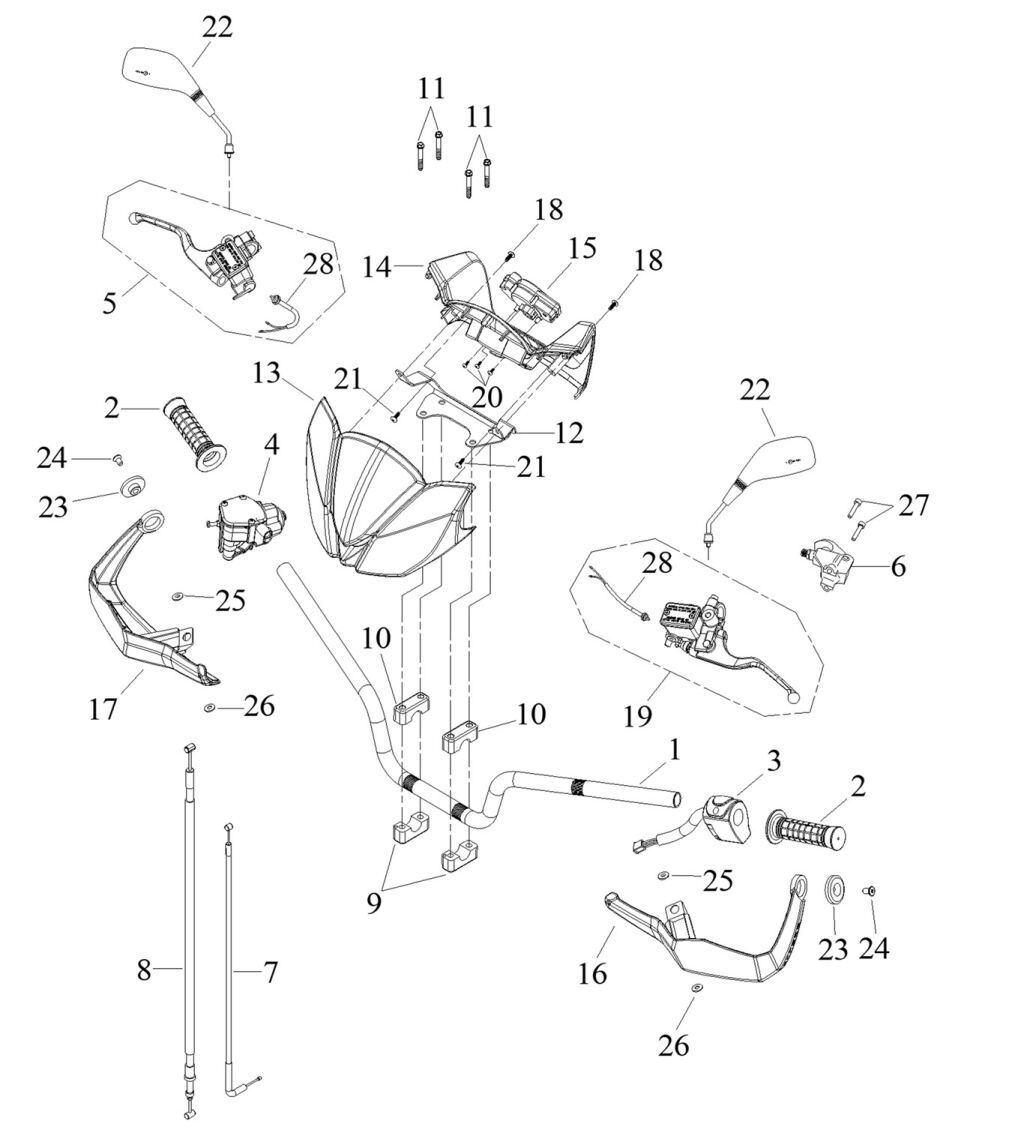

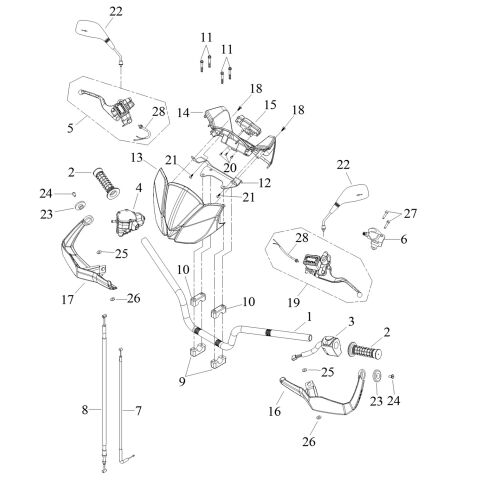

HANDLE BAR (Double Hand Brake)

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  ACCESS_2_218_MAX_650i
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 Handlebar (Ref. č 1) 51100-A27-001 Handlebar  1 € 42,98 € 53
NA CESTE
16 Handguard, Left (Ref. č 16) 51202-A27-000 Handguard, Left  1 € 6,61 € 8
SKLADOM
17 Handguard, Right (Ref. č 17) 51201-A27-000 Handguard, Right  1 € 9,09 € 11
SKLADOM
18 Screw (Ref. č 18) 91825-05025G Screw  2 € 2,48 € 3
SKLADOM
19 Lever Ass'y, Left(Disk brake) (Ref. č 19) 31405-A03-002 Lever Ass'y, Left(Disk brake)  1 € 65,29 € 80
NA DOPYT
20 Philips Screw, Round head, Tap (Ref. č 20) 91825-04012-1 Philips Screw, Round head, Tap  3 € 2,48 € 3
SKLADOM
21 91825-A27-010 Philips Screw, Round head, Tap  2 € 1,90 € 2
NA DOPYT
22 R/B 51115-A27-010 Rear Mirror, L+R (Ref. č 22) 51115-A27-000 R/B 51115-A27-010 Rear Mirror, L+R  1 € 59,50 € 73
NA DOPYT
23 Handguard Screw (Ref. č 23) 51209-A27-000 Handguard Screw  2 € 6,61 € 8
SKLADOM
24 Bolt (Ref. č 24) 91733-08025-06G Bolt  2 € 2,48 € 3
SKLADOM
26 93100-06519-12W-2 Waser, Plate  2 € 1,90 € 2
NA DOPYT
27 91760-06022-05G-1 Bolt, Hexagon, Socker  2 € 1,90 € 2
NA DOPYT
28 Break Light Switch (Ref. č 28) 61204-A03-001 Break Light Switch  2 € 8,26 € 10
SKLADOM
15 Speedometer Ass´y (Ref. č 15) 63300-A27-010 Speedometer Ass´y  1 € 184,30 € 227
SKLADOM
14 Handlebar Cover, Rear (Ref. č 14) 72202-A27-000 Handlebar Cover, Rear  1 € 8,26 € 10
SKLADOM
2 Grip, Handle (Ref. č 2) 51105-A27-000 Grip, Handle  2 € 6,12 € 8
SKLADOM
3 Handle Switch Ass'y, Left (Ref. č 3) 61101-A27-000 Handle Switch Ass'y, Left  1 € 63,64 € 78
NA DOPYT
4 R/B 31410-A81-000 Bottom Clamp,Thumb Throttle (Ref. č 4) 31410-A27-000 R/B 31410-A81-000 Bottom Clamp,Thumb Throttle  1 € 91,74 € 113
NA DOPYT
5 Level Ass´y, Right (Ref. č 5) 31460-A03-001 Level Ass´y, Right  1 € 59,50 € 73
NA DOPYT
6 Parking Brake Ass'y (Ref. č 6) 31470-A27-000 Parking Brake Ass'y  1 € 47,11 € 58
SKLADOM

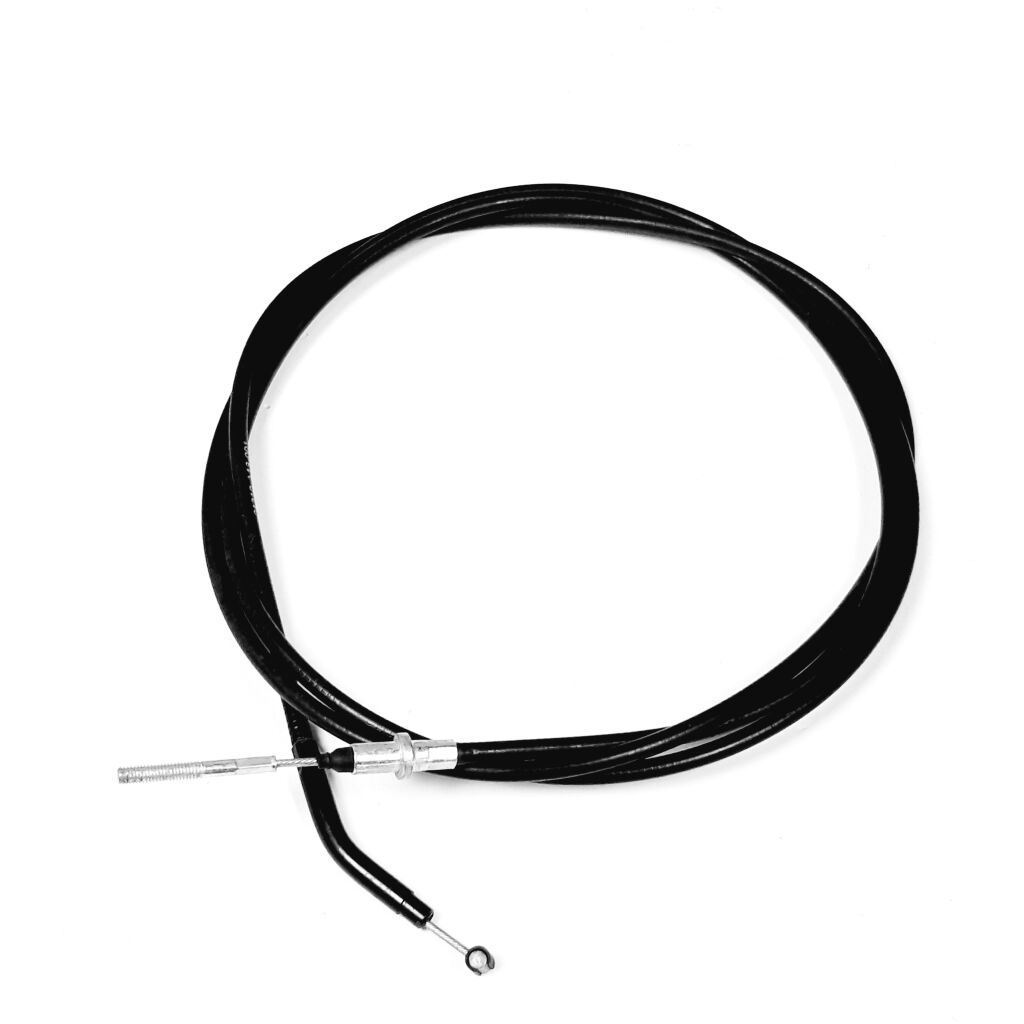

7 Cable, Thumb Throttle (Ref. č 7) 31215-A37-000 Cable, Thumb Throttle  1 € 13,22 € 16
NA DOPYT
8 Parking Cable (Ref. č 8) 31210-A13-001 Parking Cable  1 € 19,01 € 23
SKLADOM
9 Bottom Clamp, Handlebar (Ref. č 9) 52105-A03-000 Bottom Clamp, Handlebar  2 € 3,31 € 4
SKLADOM
10 Top Clamp, Handlebar (Ref. č 10) 52110-A03-000 Top Clamp, Handlebar  2 € 4,13 € 5
SKLADOM
11 91700-08065-12G-1 Hex Washer Face Bolt  4 € 1,90 € 2
NA DOPYT
12 Support, Meter Fender (Ref. č 12) 71320-A27-000 Support, Meter Fender  1 € 40,50 € 50
SKLADOM
13 Handlebar Cover, Front (Ref. č 13) 72201-A27-000 Handlebar Cover, Front  1 € 12,40 € 15
NA DOPYT
25 51210-A27-000 Wash, Handguard  2
NA DOPYT
Kód produktu ACCESS_2_218_MAX_650i
ZNACKA: ACCESS
typ rozkresu: FRAME PARTS
TYP: ACCESS MAX
MODEL: MAX 650 EFI
