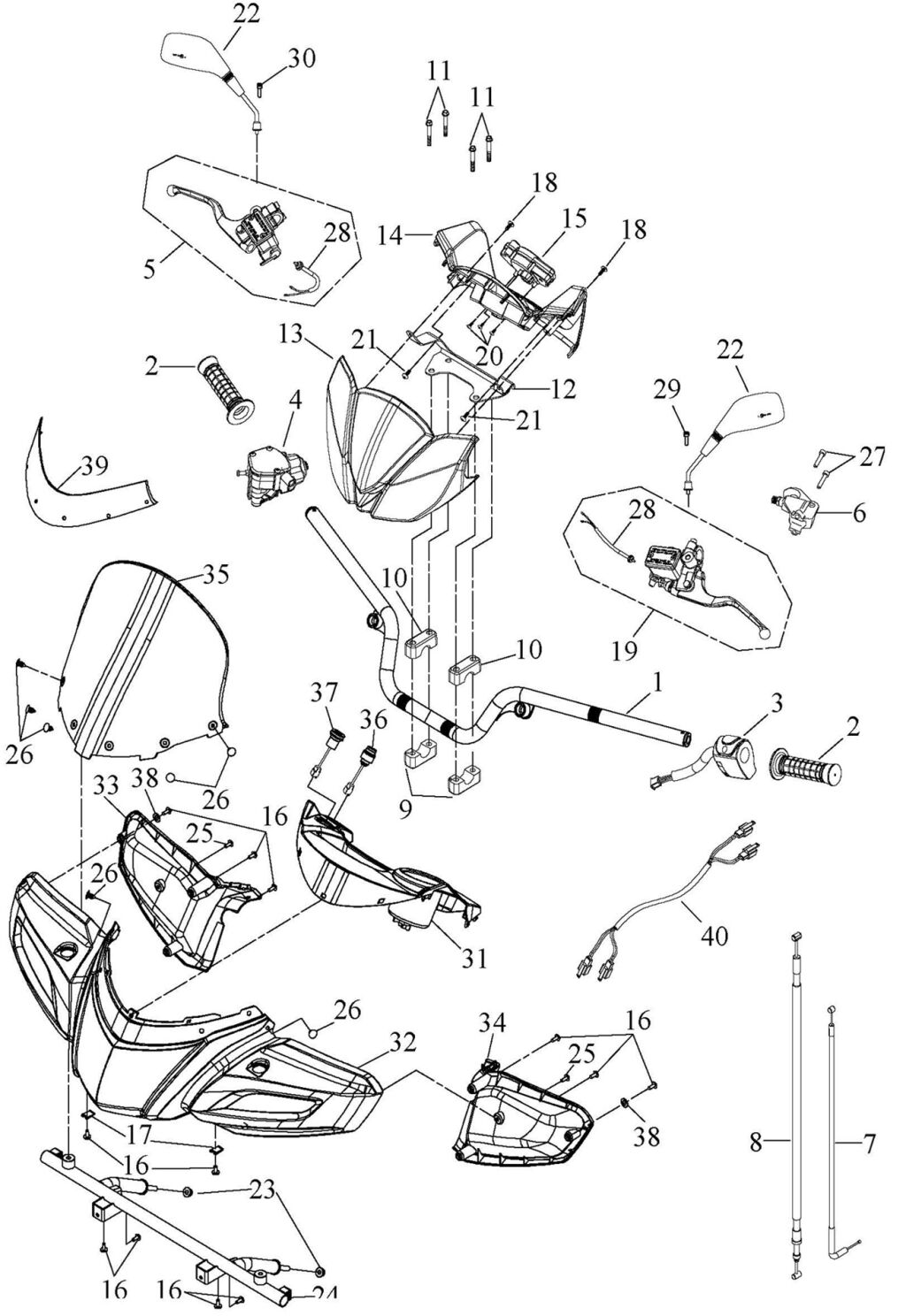

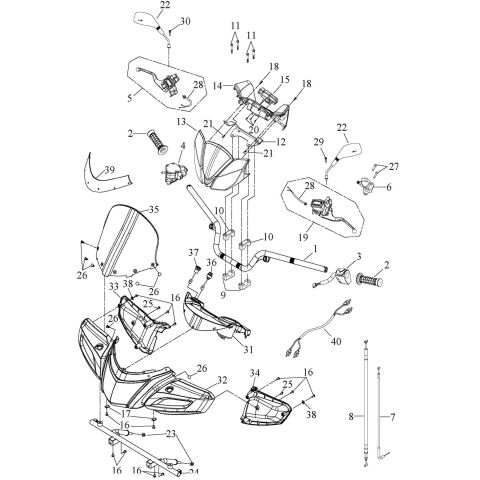

HANDLE BAR (Double Hand Brake)

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 Handle bar (Ref. č 01) 51100-A36-000 Handle bar  1 € 48,76 € 59
SKLADOM
24 Bar, windshield (Ref. č 24) 51131-A36-000 Bar, windshield  1 € 42,98 € 52
NA DOPYT
25 Bolt, Cross (Ref. č 25) 91731-06012S Bolt, Cross  2 € 2,48 € 3
SKLADOM
26 Rivet,Rubber (Ref. č 26) 93611-A36-000 Rivet,Rubber  8 € 2,48 € 3
SKLADOM
28 Break Light Switch (Ref. č 28) 61204-A03-001 Break Light Switch  0 € 8,26 € 10
NA DOPYT
29 Bolt, Hex, Socker (Ref. č 29) 91762-08030-06L Bolt, Hex, Socker  1 € 2,48 € 3
SKLADOM
30 Bolt, Hex, Socker (Ref. č 30) 91762-08030-06 Bolt, Hex, Socker  1 € 2,48 € 3
NA DOPYT
31 Box, windshield (Ref. č 31) 51135-A36-000 Box, windshield  1 € 12,40 € 15
SKLADOM
32 51132-A36-000-BK Windshield, front, black  1 € 28,93 € 35
NA DOPYT
33 Windshield, right, rear (Ref. č 33) 51133-A36-000 Windshield, right, rear  1 € 7,44 € 9
SKLADOM
34 51134-A36-000 Windshield, left rear  1 € 6,61 € 8
NA DOPYT
35 Access Přední štít (Ref. č 35) 51130-A36-000 Access Přední štít  1 € 33,88 € 41
NA DOPYT
36 Power Supplier-12V (Ref. č 36) 61230-A03-000 Power Supplier-12V  1 € 9,92 € 12
Naskladňujeme
37 Connect Wire, USB power (Ref. č 37) 63156-A27-010 Connect Wire, USB power  1 € 82,64 € 100
SKLADOM
38 Washer , Plate 5.3*10*1 (Ref. č 38) 93100-05310-10W Washer , Plate 5.3*10*1  2 € 2,48 € 3
NA DOPYT
23 Nut, Insert Lock (Ref. č 23) 92130-08S-12G Nut, Insert Lock  2 € 2,48 € 3
SKLADOM
22 Rear Mirror, L+R (Ref. č 22) 51115-A36-000 Rear Mirror, L+R  1 € 42,15 € 51
NA DOPYT
20 Philips Screw, Round head, Tap (Ref. č 20) 91825-04012-1 Philips Screw, Round head, Tap  3 € 2,48 € 3
SKLADOM
03 Handle Switch Ass'y, Left (Ref. č 03) 61101-A27-000 Handle Switch Ass'y, Left  1 € 63,64 € 77
SKLADOM
04 Bottom Clamp,Thumb Throttle (Ref. č 04) 31410-A27-000 Bottom Clamp,Thumb Throttle  1 € 91,74 € 111
SKLADOM
05 Level Ass´y, Right (Ref. č 05) 31460-A03-001 Level Ass´y, Right  1 € 59,50 € 72
SKLADOM
06 Parking Brake Ass'y (Ref. č 06) 31470-A27-000 Parking Brake Ass'y  1 € 47,11 € 57
SKLADOM
07 Cable, Thumb Throttle (Ref. č 07) 31215-A26-000 Cable, Thumb Throttle  1 € 12,40 € 15
SKLADOM
09 Bottom Clamp, Handlebar (Ref. č 09) 52105-A03-000 Bottom Clamp, Handlebar  2 € 3,31 € 4
SKLADOM
10 Top Clamp, Handlebar (Ref. č 10) 52110-A03-000 Top Clamp, Handlebar  2 € 4,13 € 5
SKLADOM
12 Support, Meter Fender (Ref. č 12) 71320-A27-000 Support, Meter Fender  1 € 40,50 € 49
SKLADOM
13 Handlebar Cover, Front (Ref. č 13) 72201-A27-000 Handlebar Cover, Front  1 € 12,40 € 15
SKLADOM
14 Handlebar Cover, Rear (Ref. č 14) 72202-A27-000 Handlebar Cover, Rear  1 € 8,26 € 10
SKLADOM
15 Speedometer Ass´y (Ref. č 15) 63300-A27-010 Speedometer Ass´y  1 € 184,30 € 223
SKLADOM
17 92215-A01-000 Nut, U shape(Andoised)  2 € 2,48 € 3
NA DOPYT
18 Screw (Ref. č 18) 91825-05025G Screw  2 € 2,48 € 3
SKLADOM
19 Lever Ass'y, Left(Disk brake) (Ref. č 19) 31405-A03-002 Lever Ass'y, Left(Disk brake)  1 € 65,29 € 79
SKLADOM
39 73115-A36-000 Sticker, wind sheild  1 € 21,49 € 26
NA DOPYT
