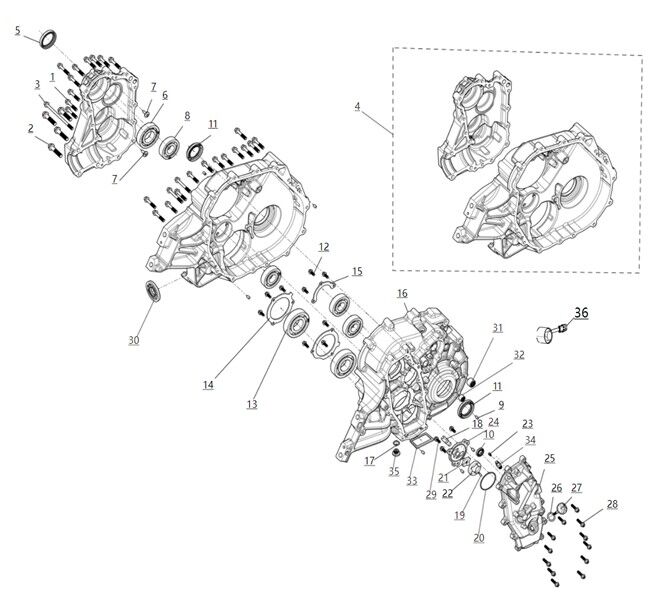

Gearbox combination.

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_120_UTV1000F-S8-24
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 BOLT M8×40 (Ref. č 1) F01000017001 BOLT M8×40  22 € 2,48 € 3
SKLADOM
20 O-RING 52×2 (Ref. č 20) D01P21303001 O-RING 52×2  1 € 2,48 € 3
SKLADOM

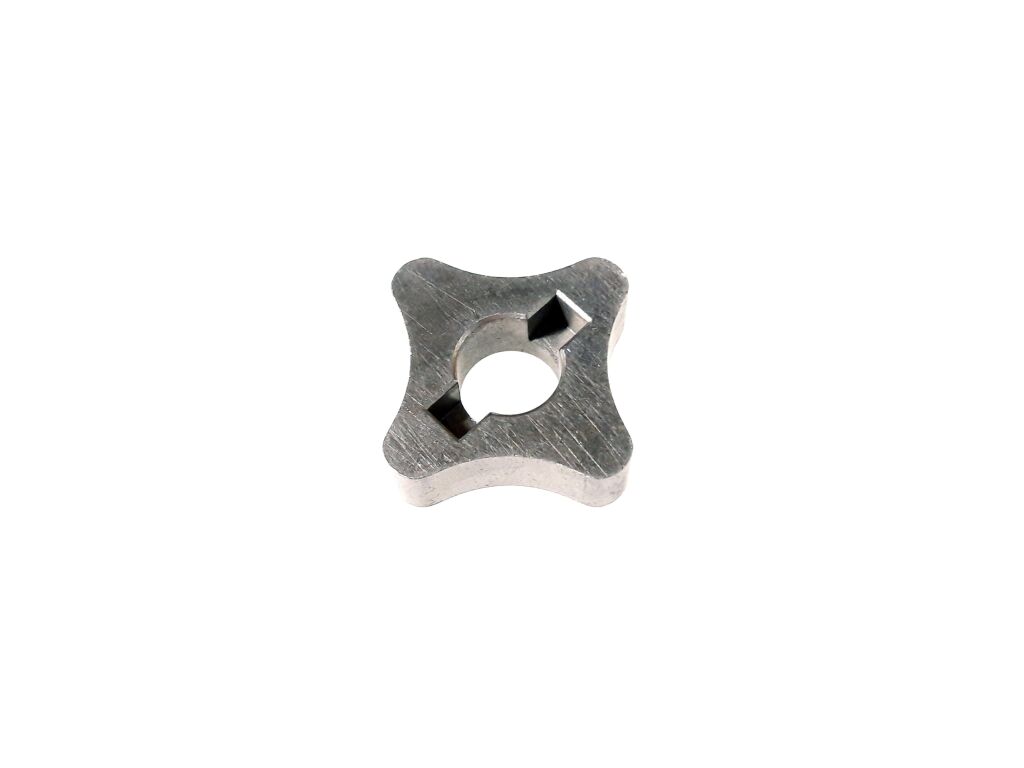

21 INNER GEROTOR (Ref. č 21) D01P21402001 INNER GEROTOR  1 € 2,48 € 3
SKLADOM
22 OUTER GEROTOR (Ref. č 22) D01P21403001 OUTER GEROTOR  1 € 2,48 € 3
SKLADOM
23 FLOW ORIFICE ∅1 (Ref. č 23) F01C10004001 FLOW ORIFICE ∅1  1 € 2,48 € 3
SKLADOM

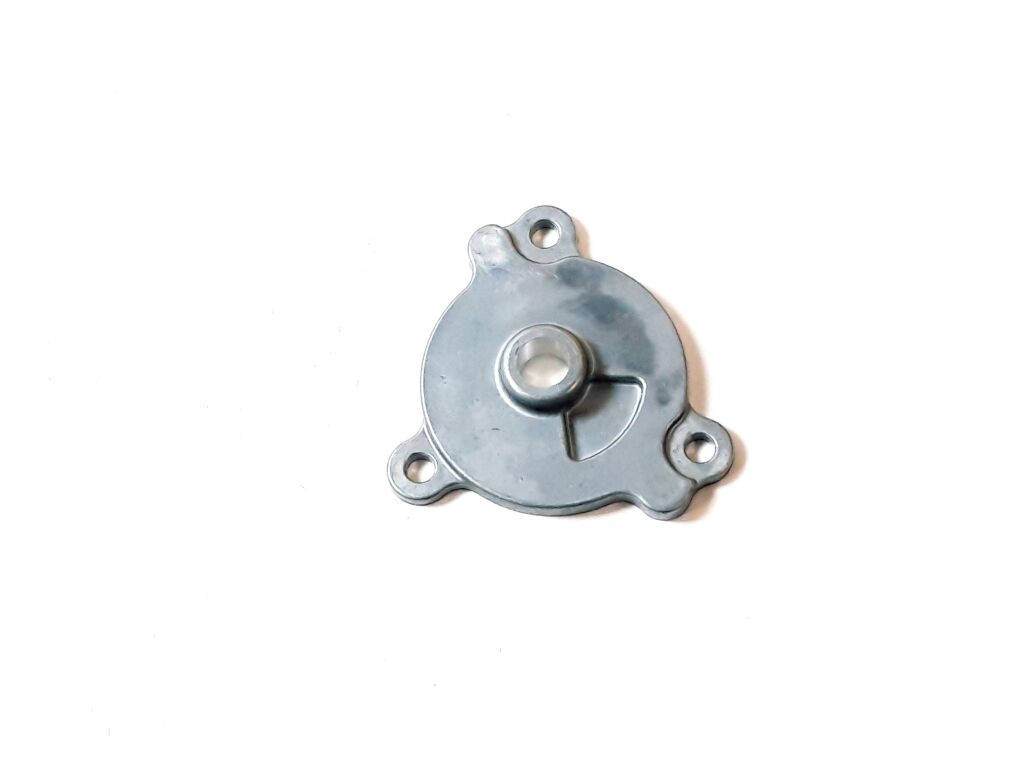

24 OIL PUMP COVER (Ref. č 24) E02F31202001 OIL PUMP COVER  1 € 7,85 € 10
SKLADOM
25 E02F31210001 Oil pump body  1 € 55,62 € 68
NA DOPYT
26 O-Ring 18×3.5 (Ref. č 26) E01C20103001 O-Ring 18×3.5  1 € 2,48 € 3
SKLADOM

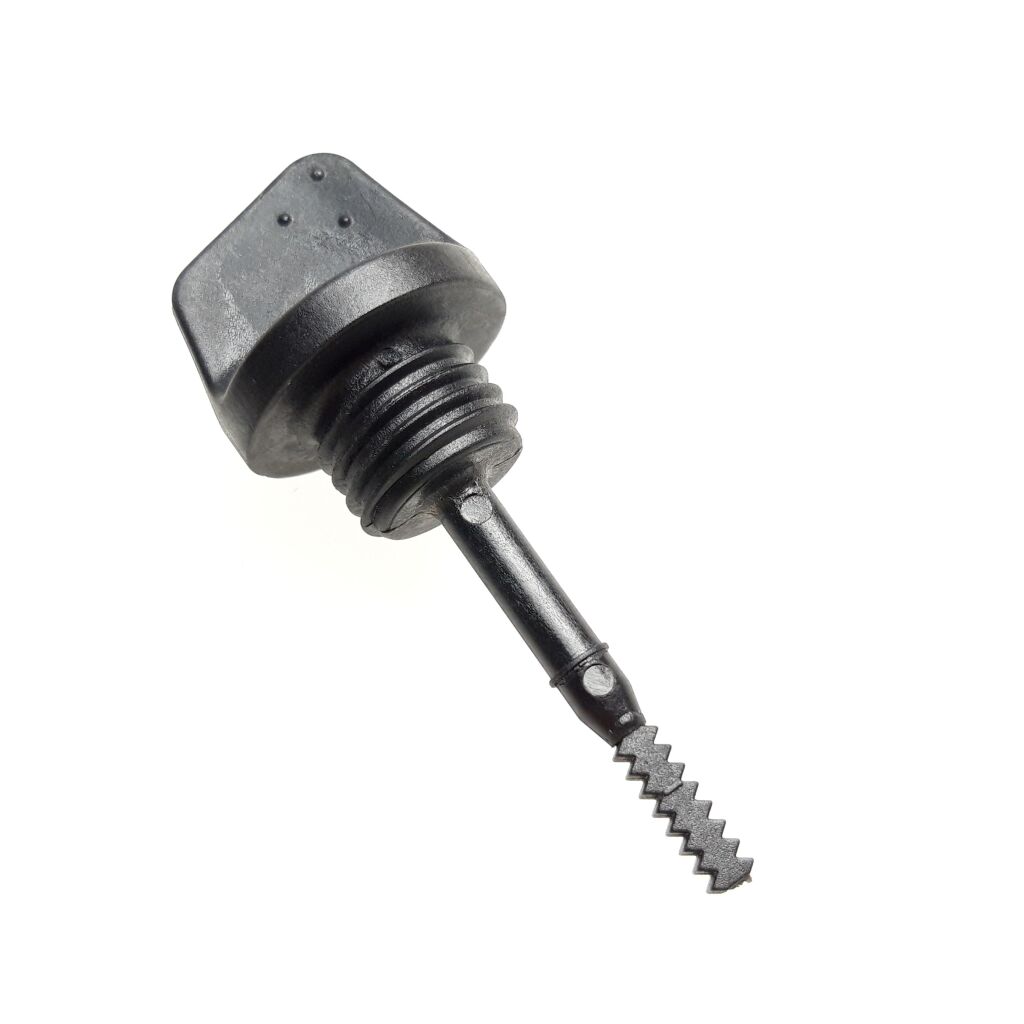

27 OIL DIPSTICK (Ref. č 27) E01C20102001 OIL DIPSTICK  1 € 8,35 € 10
SKLADOM
28 BOLT M8×60 (Ref. č 28) E02F32001002 BOLT M8×60  12 € 2,48 € 3
SKLADOM
29 BOLT M6×25 (Ref. č 29) F01000005001 BOLT M6×25  3 € 2,48 € 3
SKLADOM
30 OIL SEAL 27×60×7 (Ref. č 30) D01P22201001 OIL SEAL 27×60×7  1 € 7,52 € 9
NA DOPYT
31 NEEDLE ROLLER BEARING HK1516 (Ref. č 31) GBT012764003 NEEDLE ROLLER BEARING HK1516  1 € 2,48 € 3
SKLADOM
32 NEEDLE ROLLER BEARING HK121612 (Ref. č 32) GBT012764001 NEEDLE ROLLER BEARING HK121612  1 € 2,48 € 3
SKLADOM
33 STRAINER FILTER (Ref. č 33) E02F00100001 STRAINER FILTER  1 € 2,48 € 3
SKLADOM
34 BREATHING JOINT (Ref. č 34) Q01F41300001 BREATHING JOINT  1 € 14,38 € 18
SKLADOM
35 ENGINE DRAIN PLUG M14 (Ref. č 35) F01G00200001 ENGINE DRAIN PLUG M14  1 € 5,70 € 7
NA DOPYT
19 NEEDLE ROLLER 4×15.8 (Ref. č 19) GBT000309001 NEEDLE ROLLER 4×15.8  1 € 2,48 € 3
SKLADOM
18 OIL PUMP SHAFT (Ref. č 18) D01P21404001 OIL PUMP SHAFT  1 € 5,54 € 7
SKLADOM
2 BOLT M10×1.25×45 (Ref. č 2) E02F32113001 BOLT M10×1.25×45  4 € 2,48 € 3
SKLADOM
3 BOLT M8×125 (Ref. č 3) E02F32001001 BOLT M8×125  1 € 2,48 € 3
SKLADOM
4 E02F32110001 Right gearbox assembly machining parts  1 € 316,45 € 389
NA DOPYT
5 Oil seal 42×55×8 (Ref. č 5) F01C10003001 Oil seal 42×55×8  1 € 6,86 € 8
SKLADOM
6 BEARING 6207 (Ref. č 6) GBT000276010 BEARING 6207  1 € 35,95 € 44
SKLADOM
7 Inner hexagon screws M6×1.6 (Ref. č 7) T03000007002 Inner hexagon screws M6×1.6  2 € 2,18 € 3
SKLADOM
8 BEARING 6305 (Ref. č 8) GBT000276012 BEARING 6305  4 € 23,06 € 28
SKLADOM
9 DOWEL PIN 6×10 (Ref. č 9) GBT001192001 DOWEL PIN 6×10  8 € 2,48 € 3
SKLADOM
10 Oil seal 15×25×5 (Ref. č 10) F01F10011001 Oil seal 15×25×5  1 € 2,48 € 3
SKLADOM
11 OIL SEAL 38×55×7 (Ref. č 11) D02P22202001 OIL SEAL 38×55×7  2 € 6,28 € 8
SKLADOM
12 BOLT M6×16 (Ref. č 12) F01000002001 BOLT M6×16  4 € 2,48 € 3
SKLADOM
13 BEARING 6305 (Ref. č 13) GBT000276020 BEARING 6305  2 € 32,64 € 40
SKLADOM

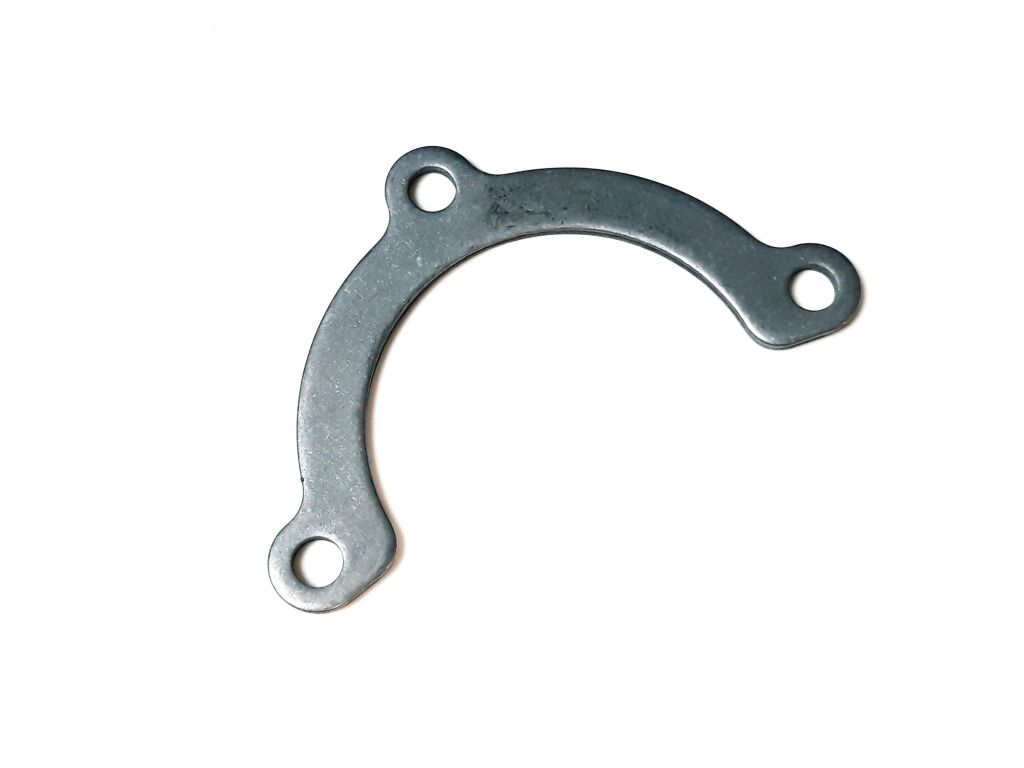

14 TRIAXIAL BEARING PRESS PLATE (Ref. č 14) E02F23004001 TRIAXIAL BEARING PRESS PLATE  2 € 2,64 € 3
SKLADOM
15 COUNTERSHAFT BEARING PRESS PLATE (Ref. č 15) E02F22014001 COUNTERSHAFT BEARING PRESS PLATE  1 € 2,48 € 3
SKLADOM
16 E02F31101002 LEFT GEARBOX BODY(WITH DIFF)  1 € 302,56 € 372
NA DOPYT
17 O-Ring 13.8×2.5 (Ref. č 17) F01G00005001 O-Ring 13.8×2.5  1 € 2,48 € 3
SKLADOM
36 Solenoid valve assembly (Ref. č 36) Q01R50200001 Solenoid valve assembly  1 € 66,45 € 82
SKLADOM
Kód produktu SEGWAY_1_120_UTV1000F-S8-24
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: Villain SxS
MODEL: Villain SX10 DIFF (2024-xxxxx)
