Gas distribution sub-assembly

SEGWAY
Výrobca: SEGWAY
Kód produktu: SEGWAY_1_105_UTV1000F-S3
MODEL:
Villain SX10 Villain SX10

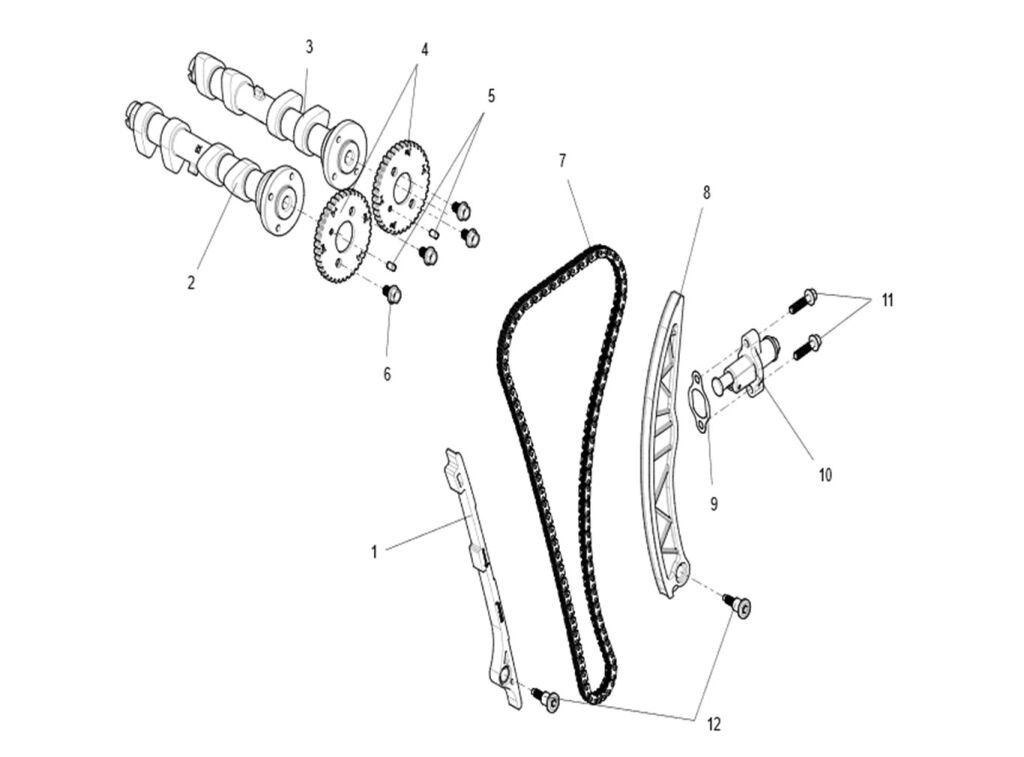

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 CHAIN GUIDE PLATE ASSEMBLY (Ref. č 1) F02A40030001 CHAIN GUIDE PLATE ASSEMBLY  1 € 5,54 € 6,70
SKLADOM
11 BOLT M6×25 (Ref. č 11) F01000005001 BOLT M6×25  2 € 2,44 € 2,95
SKLADOM
10 TENSIONER (Ref. č 10) F01A40300001 TENSIONER  1 € 72,31 € 87,49
SKLADOM
9 TENSIONER GASKET (Ref. č 9) F01A40008001 TENSIONER GASKET  1 € 4,40 € 5,32
SKLADOM
8 R/B E02-A406010-000-02 CHAIN GUIDE,TENSIONER (Ref. č 8) F02A40601001 R/B E02-A406010-000-02 CHAIN GUIDE,TENSIONER  1 € 56,46 € 68,32
SKLADOM
7 TIMING CHAIN (Ref. č 7) F01A40400001 TIMING CHAIN  1 € 101,14 € 122,38
SKLADOM
6 BOLT M6×12 (Ref. č 6) F01A40009001 BOLT M6×12  4 € 2,44 € 2,95
SKLADOM
5 CYLINDRICAL PIN 5×8 (Ref. č 5) F01A40004001 CYLINDRICAL PIN 5×8  2 € 2,44 € 2,95
SKLADOM
4 CAMSHAFT SPROCKET (Ref. č 4) F01A40003001 CAMSHAFT SPROCKET  2 € 60,52 € 73,23
SKLADOM
3 INTAKE CAMSHAFT COMBINATION (Ref. č 3) F02A40010001 INTAKE CAMSHAFT COMBINATION  1 € 58,01 € 70,19
SKLADOM
2 EXHAUST CAMSHAFT COMBINATION (Ref. č 2) F02A40020001 EXHAUST CAMSHAFT COMBINATION  1 € 58,01 € 70,19
SKLADOM
12 HEXAGON SOCKET PAN HEAD STEPPED BOLTS (Ref. č 12) F01A40007002 HEXAGON SOCKET PAN HEAD STEPPED BOLTS  2 € 2,44 € 2,95
SKLADOM
