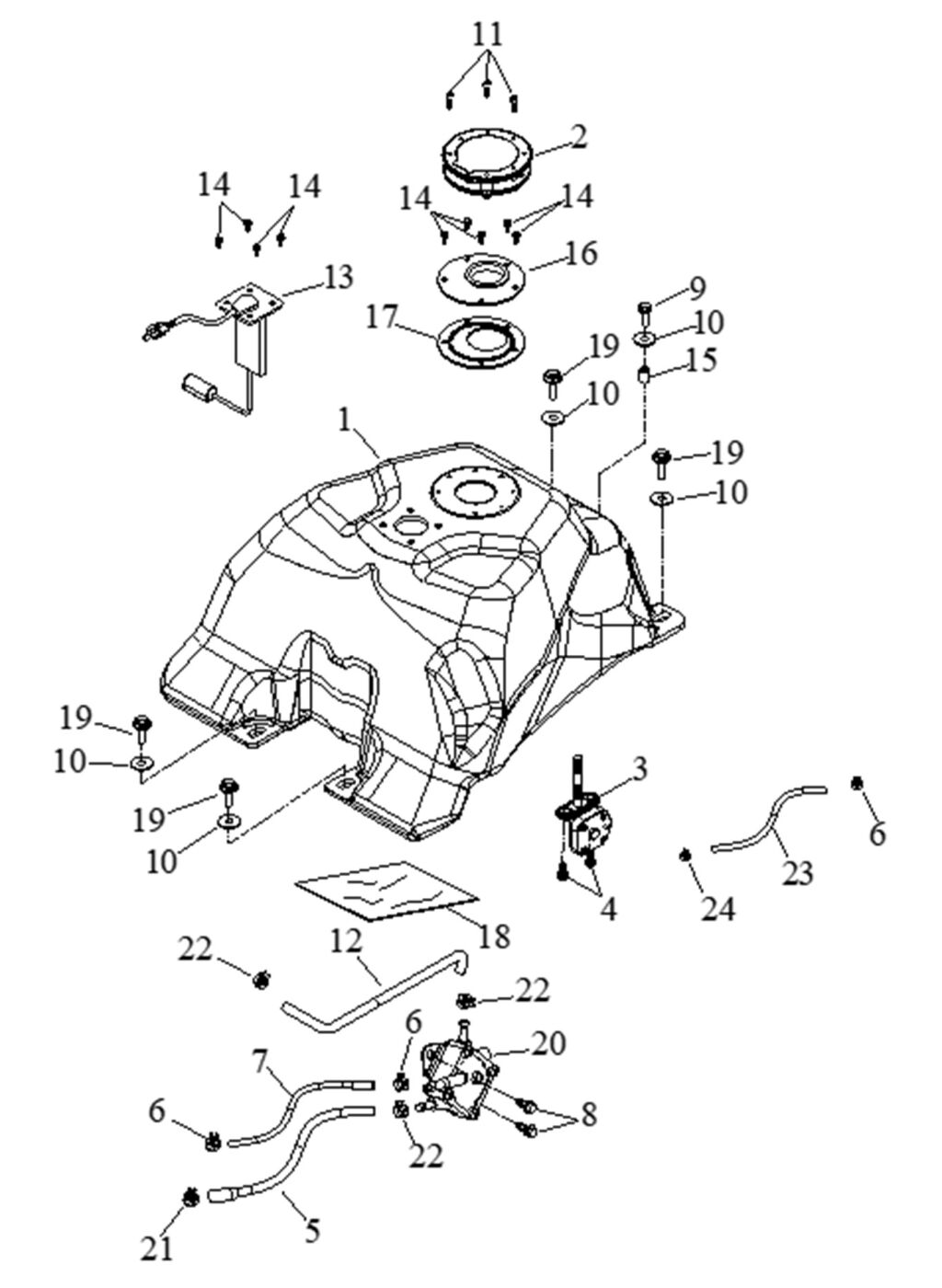

FUEL TANK

ACCESS MOTOR
Výrobca: ACCESS MOTOR
Kód produktu: ACCESS_5_530_WARRIOR_450
MODEL:
warrior 450 warrior 450
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 Tank, Fuel (Ref. č 1) 12100-A12-001 Tank, Fuel  1 € 120,66 € 146
NA DOPYT
14 91710-05016-08B Hex Washer Face Bolt  9 € 1,90 € 2,30
NA DOPYT
15 Spacer (Ref. č 15) 93300-0610-10 Spacer  1 € 2,48 € 3
SKLADOM
16 Fuel Cap, Carrier (Ref. č 16) 12101-A03-000 Fuel Cap, Carrier  1 € 4,96 € 6
Naskladňujeme
17 Rubber Washer, Feul Cap (Ref. č 17) 93502-A03-001 Rubber Washer, Feul Cap  1 € 3,31 € 4
Naskladňujeme
18 Heat Cushion(Front) (Ref. č 18) 72125-A01-000 Heat Cushion(Front)  1 € 2,48 € 3
SKLADOM
20 12106-A12-100 R/B 12106-A12-000 Pump Ass'y, Fuel  1 € 88,10 € 106,60
NA DOPYT

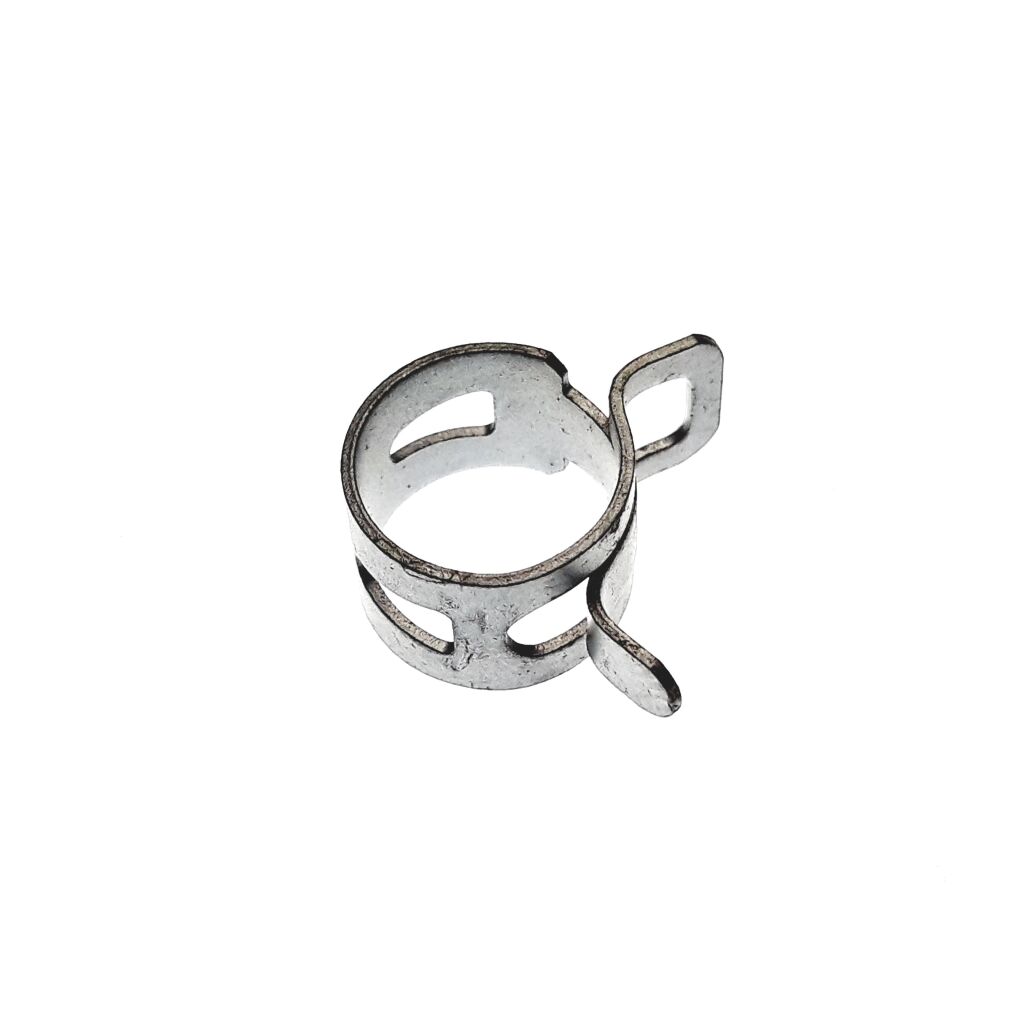

21 Clip (Ref. č 21) 97411-A01-000 Clip  1 € 2,48 € 3
SKLADOM
22 Clip (Ref. č 22) 97411-100-08 Clip  3 € 2,48 € 3
SKLADOM
23 12313-A12-020 Vacuum Tube,Fuel  1 € 4,05 € 4,90
NA DOPYT
13 12115-A03-000 R/B 12115-A03-003 Gauge,Fuel Tank  1 € 20,66 € 25
NA DOPYT
12 Tube, Fuel, 6*10.5*530 (Ref. č 12) 12310-A12-011 Tube, Fuel, 6*10.5*530  1 € 4,13 € 5
SKLADOM
11 91762-05030-04 Hex. Socket Bolt  3 € 1,90 € 2,30
NA DOPYT
2 Cap Assembly, Fuel tank (Ref. č 2) 12150-A03-001 Cap Assembly, Fuel tank  1 € 76,03 € 92
SKLADOM

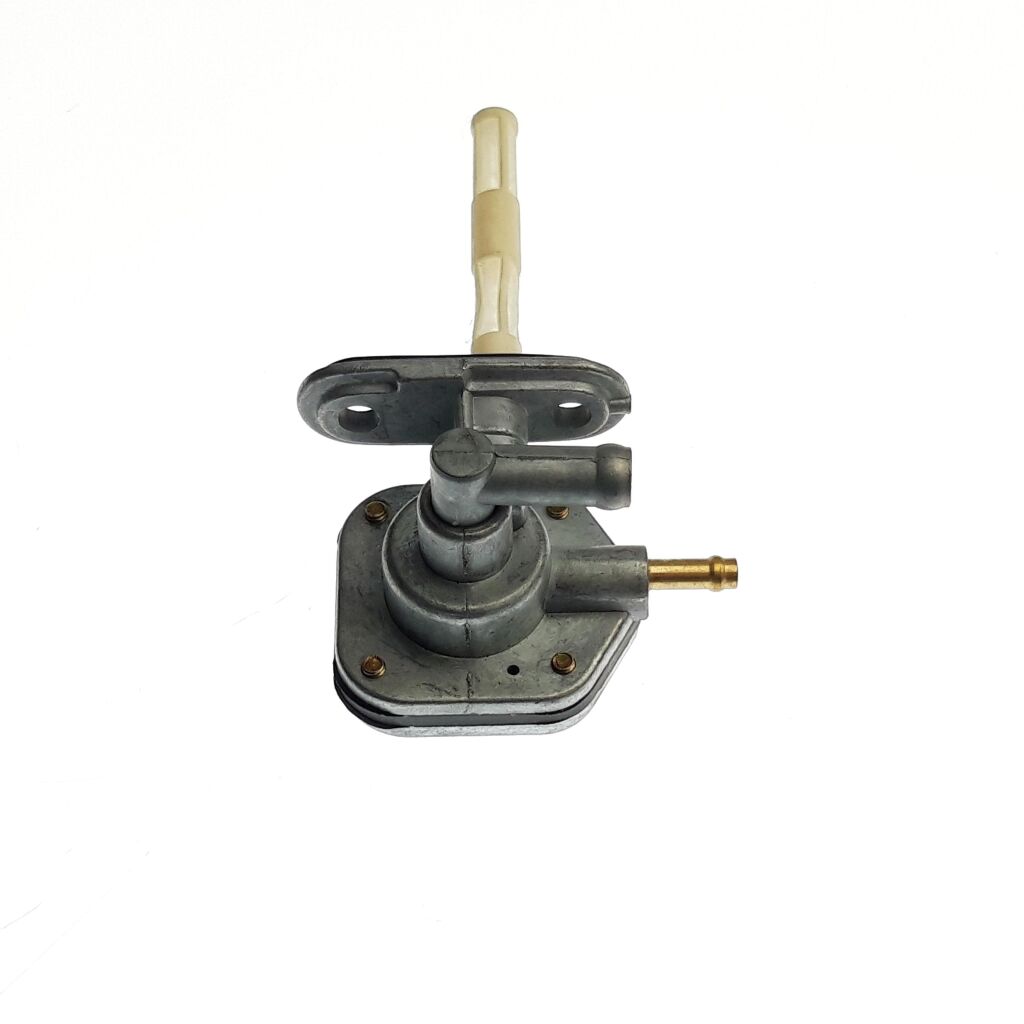

3 Valve, Fuel (Ref. č 3) 12105-A12-001 Valve, Fuel  1 € 41,32 € 50
SKLADOM ZA 3 dní
4 91760-06014-05G Hex. Socket Bolt  2 € 1,90 € 2,30
NA DOPYT
5 12310-A12-001 Tube, Fuel  1 € 9,09 € 11
NA DOPYT
6 Clip (Ref. č 6) 97411-095-08 Clip  3 € 2,48 € 3
NA DOPYT
7 Vacuum Tube,Fuel (Ref. č 7) 12313-A12-000 Vacuum Tube,Fuel  1 € 2,48 € 3
SKLADOM
8 Hex Washer Face Bolt R/B 92130-08S-12G (Ref. č 8) 91700-06012-10G Hex Washer Face Bolt R/B 92130-08S-12G  2 € 2,48 € 3
NA DOPYT
9 Hex Washer Face Bolt (Ref. č 9) 91700-06016-10G Hex Washer Face Bolt  1 € 2,48 € 3
SKLADOM
10 93100-06524-16G Washer , Plate  5 € 1,90 € 2,30
NA DOPYT
24 97411-085-06 Clip  1 € 2,48 € 3
NA DOPYT
