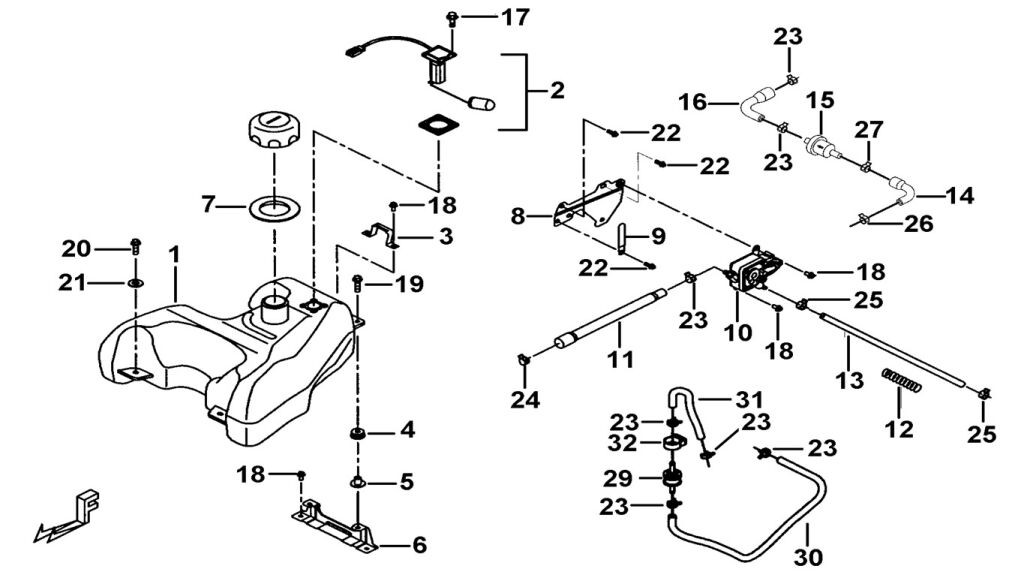

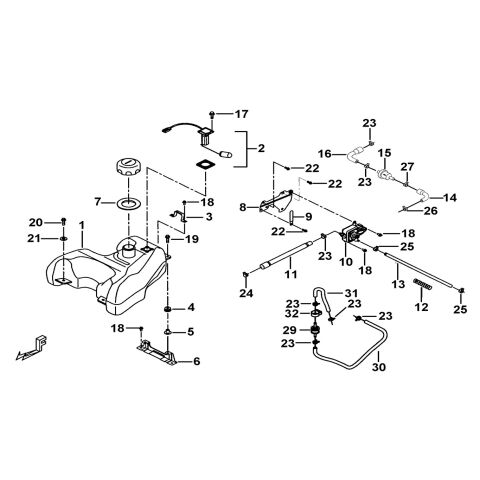

FUEL TANK

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 FUEL TANK ASSY. (Ref. č 01) 516120 FUEL TANK ASSY.  1 € 147,69 € 178,70
SKLADOM
18 BOLT, FLANGE M6X12 (Ref. č 18) GA556SC01 BOLT, FLANGE M6X12  6 € 2,40 € 2,90
SKLADOM
19 BOLT, FLANGE (Ref. č 19) S20802 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
20 BOLT, FLANGE (Ref. č 20) S20814 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
21 WASHER (Ref. č 21) W99005 WASHER  2 € 2,40 € 2,90
SKLADOM
22 BOLT, FLANGE M6X16 (Ref. č 22) GA555SC05 BOLT, FLANGE M6X16  3 € 2,40 € 2,90
SKLADOM
23 CLAMP (Ref. č 23) R40002 CLAMP  7 € 2,40 € 2,90
SKLADOM
24 CLIP (Ref. č 24) R40601 CLIP  1 € 2,40 € 2,90
SKLADOM
25 R40801 CLIP   2 € 2,15 € 2,60
NA DOPYT
26 R40703 CLIP  1 € 2,23 € 2,70
NA DOPYT
27 CLIP (Ref. č 27) R40903 CLIP  1 € 2,40 € 2,90
SKLADOM
29 VALVE (Ref. č 29) 516111 VALVE  1 € 20,91 € 25,30
SKLADOM
30 516112 HOSE, VENT  1 € 11,98 € 14,50
NA DOPYT
31 516113 HOSE, VENT  1 € 5,95 € 7,20
NA DOPYT
17 SCREW, OVAL HEAD (Ref. č 17) S45502 SCREW, OVAL HEAD  4 € 2,40 € 2,90
SKLADOM
16 518115 HOSE  1 € 2,40 € 2,90
NA DOPYT
15 Filter, fuel (Ref. č 15) 412182 Filter, fuel  1 € 12,64 € 15,30
SKLADOM
02 GAUGE ASSY., FUEL LEVEL (Ref. č 02) 927966 GAUGE ASSY., FUEL LEVEL  1 € 36,78 € 44,50
SKLADOM
03 516109 BRACKET, SEAT, FRONT  1 € 8,76 € 10,60
NA DOPYT
04 CUSHION (Ref. č 04) 512120 CUSHION  2 € 2,40 € 2,90
SKLADOM
05 518103 SPACER  2 € 3,06 € 3,70
NA DOPYT
06 BRACKET, FUEL TANK (Ref. č 06) 516135 BRACKET, FUEL TANK  1 € 12,56 € 15,20
SKLADOM
07 ORNAMENT, FUEL TANK (Ref. č 07) 512125 ORNAMENT, FUEL TANK  1 € 2,40 € 2,90
NA DOPYT
08 BRACKET, FUEL PUMP (Ref. č 08) 512187 BRACKET, FUEL PUMP  1 € 14,71 € 17,80
SKLADOM
09 CLAMP (Ref. č 09) 514410 CLAMP  1 € 2,40 € 2,90
SKLADOM
10 FUEL PUMP (Ref. č 10) 512188 FUEL PUMP  1 € 68,60 € 83
SKLADOM
11 516128 HOSE  1 € 7,69 € 9,30
NA DOPYT
12 GA553SP01 SPRING 15X140X0.8  1 € 6,03 € 7,30
NA DOPYT
13 512192 HOSE  1 € 8,84 € 10,70
NA DOPYT
14 HOSE (Ref. č 14) 512194 HOSE  1 € 4,38 € 5,30
NA DOPYT
32 BUSH, RUBBER (Ref. č 32) 516114 BUSH, RUBBER  1 € 3,88 € 4,70
SKLADOM
