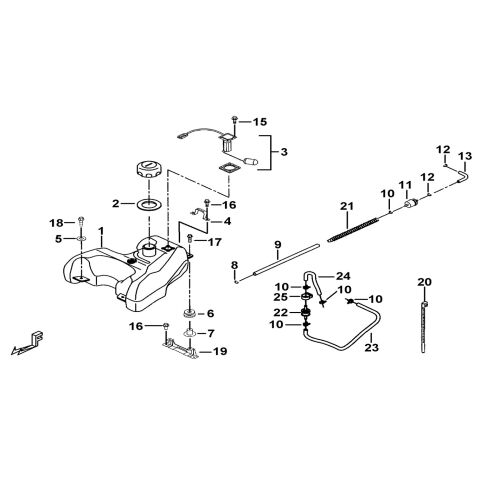

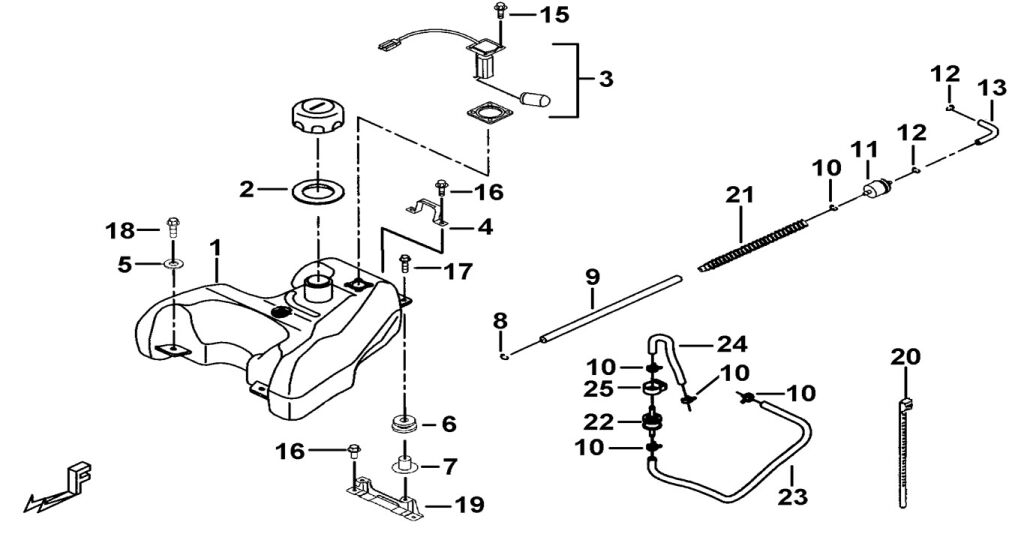

FUEL TANK

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 512129 FUEL TANK ASSY.

←015100

1 € 71,32 € 86,30
NA DOPYT
13 HOSE, x2 (Ref. č 13) 412103 HOSE, x2  1 € 5,04 € 6,10
NA DOPYT
15 BOLT, HEX. HEAD M5 (Ref. č 15) S07501 BOLT, HEX. HEAD M5

←012037

4 € 2,40 € 2,90
SKLADOM
15A SCREW, OVAL HEAD (Ref. č 15A) S45502 SCREW, OVAL HEAD

012038→

4 € 2,40 € 2,90
SKLADOM
16 BOLT, FLANGE M6X12 (Ref. č 16) GA556SC01 BOLT, FLANGE M6X12  5 € 2,40 € 2,90
SKLADOM
17 BOLT, FLANGE (Ref. č 17) S20802 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
18 BOLT, FLANGE (Ref. č 18) S20801 BOLT, FLANGE  2 € 2,40 € 2,90
SKLADOM
19 BRACKET, FUEL TANK (Ref. č 19) 516135 BRACKET, FUEL TANK  1 € 12,56 € 15,20
SKLADOM
20 CLAMP 13X150 (Ref. č 20) GA510SR01 CLAMP 13X150  1 € 2,40 € 2,90
SKLADOM
21 SPRING (Ref. č 21) 512197 SPRING  1 € 2,98 € 3,60
SKLADOM
22 VALVE (Ref. č 22) 516111 VALVE

015101→

1 € 20,91 € 25,30
SKLADOM
23 516112 HOSE, VENT

015101→

1 € 11,98 € 14,50
NA DOPYT
24 516113 HOSE, VENT

015101→

1 € 5,95 € 7,20
NA DOPYT
12 CLIP 8,5 (Ref. č 12) R36801 CLIP 8,5  2 € 2,40 € 2,90
SKLADOM
11 Filter, fuel (Ref. č 11) 412182 Filter, fuel  1 € 12,64 € 15,30
SKLADOM
01A FUEL TANK ASSY. (Ref. č 01A) 516120 FUEL TANK ASSY.

015101→

1 € 147,69 € 178,70
SKLADOM
02 ORNAMENT, FUEL TANK (Ref. č 02) 512125 ORNAMENT, FUEL TANK  1 € 2,40 € 2,90
NA DOPYT
03 GAUGE ASSY., FUEL LEVEL (Ref. č 03) 512147 GAUGE ASSY., FUEL LEVEL

←012037

1 € 27,19 € 32,90
NA DOPYT
03A 512198 R/B: 927966 GAUGE ASSY., FUEL LEVEL

012038→

1 € 43,06 € 52,10
NA DOPYT
04 516109 BRACKET, SEAT, FRONT  1 € 8,76 € 10,60
NA DOPYT
05 WASHER (Ref. č 05) W99005 WASHER  2 € 2,40 € 2,90
SKLADOM
06 CUSHION (Ref. č 06) 512120 CUSHION  2 € 2,40 € 2,90
SKLADOM
07 SPACER (Ref. č 07) 512119 SPACER  2 € 2,40 € 2,90
SKLADOM
08 CLIP (Ref. č 08) R40601 CLIP  1 € 2,40 € 2,90
SKLADOM
09 HOSE (Ref. č 09) 512196 HOSE

←015100

1 € 11,07 € 13,40
SKLADOM
09A HOSE (Ref. č 09A) 516129 HOSE

015101→

1 € 9,42 € 11,40
NA DOPYT
10 CLAMP (Ref. č 10) R40002 CLAMP  5 € 2,40 € 2,90
SKLADOM
25 BUSH, RUBBER (Ref. č 25) 516114 BUSH, RUBBER

015101→

1 € 3,88 € 4,70
SKLADOM
