FUEL TANK & HEAT ISOLATOR

TGB
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 518171A FUEL TANK ASSY.  1 € 449,26 € 553
NA DOPYT
08 BOLT, FLANGE M6X12 (Ref. č 08) GA556SC01 BOLT, FLANGE M6X12  4 € 2,40 € 3
SKLADOM
10 PROTECTION SHIELD (RH) (Ref. č 10) 517986 PROTECTION SHIELD (RH)  1 € 15,29 € 19
SKLADOM
11 BOLT, FLANGE (Ref. č 11) S07601 BOLT, FLANGE  5 € 2,40 € 3
SKLADOM
12 517987 BRACKET  1 € 12,23 € 15
NA DOPYT
13 517985 PROTECTION SHIELD(LH)  1 € 13,14 € 16
NA DOPYT
14 BOLT, FLANGE M6X16 (Ref. č 14) GA555SC05 BOLT, FLANGE M6X16  2 € 2,40 € 3
SKLADOM
15 518188 CLAMP ＂ P ＂  1 € 7,27 € 9
NA DOPYT
07 INSULATION SHIELD COMP. (Ref. č 07) 518161A INSULATION SHIELD COMP.  1 € 27,77 € 34
SKLADOM
06 BOLT (Ref. č 06) S21809 BOLT  4 € 2,40 € 3
SKLADOM
05 CLAMP (Ref. č 05) 514410 CLAMP  1 € 2,40 € 3
SKLADOM

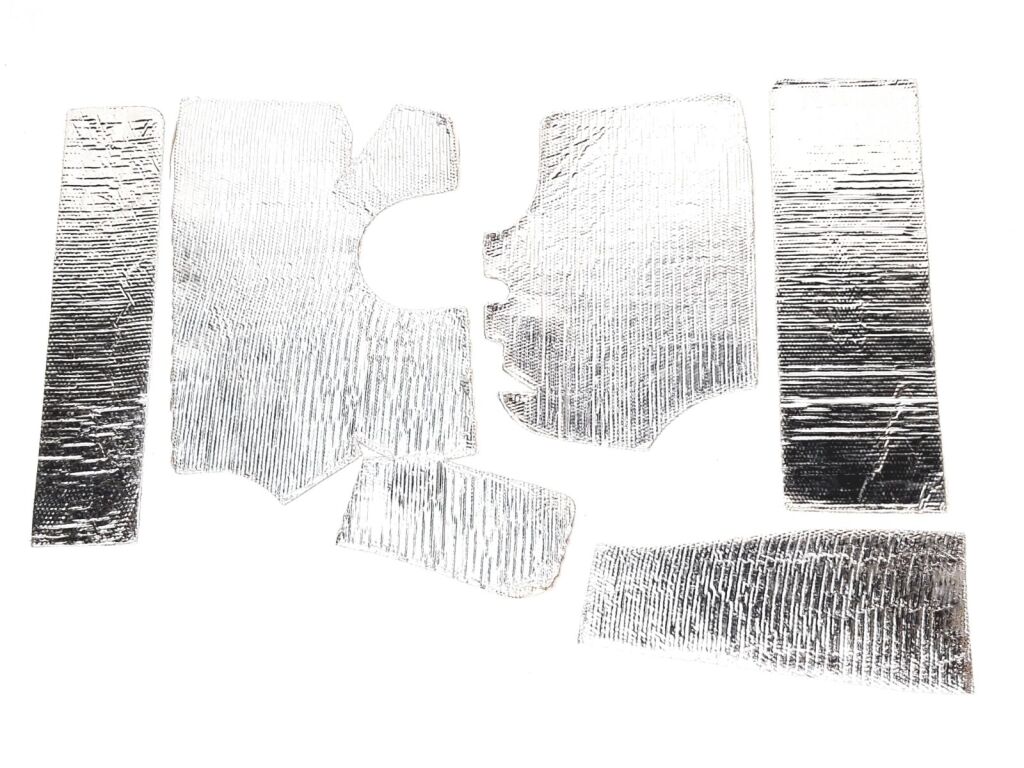

01.1 INSULATION COMP.(5 PCS) (Ref. č 01-1) 518157RA INSULATION COMP.(5 PCS)  1 € 80,08 € 99
SKLADOM
01.2 518131RA INSULATION COMP.(3 PCS)  1 € 26,03 € 32
NA DOPYT

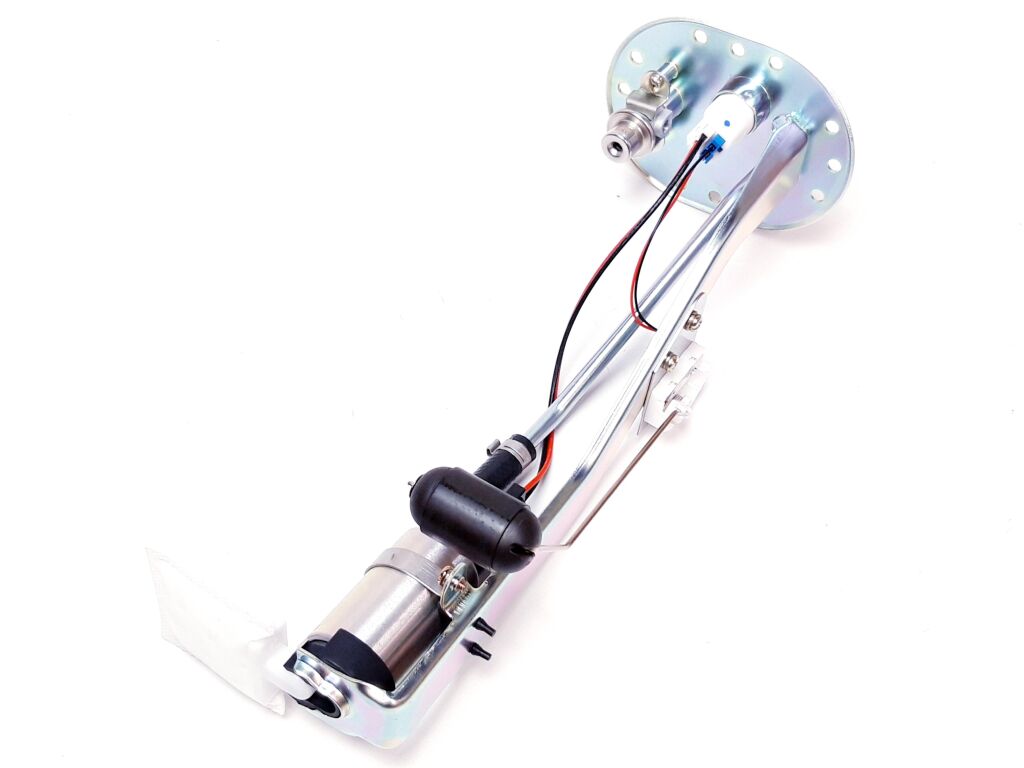

02 FUEL PUMP ASSY. (Ref. č 02) 910770YA FUEL PUMP ASSY.  1 € 242,48 € 298
SKLADOM
02.1 FUEL PUMP COMP. (Ref. č 02-1) 910770Y FUEL PUMP COMP.  1 € 223,72 € 275
NA DOPYT

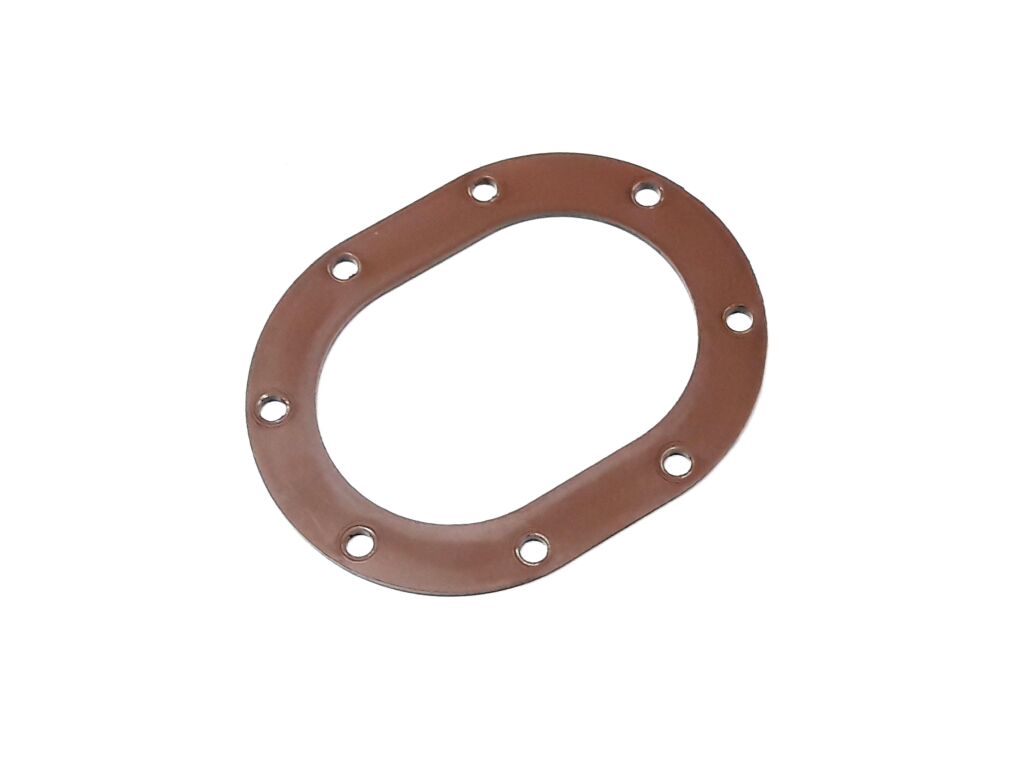

02.2 GASKET (Ref. č 02-2) 910843 GASKET  1 € 17,36 € 21
SKLADOM
02.3 910904 FUEL PUMP RUBBER SEAT  1 € 8,68 € 11
NA DOPYT
04 W03604 GASKET  8 € 1,98 € 2
NA DOPYT
16 GA558NT02 SCREW  1 € 2,23 € 3
NA DOPYT
Kód produktu TGB_5_257_EST-JJ
typ rozkresu: FRAME PARTS
ZNACKA: TGB
TYP: BLADE 1000LTX
MODEL: BLADE 1000LTX MAX E5
