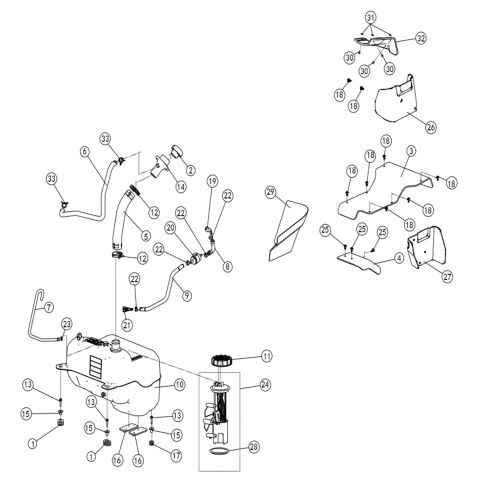

FUEL SYSTEM

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_102_AT10_A10_ABS
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 TANK INSTALL RUBBER SLEEVE (Ref. č 1) A01A51040001 TANK INSTALL RUBBER SLEEVE  2 € 2,18 € 3
SKLADOM
19 7.89 QUICK CONNECTION PLUG (Ref. č 19) T07000001011 7.89 QUICK CONNECTION PLUG  1 € 2,48 € 3
SKLADOM
20 Fuel filter component (Ref. č 20) U01A52010001 Fuel filter component  1 € 15,70 € 19
NA DOPYT
21 PUSH-BUTTON QUICK INSTALL PLUG 9.49-I(A) (Ref. č 21) T07000001003 PUSH-BUTTON QUICK INSTALL PLUG 9.49-I(A)  1 € 18,43 € 23
SKLADOM
22 Clamp,aingle ear continuously variable 16.5 (Ref. č 22) T05000006001 Clamp,aingle ear continuously variable 16.5  4 € 2,18 € 3
SKLADOM
23 CLAMP 13 (Ref. č 23) QCT006211004 CLAMP 13  1 € 2,18 € 3
SKLADOM
24 FUEL PUMP (Ref. č 24) A12-M430000-000-00 FUEL PUMP  1 € 91,40 € 112
SKLADOM

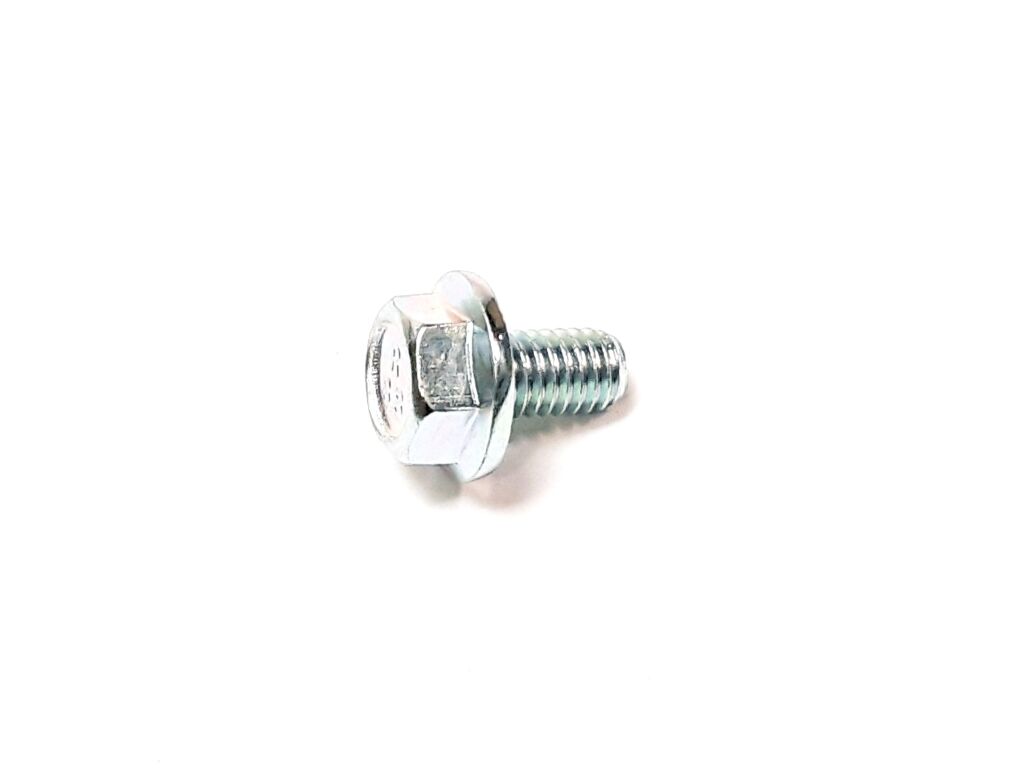

25 BOLT M6×10 (Ref. č 25) GBT005789005 BOLT M6×10  3 € 2,15 € 3
SKLADOM
26 REAR RIGHT HEAT SHIELD (Ref. č 26) A12-A390400-000-00 REAR RIGHT HEAT SHIELD  1 € 11,74 € 14
SKLADOM
27 REAR LEFT HEAT SHIELD (Ref. č 27) A12-A390300-000-00 REAR LEFT HEAT SHIELD  1 € 11,32 € 14
SKLADOM
28 GASKET,OIL PUMP (Ref. č 28) U01A51400001 GASKET,OIL PUMP  1 € 9,29 € 11
SKLADOM
29 RIGHT HEAT SHIELD (Ref. č 29) A12-A390500-000-00 RIGHT HEAT SHIELD  1 € 13,72 € 17
SKLADOM
30 CROSS RECESSED ROUND HEAD TAPPING SCREWS ST4.2×13 (Ref. č 30) GBT000845005 CROSS RECESSED ROUND HEAD TAPPING SCREWS ST4.2×13  3 € 2,18 € 3
SKLADOM
31 4.2 SELF-TAPPING NAIL SPLINT (Ref. č 31) T04000002003 4.2 SELF-TAPPING NAIL SPLINT  3 € 2,18 € 3
SKLADOM
32 REAR TAIL LIGHT HEAT SHIELD (Ref. č 32) A02-A300007-000-00 REAR TAIL LIGHT HEAT SHIELD  1 € 11,16 € 14
SKLADOM
18 COMBINATION BOLT M6×16 (Ref. č 18) T03000006002 COMBINATION BOLT M6×16  8 € 2,15 € 3
SKLADOM
17 ROUND RUBBER GASKET FOR FUEL TANK INSTALLATION (Ref. č 17) S03A50106001 ROUND RUBBER GASKET FOR FUEL TANK INSTALLATION  1 € 2,18 € 3
SKLADOM
16 Fuel tank protection pad (Ref. č 16) S01A50106001 Fuel tank protection pad  2 € 2,18 € 3
SKLADOM
2 FUEL TANK COVER (Ref. č 2) A02A12000001 FUEL TANK COVER  1 € 14,55 € 18
SKLADOM
3 A12-A390100-000-01 REAR HEAT SHIELD  1 € 21,40 € 26
NA DOPYT
4 GEAR BOX HEAT SHIELD (Ref. č 4) A12-A390200-000-01 GEAR BOX HEAT SHIELD  1 € 12,81 € 16
SKLADOM

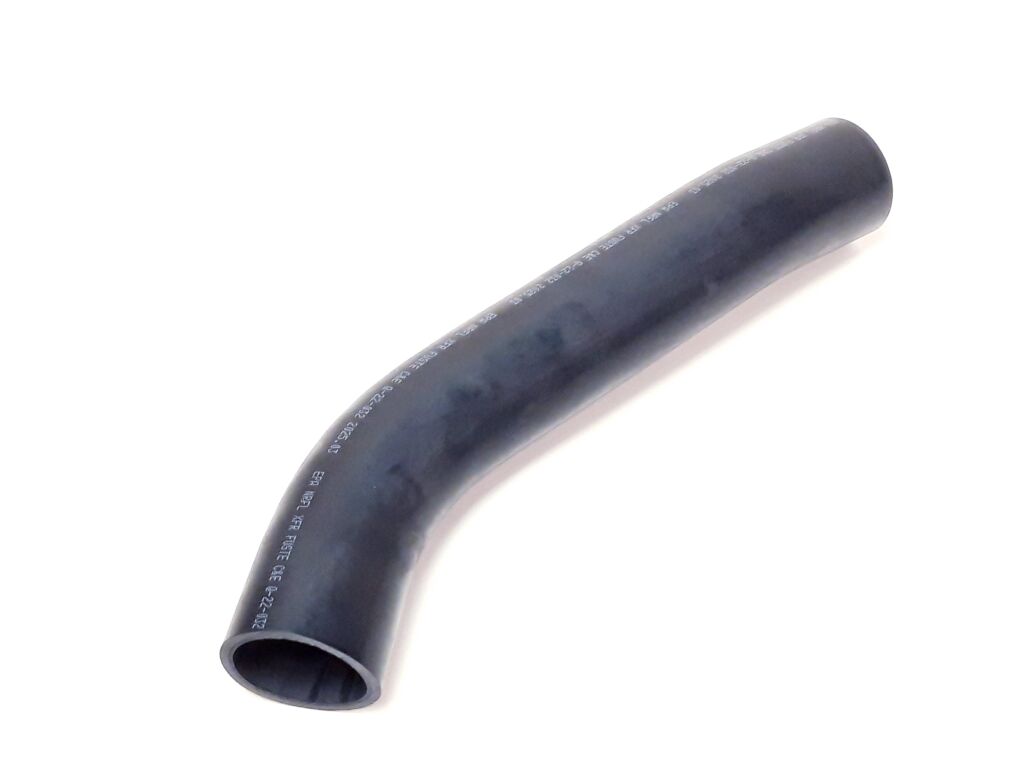

5 FUEL FILLER CONNECTION HOSE (Ref. č 5) A12-A500001-000-00 FUEL FILLER CONNECTION HOSE  1 € 27,27 € 34
SKLADOM

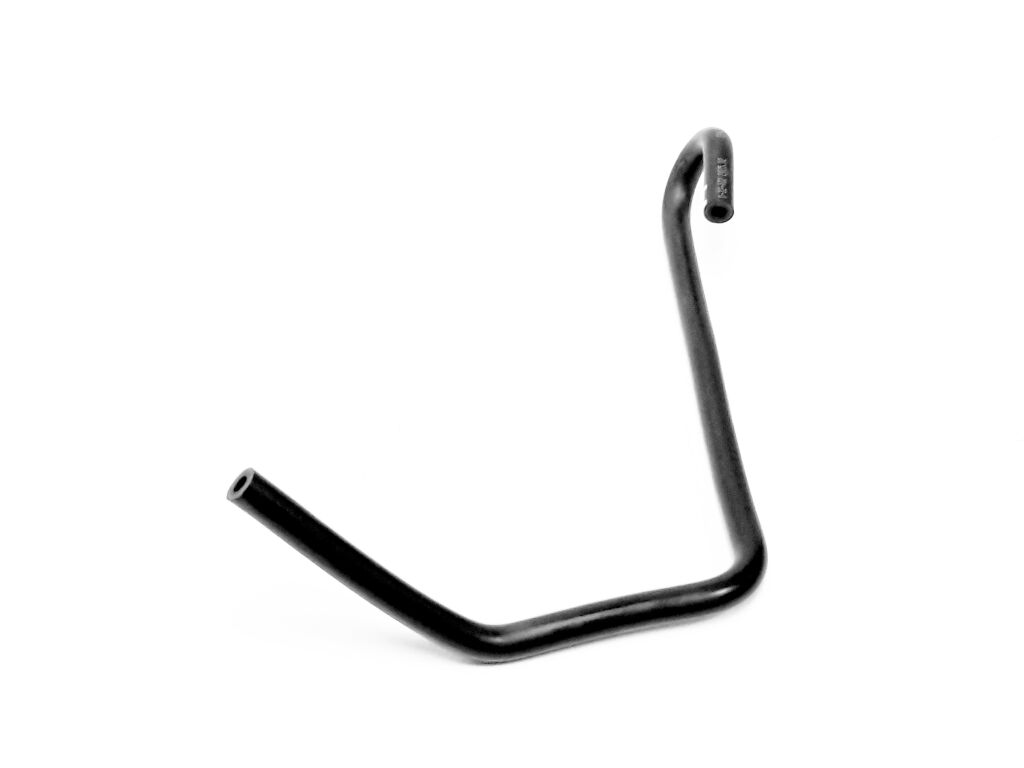

6 VENT PIPE (Ref. č 6) A12-A500002-000-00 VENT PIPE  1 € 19,17 € 24
SKLADOM
7 BREATHING VALVE HOSE (Ref. č 7) A12-A500003-000-00 BREATHING VALVE HOSE  1 € 7,44 € 9
SKLADOM
8 HIGH PRESSURE FUEL TUBE (Ref. č 8) A12-A520002-000-00 HIGH PRESSURE FUEL TUBE  1 € 5,21 € 6
SKLADOM
9 HIGH PRESSURE FUEL PIPE (Ref. č 9) A12-A520001-000-00 HIGH PRESSURE FUEL PIPE  1 € 10 € 12
SKLADOM
10 FUEL TANK (Ref. č 10) A12-A540000-000-00 FUEL TANK  1 € 209,59 € 258
SKLADOM
11 CAP,INSTALL OIL PUMP (Ref. č 11) U01A51500001 CAP,INSTALL OIL PUMP  1 € 5,25 € 6
SKLADOM
12 CLAMP 49 (Ref. č 12) BQ006211-04912-001 CLAMP 49  2 € 2,18 € 3
SKLADOM
13 HEXAGON FLANGE BOLT M6×30 (Ref. č 13) GBT005789065 HEXAGON FLANGE BOLT M6×30  3 € 8,02 € 10
SKLADOM
14 FUEL FILLER (Ref. č 14) S01-A513000-000-01 FUEL FILLER  1 € 5,79 € 7
SKLADOM
15 FLANGING BUSHING (Ref. č 15) S01A50103001 FLANGING BUSHING  3 € 2,48 € 3
SKLADOM
33 SPRINGBAND CLAMP (Ref. č 33) QCT006211009 SPRINGBAND CLAMP  2 € 2,18 € 3
SKLADOM
Kód produktu SEGWAY_1_102_AT10_A10_ABS
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: AT10
MODEL: AT10WL ABS
