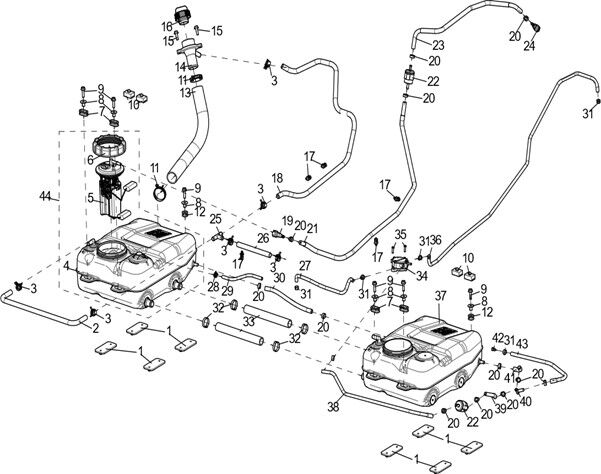

FUEL SYSTEM.

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_132_UTV1000F-S8-24
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
44 S01-A510000-000-00 MAIN FUEL TANK ASSEMBLY  1 € 210,41 € 259
NA DOPYT
32 T05000009001 SINGLE EAR STEPLESS CLAMP 34.5  4 € 2,48 € 3
NA DOPYT
31 T05000003001 SINGLE EAR STEPLESS CLAMP 14.5  5 € 2,48 € 3
NA DOPYT
30 S01-A507050-000-00 FUEL TANK CONNECTION HOSE 2  1 € 6,69 € 8
NA DOPYT
29 S01-A504000-000-01 GRAVITY VALVE BREATHER TUBE  1 € 2,70 € 3
NA DOPYT
28 CLAMP,SPRINGBAND 16 (Ref. č 28) QCT006211005 CLAMP,SPRINGBAND 16  1 € 2,48 € 3
SKLADOM
27 S01-A502000-000-00 NEGATIVE PRESSURE PUMP OIL HOSE  1 € 6,78 € 8
NA DOPYT
26 S01-A507040-000-00 FUEL TANK BREATHER 3  1 € 5,04 € 6
NA DOPYT
25 U05A45006001 SECONDARY AIR SUPPLEMENT CONNECTION TEE  1 € 4,96 € 6
NA DOPYT
24 T07000001001 7.89 QUICK CONNECTION PLUG (0 DEGREE)  1 € 6,45 € 8
NA DOPYT
33 S01-A507030-000-00 FUEL TANK CONNECTION HOSE  2 € 14,79 € 18
NA DOPYT
34 S03A50800001 NEGATIVE PRESSURE PUMP  1 € 41,90 € 52
NA DOPYT
43 S01-A511011-000-01 FUEL TANK SUCTION HOSE  1 € 10,83 € 13
NA DOPYT
42 CVT OUTLET PIPE DRAIN PLUG (Ref. č 42) S05A20904001 CVT OUTLET PIPE DRAIN PLUG  1 € 2,18 € 3
SKLADOM
41 S01-A531001-000-01 NEGATIVE PRESSURE PUMP OIL INLET HOSE 1  1 € 2,40 € 3
NA DOPYT
40 S03A51200001 NEGATIVE PRESSURE PUMP OIL INLET CONNECTION TEE  1 € 2,48 € 3
NA DOPYT
39 S01-A531002-000-02 NEGATIVE PRESSURE PUMP OIL INLET HOSE 2  1 € 3,55 € 4
NA DOPYT
38 S01-A509000-000-00 NEGATIVE PRESSURE PUMP OIL INLET HOSE 3  1 € 11,07 € 14
NA DOPYT
37 S01-A512000-000-00 AUXILIARY TANK  1 € 118,10 € 145
NA DOPYT
36 S03A50607001 NEGATIVE PRESSURE CONNECTION HOSE FOR NEGATIVE PRESSURE PUMP  1 € 6,36 € 8
NA DOPYT
35 GBT000702004 SCREWS M6×20  2 € 1,74 € 2
NA DOPYT
23 S01-A503000-000-00 HIGH PRESSURE FUEL PIPE(ENGINE)  1 € 16,78 € 21
NA DOPYT
22 Fuel filter component (Ref. č 22) U01A52010001 Fuel filter component  2 € 15,70 € 19
NA DOPYT
10 S01H20400001 FUEL TANK BLOCK  4 € 1,74 € 2
NA DOPYT
9 HEXAGON FLANGE BOLT M8×30 (Ref. č 9) GBT005789017 HEXAGON FLANGE BOLT M8×30  6 € 2,15 € 3
SKLADOM
8 FLANGING BUSHING (Ref. č 8) S01A50103001 FLANGING BUSHING  6 € 2,48 € 3
SKLADOM
7 S03A50102001 APRONS  4 € 2,48 € 3
NA DOPYT
6 CAP,INSTALL OIL PUMP (Ref. č 6) U01A51500001 CAP,INSTALL OIL PUMP  1 € 5,25 € 6
SKLADOM
5 S03M43000001 OIL PUMP ASSEMBLY  1 € 105,70 € 130
NA DOPYT
4 S01-A511000-000-00 MAIN FUEL TANK  1 € 118,10 € 145
NA DOPYT
3 CLAMP 20 (Ref. č 3) QCT006211015 CLAMP 20  6 € 2,18 € 3
SKLADOM
2 S01-A507010-000-00 FUEL TANK BREATHER PIPE 1  1 € 13,80 € 17
NA DOPYT
11 CLAMP 49 (Ref. č 11) BQ006211-04912-001 CLAMP 49  2 € 2,18 € 3
SKLADOM
12 ROUND RUBBER GASKET FOR FUEL TANK INSTALLATION (Ref. č 12) S03A50106001 ROUND RUBBER GASKET FOR FUEL TANK INSTALLATION  2 € 2,18 € 3
SKLADOM
21 S01-A505000-000-00 HIGH PRESSURE FUEL PIPE(FUEL TANK)  1 € 29,59 € 36
NA DOPYT
20 Clamp,aingle ear continuously variable 16.5 (Ref. č 20) T05000006001 Clamp,aingle ear continuously variable 16.5  12 € 2,18 € 3
SKLADOM
19 9.49 QUICK CONNECT PLUG (90 DEGREES) (Ref. č 19) T07000001004 9.49 QUICK CONNECT PLUG (90 DEGREES)  1 € 4,79 € 6
SKLADOM
18 S01-A507020-000-00 FUEL TANK BREATHER PIPE 2  1 € 30,17 € 37
NA DOPYT
17 CLIP,ROUND 200 (Ref. č 17) T05000001004 CLIP,ROUND 200  5 € 2,18 € 3
SKLADOM
16 OIL TANK CAP（UNLOCK) (Ref. č 16) S01A50105001 OIL TANK CAP（UNLOCK)  1 € 7,02 € 9
NA DOPYT
15 Hexagon flange bolt M8×25 (Ref. č 15) GBT005789016 Hexagon flange bolt M8×25  2 € 2,18 € 3
SKLADOM

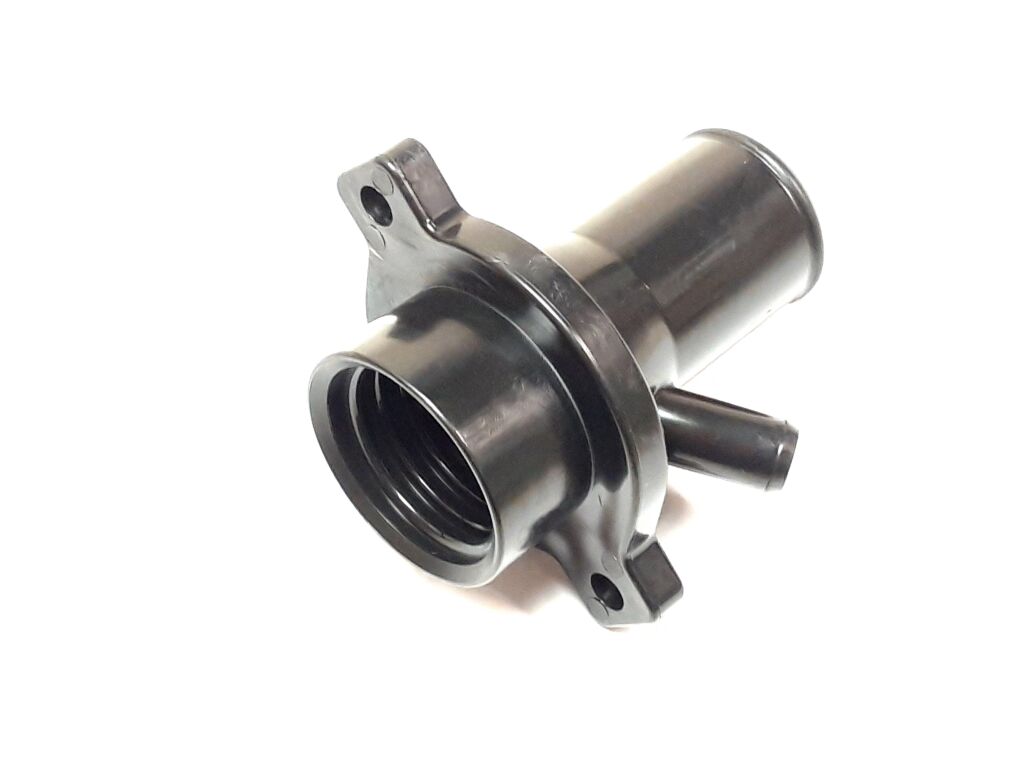

14 FUEL FILLER (Ref. č 14) S01-A513000-000-01 FUEL FILLER  1 € 5,79 € 7
SKLADOM
13 S01-A501040-000-00 FUEL FILLER CONNECTION HOSE  1 € 51,49 € 63
NA DOPYT
1 Fuel tank protection pad (Ref. č 1) S01A50106001 Fuel tank protection pad  8 € 2,18 € 3
SKLADOM
Kód produktu SEGWAY_1_132_UTV1000F-S8-24
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: Villain SxS
MODEL: Villain SX10 DIFF (2024-xxxxx)
