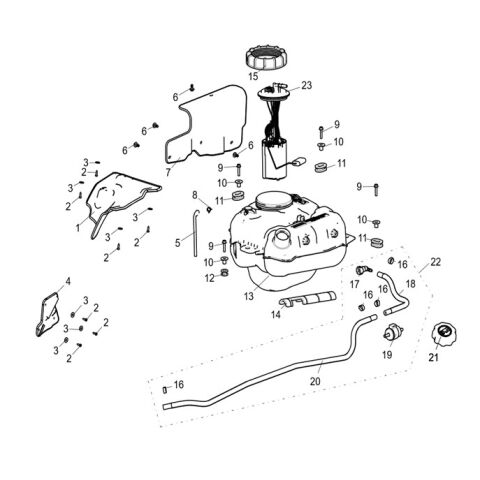

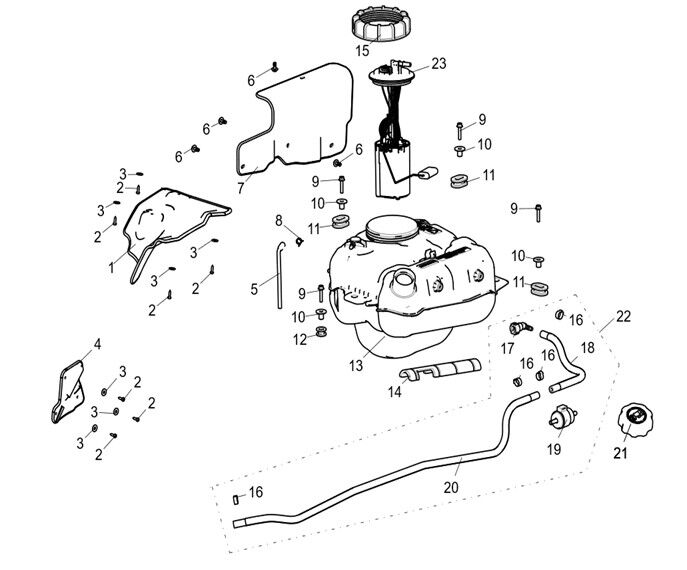

FUEL SYSTEM LONG VERSION

Kód produktu SEGWAY_1_153_AT5_T3b

Ref. č	Kód p.	Popis	p. ks	Cena za 1 ks	Dostupnost
1	A10-A500005-000-00	REAR FENDER HEAT SHIELD	1	Cena bez DPH € 12,31 Cena s DPH € 15	SKLADOM
14	A10-A500001-000-00	BUFFER RUBBER SLEEVE	1	Cena bez DPH € 4,30 Cena s DPH € 5	SKLADOM

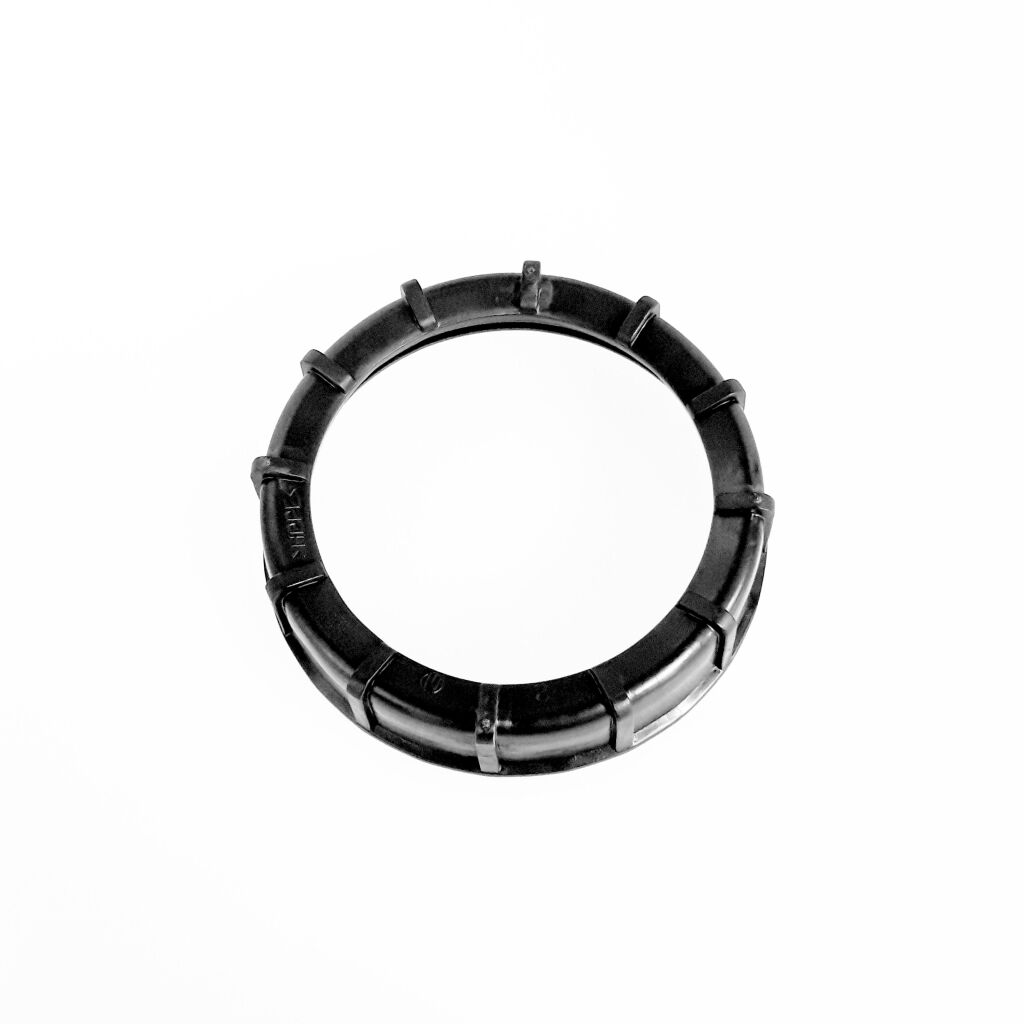

15	U01A51500001	CAP,INSTALL OIL PUMP	1	Cena bez DPH € 5,25 Cena s DPH € 6	SKLADOM
16	T05000006001	Clamp,aingle ear continuously variable 16.5	4	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
17	T07000001004	9.49 QUICK CONNECT PLUG (90 DEGREES)	1	Cena bez DPH € 4,79 Cena s DPH € 6	SKLADOM
18	A10-A520001-000-00	FUEL PUMP PIPE	1	Cena bez DPH € 10,58 Cena s DPH € 13	SKLADOM
19	U01A52010001	Fuel filter component	1	Cena bez DPH € 15,70 Cena s DPH € 19	NA DOPYT
20	A11-A520001-000-00	INJECTION PIPE	1	Cena bez DPH € 30,58 Cena s DPH € 38	SKLADOM
21	A10-A500100-000-00	FUEL TANK COVER	1	Cena bez DPH € 7,69 Cena s DPH € 9	SKLADOM
22	A11-A520000-000-00	INJECTION PIPE ASSY	1	Cena bez DPH € 51,07 Cena s DPH € 63	NA DOPYT
13	A10-A510000-000-00	FUEL TANK	1	Cena bez DPH € 121,90 Cena s DPH € 150	SKLADOM
12	S03A50106001	ROUND RUBBER GASKET FOR FUEL TANK INSTALLATION	1	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
2	GBT000961001	LARGE WASHERS A GRADE 5	7	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
3	GBT000845010	SCREW ST4.2×16	7	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
5	A10-A500003-000-00	AIR PIPE	1	Cena bez DPH € 2,40 Cena s DPH € 3	SKLADOM

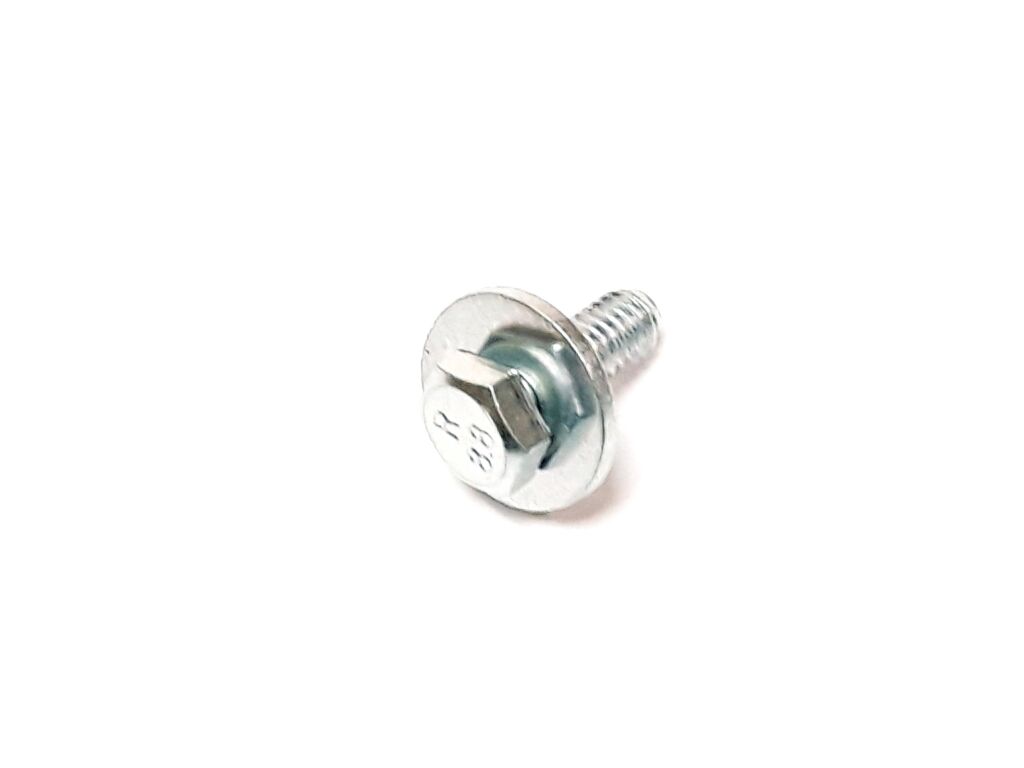

6	T03000006002	COMBINATION BOLT M6×16	4	Cena bez DPH € 2,15 Cena s DPH € 3	SKLADOM
7	A10-A500002-000-00	FUEL TANK HEAT SHIELD	1	Cena bez DPH € 10,74 Cena s DPH € 13	SKLADOM

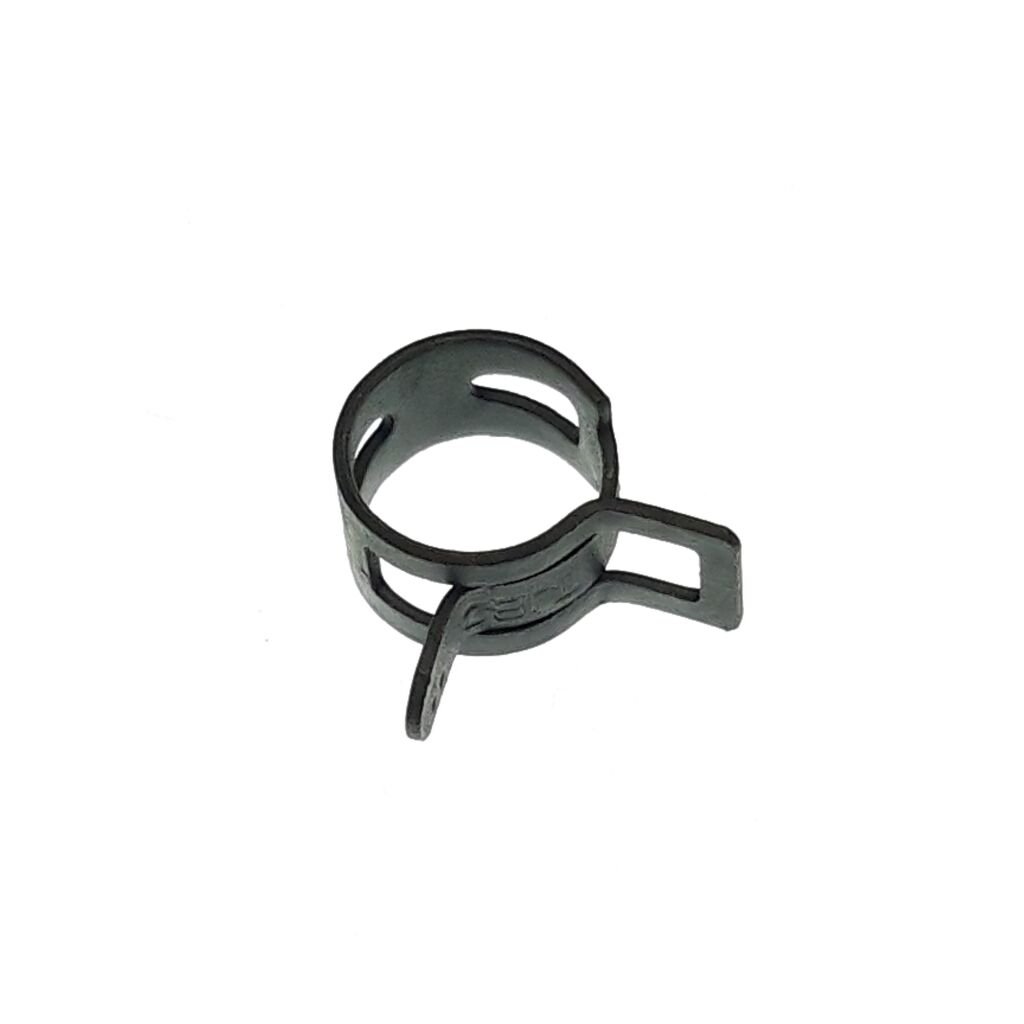

8	QCT006211003	CLAMP,SPRINGBAND 11	1	Cena bez DPH € 2,15 Cena s DPH € 3	SKLADOM

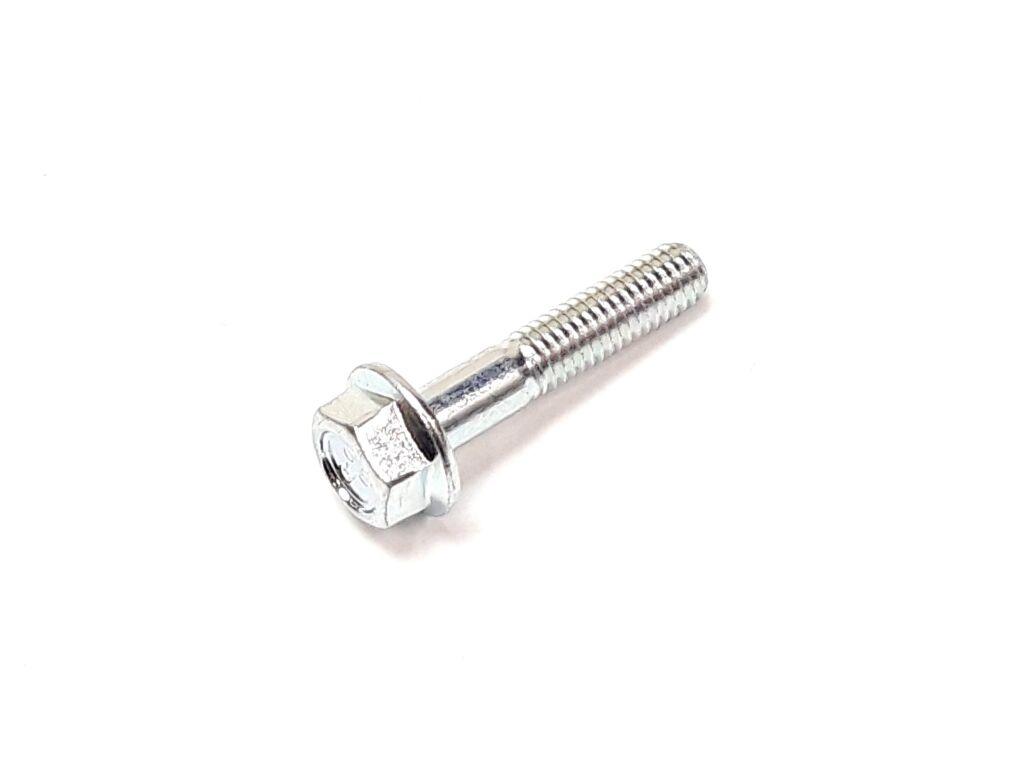

9	GBT005789065	HEXAGON FLANGE BOLT M6×30	4	Cena bez DPH € 8,02 Cena s DPH € 10	SKLADOM
10	S01A50103001	FLANGING BUSHING	4	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
11	A01A51040001	TANK INSTALL RUBBER SLEEVE	3	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
23	A10-M430000-000-00	FUEL PUMP	1	Cena bez DPH € 85,21 Cena s DPH € 105	SKLADOM
