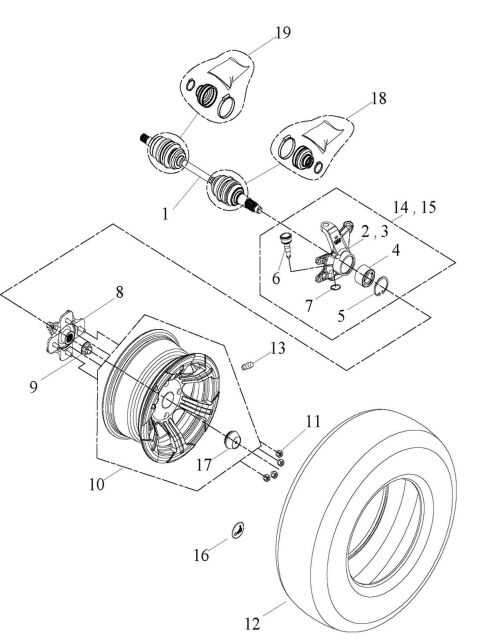

FRONT WHEEL

ACCESS MOTOR
Výrobca: ACCESS MOTOR
Kód produktu: Access_F-11_MAX-750i-LT
MODEL:
MAX 750 EFI MAX 750 EFI
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 23200-A37-000 R/B 23200-A40-011 Front Transmission Ass´y  2 € 185,12 € 224
NA DOPYT
18 BJ Boot Kit (Ref. č 18) 23243-A13-000 BJ Boot Kit  2 € 28,93 € 35
SKLADOM
17 CAP (Ref. č 17) 93615-A27-000 CAP  2 € 14,05 € 17
SKLADOM
16 R/B 72118-A43-000 Poly Sticker (Ref. č 16) 72118-A13-000 R/B 72118-A43-000 Poly Sticker  2 € 3,31 € 4
NA DOPYT
15 Steering Knuckle Ass´y, Right (Ref. č 15) 52325-A13-200 Steering Knuckle Ass´y, Right  1 € 234,71 € 284
NA DOPYT

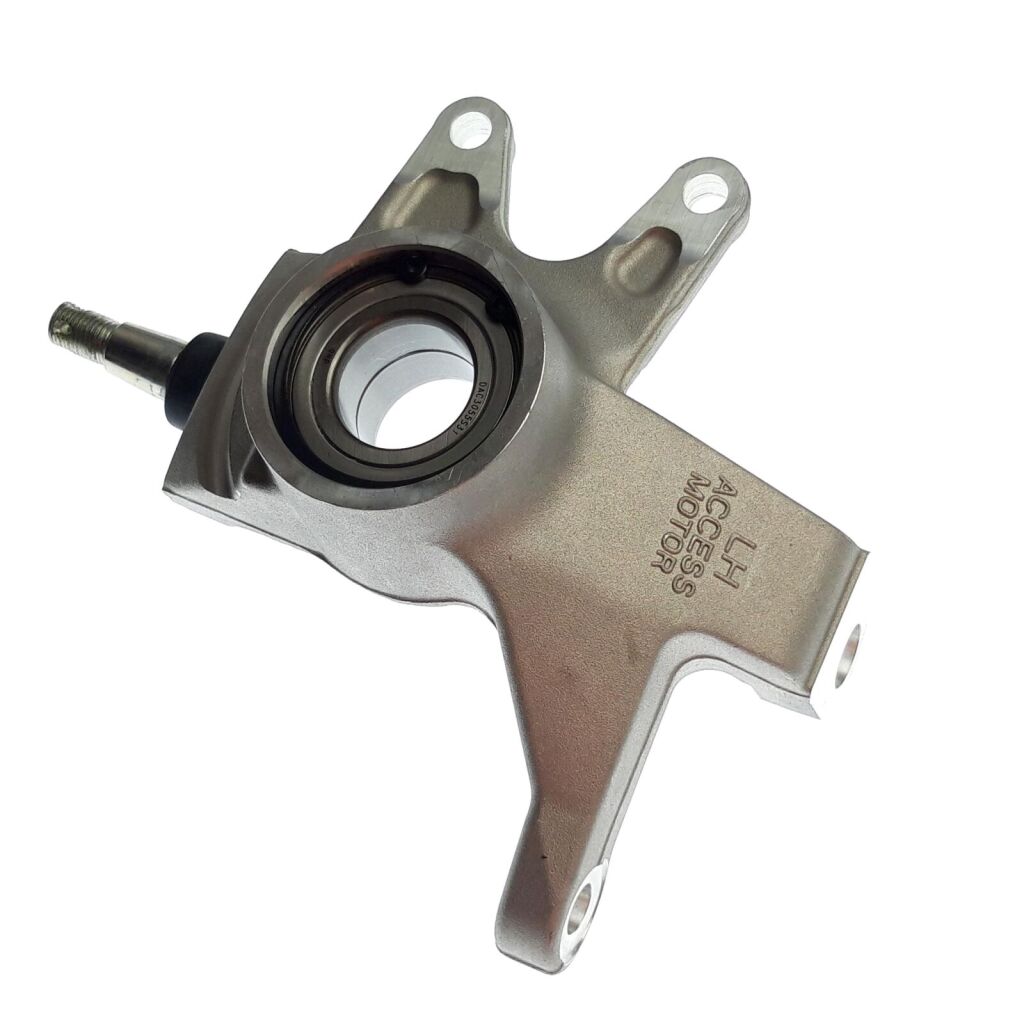

14 Steering Knuckle Assy, Left (Ref. č 14) 52320-A13-200 Steering Knuckle Assy, Left  1 € 254,55 € 308
SKLADOM
13 Valve, Tire (Ref. č 13) 24106-A01-010 Valve, Tire  2 € 2,48 € 3
SKLADOM
12 24110-A06-010 Off-Road Tire, Front K573F  2 € 231,40 € 280
NA DOPYT
11 Tire Nut (Ref. č 11) 24190-A13-020 Tire Nut  8 € 4,96 € 6
SKLADOM
10 Access Front Rim (AX700) (Ref. č 10) 24205-A27-000 Access Front Rim (AX700)  2 € 220,66 € 267
SKLADOM
09 Nut Lock (Ref. č 09) 92205-A13-000 Nut Lock  2 € 3,31 € 4
SKLADOM
08 23100-A13-010 Wheel Hub Ass'y R/B 23105-A40-000  2 € 144,63 € 175
NA DOPYT
06 Ball Joint (Ref. č 06) 52316-A13-000 Ball Joint  2 € 43,80 € 53
SKLADOM
05 Clip, Inner - RTW-55 (Ref. č 05) 93405-RTW55 Clip, Inner - RTW-55  2 € 4,13 € 5
SKLADOM
04 bearing (Ref. č 04) 95250-DAC3055ECS bearing  2 € 38,84 € 47
NA DOPYT
03 52325-A13-200-1 Knuckle, R.  1 € 176,86 € 214
NA DOPYT
19 DOJ Boot Kit (Ref. č 19) 23244-A13-010 DOJ Boot Kit  2 € 37,19 € 45
SKLADOM
