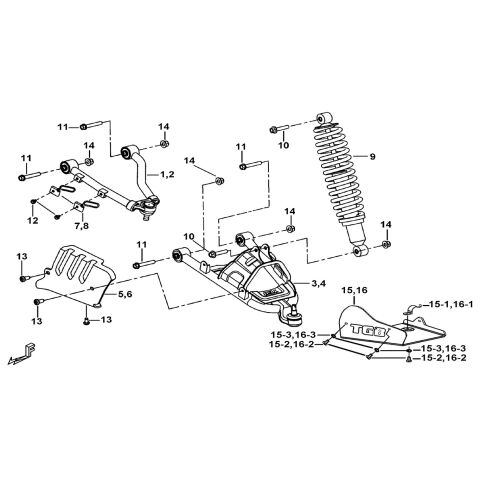

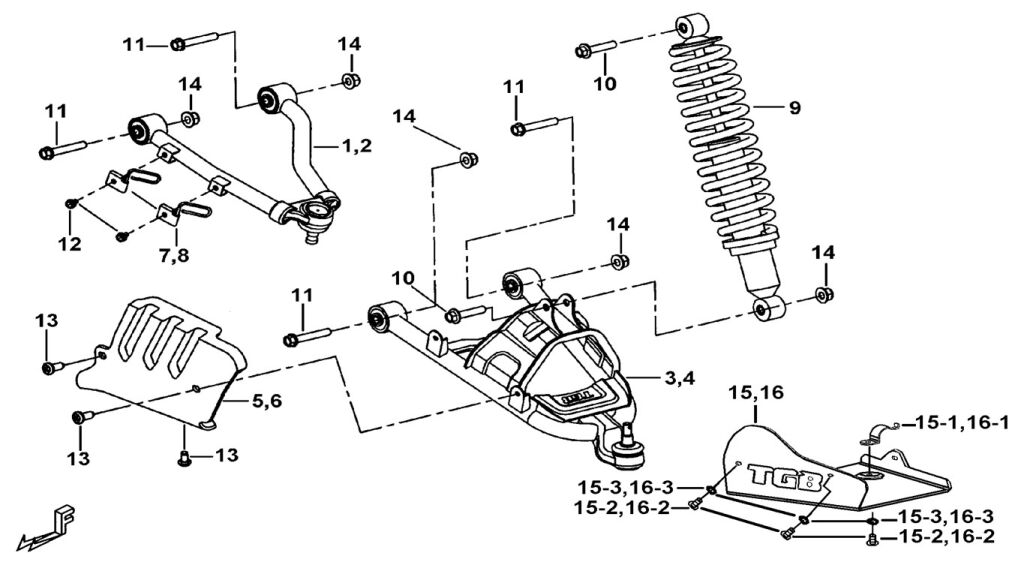

FRONT SUSPENSION

Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost

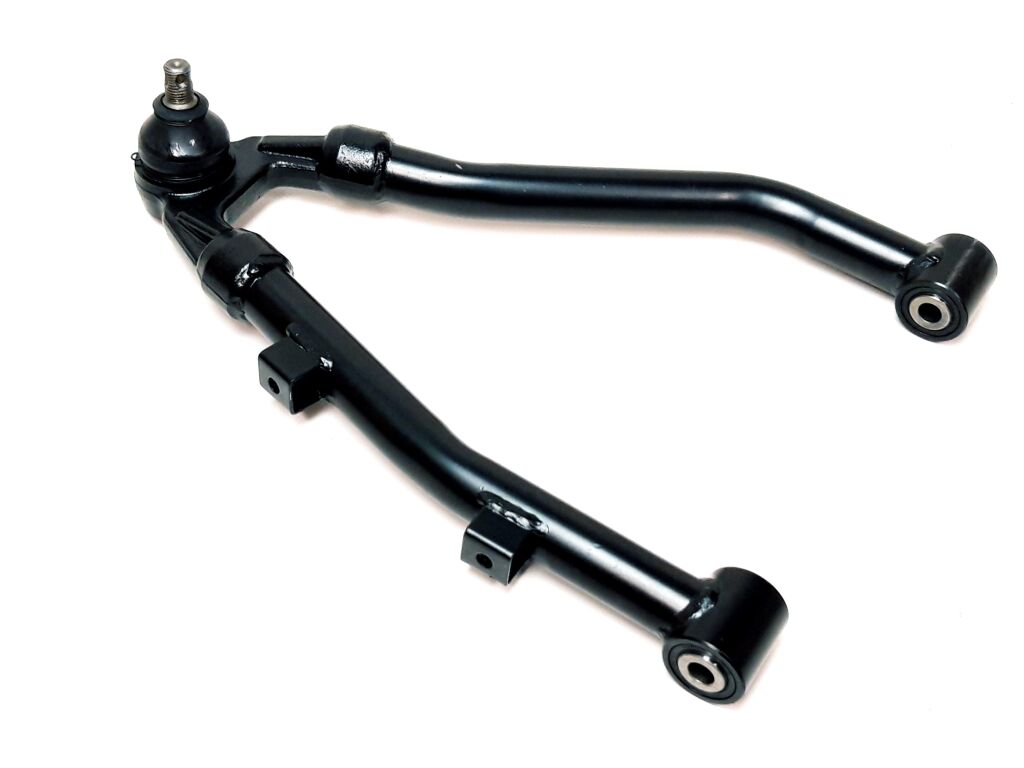

01 ARM SET, UPPER, LH. (FRONT) (unavailable) (Ref. č 01) 511132 ARM SET, UPPER, LH. (FRONT) (unavailable)  1 € 166,12 € 201
SKLADOM
15.1 513363 ANCHOR PLATE

OPTION

1 € 5,79 € 7
NA DOPYT
15.2 S21604 BOLT, FLANGE M6X1.0X20L

OPTION

3 € 2,15 € 2,60
NA DOPYT
15.3 WASHER (Ref. č 15-3) GA555WS02 WASHER

OPTION

3 € 2,40 € 2,90
SKLADOM
16 511406B COVER COMP., ORNAMENTAL(RH)(AL)

OPTION

1 € 67,85 € 82,10
NA DOPYT
05 TGB PROTECTOR, COVER LH. (Ref. č 05) 516306 TGB PROTECTOR, COVER LH.  1 € 10,33 € 12,50
SKLADOM
06 TGB PROTECTOR, COVER RH. (Ref. č 06) 516307 TGB PROTECTOR, COVER RH.  1 € 10,33 € 12,50
SKLADOM
15 511405B COVER COMP., ORNAMENTAL(LH)(AL)

OPTION

1 € 67,85 € 82,10
NA DOPYT
14 NUT, SELF LOCK (Ref. č 14) GA551NT01 NUT, SELF LOCK  10 € 2,40 € 2,90
SKLADOM
13 BOLT, FLANGE (Ref. č 13) S07601 BOLT, FLANGE  6 € 2,40 € 2,90
SKLADOM
02 511133 R/B 511138 ARM SET, UPPER, RH.(FRONT)  1 € 174,79 € 211,50
NA DOPYT

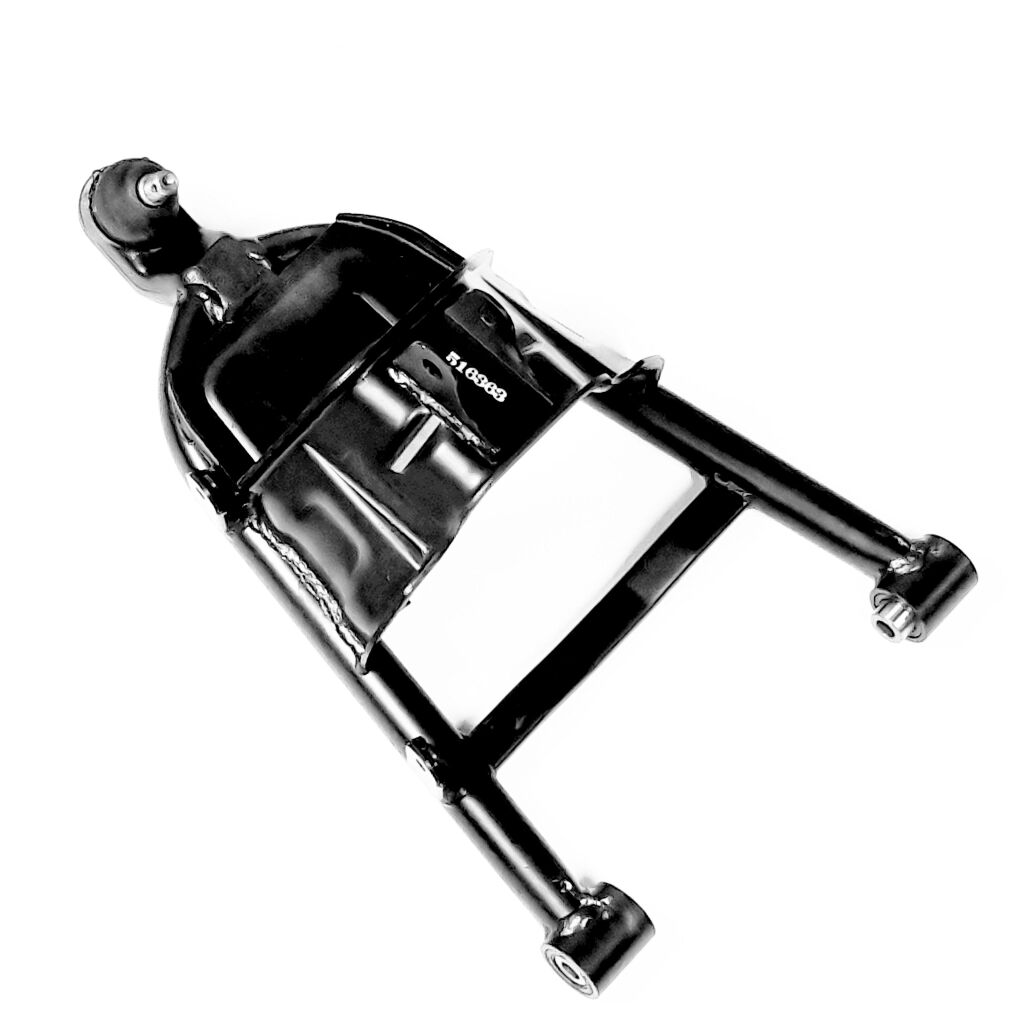

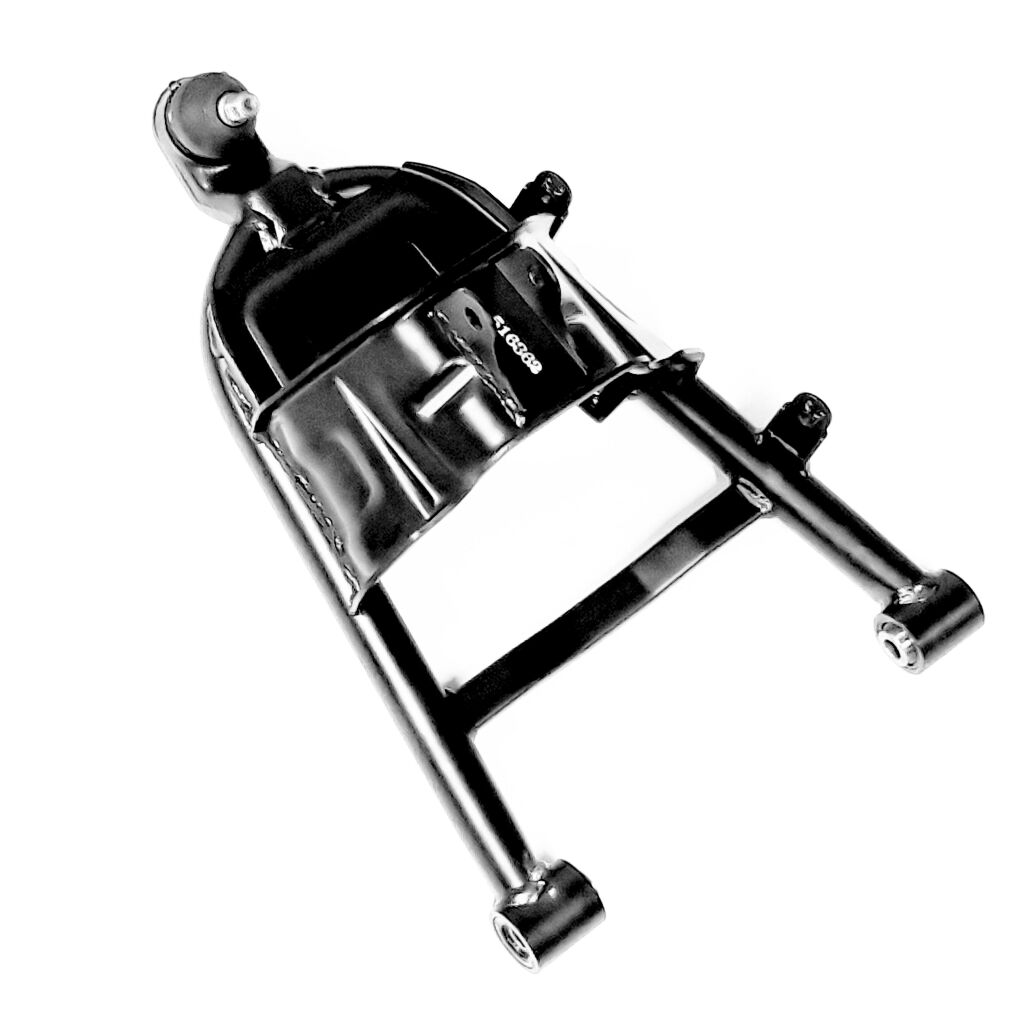

03 ARM SET, LOWER, LH.(FRONT) (Ref. č 03) 516362 ARM SET, LOWER, LH.(FRONT)  1 € 176,36 € 213,40
NA DOPYT
04 ARM SET, LOWER, RH.(FRONT) (Ref. č 04) 516363 ARM SET, LOWER, RH.(FRONT)  1 € 212,98 € 257,70
SKLADOM
07 CLAMP (LH.) (Ref. č 07) 513329 CLAMP (LH.)  2 € 2,81 € 3,40
SKLADOM
08 CLAMP (RH.) (Ref. č 08) 513330 CLAMP (RH.)  2 € 2,73 € 3,30
SKLADOM
09A SHOCK ABSORBER ASSY., FRONT (Ref. č 09A) 511120 SHOCK ABSORBER ASSY., FRONT

FOR 12＂

2 € 258,43 € 312,70
SKLADOM
10 BOLT, FLANGE, HEX HEAD M10X1,25x48L (Ref. č 10) S20009 BOLT, FLANGE, HEX HEAD M10X1,25x48L  4 € 5,54 € 6,70
SKLADOM
11 BOLT, FLANGE (Ref. č 11) S20017 BOLT, FLANGE  8 € 2,40 € 2,90
NA CESTE
12 BOLT, FLANGE (Ref. č 12) S21605 BOLT, FLANGE  4 € 2,40 € 2,90
SKLADOM
09 516369 SHOCK ABSORBER ASSY, FRONT (NITROGEN TANK)

FOR 14＂

2 € 509,59 € 616,60
NA DOPYT
16.1 513363 ANCHOR PLATE

OPTION

1 € 5,79 € 7
NA DOPYT
16.2 S21604 BOLT, FLANGE M6X1.0X20L

OPTION

3 € 2,15 € 2,60
NA DOPYT
16.3 WASHER (Ref. č 16-3) GA555WS02 WASHER

OPTION

3 € 2,40 € 2,90
SKLADOM
