FRONT SUSPENSION ASSEMBLY (NARROW VEHICLE VERSION).

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_236_UTV1000F-S8-24
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
41 S01-D122000-000-01 K-MAN FR SHOCK ABSORBER(NARROW)  1 € 303,59 € 373
NA DOPYT
27 U09 FRONT ROCKER ARM LINER (Ref. č 27) U09D10001001 U09 FRONT ROCKER ARM LINER  8 € 2,48 € 3
SKLADOM
26 U09 REAR ROCKER ARM LINER Ⅱ (Ref. č 26) U09D20006001 U09 REAR ROCKER ARM LINER Ⅱ  16 € 2,48 € 3
SKLADOM
25 U09 ROCKER ARM DUST COVER 304 (Ref. č 25) U09D20008001 U09 ROCKER ARM DUST COVER 304  16 € 2,48 € 3
SKLADOM

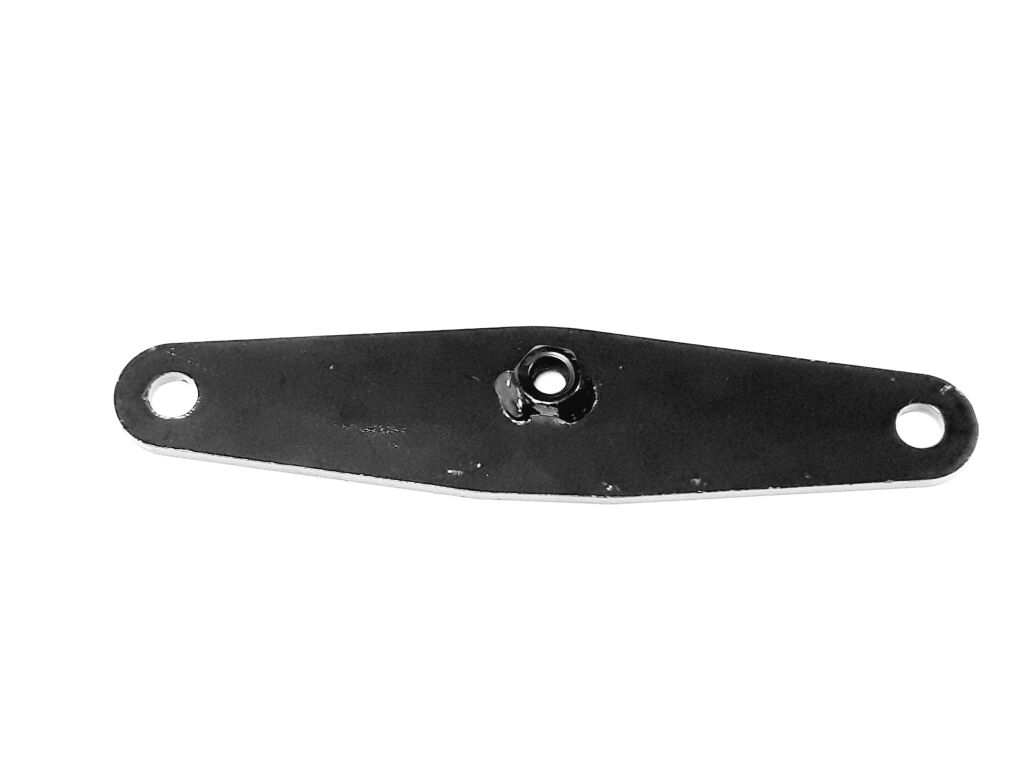

24 FRONT LOWER A-ARM PLATE (BLACK) (Ref. č 24) S01C00001002 FRONT LOWER A-ARM PLATE (BLACK)  1 € 12,31 € 15
NA DOPYT
23 S01D103A0005 FL UPPER A-ARM (BLACK，NARROW VEHICLE)  1 € 91,49 € 113
NA DOPYT

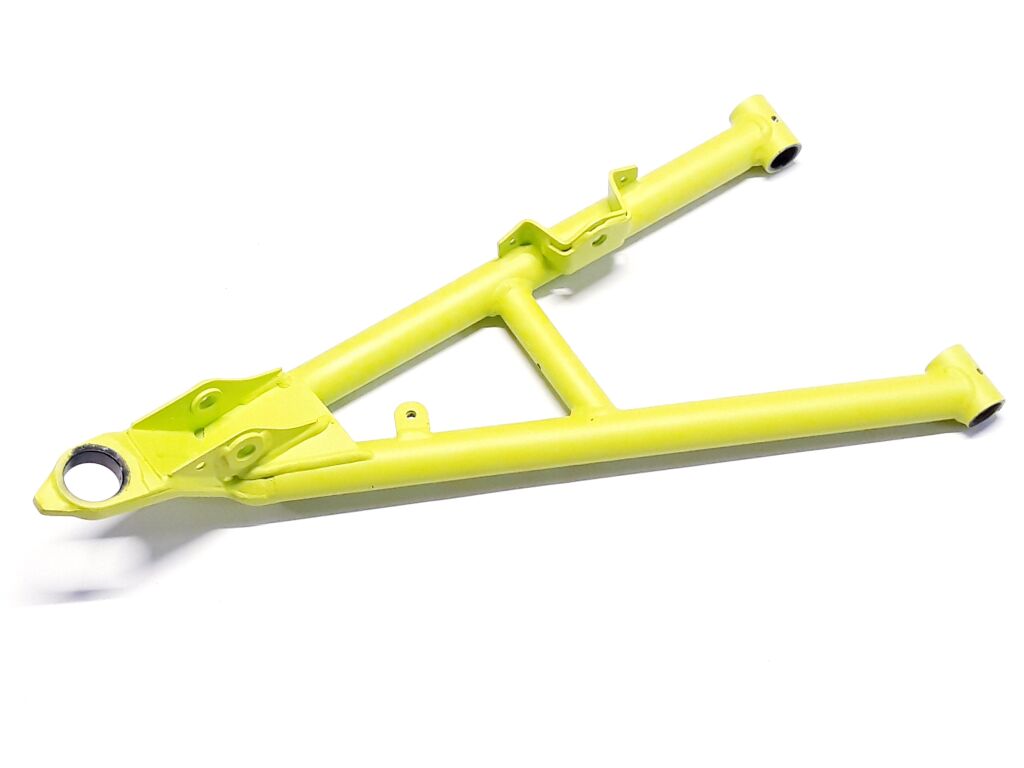

23 S01D103A0003 FL UPPER A-ARM (GREEN，NARROW VEHICLE)  1 € 140,50 € 173
SKLADOM
23 FL UPPER A-ARM (RED，NARROW VEHICLE) (Ref. č 23) S01D103A0002 FL UPPER A-ARM (RED，NARROW VEHICLE)  1 € 140,50 € 173
SKLADOM
22 FL LOWER A-ARM（BLACK，NARROW VEHICLE） (Ref. č 22) S01D104A0005 FL LOWER A-ARM（BLACK，NARROW VEHICLE）  1 € 137,19 € 169
SKLADOM

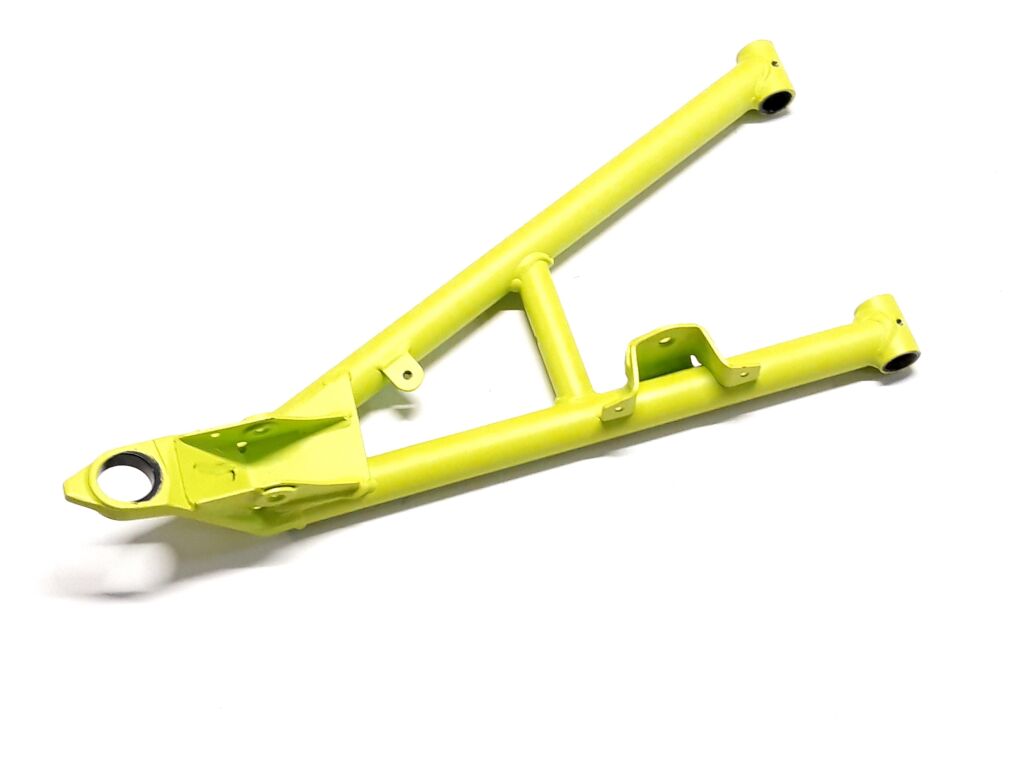

22 S01D104A0003 FL LOWER A-ARM（GREEN，NARROW VEHICLE）  1 € 137,19 € 169
NA DOPYT
22 FL LOWER A-ARM (RED，NARROW VEHICLE) (Ref. č 22) S01D104A0002 FL LOWER A-ARM (RED，NARROW VEHICLE)  1 € 137,19 € 169
SKLADOM
21 MAIN PIN (Ref. č 21) U01-D112010-000-00 MAIN PIN  4 € 14,88 € 18
SKLADOM
28 BOLT M12×1.25×145 (Ref. č 28) GBT005789106 BOLT M12×1.25×145  2 € 2,48 € 3
SKLADOM
29 HEX FLANGE BOLT M12×1.25×320 (Ref. č 29) S01D10900001 HEX FLANGE BOLT M12×1.25×320  2 € 5,70 € 7
SKLADOM
30 S01-C010010-DB0-01 FRONT UPPER A-ARM PLATE  1 € 7,36 € 9
NA DOPYT
40 S01-D121000-000-01 K-MAN FL SHOCK ABSORBER(NARROW)  1 € 303,59 € 373
NA DOPYT
39 S01-D107224-PB0-01 LOWER SPRING CUSHION  1 € 10,50 € 13
NA DOPYT
38 S01-D107222-PB0-01 FRONT DAMPER SPRING 2 BLACK NARROW  1 € 28,35 € 35
NA DOPYT
37 S01-D107223-PB0-01 SPRING SPACER  1 € 3,88 € 5
NA DOPYT
36 S01-D107221-PB0-01 FRONT DAMPER SPRING 1 BLACK NARROW  1 € 10,74 € 13
NA DOPYT
35 S01-D107210-000-01 SPHERICAL BEARING ASSEMBLY  2 € 10,50 € 13
NA DOPYT
34 S01-D107211-000-01 JOINT BEARING COMBINATION RETAINING RING  4 € 1,74 € 2
NA DOPYT
33 S01-D107100-000-01 FRONT DAMPER ASSEMBLY NARROW  1 € 532,40 € 655
NA DOPYT
32 ALL-METALLIC HEXAGON FLANGE NUT M12×1.25 (Ref. č 32) GBT061872003 ALL-METALLIC HEXAGON FLANGE NUT M12×1.25  2 € 2,18 € 3
SKLADOM
31 RIGHT STABILIZER BALL JOINT (Ref. č 31) S01D10820001 RIGHT STABILIZER BALL JOINT  1 € 29,67 € 36
SKLADOM
30 R/B S01-C010010-DB0-00 FRONT UPPER A-ARM PLATE (BLACK) (Ref. č 30) S01C07000002 R/B S01-C010010-DB0-00 FRONT UPPER A-ARM PLATE (BLACK)  1 € 14,46 € 18
NA DOPYT
20 A-RING,SNAP (Ref. č 20) GBT000894004 A-RING,SNAP  4 € 2,15 € 3
SKLADOM
19 BOLT M10×1.25×45 (Ref. č 19) GBT005789030 BOLT M10×1.25×45  4 € 2,48 € 3
SKLADOM
18,3 HUB BEARING DAC3006342-2ZC1 (Ref. č 18,3) JBT010238002 HUB BEARING DAC3006342-2ZC1  2 € 26,78 € 33
SKLADOM
7 Rear balance bar mounting seat (Ref. č 7) U01D26002001 Rear balance bar mounting seat  2 € 10,50 € 13
SKLADOM
6 FRONT BALANCE BAR BUFFER BLOCK (Ref. č 6) S01D10801001 FRONT BALANCE BAR BUFFER BLOCK  2 € 3,80 € 5
NA DOPYT

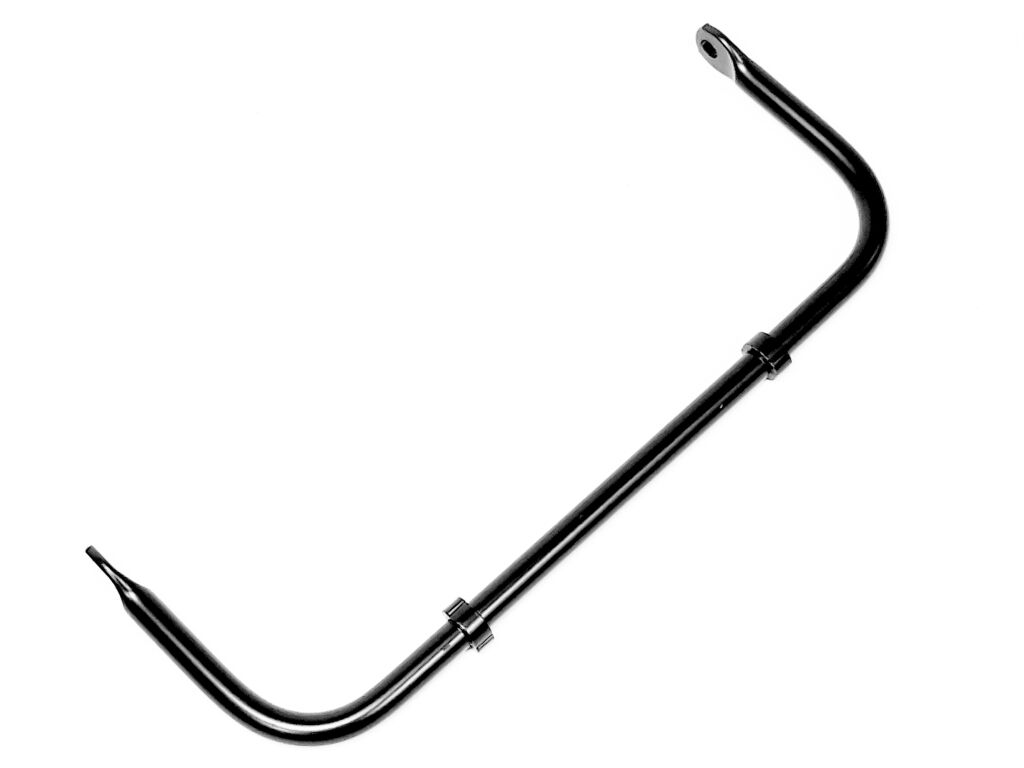

4 Front stabilizer bar assembly (Ref. č 4) S01D108A0002 Front stabilizer bar assembly  1 € 33,39 € 41
SKLADOM
4 S01-D107000-0B0-01 FRONT SHOCK ABSORBER(BLACK,NARROW)  2 € 1 057,27 € 1 300
NA DOPYT
3 S01D105A0005 FR UPPER A-ARM（BLACK，NARROW VEHICLE）  1 € 91,49 € 113
NA DOPYT
3 FR UPPER A-ARM（GREEN，NARROW VEHICLE） (Ref. č 3) S01D105A0003 FR UPPER A-ARM（GREEN，NARROW VEHICLE）  1 € 140,50 € 173
SKLADOM
3 FR UPPER A-ARM（RED，NARROW VEHICLE） (Ref. č 3) S01D105A0002 FR UPPER A-ARM（RED，NARROW VEHICLE）  1 € 140,50 € 173
SKLADOM

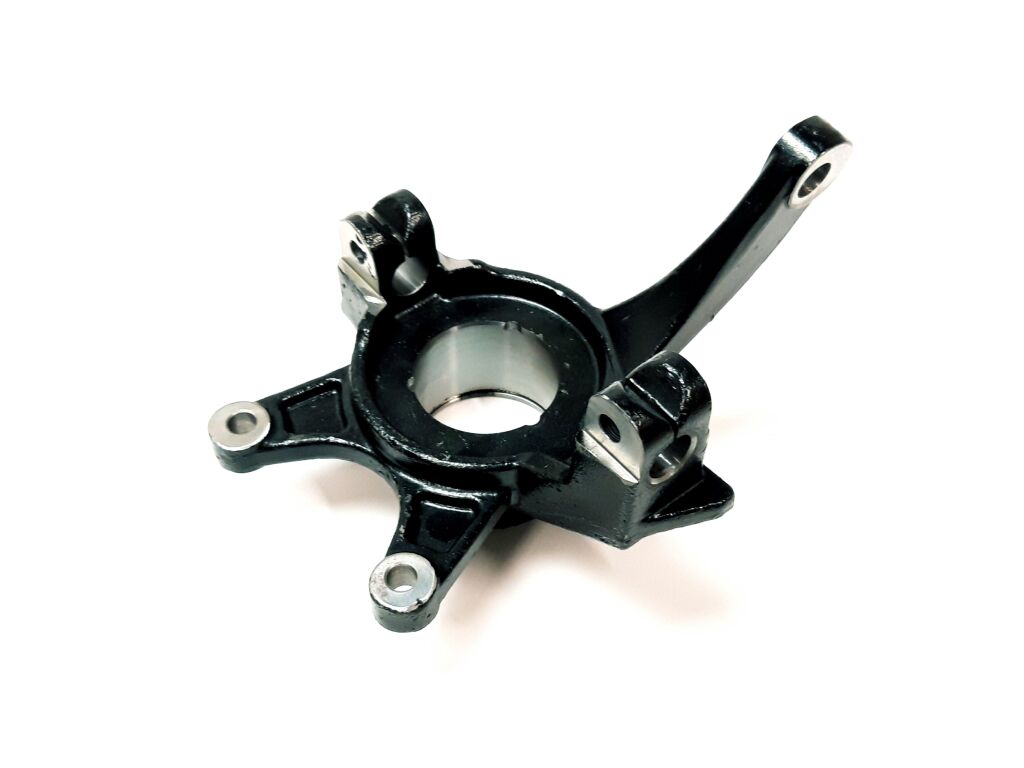

2,1 RIGHT KNUCKLE（NARROW VEHICLE） (Ref. č 2,1) S01D10201001 RIGHT KNUCKLE（NARROW VEHICLE）  1 € 96,86 € 119
SKLADOM

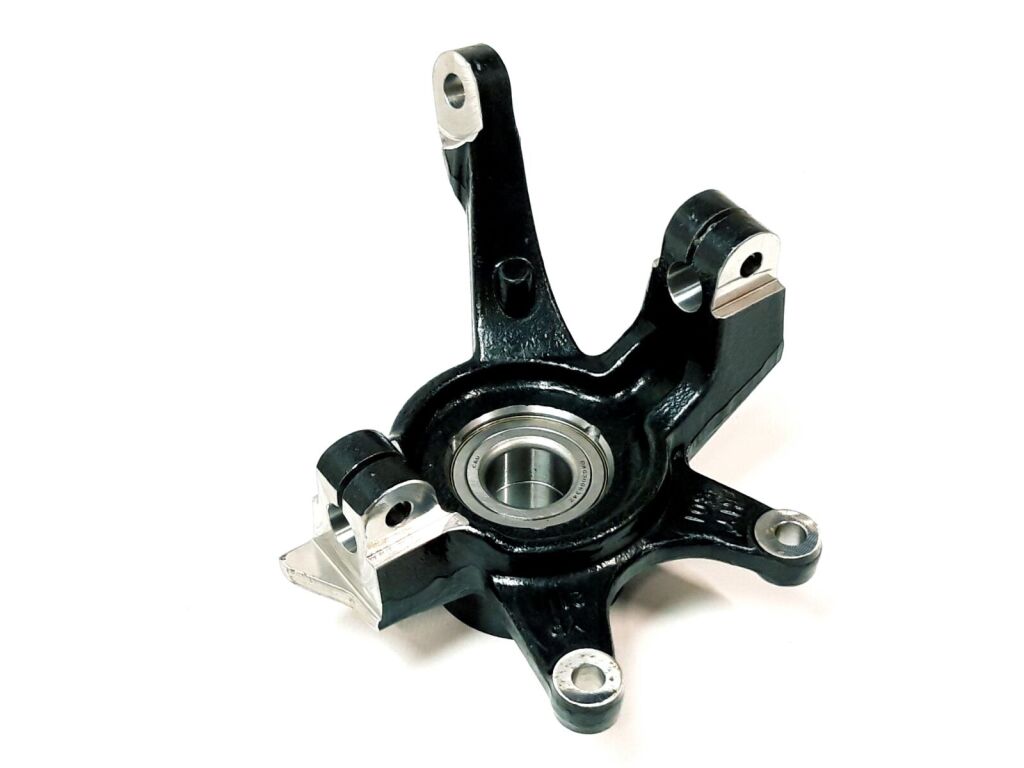

2 RIGHT STEERING KNUCKLE ASSEMBLY(NARROW VEHICLE VERSION) (Ref. č 2) S01D10200001 RIGHT STEERING KNUCKLE ASSEMBLY(NARROW VEHICLE VERSION)  1 € 119,17 € 147
SKLADOM

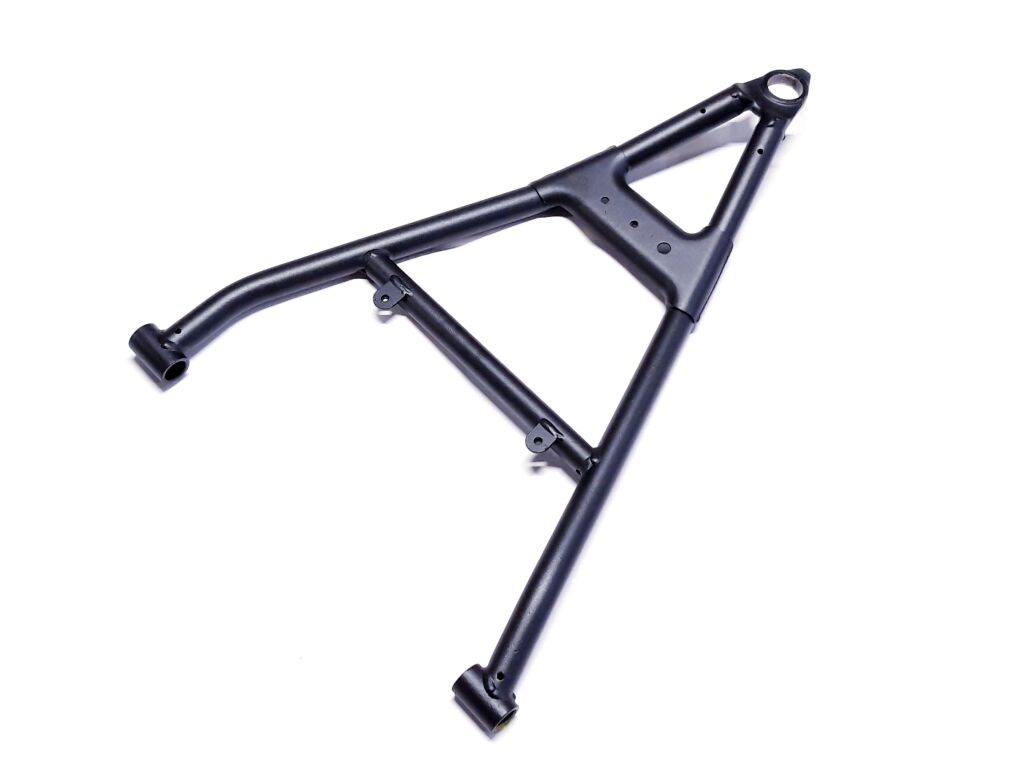

1 S01D106A0005 FR LOWER A-ARM（BLACK，NARROW VEHICLE）  1 € 77,36 € 95
NA DOPYT
1 S01D106A0003 FR LOWER A-ARM（GREEN，NARROW VEHICLE）  1 € 137,19 € 169
NA DOPYT
8 Straight pressure oil cup (Ref. č 8) GBT001152001 Straight pressure oil cup  2 € 5,04 € 6
SKLADOM
8 90° Connector pressure filling cup (Ref. č 8) T07000001007 90° Connector pressure filling cup  8 € 2,18 € 3
SKLADOM
9 HEXAGON FLANGE BOLT M8×30 (Ref. č 9) GBT005789017 HEXAGON FLANGE BOLT M8×30  4 € 2,15 € 3
SKLADOM
18,2 RING,HOLE 63 (Ref. č 18,2) GBT000893002 RING,HOLE 63  2 € 4,13 € 5
NA DOPYT
18,1 LEFT KNUCKLE（NARROW VEHICLE） (Ref. č 18,1) S01D10101001 LEFT KNUCKLE（NARROW VEHICLE）  1 € 96,86 € 119
SKLADOM
18 LEFT STEERING KNUCKLE ASSEMBLY(NARROW VEHICLE VERSION) (Ref. č 18) S01D10100001 LEFT STEERING KNUCKLE ASSEMBLY(NARROW VEHICLE VERSION)  1 € 119,17 € 147
SKLADOM
17 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 17) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  4 € 2,18 € 3
SKLADOM
16 HEX FLANGE BOLT M12×1.25×75 (Ref. č 16) GBT005789102 HEX FLANGE BOLT M12×1.25×75  2 € 2,48 € 3
SKLADOM
15 32 CLAMPS (Ref. č 15) T05000080002 32 CLAMPS  2 € 2,18 € 3
SKLADOM
14 Bolt M6×16 (Ref. č 14) GBT005789007 Bolt M6×16  2 € 2,18 € 3
SKLADOM
13 SCREWS M8×25 (Ref. č 13) GBT000701016 SCREWS M8×25  4 € 2,48 € 3
SKLADOM
12 BOLT M12×1.25×95 (Ref. č 12) GBT005789104 BOLT M12×1.25×95  4 € 2,48 € 3
SKLADOM
11 LEFT STABILIZER BALL JOINT (Ref. č 11) S01D10810001 LEFT STABILIZER BALL JOINT  1 € 29,59 € 36
SKLADOM
10 NUT M12×1.25 (Ref. č 10) GBT061832002 NUT M12×1.25  12 € 2,18 € 3
SKLADOM
1 S01D106A0002 FR LOWER A-ARM（RED，NARROW VEHICLE）  1 € 137,19 € 169
NA DOPYT
Kód produktu SEGWAY_2_236_UTV1000F-S8-24
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Villain SxS
MODEL: Villain SX10 DIFF (2024-xxxxx)
