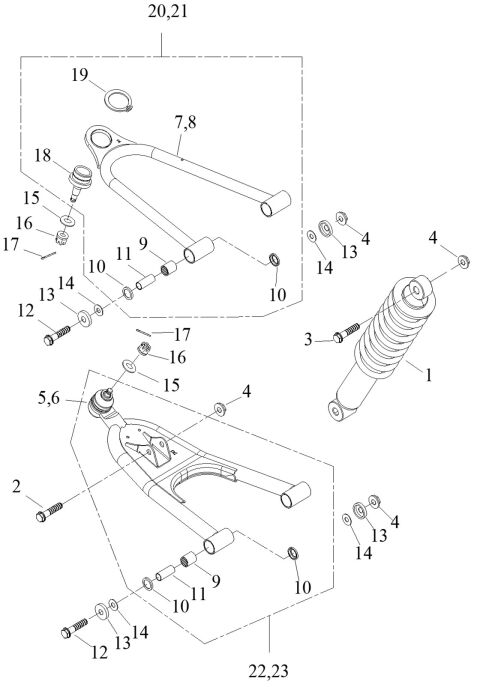

FRONT SHOCKS

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  Access_F-5_MAX-4-300
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
2 Hex Washer Face Bolt (Ref. č 2) 91700-10048-14G Hex Washer Face Bolt  2 € 2,48 € 3
SKLADOM
16 Cross Thread Nut (Ref. č 16) 92140-10-14G Cross Thread Nut  4 € 2,48 € 3
SKLADOM
17 Cotter pin (Ref. č 17) 94000-02525 Cotter pin  4 € 2,48 € 3
SKLADOM
18 Ball Joint (Ref. č 18) 52316-A03-000 Ball Joint  2 € 38,02 € 47
SKLADOM
19 Cir Clip (Ref. č 19) 93406-STW34 Cir Clip  2 € 2,48 € 3
NA DOPYT
21 A-Arm Ass´y, Upper, Left, Black (Ref. č 21) 81000-A06-001 A-Arm Ass´y, Upper, Left, Black  1 € 159,50 € 196
NA DOPYT
22 A Arm A'ssy, Lower, Right (black) (Ref. č 22) 81015-A06-000 A Arm A'ssy, Lower, Right (black)  1 € 90,08 € 111
SKLADOM
23 A. Arm A'ssy, Lower, Left (black) (Ref. č 23) 81005-A06-000 A. Arm A'ssy, Lower, Left (black)  1 € 91,74 € 113
SKLADOM
14 Washer, Plate(SK5) (Ref. č 14) 93107-10228-10 Washer, Plate(SK5)  16 € 2,48 € 3
SKLADOM
13 93609-A03-010 R/B 93609-A03-110 Cover,Pivot Dust  16 € 4,13 € 5
NA DOPYT
12 P91700-10074-14G R/B 91700-10074-14G-1 Hex Washer Face Bolt  8 € 2,48 € 3
NA DOPYT
3 Hex Washer Face Bolt (Ref. č 3) 91700-10040-14G Hex Washer Face Bolt  2 € 2,48 € 3
SKLADOM
4 92130-10S-14G R/B 92130-10S-14W Nut, Insert Lock  12 € 2,48 € 3
NA DOPYT
5 A Arm, Lower, Right (black) (Ref. č 5) 81111-A06-000 A Arm, Lower, Right (black)  1 € 143,80 € 177
SKLADOM
6 A. Arm, Lower, Left (black) (Ref. č 6) 81106-A06-000 A. Arm, Lower, Left (black)  1 € 92,56 € 114
SKLADOM
7 A Arm, Upper, Right (black) (Ref. č 7) 81110-A06-001 A Arm, Upper, Right (black)  1 € 30,58 € 38
SKLADOM
9 R/B 95200-TA172425 Bearing, Needle (Ref. č 9) 95200-HKH172425 R/B 95200-TA172425 Bearing, Needle  8 € 12,40 € 15
NA DOPYT
10 R/B 96100-172403-1 Seal,Oil (Ref. č 10) 96100-172403 R/B 96100-172403-1 Seal,Oil  16 € 2,48 € 3
NA DOPYT
11 Spacer (Ref. č 11) 93300-1017-51 Spacer  8 € 6,61 € 8
SKLADOM
15 93100-10517-26G-1 Washer, Plate  4 € 1,90 € 2
NA DOPYT
Kód produktu Access_F-5_MAX-4-300
ZNACKA: ACCESS
typ rozkresu: FRAME PARTS
TYP: ACCESS MAX
MODEL: MAX 4 300
