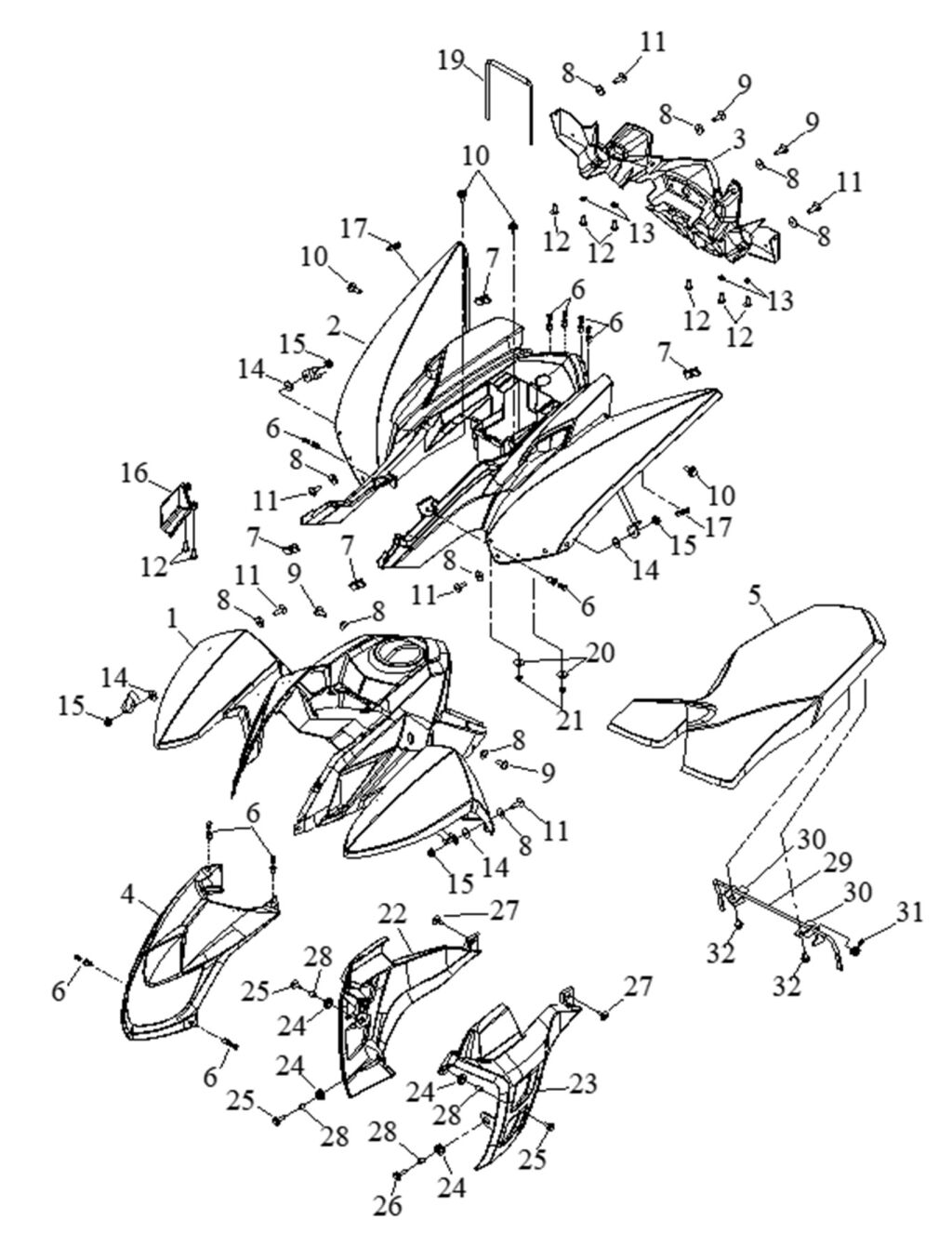

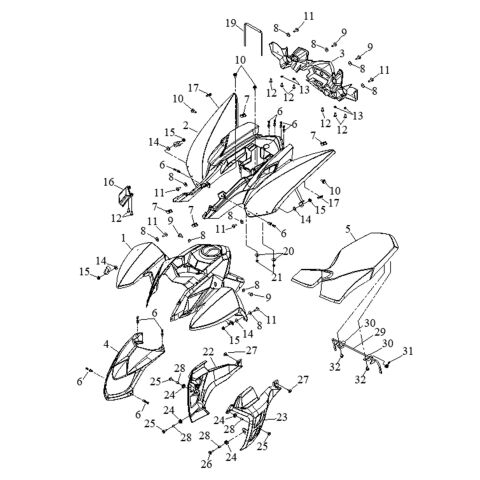

FRONT/REAR FENDER

ACCESS MOTOR
Výrobca: ACCESS MOTOR
Kód produktu: ACCESS_5_437_WARRIOR_450
MODEL:
warrior 450 warrior 450
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 72205-A03-110-BK R/B 72205-A03-111-BK Fender, Front (Black)  1 € 99,17 € 120
NA DOPYT
17 93706-A03-000 Strap  2 € 2,48 € 3
NA DOPYT
18 Plastic Plug (Ref. č 18) 93613-A03-000 Plastic Plug  14 € 2,48 € 3
SKLADOM
19 Fixing Braket, Battery (Ref. č 19) 83145-A12-000 Fixing Braket, Battery  1 € 10,74 € 13
NA DOPYT
21 Nut, Insert Lock (Ref. č 21) 92130-06S-10G Nut, Insert Lock  2 € 2,48 € 3
SKLADOM
22 Air induction cover, right, black (Ref. č 22) 72280-A12-000-BK Air induction cover, right, black  1 € 19,83 € 24
NA CESTE
23 Air induction cover, left, black (Ref. č 23) 72285-A12-000-BK Air induction cover, left, black  1 € 19,83 € 24
NA CESTE
24 Cushion Rubber, Oil Tank (Ref. č 24) 93509-A12-010 Cushion Rubber, Oil Tank  4 € 2,48 € 3
SKLADOM
25 Hex. Bolt,Flange, Washer (Ref. č 25) 91750-06020-10G-1 Hex. Bolt,Flange, Washer  3 € 2,48 € 3
SKLADOM
26 P91750-06025-10G Hex. Bolt,Flange, Washer  1 € 2,48 € 3
NA DOPYT
27 Push Rivet, plastic (Ref. č 27) 93611-F33K7A Push Rivet, plastic  2 € 2,48 € 3
SKLADOM
28 Spacer (Ref. č 28) 93300-0610-10 Spacer  4 € 2,48 € 3
SKLADOM
29 71306-A03-000 Lever, Seat  1 € 6,61 € 8
NA DOPYT
31 Torsion Spring (Ref. č 31) 97272-A03-000 Torsion Spring  1 € 2,48 € 3
SKLADOM
16 Gear, Cover (Ref. č 16) 72255-A07-100 Gear, Cover  1 € 3,31 € 4
SKLADOM
2 72210-A03-100-BK R/B: 72210-A03-101 Fender, Rear (black)  1 € 107,44 € 130
NA DOPYT
3 Cover Fender, Rear (offroad) (Ref. č 3) 72250-A03-110 Cover Fender, Rear (offroad)  1 € 11,57 € 14
NA DOPYT
4 72245-A03-1BK R/B 72245-A03-101-BK Cover Fender, Front (black)  1 € 59,50 € 72
NA DOPYT
5 71305-A03-0VT-3 R/B 71305-A03-031 Seat  1 € 173,55 € 210
NA DOPYT
6 93611-A03-000 R/B 93611-A03-001 Rivet, Rubber  10 € 2,48 € 3
NA DOPYT
7 Nut, U shape(Andoised) (Ref. č 7) 92210-A01-100 Nut, U shape(Andoised)  4 € 2,48 € 3
SKLADOM
8 Washer, Nylon (Ref. č 8) 93104-06014-08 Washer, Nylon  10 € 2,48 € 3
NA DOPYT
9 Screw,Cross (Ref. č 9) 91731-06015S-1 Screw,Cross  4 € 2,48 € 3
SKLADOM
10 P91900-090025-12 Hex Washer Ladder Bolt  4 € 2,48 € 3
NA DOPYT
10 P91900-090025-12 Hex Washer Ladder Bolt  4 € 2,48 € 3
NA DOPYT
11 Screw,Cross (Ref. č 11) 91731-06018S Screw,Cross  6 € 2,48 € 3
NA DOPYT
12 P91825-04012 R/B 91825-04012-1 Philips Screw, Tapping  8 € 2,48 € 3
NA DOPYT
13 P93100-05514-10G R/B 93100-05514-10G-2 Washer, Plain  4 € 2,48 € 3
NA DOPYT
14 Washer, Rubber (Ref. č 14) 93502-A01-000 Washer, Rubber  4 € 2,48 € 3
SKLADOM
32 91700-06010-10C Hex.Washer Face Bolt  2 € 1,90 € 2,30
NA DOPYT
15 Nut, Insert Lock (Ref. č 15) 92130-06S-10G Nut, Insert Lock  4 € 2,48 € 3
SKLADOM
