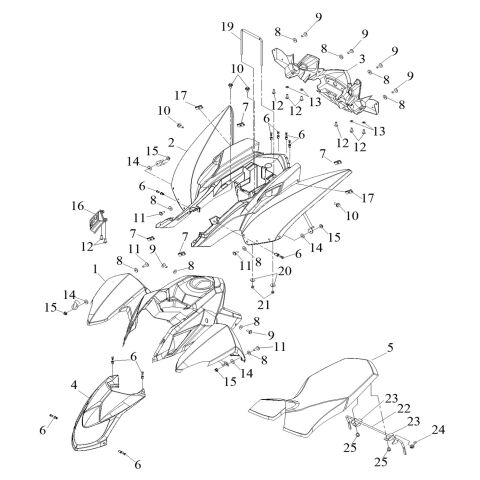

FRONT/REAR FENDER

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  Access_F-17_Tomahawk-300
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 72205-A03-100-BU Fender, Front , Blue (unavailable)  1
NA DOPYT
14 Washer, Rubber (Ref. č 14) 93502-A01-000 Washer, Rubber  4 € 2,48 € 3
SKLADOM
15 Nut, Insert Lock (Ref. č 15) 92130-06S-10G Nut, Insert Lock  4 € 2,48 € 3
SKLADOM
17 93706-A03-000 Strap  2 € 2,48 € 3
NA DOPYT
18 Plastic Plug (Ref. č 18) 93613-A03-000 Plastic Plug  14 € 2,48 € 3
SKLADOM
19 Fixing Braket, Battery (Ref. č 19) 83145-A12-000 Fixing Braket, Battery  1 € 10,74 € 13
NA DOPYT
22 71306-A03-000 Lever, Seat  1 € 6,61 € 8
NA DOPYT
24 Torsion Spring (Ref. č 24) 97272-A03-000 Torsion Spring  1 € 2,48 € 3
NA DOPYT
13 P93100-05514-10G R/B 93100-05514-10G-2 Washer, Plain  4 € 2,48 € 3
NA DOPYT
12 P91825-04012 R/B 91825-04012-1 Philips Screw, Tapping  8 € 2,48 € 3
SKLADOM
11 Screw,Cross (Ref. č 11) 91731-06018S Screw,Cross  4 € 2,48 € 3
NA DOPYT
2 72210-A03-100-BK R/B: 72210-A03-101 Fender, Rear (black)  1 € 107,44 € 132
NA DOPYT
3 R/B 72250-A03-101 + 83131-A27-000 Cover Fender, Rear (On-road) (Ref. č 3) 72250-A03-100 R/B 72250-A03-101 + 83131-A27-000 Cover Fender, Rear (On-road)  1 € 16,53 € 20
NA DOPYT
4 72245-A03-1BK R/B 72245-A03-101-BK Cover Fender, Front (black)  1 € 59,50 € 73
NA DOPYT
5 71305-A03-0VT-3 R/B 71305-A03-031 Seat  1 € 173,55 € 213
NA DOPYT
6 93611-A03-000 R/B 93611-A03-001 Rivet, Rubber  10 € 2,48 € 3
NA DOPYT
7 Nut, U shape(Andoised) (Ref. č 7) 92210-A01-100 Nut, U shape(Andoised)  4 € 2,48 € 3
SKLADOM
8 Washer, Nylon (Ref. č 8) 93104-06014-08 Washer, Nylon  10 € 2,48 € 3
SKLADOM
9 Screw,Cross (Ref. č 9) 91731-06015S-1 Screw,Cross  6 € 2,48 € 3
NA DOPYT
10 P91900-090025-12 Hex Washer Ladder Bolt  4 € 2,48 € 3
NA DOPYT
25 91700-06010-10C Hex.Washer Face Bolt  2 € 1,90 € 2
NA DOPYT
Kód produktu Access_F-17_Tomahawk-300
ZNACKA: ACCESS
typ rozkresu: BODY PARTS
TYP: ACCESS Tomahawk
MODEL: TOMAHAWK 300
