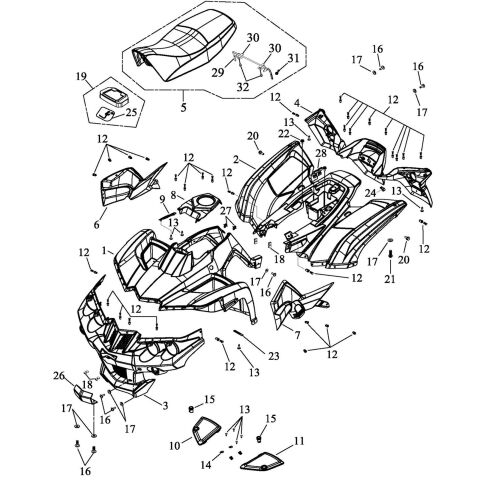

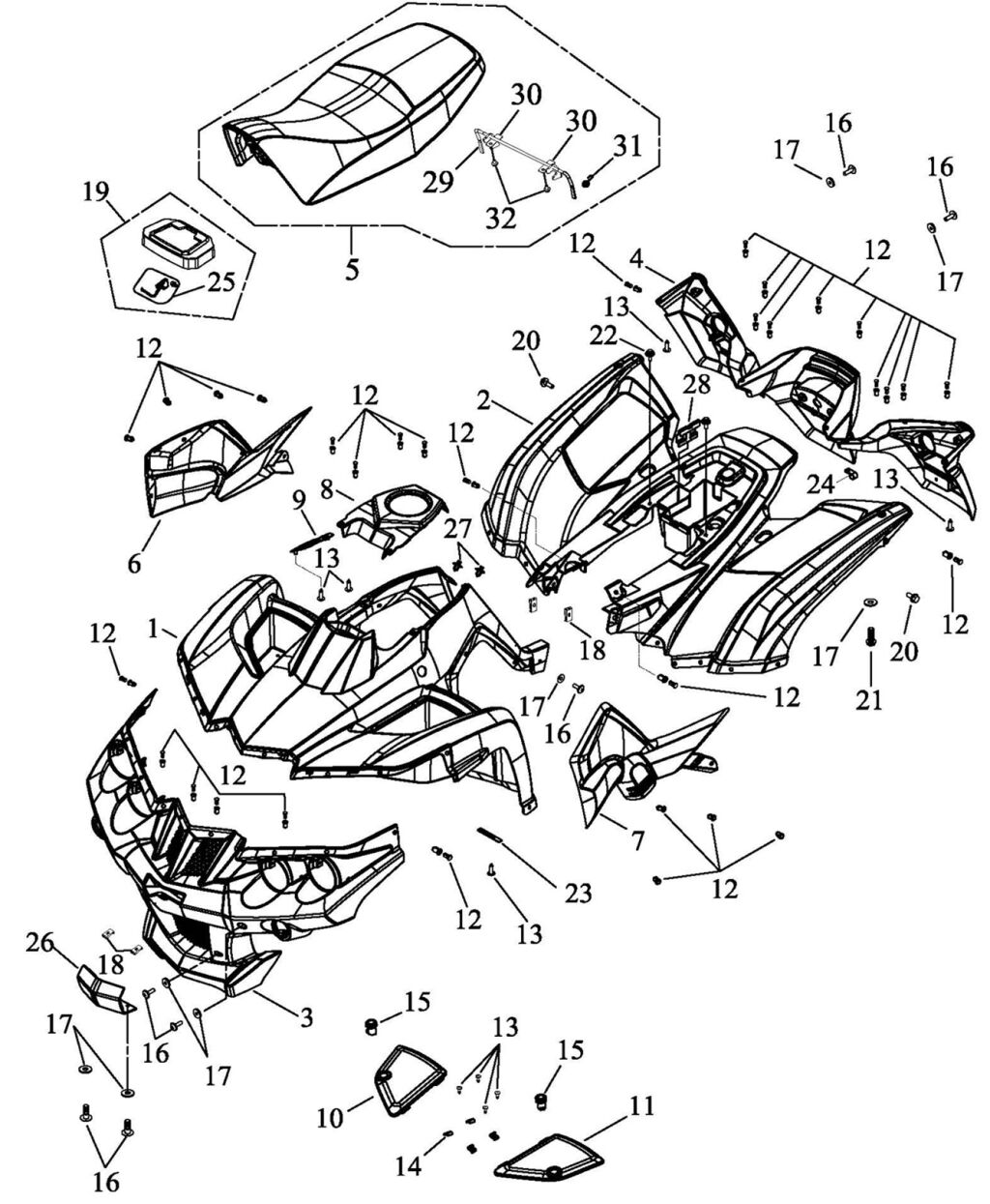

Front - Rear fender

ACCESS MOTOR
  • Výrobca  ACCESS MOTOR
  • Kód produktu  Access_F-17_MAX-5-400-EFI
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
02 72210-A13-000-BK R/B 72210-A13-001-BK Fender,Rear  1 € 81,82 € 101
NA DOPYT
27 Push Rivet, plastic (Ref. č 27) 93611-F33K7A Push Rivet, plastic  2 € 2,48 € 3
SKLADOM
25 R/B 63302-A20-030 - Sensor Kit (unavailable) (Ref. č 25) 63302-A03-000 R/B 63302-A20-030 - Sensor Kit (unavailable)  1 € 34,40 € 42
NA DOPYT
24 93706-A03-000 Strap  2 € 2,48 € 3
NA DOPYT
21 Hex Washer Face Bolt R/B 92130-08S-12G (Ref. č 21) 91700-06012-10G Hex Washer Face Bolt R/B 92130-08S-12G  2 € 2,48 € 3
NA CESTE
20 Bolt, Hex, Socker, Ladder (Ref. č 20) 91900-090025-12-1 Bolt, Hex, Socker, Ladder  2 € 2,48 € 3
SKLADOM
19 Speedometer Ass´y (Ref. č 19) 63300-A26-000 Speedometer Ass´y  1 € 119,83 € 147
SKLADOM
18 Nut, U shape(Andoised) (Ref. č 18) 92210-A01-100 Nut, U shape(Andoised)  4 € 2,48 € 3
SKLADOM
17 Washer, Nylon (Ref. č 17) 93104-06014-08 Washer, Nylon  12 € 2,48 € 3
SKLADOM
16 Screw,Cross (Ref. č 16) 91731-06015S-1 Screw,Cross  10 € 2,48 € 3
NA DOPYT
15 Lock,Storage Box (Ref. č 15) 61220-A06-000 Lock,Storage Box  2 € 7,44 € 9
SKLADOM
14 Hinge, Storage Box (Ref. č 14) 61225-A06-000 Hinge, Storage Box  4 € 2,48 € 3
SKLADOM
13 Philips Screw, Round head, Tap (Ref. č 13) 91825-04012-1 Philips Screw, Round head, Tap  10 € 2,48 € 3
SKLADOM
12 93611-A03-000 R/B 93611-A03-001 Rivet, Rubber  30 € 2,48 € 3
NA DOPYT
05 71305-A06-020 Seat  1 € 77,69 € 96
NA DOPYT
04 72250-A13-000 Rear Bumper Fender  1 € 30,58 € 38
NA DOPYT
03 72245-A09-100 R/B 72245-A13-000 Front Bumper Fender  1 € 87,60 € 108
NA DOPYT
31 Torsion Spring (Ref. č 31) 97272-A03-000 Torsion Spring  1 € 2,48 € 3
NA DOPYT
Kód produktu Access_F-17_MAX-5-400-EFI
ZNACKA: ACCESS
typ rozkresu: BODY PARTS
TYP: ACCESS MAX
MODEL: MAX 5 400 EFI
