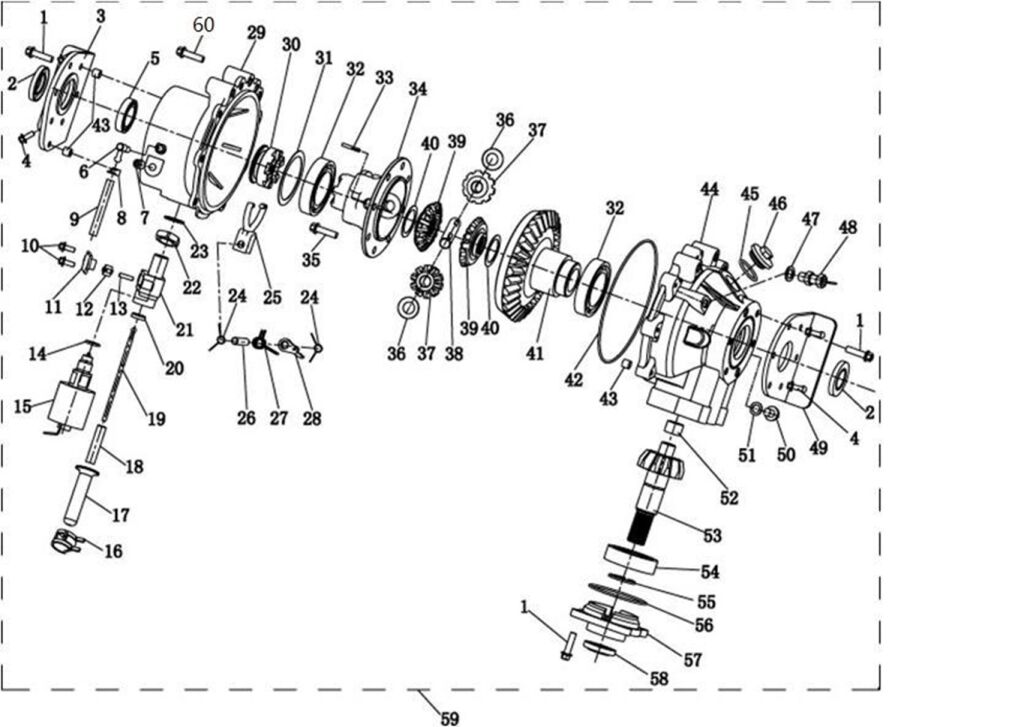

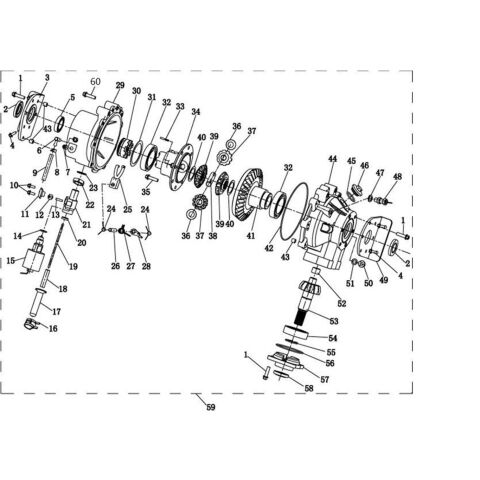

Front Gearcase Exploded View

LINHAI
  • Výrobca  LINHAI
  • Kód produktu  LINHAI_1_129_LH800U-2D
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
60 BOLT M8X28 (Ref. č 60) 10060 BOLT M8X28  8 € 8,02 € 10
SKLADOM
44 84054 Carrier Housing Half  1 € 177,19 € 218
NA DOPYT
43 DOWEL PIN (Ref. č 43) 21104 DOWEL PIN  3 € 2,40 € 3
SKLADOM
42 O-RING 176X2.65 (Ref. č 42) 21105 O-RING 176X2.65  1 € 2,40 € 3
SKLADOM
41 73018 Bevel Gear -Driven  1 € 269,92 € 332
NA DOPYT
40 Side Gear Thrust-Washer (Ref. č 40) 73034 Side Gear Thrust-Washer  2 € 2,40 € 3
SKLADOM
39 Diff Side Gear (Ref. č 39) 73031 Diff Side Gear  2 € 48,26 € 59
SKLADOM
38 Diff Cross Pin (Ref. č 38) 73032 Diff Cross Pin  1 € 16,45 € 20
SKLADOM
37 Diff Pinion Mate Gear (Ref. č 37) 73035 Diff Pinion Mate Gear  2 € 28,76 € 35
SKLADOM
36 Pinion Mate Thrust-Washer (Ref. č 36) 73036 Pinion Mate Thrust-Washer  2 € 2,40 € 3
SKLADOM
35 84059 Hexagon Flange Bolt M10×20  8 € 2,40 € 3
NA DOPYT
34 Diff Case (Ref. č 34) 73033 Diff Case  1 € 281,16 € 346
SKLADOM
33 10788 Diff Roll Pin  1 € 8,02 € 10
NA DOPYT
32 BEARING 110 (Ref. č 32) 10056 BEARING 110  2 € 18,84 € 23
SKLADOM
45 O-RING 30.5x3 (Ref. č 45) 50082 O-RING 30.5x3  1 € 2,40 € 3
SKLADOM
46 OIL SCREEN CAP (Ref. č 46) 24305 OIL SCREEN CAP  1 € 2,40 € 3
SKLADOM ZA 3 dní
59 84214 R/B 84553 Front Gearcase ASSY.  1 € 1 540,08 € 1 894
NA DOPYT
58 Oil Seal 30X45X7 (Ref. č 58) 73015 Oil Seal 30X45X7  1 € 2,56 € 3
SKLADOM
57 INPUT COVER-CARRIER HOUSING HALF (Ref. č 57) 73017 INPUT COVER-CARRIER HOUSING HALF  1 € 9,34 € 11
SKLADOM
56 O-Ring 79X2.65 (Ref. č 56) 20901A O-Ring 79X2.65  1 € 2,40 € 3
NA DOPYT
55 circlip For Shaft (Ref. č 55) 21120 circlip For Shaft  1 € 7,19 € 9
SKLADOM
54 BEARING 6306ST (Ref. č 54) 10809 BEARING 6306ST  1 € 18,18 € 22
SKLADOM
53 84211 Bevel Gear -Driving  1 € 137,44 € 169
NA DOPYT
52 LINER BUSHING (Ref. č 52) 10810 LINER BUSHING  1 € 3,31 € 4
SKLADOM
51 ALUMINIUM WASHER (Ref. č 51) 73021 ALUMINIUM WASHER  1 € 2,40 € 3
NA DOPYT
50 DRAIN PLUG (Ref. č 50) 73020 DRAIN PLUG  1 € 2,40 € 3
NA DOPYT
49 84209 Fitting Holder  1 € 46,36 € 57
NA DOPYT
48 SPEED SENSOR(FIX AT TRANSMISSION) (Ref. č 48) 25601 SPEED SENSOR(FIX AT TRANSMISSION)  1 € 104,88 € 129
SKLADOM
47 Plain Washer (Ref. č 47) 29613 Plain Washer  1 € 8,51 € 10
SKLADOM
31 Diff Case Thrust-Washer (Ref. č 31) 21106 Diff Case Thrust-Washer  1 € 13,80 € 17
NA DOPYT
30 Clutch Gear (Ref. č 30) 73030 Clutch Gear  1 € 62,73 € 77
NA CESTE
14 O-Ring (Ref. č 14) 73013 O-Ring  1 € 2,56 € 3
SKLADOM
13 10789 Parallel Pin  1 € 8,02 € 10
NA DOPYT
12 73026 Rock Arm  1 € 2,98 € 4
NA DOPYT
11 73023 Cover, Converter  1 € 6,36 € 8
NA DOPYT
10 10010 Hexagon Flange Bolt M6×15  2 € 8,68 € 11
NA DOPYT
9 21111 Vent Tube  1 € 12,89 € 16
NA DOPYT
8 25107 Clip  1 € 12,89 € 16
NA DOPYT
7 73037 Inner Six Angle Plug  2 € 6,61 € 8
NA DOPYT
6 Hose Fitting (Ref. č 6) 21112 Hose Fitting  1 € 11,74 € 14
SKLADOM
5 BEARING 206 (Ref. č 5) 10808 BEARING 206  1 € 15,21 € 19
NA DOPYT
4 10124 BOLT M8X35  4 € 8,76 € 11
NA DOPYT
3 84210 Fitting Holder-With Bearing  1 € 101,32 € 125
NA DOPYT
2 OIL SEAL 30X50X6.5 (Ref. č 2) 73016 OIL SEAL 30X50X6.5  2 € 23,72 € 29
SKLADOM
15 DIFF SOLENOID (Ref. č 15) 71978 DIFF SOLENOID  1 € 135,45 € 167
NA DOPYT
16 71358 SPRING CARD HOOP 13  1 € 2,40 € 3
SKLADOM ZA 30 dní
29 Carrier Cover Half (Ref. č 29) 84056 Carrier Cover Half  1 € 154,38 € 190
SKLADOM
28 73029 Shift Lever  1 € 10,41 € 13
NA DOPYT
27 73038 Shift Lever Spring  1 € 3,97 € 5
NA DOPYT
26 73039 Shift Bar  1 € 4,13 € 5
NA DOPYT
25 SHIFT YOKE (Ref. č 25) 73041 SHIFT YOKE  1 € 19,09 € 23
SKLADOM
24 73040 Shift Return Spring  2 € 9,34 € 11
NA DOPYT
23 73027 Washer  1 € 10,50 € 13
NA DOPYT
22 73019 Nut M20×1.5  1 € 4,30 € 5
NA DOPYT
21 73022 Case, Converter  1 € 47,52 € 58
NA DOPYT
20 73024 OIL SEAL 12X50X5  1 € 3,22 € 4
NA DOPYT
19 73028 Rod，Converter  1 € 4,13 € 5
NA DOPYT
18 THREAD ADJUSTING SLEEVE (Ref. č 18) 73025 THREAD ADJUSTING SLEEVE  1 € 13,06 € 16
SKLADOM
17 73139 Rubber protective sleeve  1 € 10,50 € 13
NA DOPYT
1 BOLT M8X25 (Ref. č 1) 10059 BOLT M8X25  17 € 2,40 € 3
SKLADOM
Kód produktu LINHAI_1_129_LH800U-2D
typ rozkresu: ENGINE PARTS
ZNACKA: LINHAI
TYP: LINHAI UTV 800
MODEL: LH800U 2D
