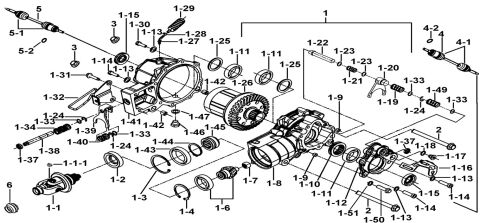

FRONT DIFFERENTIAL ASSY.(LOCK)

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_1_113_FBG-DLE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

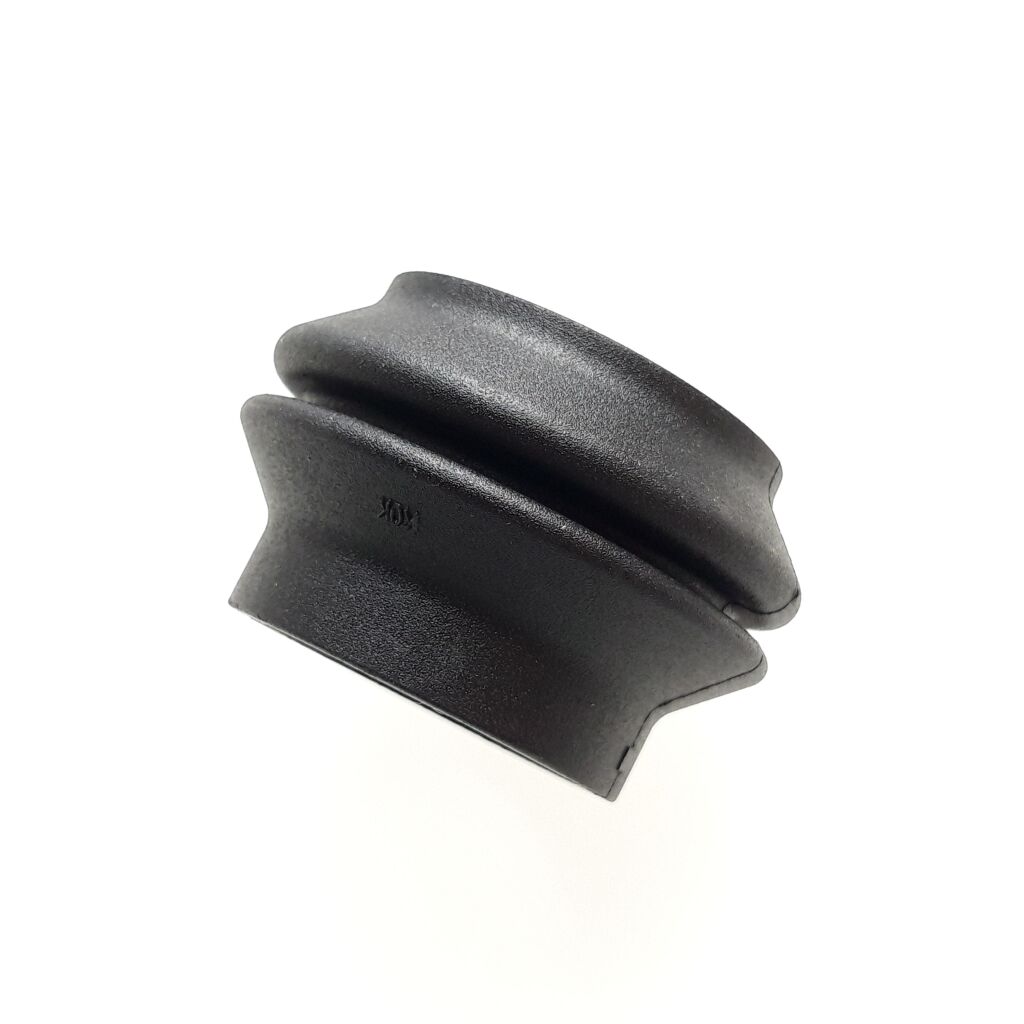

06 BOOT, PROPELLER SHAFT (Ref. č 06) 924224 BOOT, PROPELLER SHAFT  1 € 5,12 € 6
SKLADOM

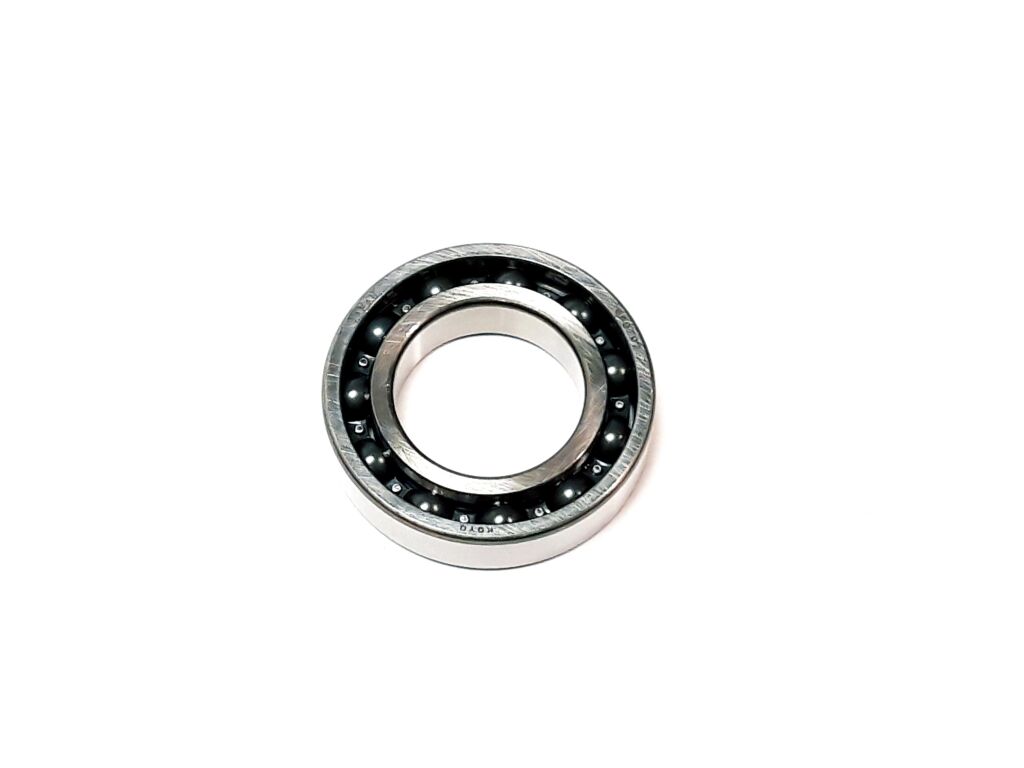

01.43 BEARING ?45X?68X12 (Ref. č 01-43) 924382 BEARING ?45X?68X12  1 € 65,95 € 81
SKLADOM
01.42 PIN, DOWEL (Ref. č 01-42) P40301 PIN, DOWEL  2 € 2,40 € 3
SKLADOM
01.41 COVER, FRONT DRIVE (Ref. č 01-41) 924981 COVER, FRONT DRIVE  1 € 57,52 € 71
SKLADOM ZA 25 dní
01.40 SPRING, SHIFT (Ref. č 01-40) 924615 SPRING, SHIFT  1 € 2,40 € 3
SKLADOM
01.39 FORK, SHIFT (Ref. č 01-39) 924613 FORK, SHIFT  1 € 10 € 12
SKLADOM
01.38 ROD SHIFT (Ref. č 01-38) 925675 ROD SHIFT  1 € 22,07 € 27
NA DOPYT
01.37 OIL SEAL?12X?20X5 (Ref. č 01-37) 924381 OIL SEAL?12X?20X5  2 € 2,40 € 3
SKLADOM
01.34 SPRING RETURN (Ref. č 01-34) 925673 SPRING RETURN  1 € 6,36 € 8
SKLADOM
01.33 WASHER (Ref. č 01-33) W99218 WASHER  4 € 2,40 € 3
SKLADOM
01.32 924611 BRACKET ASSY, SHIFT  1 € 10 € 12
NA DOPYT
01.31 S21815 BOLT, FLANGE M8X1.25X50L  2 € 2,15 € 3
NA DOPYT
01.30 SCREW, SOCKET HEAD M8X1.25X40L (Ref. č 01-30) S70809 SCREW, SOCKET HEAD M8X1.25X40L  6 € 2,40 € 3
SKLADOM
01.44 CLIP (Ref. č 01-44) R00105 CLIP  1 € 4,05 € 5
NA DOPYT
01.45 SLEEVE, SHIFT (14T) (Ref. č 01-45) 924398 SLEEVE, SHIFT (14T)  1 € 22,15 € 27
SKLADOM
01.46 DRAIN PLUG BOLT (Ref. č 01-46) 924326 DRAIN PLUG BOLT  1 € 8,68 € 11
NA DOPYT

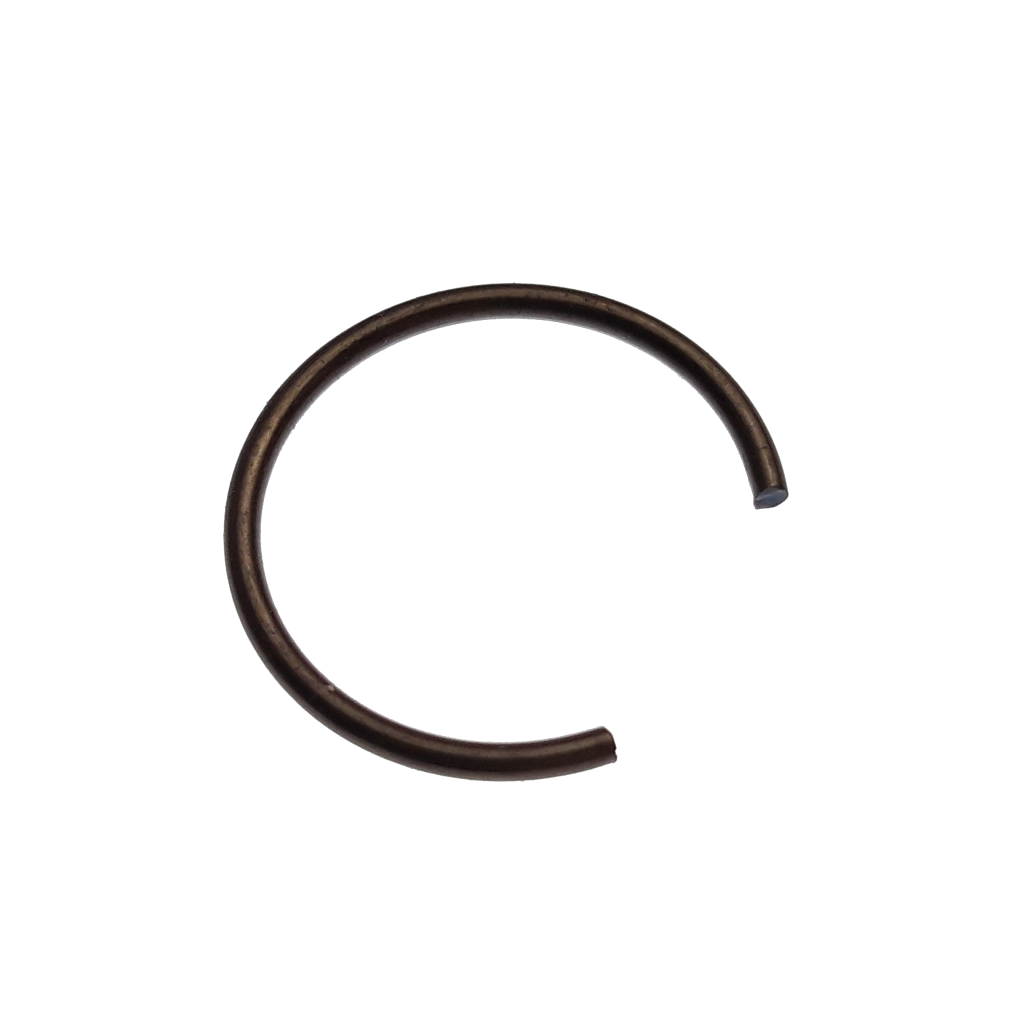

05.2 R/B 911606 C CLIP (Ref. č 05-2) 925685 R/B 911606 C CLIP  1 € 3,47 € 4
NA DOPYT

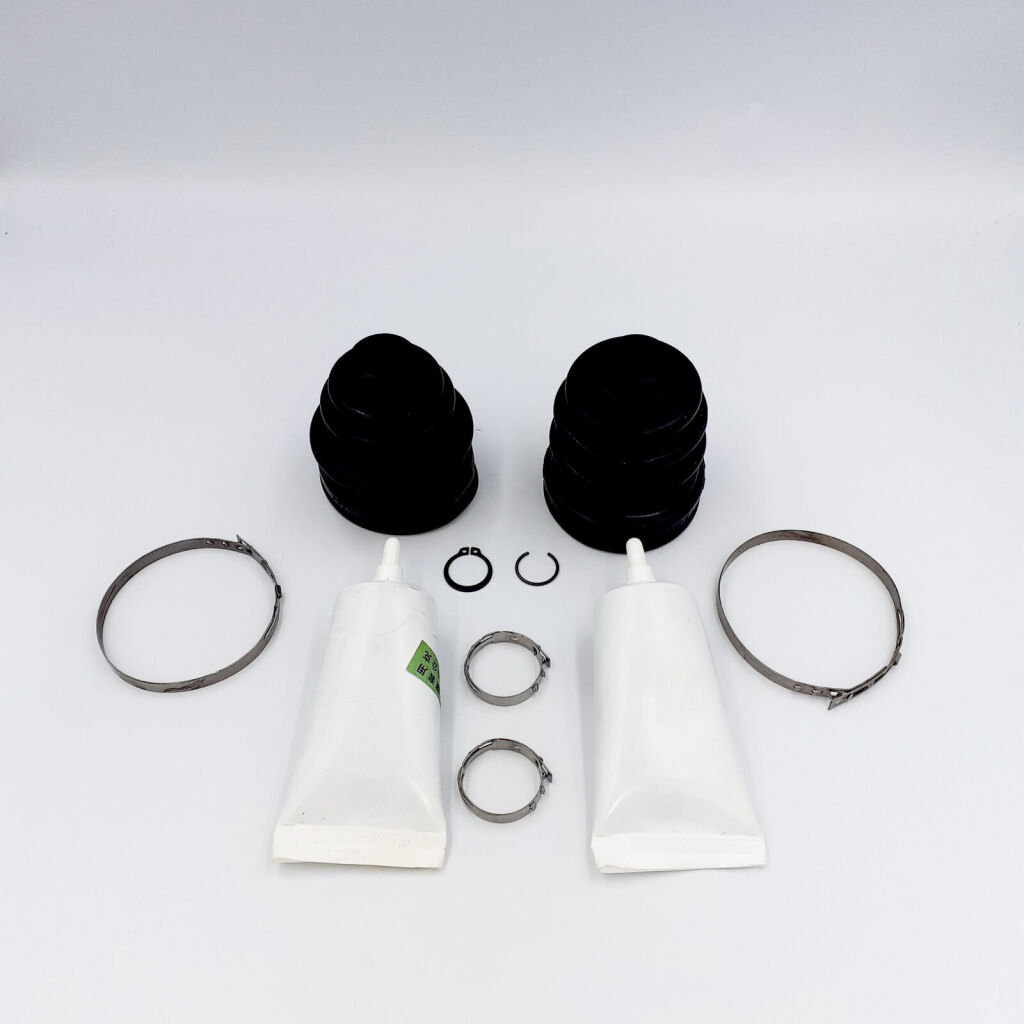

05.1 R/B 924797 BOOT FIX BAG (Ref. č 05-1) 925197A R/B 924797 BOOT FIX BAG  1 € 68,10 € 84
NA DOPYT

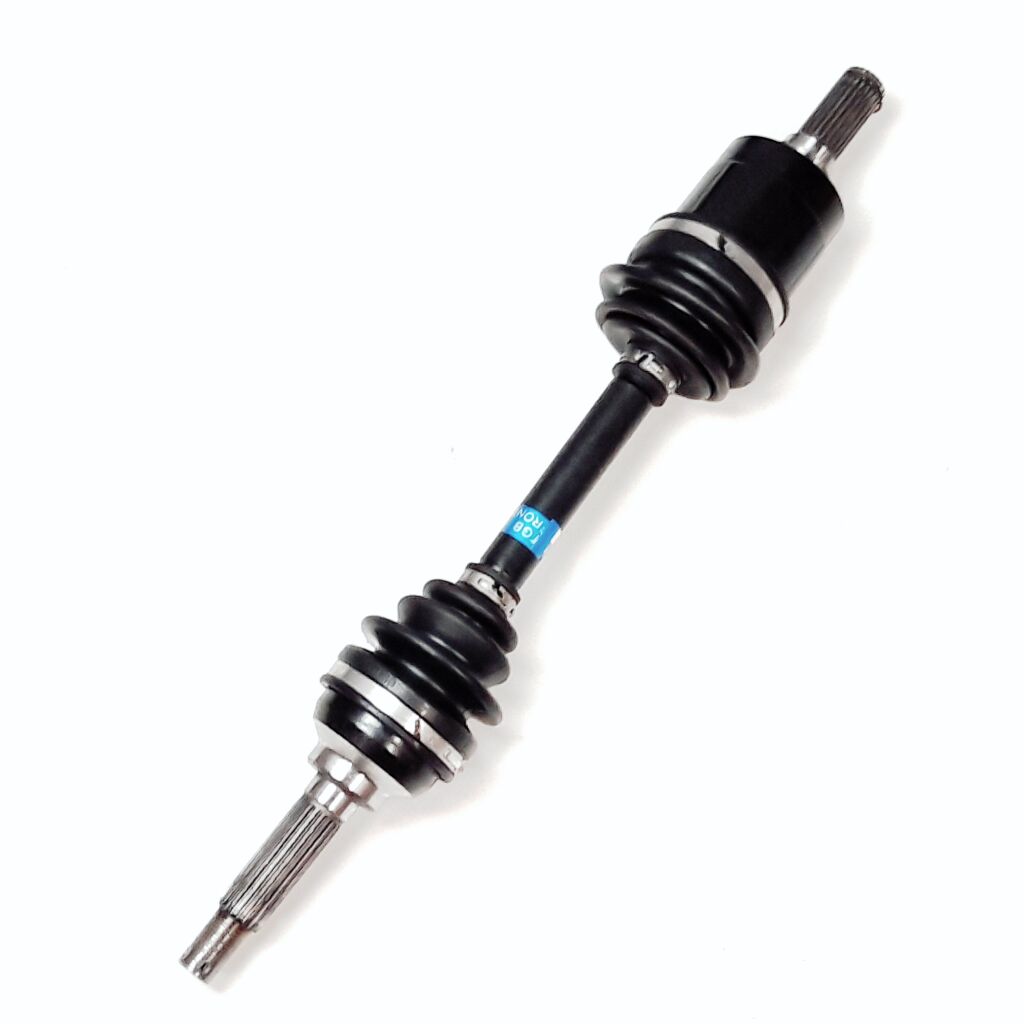

05 R/B 925441Y TRANSMISSION SHAFT (L) (Ref. č 05) 925441 R/B 925441Y TRANSMISSION SHAFT (L)  1 € 390,83 € 481
NA DOPYT
04 TRANSMISSION SHAFT (R) (Ref. č 04) 925442 TRANSMISSION SHAFT (R)  1 € 309,09 € 380
Naskladňujeme
03 NUT, SELF LOCK (Ref. č 03) GA551NT01 NUT, SELF LOCK  2 € 2,40 € 3
Naskladňujeme
02 BOLT, FLANGE M10X1.25 (Ref. č 02) S20019 BOLT, FLANGE M10X1.25  2 € 3,22 € 4
SKLADOM
01.51 WASHER ?6.5X?13.2X1.3t (Ref. č 01-51) W99621 WASHER ?6.5X?13.2X1.3t  1 € 2,40 € 3
SKLADOM
01.50 S20623 BOLT M6X1.0X14  1 € 2,73 € 3
NA DOPYT
01.49 925354 SPRING  1 € 2,81 € 3
NA DOPYT
01.29 CASE, BREATHER (Ref. č 01-29) 924264 CASE, BREATHER  1 € 9,34 € 11
Naskladňujeme
01.28 CLIP (Ref. č 01-28) R40802 CLIP  1 € 2,40 € 3
NA DOPYT
01.27 EXHAUST PIPE, BREATHE (Ref. č 01-27) 924261 EXHAUST PIPE, BREATHE  1 € 6,69 € 8
NA DOPYT
01.12 925460 HOUSING FRONT DRIVE  1 € 76,28 € 94
NA DOPYT

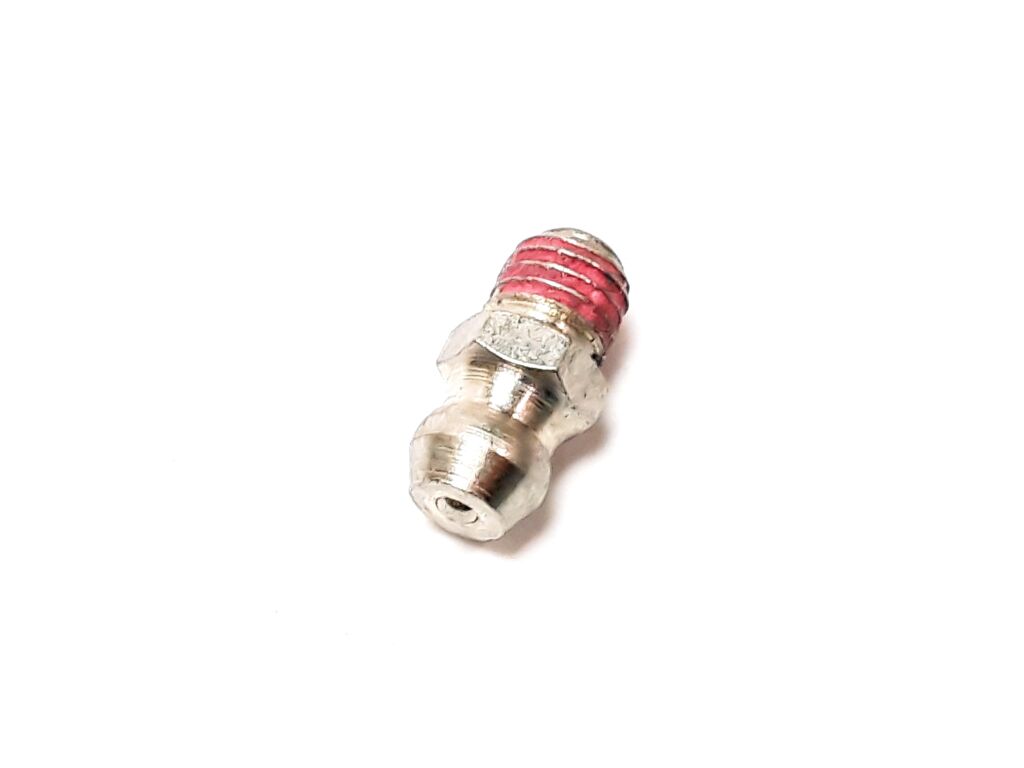

01.1.1 GREASE NIPPLE (Ref. č 01-1-1) 925494 GREASE NIPPLE  1 € 2,40 € 3
SKLADOM
01.11 BEARING (Ref. č 01-11) 925337 BEARING  3 € 43,31 € 53
SKLADOM
01.10 LOCK SLEEVE (19T) (Ref. č 01-10) 924886 LOCK SLEEVE (19T)  1 € 27,27 € 34
NA DOPYT
01.09 P40102 PIN, DOWEL  2 € 4,71 € 6
NA DOPYT
01.08 924867 R/B 910654 GEAR BOX  1 € 166,94 € 205
NA DOPYT
01.07 BEARING ?15X?21X12 (Ref. č 01-07) 924384 BEARING ?15X?21X12  1 € 10,41 € 13
SKLADOM ZA 25 dní
01.06 PINION, DRIVE (Ref. č 01-06) 925703A PINION, DRIVE  1 € 175,37 € 216
NA DOPYT
01.04 CLIP (Ref. č 01-04) 924606 CLIP  1 € 4,63 € 6
SKLADOM
01.03 CLIP (Ref. č 01-03) R01301 CLIP  1 € 10,25 € 13
SKLADOM
01.02 OIL SEAL ?52X?73X14 (Ref. č 01-02) 924380 OIL SEAL ?52X?73X14  1 € 7,36 € 9
SKLADOM
01.01 UNIVERSAL JOINT ASSY (Ref. č 01-01) 925496 UNIVERSAL JOINT ASSY  1 € 208,43 € 256
NA DOPYT
01.13 SPRING WASHER (Ref. č 01-13) GA556WS04 SPRING WASHER  14 € 2,40 € 3
SKLADOM
01.14 S70810 SCREW, SOCKET HEAD M8X1.25X36L  8 € 2,15 € 3
NA DOPYT
01.15 R/B 925010A OIL SEAL (Ref. č 01-15) 925010 R/B 925010A OIL SEAL  2 € 16,20 € 20
NA DOPYT
01.26 SLIP LIMITED GEAR ASSY. (Ref. č 01-26) 924983 SLIP LIMITED GEAR ASSY.  1 € 630,50 € 776
SKLADOM
01.25A SHIM 0.3t (Ref. č 01-25A) W99308 SHIM 0.3t

OPTION

1 € 2,40 € 3
SKLADOM
01.25 SHIM 0,1t (Ref. č 01-25) W99307 SHIM 0,1t

OPTION

1 € 2,40 € 3
SKLADOM
01.24 E RING (Ref. č 01-24) R10702 E RING  3 € 2,15 € 3
SKLADOM
01.23 924971 WASHER 1t  2 € 2,15 € 3
NA DOPYT
01.22 924871 ROD, SHIFT  1 € 22,89 € 28
NA DOPYT
01.21 INSIDE SPRING (Ref. č 01-21) 924970 INSIDE SPRING  1 € 2,56 € 3
SKLADOM
01.20 FORK, SHIFT (Ref. č 01-20) 924887 FORK, SHIFT  1 € 49,17 € 60
SKLADOM
01.19 925353 SPRING  1 € 2,81 € 3
NA DOPYT
01.18 WASHER, TDC ?16.2X?22.5X2t (Ref. č 01-18) W99620 WASHER, TDC ?16.2X?22.5X2t  1 € 2,40 € 3
SKLADOM
01.17 SCREW (Ref. č 01-17) 924339 SCREW  1 € 5,79 € 7
SKLADOM

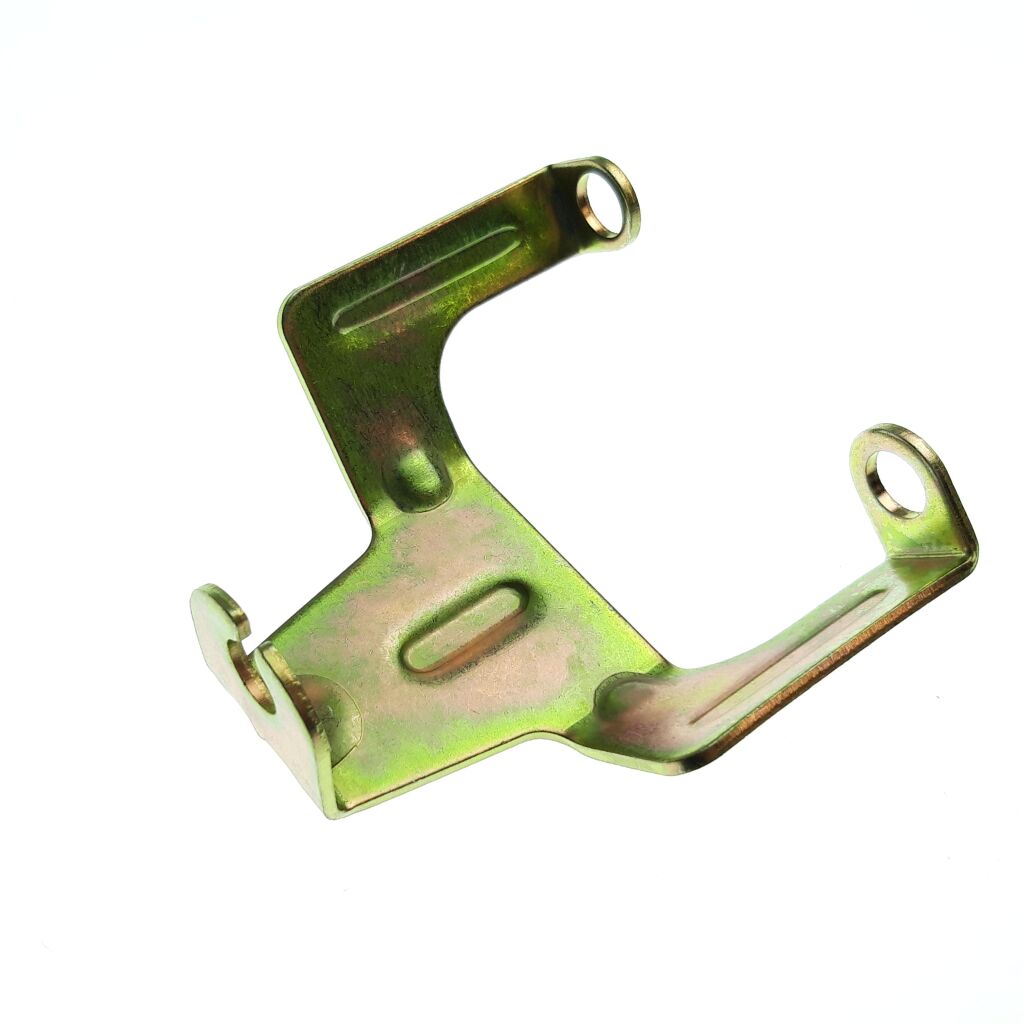

01.16 STEEL ROPE BRACKET (Ref. č 01-16) 924982 STEEL ROPE BRACKET  1 € 8,84 € 11
NA DOPYT

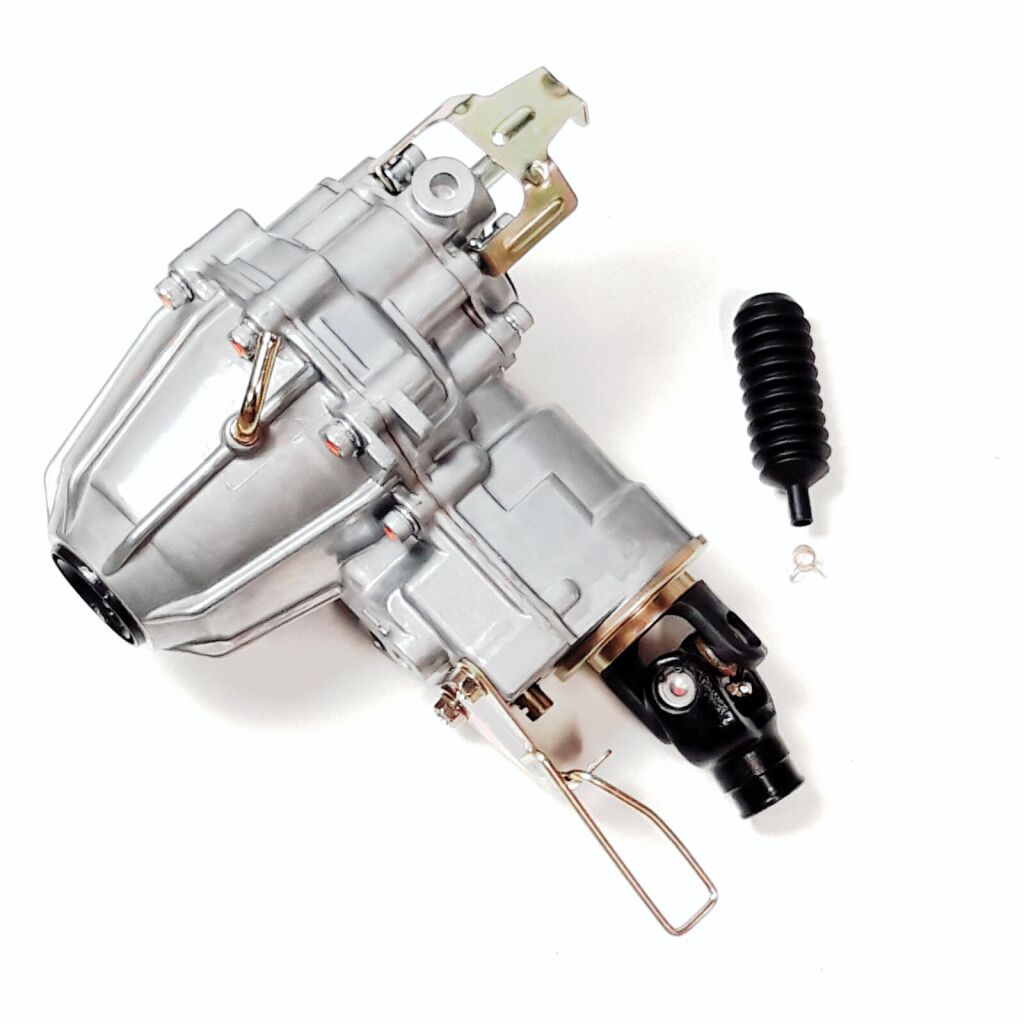

01 FRONT DIFFERENTIAL ASSY. (Ref. č 01) 924984B FRONT DIFFERENTIAL ASSY.  1 € 979,34 € 1 205
SKLADOM
Kód produktu TGB_1_113_FBG-DLE
typ rozkresu: ENGINE PARTS
TYP: BLADE 550
ZNACKA: TGB
MODEL: BLADE 550EFI LT
