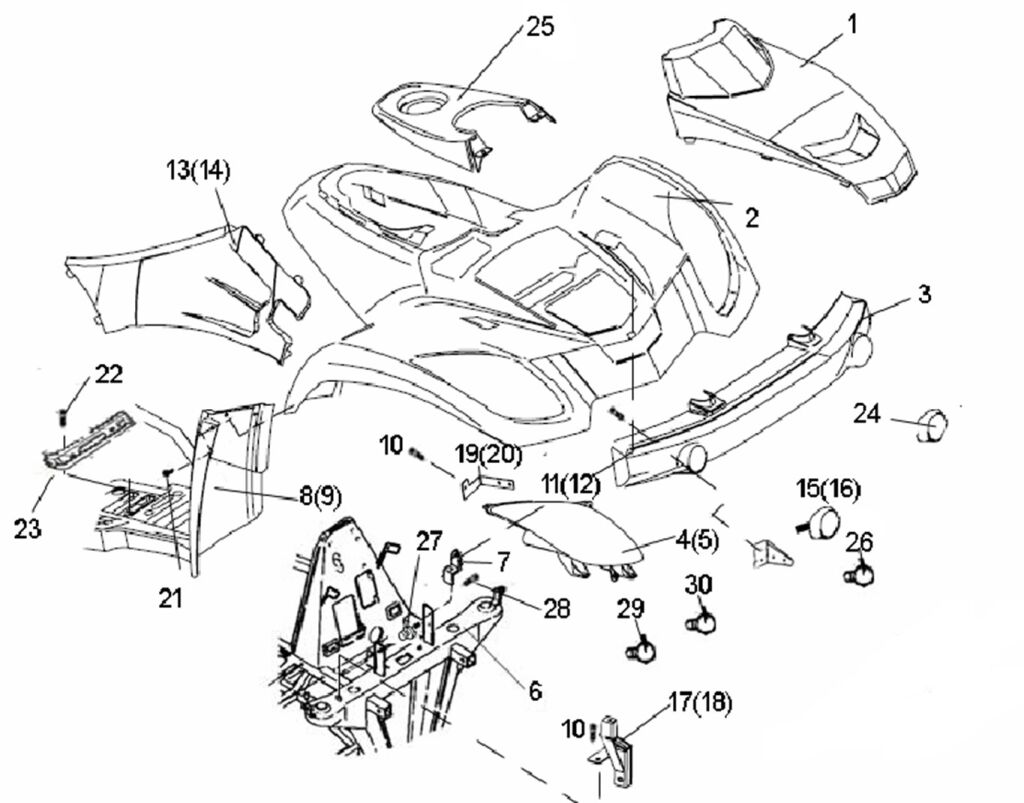

FRONT BODY＆FRAME

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_4_404_ATV200-B
MODEL:
200 T3b 200 T3b
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 FRONT COVER (Ref. č 1) 25064 FRONT COVER  1 € 19,83 € 24
SKLADOM
25 COVER, FUEL TANK TOP (Ref. č 25) 25093 COVER, FUEL TANK TOP  1 € 6,94 € 8,40
NA DOPYT
26 FRONT TURN INDICATE LIGHT, BULB 12V 10W (Ref. č 26) 32045 FRONT TURN INDICATE LIGHT, BULB 12V 10W  2 € 6,28 € 7,60
SKLADOM
27 NUT M10X1.25 (Ref. č 27) 10004 NUT M10X1.25  2 € 2,40 € 2,90
NA DOPYT
28 BOLT M6X12 (Ref. č 28) 10140 BOLT M6X12  2 € 2,40 € 2,90
SKLADOM
6 29625 FRAME COMP.  1
NA DOPYT
Detail
11 25074 FRONT BODY BRACKET R  1
NA DOPYT
Detail
12 25075 FRONT BODY BRACKET L  1
NA DOPYT
Detail
17 25080 TRESTLE R  1
NA DOPYT
Detail
18 25081 TRESTLE L  1
NA DOPYT
Detail
19 25082 HEADLIGHT BRACKET R  1
NA DOPYT
Detail
20 25083 HEADLIGHT BRACKET L  1
NA DOPYT
Detail
24 20413a FRONT INDICATION LIGHT COVER（ONLY FOE USA）  2
NA DOPYT
Detail
29 25089 HEADLIGHT BULB 12V 35W/35W HS  2
NA DOPYT
Detail
23 STEP (Ref. č 23) 70336 STEP  2 € 5,70 € 6,90
SKLADOM
22 BOLT M6X16 (Ref. č 22) 10127 BOLT M6X16  2 € 2,40 € 2,90
SKLADOM
2 25065 FRONT BODY-BLACK  1 € 109,59 € 132,60
SKLADOM
3 PLASTIC BUMPER (Ref. č 3) 25066 PLASTIC BUMPER  1 € 33,06 € 40
SKLADOM
4 HEADLIGHT UNIT,R (Ref. č 4) 25067 HEADLIGHT UNIT,R  1 € 109,01 € 131,90
SKLADOM
5 HEADLIGHT UNIT, L (Ref. č 5) 25068 HEADLIGHT UNIT, L  1 € 90,08 € 109
SKLADOM
7 25070 BRACKET,TURN INDICATE LIGHT,FR  2 € 3,55 € 4,30
NA DOPYT
8 FOOTREST RIGHT (Ref. č 8) 25071 FOOTREST RIGHT  1 € 64,21 € 77,70
SKLADOM
9 FOOTREST LEFT (Ref. č 9) 25072 FOOTREST LEFT  1 € 75,54 € 91,40
SKLADOM
13 SIDE COVER R (Ref. č 13) 25076 SIDE COVER R  1 € 15,54 € 18,80
SKLADOM
14 SIDE COVER L (Ref. č 14) 25077 SIDE COVER L  1 € 20,66 € 25
SKLADOM
15 FRONT INDICATOR LIGHT R (ONLY FOR EUROPE) (Ref. č 15) 25078 FRONT INDICATOR LIGHT R (ONLY FOR EUROPE)  1 € 34,38 € 41,60
NA DOPYT
16 FRONT INDICATOR LIGHT L (ONLY FOR EUROPE) (Ref. č 16) 25079 FRONT INDICATOR LIGHT L (ONLY FOR EUROPE)  1 € 34,38 € 41,60
SKLADOM
21 SCREW M6X30 (Ref. č 21) 10420 SCREW M6X30  2 € 2,40 € 2,90
SKLADOM
30 25090 POSITION LIGHT BULB 12V 5W  2
NA DOPYT
Detail
10 BOLT M6X12 (Ref. č 10) 10140 BOLT M6X12  2 € 2,40 € 2,90
SKLADOM
