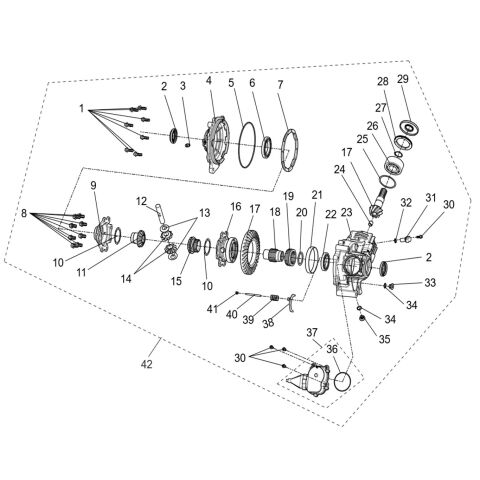

Front Axle assembly

SEGWAY
Výrobca: SEGWAY
Kód produktu: SEGWAY_2_227_UTV1000
MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
42 FRONT AXLE ASSY (Ref. č 42) Q03F00000002 FRONT AXLE ASSY  1 € 1 008,09 € 1 219,79
SKLADOM
29 OIL SEAL 30×45×6.5 (Ref. č 29) Q03F40700001 OIL SEAL 30×45×6.5  1 € 3,47 € 4,20
SKLADOM
28 Q01F41200001 NUT M75×1.5×6-LH  1 € 5,10 € 6,17
NA DOPYT
27 GBT000894012 CIRCLIP 30  1 € 2,44 € 2,95
NA DOPYT
26 GBT000296001 BEARING 3306  1 € 37,26 € 45,08
NA DOPYT
25 Q01F10200005 DRIVE BEVEL GEAR SHIMS(0.7)  1 € 2,44 € 2,95
NA DOPYT
25 Q01F10200004 DRIVE BEVEL GEAR SHIMS(0.6)  1 € 2,44 € 2,95
NA DOPYT
25 Q01F10200003 DRIVE BEVEL GEAR SHIMS(0.5)  1 € 2,44 € 2,95
NA DOPYT
25 Q01F10200002 DRIVE BEVEL GEAR SHIMS(0.4)  1 € 2,44 € 2,95
NA DOPYT
25 Q01F10200001 DRIVE BEVEL GEAR SHIMS(0.3)  1 € 2,44 € 2,95
NA DOPYT
24 Q01F41100001 BUSHINGⅡ(Φ15)  1 € 2,44 € 2,95
NA DOPYT
30 BOLT M6×16 (Ref. č 30) F01000002001 BOLT M6×16  4 € 2,44 € 2,95
SKLADOM
31 VEHICLE SPEED SENSOR ASSEMBLY (Ref. č 31) Q01F50300001 VEHICLE SPEED SENSOR ASSEMBLY  1 € 29,17 € 35,30
SKLADOM
41 Q03F31400001 HEXAGON SCREW M8×8  1 € 2,44 € 2,95
NA DOPYT
40 Q03F31300001 FORK SHAFT 5×65  1 € 2,44 € 2,95
NA DOPYT
39 Q03F31200001 SLIDING RACK  1 € 2,44 € 2,95
NA DOPYT
38 Q03F31100001 SHIFT FORK  1 € 3,29 € 3,98
NA DOPYT
37 FRONT AXLE SHIFT MOTOR ASSEMBLY (Ref. č 37) Q03F50100001 FRONT AXLE SHIFT MOTOR ASSEMBLY  1 € 94,12 € 113,89
SKLADOM
36 O-RING 67.9×2.2 (Ref. č 36) Q03F40300001 O-RING 67.9×2.2  1 € 2,44 € 2,95
SKLADOM
35 ENGINE DRAIN PLUG M14 (Ref. č 35) F01G00200001 ENGINE DRAIN PLUG M14  1 € 5,54 € 6,70
SKLADOM
34 O-Ring 13.8×2.5 (Ref. č 34) F01G00005001 O-Ring 13.8×2.5  2 € 2,44 € 2,95
SKLADOM
33 PLUG M14 (Ref. č 33) F02C10008001 PLUG M14  1 € 2,66 € 3,22
SKLADOM
32 Q01F40900001 O-RING 12×2  1 € 2,44 € 2,95
NA DOPYT
23 Q03F40100002 FRONT AXLE HOUSING  1 € 90,21 € 109,16
NA DOPYT
22 BEARING 16008 (Ref. č 22) GBT000276015 BEARING 16008  1 € 11,82 € 14,30
SKLADOM
10 Q01R31600002 AXLE BEVEL GASKET(1.0)  1 € 2,44 € 2,95
NA DOPYT
10 Q01R31600001 AXLE BEVEL GASKET(0.8)  1 € 2,44 € 2,95
NA DOPYT
9 Q03F30200001 DIFFERENTIAL COVER  1 € 43,17 € 52,23
NA DOPYT
8 Q03F30800001 HEXAGON FLANGE BOLT M10×1.0×18  8 € 2,44 € 2,95
NA DOPYT
7 Q01F40400001 LIMITING LINER  1 € 2,62 € 3,17
NA DOPYT
6 BEARING 16010 (Ref. č 6) GBT000276038 BEARING 16010  1 € 12,74 € 15,41
SKLADOM
5 Q01F40500001 RECTANGULAR GASKET  1 € 3,02 € 3,66
NA DOPYT
4 Q03F40200002 FRONT AXLE END COVER  1 € 34,53 € 41,78
NA DOPYT
3 BREATHING JOINT (Ref. č 3) Q01F41300001 BREATHING JOINT  1 € 13,99 € 16,93
SKLADOM
2 OIL SEAL 38×55×7 (Ref. č 2) D02P22202001 OIL SEAL 38×55×7  2 € 6,13 € 7,42
SKLADOM
10 Q01R31600003 AXLE BEVEL GASKET(1.2)  1 € 2,44 € 2,95
NA DOPYT
11 Q03F30600000 Half Shaft Bevel Gear Ⅰ assembly  1 € 39,33 € 47,59
NA DOPYT
21 Q01F41000001 BUSHINGⅠ(Φ97)  1 € 8,64 € 10,46
NA DOPYT
20 Q03F31500001 SPACER 40.2×50×3  1 € 2,44 € 2,95
NA DOPYT
19 Q03F31000001 COMBINATION SETS  1 € 23,97 € 29
NA DOPYT
18 Q03F30900000 AXLE SHAFT ASSY  1 € 34,97 € 42,31
NA DOPYT
17 Q01F10100000 DRIVE&DRIVEN BEVEL GEAR KIT  1 € 165,54 € 200,30
NA DOPYT
16 Q03F30100001 DIFFERENTIAL HOUSING  1 € 94,12 € 113,89
NA DOPYT
15 Q03F30700001 Half shaft bevel gear II  1 € 45,53 € 55,09
NA DOPYT
14 Q01R30900003 Planetary gear  1 € 12,87 € 15,57
NA DOPYT
13 Q01R31700003 Planetary gear liner (unavailable)  2 € 2,44 € 2,95
NA CESTE
12 Q03F30300001 Planetary gear shaft V  1 € 7,68 € 9,29
NA DOPYT
1 HEXAGON FLANGE BOLT M8×25 (Ref. č 1) Q01F40201001 HEXAGON FLANGE BOLT M8×25  7 € 2,44 € 2,95
SKLADOM
