Frame.

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_218_AT10_A3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 Bolt M8×16 (Ref. č 1) GBT005789014 Bolt M8×16  17 € 2,18 € 3
SKLADOM
21 U01R21103001 BALL SPRING WASHER (UNAVAILABLE)  1 € 3,14 € 4
NA DOPYT
22 U01R21102001 BALL NUT (UNAVAILABLE)  3 € 8,26 € 10
NA DOPYT
23 R/B U01R21300002 TRAILER PIN (Ref. č 23) U01R21300001 R/B U01R21300002 TRAILER PIN  1 € 6,45 € 8
NA DOPYT
24 LEFT BAR (Ref. č 24) A12-C012000-DB0-00 LEFT BAR  1 € 14,46 € 18
SKLADOM
25 LEFT FOOT PEDAL BRACKET (Ref. č 25) A12-C001000-DB0-00 LEFT FOOT PEDAL BRACKET  1 € 32,73 € 40
SKLADOM
26 RECTIFIER BRACKET (Ref. č 26) A12-C018000-DB0-00 RECTIFIER BRACKET  1 € 4,38 € 5
SKLADOM
28 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 28) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  4 € 2,18 € 3
SKLADOM
29 HEXAGON FLANGE BOLT M10×1.25×16 (Ref. č 29) GBT005789024 HEXAGON FLANGE BOLT M10×1.25×16  2 € 2,18 € 3
SKLADOM
30 GBT006183001 LOCKING NUT M10  1 € 1,74 € 2
NA DOPYT
31 FRONT AXLE UPPER BRACKET (Ref. č 31) A12-C005000-DB0-00 FRONT AXLE UPPER BRACKET  1 € 9,01 € 11
SKLADOM
32 BOLT M10×1.25×125 (Ref. č 32) GBT005789042 BOLT M10×1.25×125  1 € 1,74 € 2
SKLADOM
33 A12-B010000-DB0-01 FRAME ASSY  1 € 1 123,64 € 1 382
NA CESTE
34 BOLT M6×10 (Ref. č 34) GBT005789005 BOLT M6×10  2 € 2,15 € 3
SKLADOM
18 TRAILER BALL（EU） (Ref. č 18) U01R21100001 TRAILER BALL（EU）  1 € 47,19 € 58
SKLADOM
17 T3 REAR LICENSE (Ref. č 17) A02-N200010-DB0-00 T3 REAR LICENSE  1 € 6,20 € 8
SKLADOM
16 REAR LICESNSE BRACKET (Ref. č 16) A12-C011000-DB0-00 REAR LICESNSE BRACKET  1 € 15,79 € 19
NA DOPYT
2 HORN BRACKET (Ref. č 2) A12-C021000-DB0-00 HORN BRACKET  1 € 1,74 € 2
SKLADOM
3 BOLT M8×20 (Ref. č 3) GBT005789015 BOLT M8×20  9 € 2,18 € 3
SKLADOM
4 FRONT SHELF SUPPORT (Ref. č 4) A12-C003000-DB0-00 FRONT SHELF SUPPORT  1 € 55,70 € 69
SKLADOM
5 Bolt M6×16 (Ref. č 5) GBT005789007 Bolt M6×16  8 € 2,18 € 3
SKLADOM
6 START RELAY BRACKET (Ref. č 6) A12-C009000-DB0-00 START RELAY BRACKET  1 € 1,90 € 2
SKLADOM
7 RIGHT FOOT SUPPORT BRACKET (Ref. č 7) A12-C002000-DB0-00 RIGHT FOOT SUPPORT BRACKET  1 € 32,73 € 40
SKLADOM
8 HEXAGON FLANGE BOLT M8×30 (Ref. č 8) GBT005789017 HEXAGON FLANGE BOLT M8×30  8 € 2,15 € 3
SKLADOM
9 Hexagon flange bolt M10×1.25×25 (Ref. č 9) GBT005789026 Hexagon flange bolt M10×1.25×25  4 € 2,48 € 3
SKLADOM
10 RIGHT BAR (Ref. č 10) A12-C013000-DB0-00 RIGHT BAR  1 € 16,45 € 20
SKLADOM
11 SEAT BRACKET (Ref. č 11) A12-C014000-DB0-00 SEAT BRACKET  1 € 17,60 € 22
SKLADOM
12 A12-C007000-DB0-00 REAR SHELF SUPPORT  1 € 19,26 € 24
SKLADOM ZA 17 dní
14 Bolt M6×12 (Ref. č 14) GBT005789006 Bolt M6×12  4 € 2,18 € 3
SKLADOM
15 NUT M6 (Ref. č 15) GBT061831002 NUT M6  2 € 2,18 € 3
SKLADOM
35 CARBON CANISTER BRACKET (Ref. č 35) A12-C008000-DB0-00 CARBON CANISTER BRACKET  1 € 2,40 € 3
SKLADOM
Kód produktu SEGWAY_2_218_AT10_A3

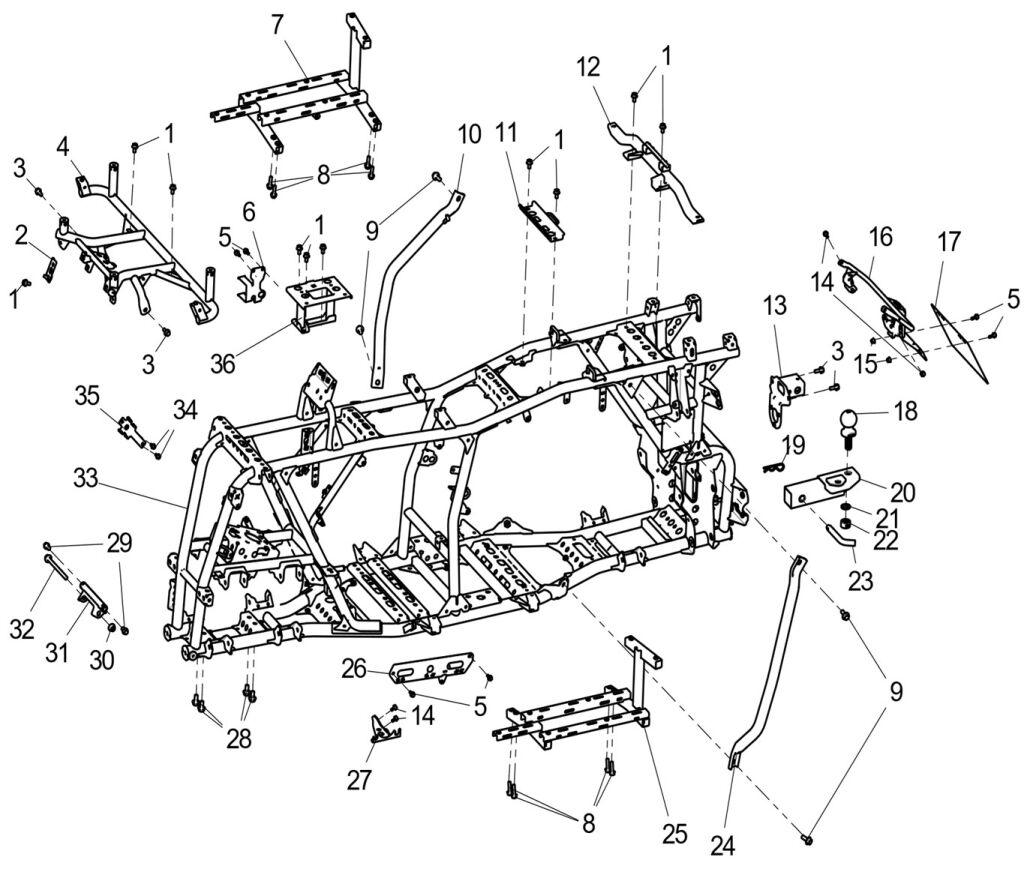

typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: AT10
MODEL: AT10L
