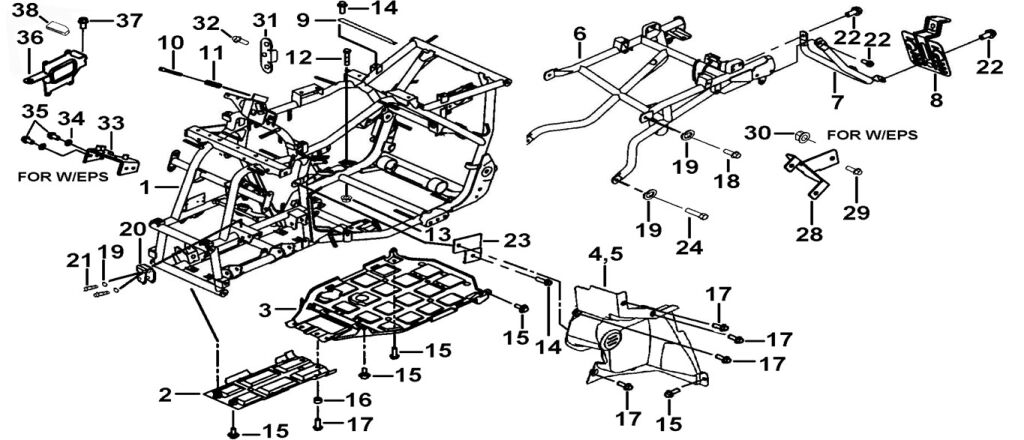

FRAME

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_2_204_FTG-HRE
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
01 517970 MAIN FRAME

FOR W/O EPS

1 € 1 163,47 € 1 431
NA DOPYT
20 BRACKET (Ref. č 20) 511992 BRACKET  1 € 12,40 € 15
NA DOPYT
21 BOLT, FLANGE (Ref. č 21) S20017 BOLT, FLANGE  2 € 2,40 € 3
SKLADOM
22 BOLT (Ref. č 22) S21809 BOLT  4 € 2,40 € 3
SKLADOM
23 516048 BRACKET

FOR W/O EPS

1 € 9,34 € 11
NA DOPYT
24 S21011 BOLT  2 € 4,13 € 5
NA DOPYT
29 BOLT, FLANGE M6X16 (Ref. č 29) GA555SC05 BOLT, FLANGE M6X16

FOR W/EPS

1 € 2,40 € 3
SKLADOM
30 NUT, SPRING M6 (Ref. č 30) N10603 NUT, SPRING M6

FOR W/EPS

1 € 2,40 € 3
SKLADOM
34 SPRING WASHER (Ref. č 34) GA556WS04 SPRING WASHER

FOR W/EPS

4 € 2,40 € 3
SKLADOM
35 BOLT, FLANGE (Ref. č 35) S20814 BOLT, FLANGE

FOR W/EPS

4 € 2,40 € 3
SKLADOM
36 BRACKET FOR EPS (BRUSH MOTOR) (Ref. č 36) 519802 BRACKET FOR EPS (BRUSH MOTOR)

FOR EPS (BRUSH MOTOR)

1 € 35,37 € 44
SKLADOM
23A 517969 FRONT INTERNAL FENDER

FOR W/EPS

1 € 5,62 € 7
NA DOPYT
28 511344 BRACKET, FUSE WIRING HARNESS

FOR W/EPS

1 € 9,01 € 11
NA DOPYT
31 511360 BRACKET  1 € 1,98 € 2
NA DOPYT
33 511369 BRACKET, EPS

FOR W/EPS

1 € 34,79 € 43
NA DOPYT
19 SPRING WASHER 10X18X2,5 (Ref. č 19) GA556WS06 SPRING WASHER 10X18X2,5  6 € 2,40 € 3
SKLADOM
18 BOLT, MUF BODY SUPPORT RH (Ref. č 18) S21007 BOLT, MUF BODY SUPPORT RH  2 € 2,40 € 3
SKLADOM
02 PROTECTOR, FRONT (Ref. č 02) 511394 PROTECTOR, FRONT  1 € 22,15 € 27
SKLADOM
04 FRONT INTERNAL FENDER, LH (Ref. č 04) 511301 FRONT INTERNAL FENDER, LH  1 € 40,58 € 50
NA DOPYT
05 FRONT INTERNAL FENDER, RH. (Ref. č 05) 511994 FRONT INTERNAL FENDER, RH.  1 € 40,58 € 50
SKLADOM
06 517971 REAR FRAME  1 € 201,57 € 248
NA DOPYT
07 517975 FIXTURE, NUMBER-PLATE  1 € 62,98 € 77
NA DOPYT
08 BRACKET ASSY., NUMBER-PLATE (Ref. č 08) 511991 BRACKET ASSY., NUMBER-PLATE  1 € 29,01 € 36
SKLADOM
09 SEAT STEADY, FRONT (Ref. č 09) 511950 SEAT STEADY, FRONT  1 € 5,95 € 7
SKLADOM
10 PIN, STEERING LOCK (Ref. č 10) 511953 PIN, STEERING LOCK  1 € 7,93 € 10
NA DOPYT
11 SPRING, STEERING LOCK (Ref. č 11) 511946 SPRING, STEERING LOCK  1 € 2,40 € 3
SKLADOM
12 BOLT, FLANGE (Ref. č 12) S20004 BOLT, FLANGE  1 € 2,40 € 3
SKLADOM
13 NUT (Ref. č 13) GA501NT01 NUT  1 € 2,40 € 3
SKLADOM
15 BOLT M6X16L (Ref. č 15) S25602 BOLT M6X16L  8 € 2,40 € 3
SKLADOM
16 SPACER (Ref. č 16) GA554BS02 SPACER  2 € 2,40 € 3
SKLADOM
17 BOLT, FLANGE (Ref. č 17) S07601 BOLT, FLANGE  10 € 2,40 € 3
SKLADOM
38 926897 BUSH, RUBBER

FOR EPS (BRUSH MOTOR)

1 € 1,98 € 2
NA DOPYT
Kód produktu TGB_2_204_FTG-HRE
typ rozkresu: FRAME PARTS
