FRAME MOUNTING ASSEMBLY

Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
74 Bolt M6x12 (Ref. č 74) 10140B Bolt M6x12  8 € 2,40 € 3
SKLADOM
54 10427 Cross Recessed Pan Head Screw M5×35  4 € 8,51 € 10
NA DOPYT
53 TURNLIGHT, L (Ref. č 53) 83365 TURNLIGHT, L  1 € 41,65 € 51
SKLADOM
52 11877 NUT M5  4
NA DOPYT
51 38543 FRONT INDICATOR LIGHT BRACKET,L（FOR T3）  1 € 13,88 € 17
NA DOPYT
50 11453 Hexagon Flange Bolt M8×30  4 € 2,40 € 3
NA DOPYT
49 TIE，BATTERY（30Ah） (Ref. č 49) 36850 TIE，BATTERY（30Ah）  1 € 3,06 € 4
NA DOPYT
48 38542 BATTERY PACK BOX  1 € 17,19 € 21
NA DOPYT
47 38541 REAR GEAR-BOX UNDERGUARD  1 € 20,58 € 25
NA DOPYT
46 38540 TRESTLE LEFT  1 € 6,69 € 8
NA DOPYT
45 NUT (Ref. č 45) 10874 NUT  2 € 2,40 € 3
SKLADOM
44 SPRING WASHER (Ref. č 44) 27050 SPRING WASHER  2 € 2,40 € 3
SKLADOM
43 Hexagon Flange Bolt M16×85 (Ref. č 43) 10865 Hexagon Flange Bolt M16×85  2 € 2,64 € 3
SKLADOM
42 NUT W7/8"-14 (Ref. č 42) 11218 NUT W7/8"-14  1 € 12,81 € 16
SKLADOM
41 10816 Spring Lock Washer 22  1 € 8,43 € 10
NA DOPYT
40 PULL THE BALL (Ref. č 40) 35950 PULL THE BALL  1 € 26,86 € 33
NA CESTE
39 38539 SEAT（WHOLE）  1 € 107,44 € 132
NA CESTE
55 TURNLIGHT, R (Ref. č 55) 83364 TURNLIGHT, R  1 € 41,82 € 51
SKLADOM
56 38544 FRONT INDICATOR LIGHT BRACKET,R（FOR T3）  1 € 13,88 € 17
NA DOPYT
57 38719 REAR LEFT CAGE BAFFLE  1 € 17,27 € 21
NA CESTE
73 SEAT COVER (Ref. č 73) 38740 SEAT COVER  1 € 41,32 € 51
SKLADOM
72 RUBBER,SEAT SETTING 1 (Ref. č 72) 25042 RUBBER,SEAT SETTING 1  4 € 2,40 € 3
SKLADOM
71 RUBBER，SEAT (Ref. č 71) 70445 RUBBER，SEAT  2 € 9,34 € 11
SKLADOM
70 SCREW ST4.2X13 (Ref. č 70) 11222 SCREW ST4.2X13  2 € 8,02 € 10
NA DOPYT
69 BAFFLE.SEAT (Ref. č 69) 70803 BAFFLE.SEAT  1 € 11,74 € 14
SKLADOM
68 HOOK BRACKER, SEAT LOCK (Ref. č 68) 70788 HOOK BRACKER, SEAT LOCK  1 € 6,69 € 8
NA DOPYT
67 SPRING (Ref. č 67) 70802 SPRING  1 € 2,40 € 3
SKLADOM

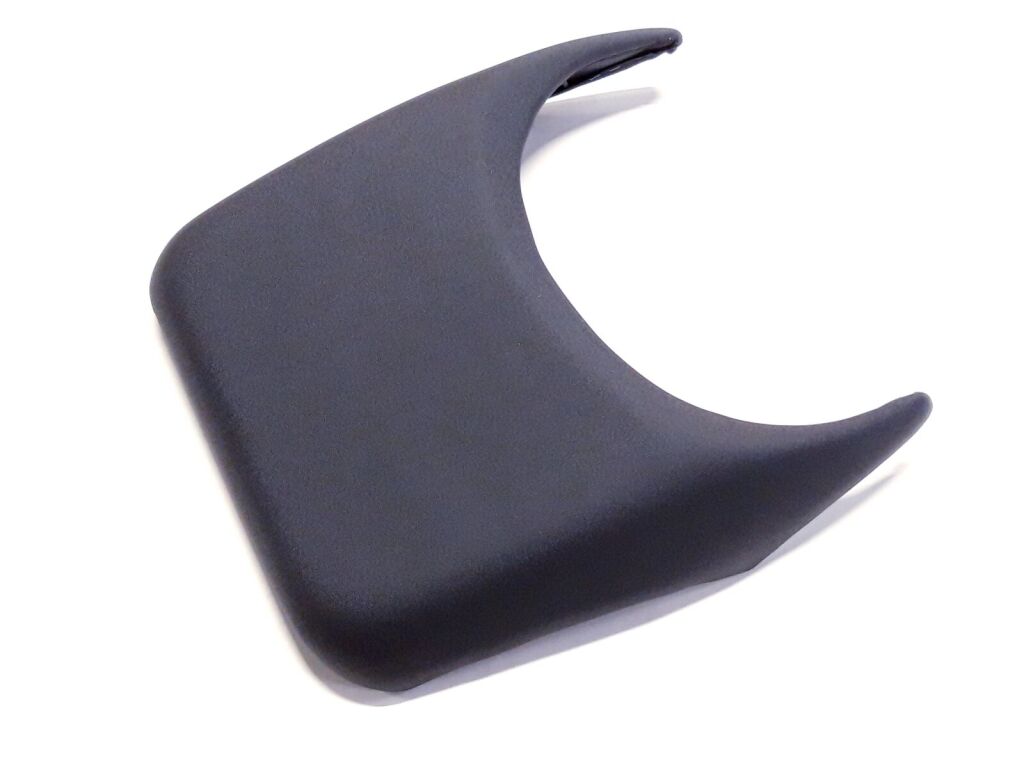

66 REAR SEAT (Ref. č 66) 38739 REAR SEAT  1 € 51,40 € 63
SKLADOM
65 36414 LITTLE COVER  1 € 10,25 € 13
NA DOPYT
64 38738 FRONT SEAT  1 € 71,24 € 88
NA DOPYT
63 38737 SEAT(SPLIT)  1 € 110,74 € 136
NA DOPYT
62 24217 right washer  2 € 4,13 € 5
NA DOPYT
61 38721 RIGHT PLATE ANTI-HOT STEEL CIRCLE  1 € 5,54 € 7
NA DOPYT
60 38720 REAR RIGHT CAGE BAFFLE  1 € 19,17 € 24
NA DOPYT
59 NUT M8 (Ref. č 59) 10882 NUT M8  4 € 2,40 € 3
NA CESTE
58 11643 BOLT M8X60  4 € 0,41 € 1
NA DOPYT
15 36445 SLEEVE  4 € 18,02 € 22
NA DOPYT
14 38530 TRESTLE RIGHT  1 € 6,69 € 8
NA DOPYT
13 25056 BOLT M8X70  4 € 9,59 € 12
NA DOPYT
12 38529 RIGHT PEDAL WELDED ASSEMBLY  1 € 107,19 € 132
NA DOPYT
11 10078 BOLT M8X30  12 € 8,02 € 10
NA DOPYT
10 SPRING NUT (Ref. č 10) 22346 SPRING NUT  2 € 2,40 € 3
SKLADOM ZA 1 dní
9 38528 ELECTRICAL MOUNTING PANEL  1 € 9,17 € 11
NA DOPYT
8 38527 SPEEDOMETER BRACKET FOR UNDER COVER  1 € 7,19 € 9
NA DOPYT
7 38526 TRESTLE R（FOR FLIPPING）  1 € 8,35 € 10
NA DOPYT
6 20319 BATTERY FENDER 160X30X5  3 € 7,19 € 9
NA DOPYT
6 38525 BATTERY BOX BUFFER SPONGE  4
NA DOPYT
5 Hexagon Flange Bolt M6×20 (Ref. č 5) 11459 Hexagon Flange Bolt M6×20  8 € 2,23 € 3
SKLADOM
4 38524 FRAME ASSY.（T3 EFI）  1 € 599,17 € 737
SKLADOM
3 38523 BUMPER BRACKET  1 € 71,07 € 87
NA DOPYT
2 Supporting rubber ring under water tank (Ref. č 2) 36054 Supporting rubber ring under water tank  2 € 9,59 € 12
SKLADOM
17 38531 REAR GUARD COVER RIGHT MOUNTING BRACKET  1 € 3,31 € 4
NA DOPYT
18 38532 RUBBER COVER 40×40  4 € 0,83 € 1
Naskladňujeme
19 38533 REAR GUARD COVER LEFT MOUNTING BRACKET  1 € 3,31 € 4
NA DOPYT
35 SCREW ST4.2X13 (Ref. č 35) 10178 SCREW ST4.2X13  2 € 2,40 € 3
SKLADOM
33 Fuel tank buffer sleeve (Ref. č 33) 36064 Fuel tank buffer sleeve  2 € 9,01 € 11
SKLADOM
32 Fuel tank buffer sleeve (Ref. č 32) 36065 Fuel tank buffer sleeve  2 € 4,13 € 5
SKLADOM
31 38538 PLASTIC PLANT  1 € 36,36 € 45
NA DOPYT
30 38537 TRESTLE L（FOR FLIPPING）  1 € 8,35 € 10
NA DOPYT
29 38536 MOUNTING BRACKET FOR COOLING KETTLE  1 € 5,54 € 7
NA DOPYT
28 38535 LEFT PEDAL WELDED ASSEMBLY  1 € 107,19 € 132
NA DOPYT
27 11194 BOLT M6X18  18 € 8,76 € 11
NA DOPYT
26 WASHER 6 (Ref. č 26) 20331 WASHER 6  16 € 2,40 € 3
NA DOPYT
25 11876 BOLT M10X1.25×135  2 € 1,40 € 2
NA DOPYT
24 38534 TOWING HOOK THE BALL AFTER MOUNTING BRACKET  1 € 41,07 € 51
NA DOPYT
23 Prevailing Torque Hexagon Nut With Flange M10×1.25 (Ref. č 23) 10795 Prevailing Torque Hexagon Nut With Flange M10×1.25  2 € 9,59 € 12
SKLADOM
22 THE TRACTION BALL WELDING COMPONENTS (Ref. č 22) 35951 THE TRACTION BALL WELDING COMPONENTS  1 € 24,88 € 31
SKLADOM
20 BOLT M8x20 (Ref. č 20) 10783 BOLT M8x20  1 € 2,40 € 3
SKLADOM
1 BOLT M8X25 (Ref. č 1) 10059 BOLT M8X25  10 € 2,40 € 3
SKLADOM
Kód produktu LINHAI_2_204_650L_PROMAX
typ rozkresu: FRAME PARTS
ZNACKA: LINHAI
TYP: LINHAI 650
MODEL: 650L PROMAX T3b EFI
