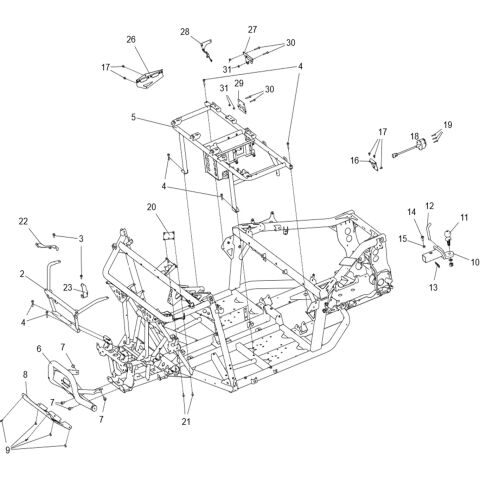

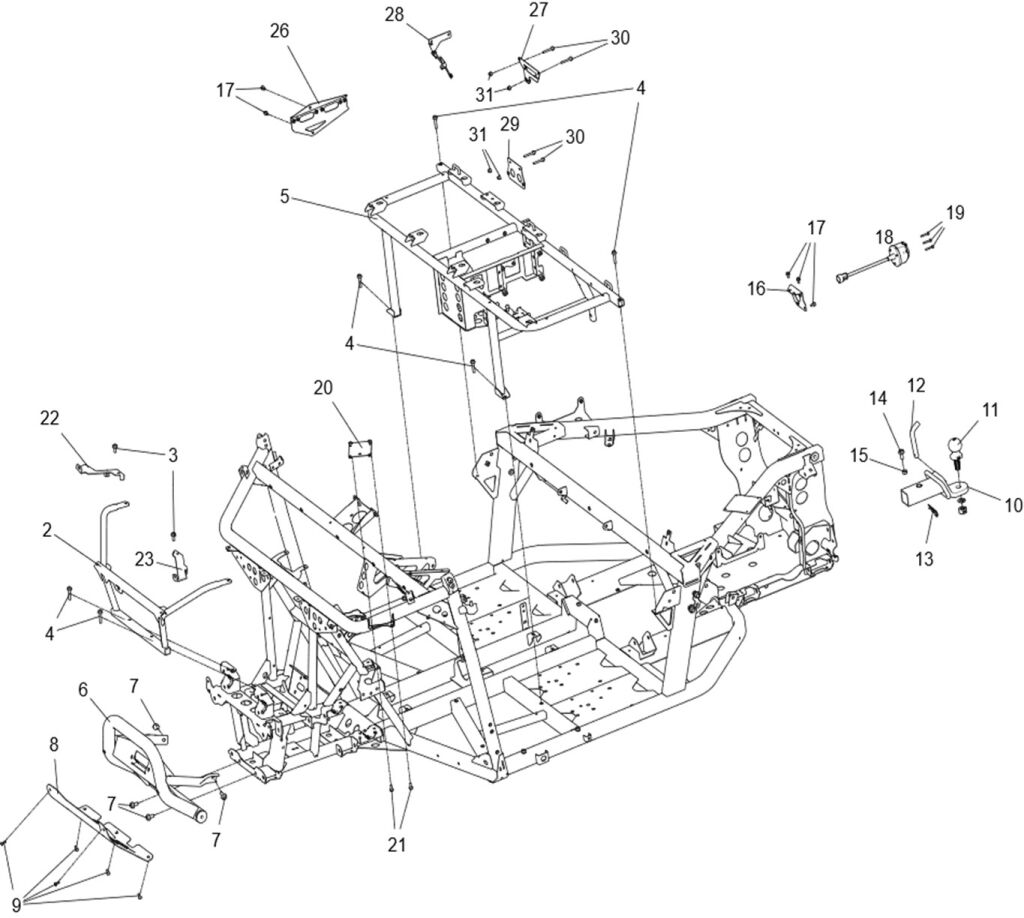

Frame assembly

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_236_UTV1000
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
1 U09-B020000-DB0-00 R/B U09-B020000-DB0-01 FRAME  1 € 2 551,24 € 3 138
NA DOPYT
16 U01C00070002 U01Trailer power mounting bracket ASSY  1 € 14,38 € 18
NA DOPYT
17 Bolt M6×12 (Ref. č 17) GBT005789006 Bolt M6×12  3 € 2,18 € 3
SKLADOM
18 U01M04500003 LOF TRAILER POWER SOCKET  1 € 38,51 € 47
NA DOPYT
18 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE) (Ref. č 18) U01M04500004 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)  1 € 23,11 € 28
SKLADOM
19 CROSS RECESSED HEXAGON BOLTS M5×30 (Ref. č 19) GBT000818007 CROSS RECESSED HEXAGON BOLTS M5×30  3 € 2,48 € 3
SKLADOM
20 U01C01280002 T-BOX MOUNTING PLATE  1 € 15,70 € 19
NA DOPYT
21 Bolt M6×16 (Ref. č 21) GBT005789007 Bolt M6×16  2 € 2,18 € 3
SKLADOM
22 U09C24100002 HEADLIGHT BRACKET RIGHT  1 € 5,45 € 7
NA DOPYT
23 U09C23100002 HEADLIGHT BRACKET LEFT  1 € 5,45 € 7
NA DOPYT
24 Hexagon flange bolt M10×1.25×25 (Ref. č 24) GBT000701003 Hexagon flange bolt M10×1.25×25  2 € 2,48 € 3
SKLADOM
26 U01-C000030-DB0-00 RECTIFIER MOUNTING BRACKET ASSEMBLY  1 € 6,61 € 8
NA DOPYT

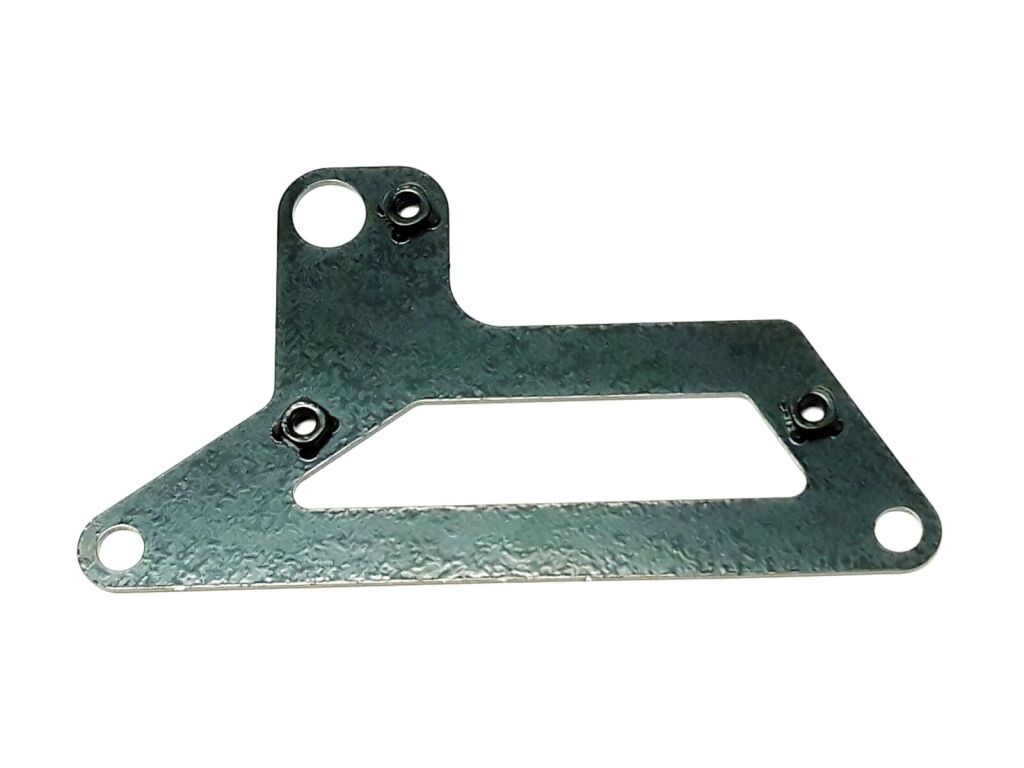

27 MOUNTING PLATE FOR FAN CONTROLLER (Ref. č 27) U09-M910030-DB0-00 MOUNTING PLATE FOR FAN CONTROLLER  1 € 2,64 € 3
SKLADOM
28 MIDDLE FAN BRACKET (Ref. č 28) U09-A400210-DB0-00 MIDDLE FAN BRACKET  1 € 3,97 € 5
SKLADOM
29 U01C00060002 U01 CONTROLLER SUPPORT LOF  1 € 14,46 € 18
NA DOPYT
30 BOLT M6×40 (Ref. č 30) GBT005789012 BOLT M6×40  4 € 2,48 € 3
SKLADOM
15 NUT M10×1.25 (Ref. č 15) GBT006170001 NUT M10×1.25  1 € 2,48 € 3
SKLADOM
14 Hexagon flange bolt M10×1.25×25 (Ref. č 14) GBT005789026 Hexagon flange bolt M10×1.25×25  1 € 2,48 € 3
SKLADOM

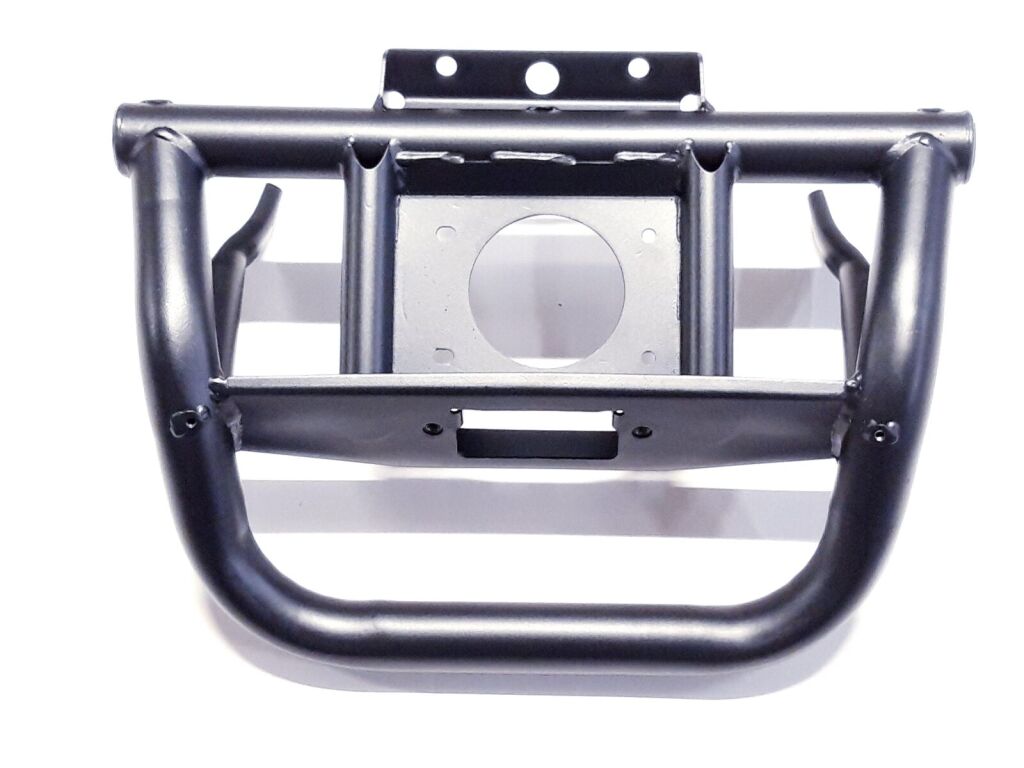

2 U09C26100002 FRONT BRACKET WELD ASSY  1 € 40,08 € 49
NA DOPYT
3 Hexagon flange bolt M8×25 (Ref. č 3) GBT005789016 Hexagon flange bolt M8×25  2 € 2,18 € 3
SKLADOM
4 HEXAGON FLANGE BOLT M8×40 (Ref. č 4) GBT005789019 HEXAGON FLANGE BOLT M8×40  6 € 2,18 € 3
SKLADOM
5 U01-C030000-DB0-00 SEAT LOWER BRACKET  1 € 135,54 € 167
NA DOPYT
6 U01 FRONT BUMPER WELD ASSY -RED (Ref. č 6) U01C01010003 U01 FRONT BUMPER WELD ASSY -RED  1 € 123,88 € 152
SKLADOM
6 U01C01010004 U01 FRONT BUMPER WELD ASSY -GREEN  1 € 123,88 € 152
NA DOPYT
6 U01 FRONT BUMPER WELD ASSY -BLACK (Ref. č 6) U01C01010005 U01 FRONT BUMPER WELD ASSY -BLACK  1 € 123,88 € 152
SKLADOM
7 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 7) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  2 € 2,18 € 3
SKLADOM

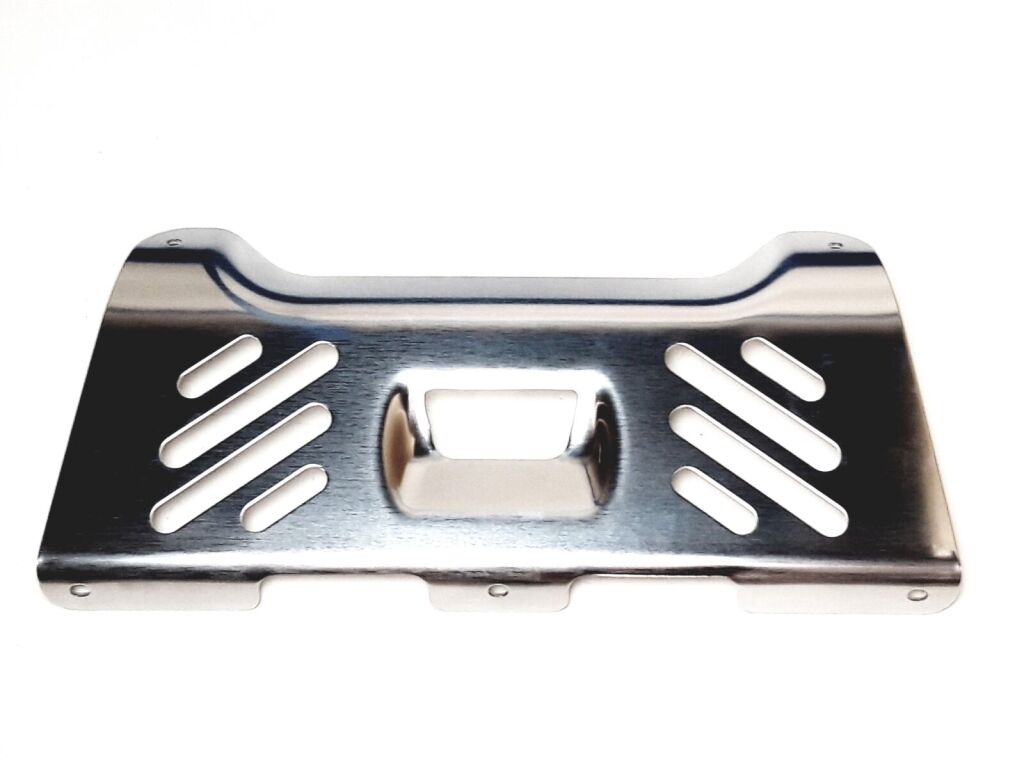

8 U01 FRONT BUMPER GUARD (AL) (Ref. č 8) U01C01020001 U01 FRONT BUMPER GUARD (AL)  1 € 40,33 € 50
SKLADOM
9 GBT166741060 BOLT M6×16  5 € 2,18 € 3
NA DOPYT
10 TRAILER WELDING COMBINATION GENERAL TYPE) (Ref. č 10) S01C20300002 TRAILER WELDING COMBINATION GENERAL TYPE)  1 € 45,79 € 56
SKLADOM
10 U01R21200004 TRAILER WELDING COMBINATION FOR LOF  1 € 44,46 € 55
NA DOPYT
11 TRAILER BALL（EU） (Ref. č 11) U01R21100001 TRAILER BALL（EU）  1 € 47,19 € 58
SKLADOM
12 U01 TOWING HOOK BOLT 16 (Ref. č 12) U01R21300002 U01 TOWING HOOK BOLT 16  1 € 15,12 € 19
SKLADOM
13 LOCKING PIN 12 (Ref. č 13) QCT000623002 LOCKING PIN 12  1 € 2,48 € 3
NA CESTE
31 NUT M6 (Ref. č 31) GBT061831002 NUT M6  4 € 2,18 € 3
SKLADOM
Kód produktu SEGWAY_2_236_UTV1000
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10
