FRAME ASSEMBLY (EU NARROW VEHICLE VERSION)

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_232_UTV1000F-S3-23
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
24 S01-C023000-FB0-00 LEFT GUARD BAR(BLACK)  1 € 80,08 € 99
NA DOPYT
27 S05-C051000-DB0-00 ENGINE LOWER GUARD  1 € 24,13 € 30
NA DOPYT
28 S05B00300002 SAFETY BELT FIXING BRACKET COMBINATION  1 € 54,88 € 67
NA DOPYT
29 S05-C028000-DB0-00 REAR CARGO BOX BRACKET ASSEMBLY  1 € 59,17 € 73
NA DOPYT

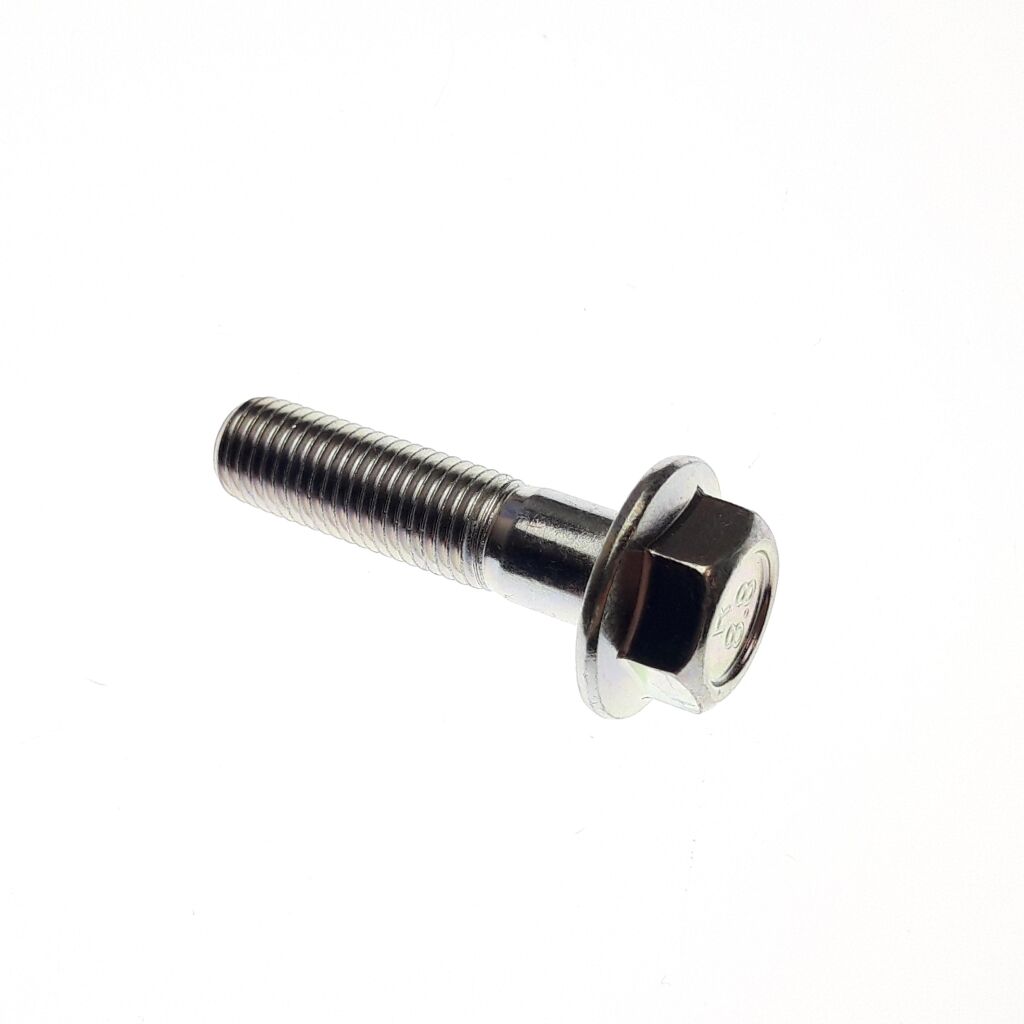

30 HEXAGON FLANGE BOLT M10×1.25×40 (Ref. č 30) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  2 € 2,48 € 3
SKLADOM
31 HEXAGON FLANGE BOLT M10×1.25×75 (Ref. č 31) GBT005789086 HEXAGON FLANGE BOLT M10×1.25×75  2 € 2,48 € 3
SKLADOM ZA 22 dní
32 S01C05400002 FRONT PASSENGER SEAT PEDAL ASSEMBLY  1 € 16,86 € 21
NA DOPYT
33 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 33) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  3 € 2,18 € 3
SKLADOM
34 S05C02812002 REAR CARGO BOX UPPER BRACKET  2 € 11,57 € 14
NA DOPYT
26 S01B37200002 MIDDLE BOTTOM GUARD COMBINATION(BLACK)  2 € 30,91 € 38
NA DOPYT
25,1 S01C02400005 RIGHT GUARD BAR (BLACK)  1 € 77,60 € 95
NA DOPYT
25,1 S01C02400003 RIGHT GUARD BAR (GREEN)  1 € 147,69 € 182
SKLADOM
24 S01-C023000-FG0-00 LEFT GUARD BAR(GREEN)  1 € 80,08 € 99
SKLADOM
24 S01-C023000-FR0-00 LEFT GUARD BAR(RED)  1 € 80,08 € 99
SKLADOM
24,1 S01C02300002 LEFT GUARD BAR(RED)  1 € 111,40 € 137
NA DOPYT
24,1 S01C02300003 LEFT GUARD BAR(GREEN)  1 € 111,40 € 137
SKLADOM
24,1 S01C02300005 LEFT GUARD BAR(BLACK)  1 € 77,60 € 95
NA DOPYT
25 S01-C024000-FB0-00 RIGHT GUARD BAR (BLACK)  1 € 80,08 € 99
NA DOPYT
25 S01-C024000-FR0-00 RIGHT GUARD BAR (RED)  1 € 80,08 € 99
NA DOPYT
25,1 S01C02400002 RIGHT GUARD BAR (RED)  1 € 111,40 € 137
SKLADOM
35 Bolt M6×16 (Ref. č 35) GBT005789007 Bolt M6×16  4 € 2,18 € 3
SKLADOM
36 TRAILER WELDING COMBINATION GENERAL TYPE) (Ref. č 36) S01C20300002 TRAILER WELDING COMBINATION GENERAL TYPE)  1 € 45,79 € 56
SKLADOM
46 S05-H162020-0B0-00 REAR LEFT REFLECTOR SEAT  1 € 1,74 € 2
NA DOPYT
47 S05-H162021-0B0-00 REAR RIGHT REFLECTOR SEAT  1 € 1,74 € 2
NA DOPYT
48 S05-C012000-DB0-00 REFLECTOR BRACKET  1 € 3,80 € 5
NA DOPYT
49 BOLT M10×1.25×45 (Ref. č 49) GBT005789030 BOLT M10×1.25×45  1 € 2,48 € 3
SKLADOM
50 HEXAGON FLANGE BOLT M10×1.25×30 (Ref. č 50) GBT005789027 HEXAGON FLANGE BOLT M10×1.25×30  1 € 2,48 € 3
SKLADOM
51 S05-C011000-DB0-00 RECTIFIER BRACKET  1 € 5,54 € 7
NA DOPYT
52 HEXAGON FLANGE BOLT M6×30 (Ref. č 52) GBT005789065 HEXAGON FLANGE BOLT M6×30  1 € 8,02 € 10
SKLADOM
53 REAR LICENSE PLATE LIGHT BRACKET (Ref. č 53) S01C02505002 REAR LICENSE PLATE LIGHT BRACKET  1 € 14,13 € 17
SKLADOM

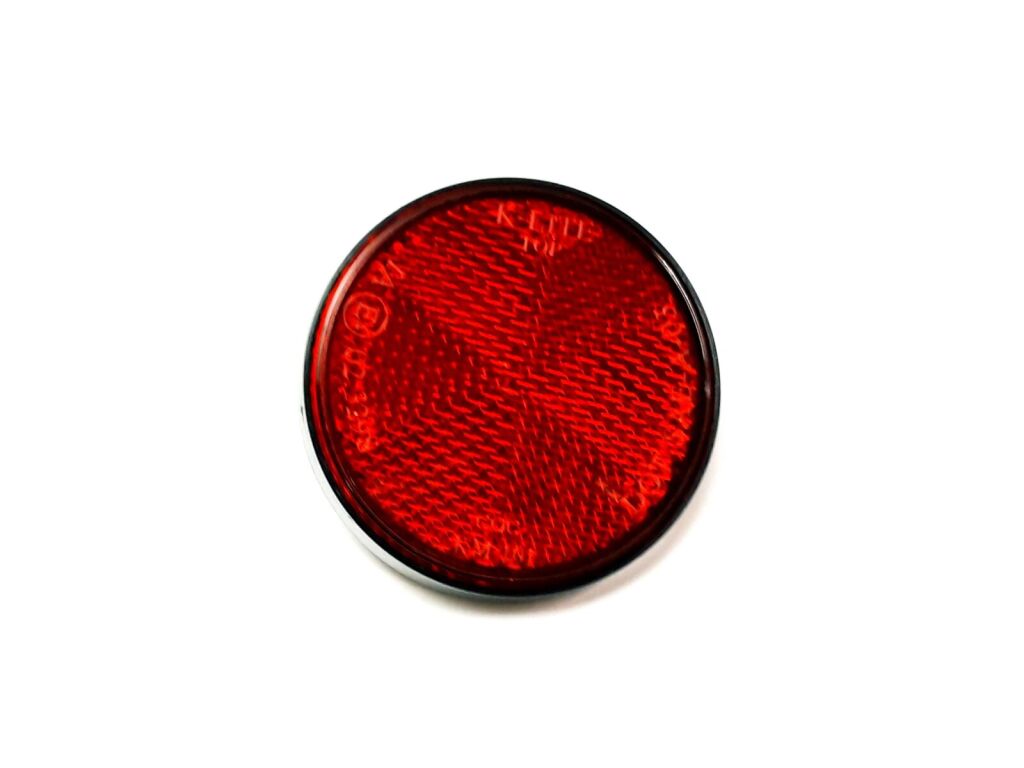

45 CIRCULAR REFLECTOR (Ref. č 45) T10000001002 CIRCULAR REFLECTOR  2 € 2,18 € 3
SKLADOM
44 SQUARE REFLECTOR (Ref. č 44) T10000001003 SQUARE REFLECTOR  2 € 2,18 € 3
SKLADOM

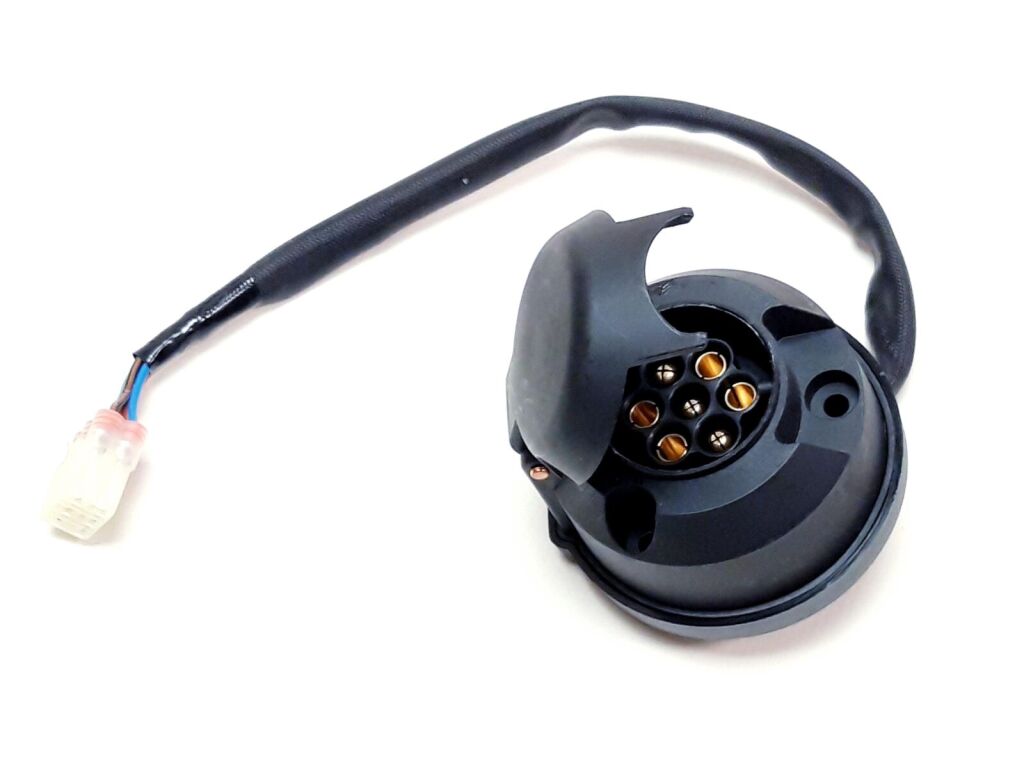

43 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE) (Ref. č 43) U01M04500004 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)  1 € 23,11 € 28
SKLADOM
37 U01 TOWING HOOK BOLT 16 (Ref. č 37) U01R21300002 U01 TOWING HOOK BOLT 16  1 € 15,12 € 19
SKLADOM
38 LOCKING PIN 12 (Ref. č 38) QCT000623002 LOCKING PIN 12  1 € 2,48 € 3
SKLADOM
39 Hexagon flange bolt M8×25 (Ref. č 39) GBT005789016 Hexagon flange bolt M8×25  1 € 2,18 € 3
SKLADOM
40 GBT006170004 TYPE 1 HEXAGON NUT M8  1 € 2,48 € 3
NA DOPYT
41 TRAILER BALL（EU） (Ref. č 41) U01R21100001 TRAILER BALL（EU）  1 € 47,19 € 58
SKLADOM
42 S05-C025500-FB0-01 REAR BUMPER(BLACK)  1 € 95,95 € 118
NA DOPYT
42 S05-C025500-FG0-01 REAR BUMPER(GREEN)  1 € 95,95 € 118
NA DOPYT
42 S05-C025500-FR0-01 REAR BUMPER(RED)  1 € 95,95 € 118
NA DOPYT
25 S01-C024000-FG0-00 R/B S01-C024000-FG0-01 RIGHT GUARD BAR (GREEN)  1 € 85,21 € 105
SKLADOM ZA 22 dní
23 S01C02000001 DOOR LATCH  1 € 1,90 € 2
NA CESTE
1 S05B01000002 FRAME（RED)  1 € 3 867,36 € 4 757
SKLADOM
7 S03-C112000-FR0-01 TOP BEAM UPPER（RED）  1 € 288,60 € 355
NA DOPYT
7 S03-C112000-FG0-01 TOP BEAM UPPER (GREEN)  1 € 290,41 € 357
NA DOPYT
7 S03-C112000-FB0-01 TOP BEAM UPPER (BLACK)  1 € 288,60 € 355
NA CESTE
8 GBT005789045 HEXAGON FLANGE BOLT M12×1.25×25  8 € 2,18 € 3
NA DOPYT
9 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX (Ref. č 9) S01C03700002 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX  1 € 12,40 € 15
SKLADOM
10 Bolt M8×16 (Ref. č 10) GBT005789014 Bolt M8×16  4 € 2,18 € 3
SKLADOM
11 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX (Ref. č 11) S01C03800002 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX  1 € 12,40 € 15
SKLADOM
12 S05-C009000-FB0-00 FRONT BUMPER (BLACK)  1 € 101,90 € 125
SKLADOM ZA 6 dní
6 S03-C113000-FB0-01 TOP BEAM RIGHT(BLACK)  1 € 254,71 € 313
NA CESTE
6 S03-C113000-FG0-01 TOP BEAM RIGHT(GREEN)  1 € 254,71 € 313
NA DOPYT
6 S03-C113000-FR0-01 TOP BEAM RIGHT(RED)  1 € 239,67 € 295
SKLADOM
1 S05B01000003 FRAME (GREEN)  1 € 3 867,36 € 4 757
NA DOPYT
1 S05B01000005 FRAME (BLACK)  1 € 3 927,44 € 4 831
NA DOPYT
2 S03-C111000-FR0-01 TOP BEAM LEFT(RED)  1 € 254,71 € 313
NA CESTE
2 S03-C111000-FG0-01 TOP BEAM LEFT(GREEN)  1 € 254,71 € 313
SKLADOM
2 S03-C111000-FB0-01 TOP BEAM LEFT(BLACK）  1 € 254,71 € 313
NA CESTE
3 HEX FLANGE BOLT M12×1.25×75 (Ref. č 3) GBT005789102 HEX FLANGE BOLT M12×1.25×75  4 € 2,48 € 3
SKLADOM
4 BOLT M12×1.25×30 (Ref. č 4) GBT005789054 BOLT M12×1.25×30  8 € 2,18 € 3
NA DOPYT
5 NUT M12×1.25 (Ref. č 5) GBT061832002 NUT M12×1.25  8 € 2,18 € 3
SKLADOM
12 S05-C009000-FG0-00 FRONT BUMPER (GREEN)  1 € 101,90 € 125
NA DOPYT
12 S05-C009000-FR0-00 FRONT BUMPER (RED)  1 € 101,90 € 125
NA DOPYT
18 FRAME FRONT SUPPORT ASSEMBLY (BLACK) (Ref. č 18) S05-C021000-DB0-00 FRAME FRONT SUPPORT ASSEMBLY (BLACK)  1 € 34,46 € 42
SKLADOM
19 S01C005A1002 FRONT SUPPORT UPPER CONNECTING PLATE（RED）  1 € 22,81 € 28
NA DOPYT
19 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN） (Ref. č 19) S01C005A1003 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN）  1 € 22,81 € 28
NA DOPYT
20 BOLT M8×20 (Ref. č 20) GBT005789015 BOLT M8×20  8 € 2,18 € 3
SKLADOM
21 S01H21000001 DECORATIVE PLUG  2 € 2,48 € 3
NA DOPYT
22 S05B30050002 A-PILLAR DECORATION（RED）  2 € 6,20 € 8
NA DOPYT
22 S05B30050003 A-PILLAR DECORATION（GREEN）  2 € 41,90 € 52
NA DOPYT
22 S05B30050005 A-PILLAR DECORATION（BLACK）  1 € 5,95 € 7
NA DOPYT
17 Inner hexagon screws M6×1.6 (Ref. č 17) T03000007002 Inner hexagon screws M6×1.6  16 € 2,18 € 3
SKLADOM

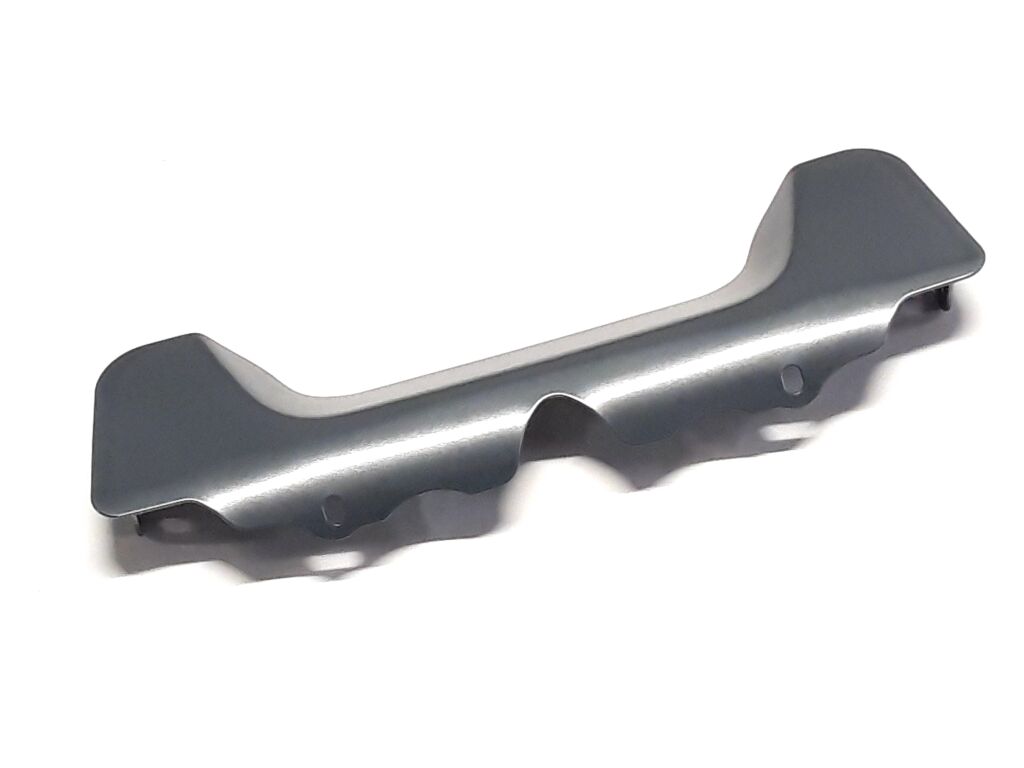

16 BUMPER TRIM PANEL（SILVER GRAY） (Ref. č 16) S05-C030000-PW2-00 BUMPER TRIM PANEL（SILVER GRAY）  1 € 21,82 € 27
SKLADOM
16 BUMPER TRIM PANEL（FROSTED SILVER） (Ref. č 16) S05-C030000-PH1-00 BUMPER TRIM PANEL（FROSTED SILVER）  1 € 21,82 € 27
NA DOPYT
12,1 FRONT BUMPER (RED) (Ref. č 12,1) S01C00600002 FRONT BUMPER (RED)  1 € 120 € 148
SKLADOM
12,1 S01C00600003 FRONT BUMPER (GREEN)  1 € 120 € 148
NA DOPYT
12,1 S01C00600005 FRONT BUMPER (BLACK)  1 € 100,41 € 124
NA DOPYT
13 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 13) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  8 € 2,18 € 3
SKLADOM
14 Hexagon flange bolt M10×1.25×25 (Ref. č 14) GBT005789026 Hexagon flange bolt M10×1.25×25  5 € 2,48 € 3
SKLADOM
15 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 15) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  3 € 2,18 € 3
SKLADOM
16 S01C00700002 BUMPER TRIM PANEL（FROSTED SILVER）  1 € 46,20 € 57
NA DOPYT
16 S01C00700003 R/B S05-C030000-PH1-00 BUMPER TRIM PANEL（SILVER GRAY）  1 € 46,20 € 57
NA DOPYT
23 GBT000701013 HEXAGON SOCKET HEAD CAP SCREW M8×12  2 € 2,48 € 3
NA DOPYT
Kód produktu SEGWAY_2_232_UTV1000F-S3-23
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Villain SxS
MODEL: Villain SX10 (2023-xxxx)
