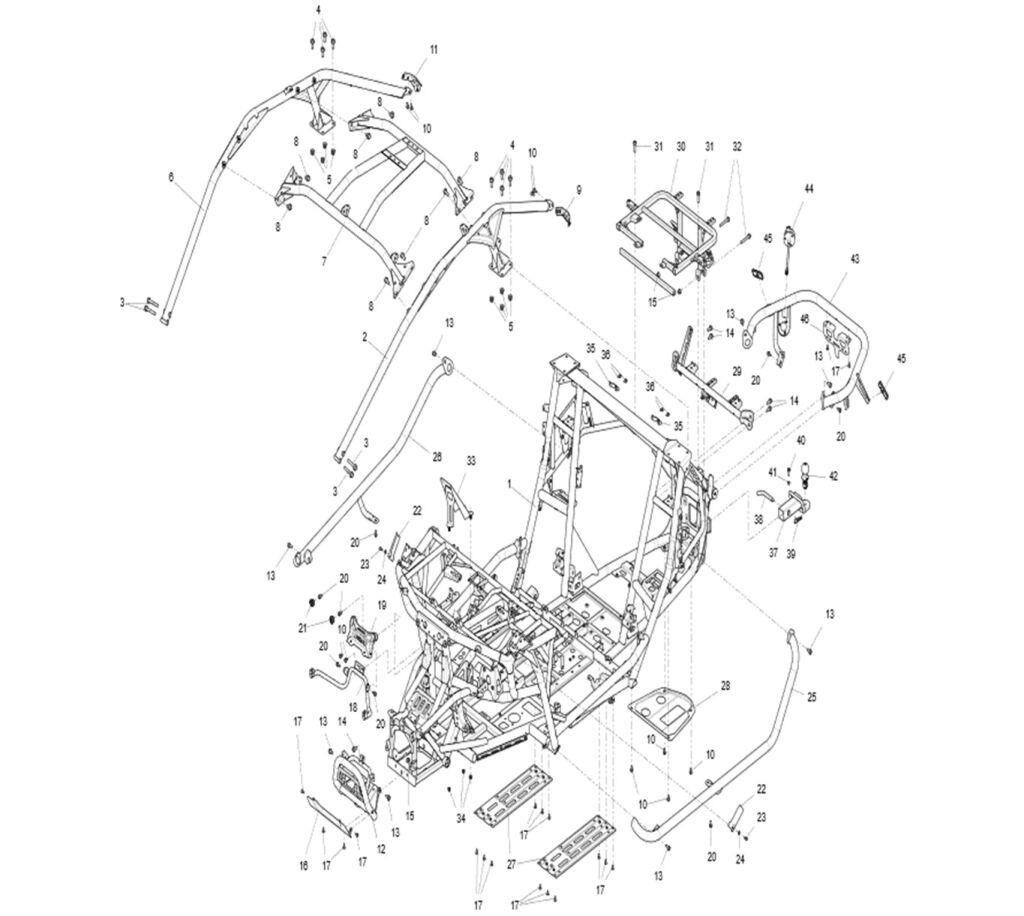

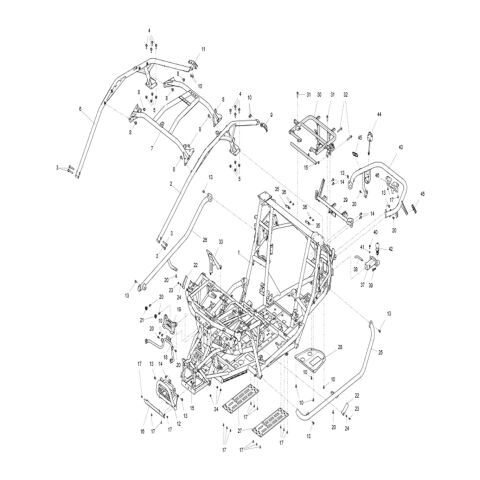

FRAME ASSEMBLY (EU NARROW VEHICLE VERSION)

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_2_229_UTV1000F-S3
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
46 REAR LICENSE PLATE LIGHT BRACKET (Ref. č 46) S01C02505002 REAR LICENSE PLATE LIGHT BRACKET  1 € 14,13 € 17
SKLADOM
35 S05C02812002 REAR CARGO BOX UPPER BRACKET  2 € 11,57 € 14
NA DOPYT
34 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 34) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  3 € 2,18 € 3
SKLADOM
33 S01C05400002 FRONT PASSENGER SEAT PEDAL ASSEMBLY  1 € 16,86 € 21
NA DOPYT
32 HEXAGON FLANGE BOLT M10×1.25×75 (Ref. č 32) GBT005789086 HEXAGON FLANGE BOLT M10×1.25×75  2 € 2,48 € 3
NA DOPYT
31 HEXAGON FLANGE BOLT M10×1.25×40 (Ref. č 31) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  2 € 2,48 € 3
NA DOPYT
30 S05C02800002 ENGINE UPPER BRACKET ASSEMBLY  1 € 56,86 € 70
NA DOPYT
29 S05B00300002 SAFETY BELT FIXING BRACKET COMBINATION  1 € 54,88 € 67
NA DOPYT
28 ENGINE LOWER GUARD (Ref. č 28) S05C05101002 ENGINE LOWER GUARD  1 € 20,66 € 25
SKLADOM
27 S01B37200002 MIDDLE BOTTOM GUARD COMBINATION(BLACK)  2 € 30,91 € 38
NA DOPYT
26 RIGHT GUARD BAR (GREEN) (Ref. č 26) S01C02400003 RIGHT GUARD BAR (GREEN)  1 € 147,69 € 182
SKLADOM

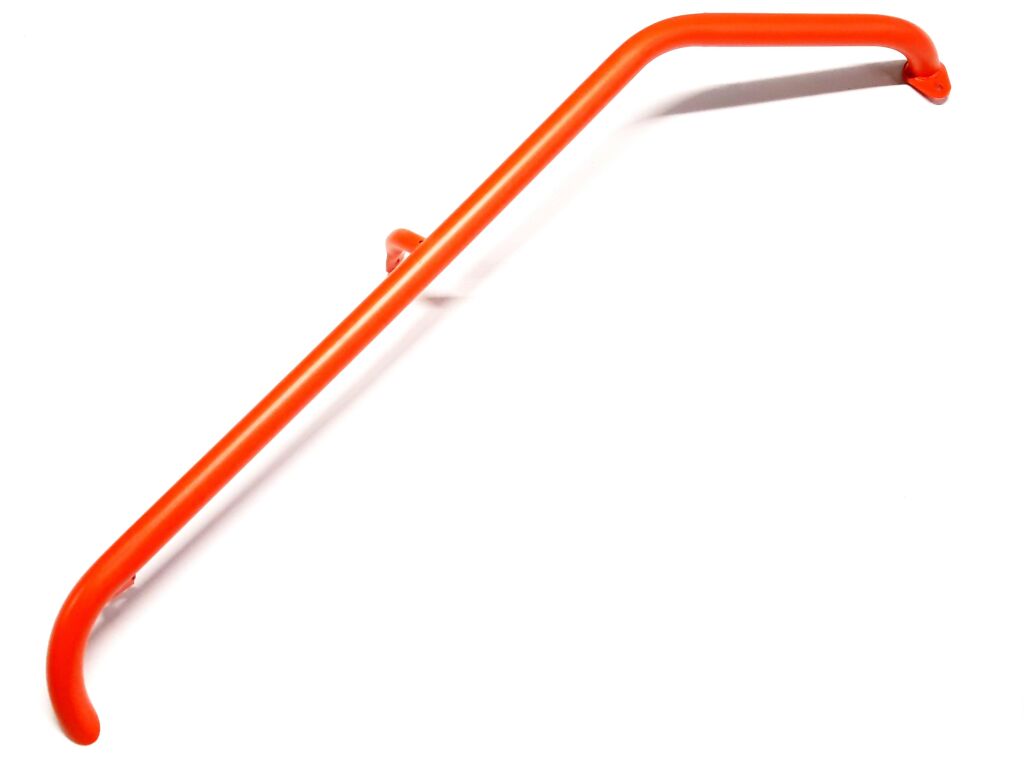

26 RIGHT GUARD BAR (RED) (Ref. č 26) S01C02400002 RIGHT GUARD BAR (RED)  1 € 111,40 € 137
SKLADOM
25 S01C02300003 LEFT GUARD BAR(GREEN)  1 € 111,40 € 137
SKLADOM
25 S01C02300002 LEFT GUARD BAR(RED)  1 € 111,40 € 137
NA DOPYT
36 Bolt M6×16 (Ref. č 36) GBT005789007 Bolt M6×16  4 € 2,18 € 3
SKLADOM
37 TRAILER WELDING COMBINATION GENERAL TYPE) (Ref. č 37) S01C20300002 TRAILER WELDING COMBINATION GENERAL TYPE)  1 € 45,79 € 56
SKLADOM
45 SQUARE REFLECTOR (Ref. č 45) T10000001003 SQUARE REFLECTOR  2 € 2,18 € 3
NA DOPYT
44 U01M04500003 LOF TRAILER POWER SOCKET  1 € 38,51 € 47
NA DOPYT
44 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE) (Ref. č 44) U01M04500004 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)  1 € 23,11 € 28
SKLADOM
43 S01C07400003 REAR BUMPER（GREEN，NARROW VEHICLE，LOF） (unavailable)  1
NA DOPYT
43 S01C07400002 REAR BUMPER（RED，NARROW VEHICLE，LOF）  1 € 136,69 € 168
NA DOPYT
43 S01C06600003 R/B S05-C025500-FG0-01 REAR BUMPER（GREEN，NARROW VEHICLE）  1 € 138,18 € 170
NA DOPYT
43 R/B S05-C025500-FR0-01 REAR BUMPER（RED，NARROW VEHICLE） (Ref. č 43) S01C06600002 R/B S05-C025500-FR0-01 REAR BUMPER（RED，NARROW VEHICLE）  1 € 138,18 € 170
SKLADOM
42 TRAILER BALL（EU） (Ref. č 42) U01R21100001 TRAILER BALL（EU）  1 € 47,19 € 58
Naskladňujeme
41 GBT006170004 TYPE 1 HEXAGON NUT M8  1 € 2,48 € 3
NA DOPYT
40 Hexagon flange bolt M8×25 (Ref. č 40) GBT005789016 Hexagon flange bolt M8×25  1 € 2,18 € 3
SKLADOM
39 LOCKING PIN 12 (Ref. č 39) QCT000623002 LOCKING PIN 12  1 € 2,48 € 3
NA CESTE
38 U01 TOWING HOOK BOLT 16 (Ref. č 38) U01R21300002 U01 TOWING HOOK BOLT 16  1 € 15,12 € 19
SKLADOM
37 U01R21200004 TRAILER WELDING COMBINATION FOR LOF  1 € 44,46 € 55
NA DOPYT
24 GBT000971001 GASKET 8  2 € 2,18 € 3
NA DOPYT
23 GBT000701013 HEXAGON SOCKET HEAD CAP SCREW M8×12  2 € 2,48 € 3
NA DOPYT
22 S05B30050003 A-PILLAR DECORATION（GREEN）  2 € 41,90 € 52
NA DOPYT
10 Bolt M8×16 (Ref. č 10) GBT005789014 Bolt M8×16  4 € 2,18 € 3
SKLADOM
9 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX (Ref. č 9) S01C03700002 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX  1 € 12,40 € 15
SKLADOM
8 GBT005789045 HEXAGON FLANGE BOLT M12×1.25×25  8 € 2,18 € 3
NA DOPYT
7 S01C10500003 TOP BEAM UPPER (GREEN)  1 € 257,69 € 317
NA DOPYT
7 TOP BEAM UPPER（RED） (Ref. č 7) S01C10500002 TOP BEAM UPPER（RED）  1 € 257,69 € 317
NA DOPYT
6 S01C10300003 TOP BEAM RIGHT(GREEN)  1 € 287,27 € 353
SKLADOM
6 S01C10300002 R/B S03-C113000-FR0-01 TOP BEAM RIGHT(RED)  1 € 216,78 € 267
NA DOPYT
5 NUT M12×1.25 (Ref. č 5) GBT061832002 NUT M12×1.25  8 € 2,18 € 3
NA DOPYT
4 BOLT M12×1.25×30 (Ref. č 4) GBT005789054 BOLT M12×1.25×30  8 € 2,18 € 3
NA CESTE
3 HEX FLANGE BOLT M12×1.25×75 (Ref. č 3) GBT005789102 HEX FLANGE BOLT M12×1.25×75  4 € 2,48 € 3
SKLADOM
2 S01C10100003 TOP BEAM LEFT(GREEN)  1 € 216,86 € 267
NA DOPYT
2 S01C10100002 TOP BEAM LEFT(RED)  1 € 216,86 € 267
SKLADOM
1 S05B01000003 FRAME (GREEN)  1 € 3 867,36 € 4 757
NA DOPYT
11 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX (Ref. č 11) S01C03800002 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX  1 € 12,40 € 15
SKLADOM
12 FRONT BUMPER (RED) (Ref. č 12) S01C00600002 FRONT BUMPER (RED)  1 € 120 € 148
SKLADOM
22 S05B30050002 A-PILLAR DECORATION（RED）  2 € 6,20 € 8
NA DOPYT
21 S01H21000001 DECORATIVE PLUG  2 € 2,48 € 3
NA DOPYT
20 BOLT M8×20 (Ref. č 20) GBT005789015 BOLT M8×20  8 € 2,18 € 3
NA DOPYT
19 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN） (Ref. č 19) S01C005A1003 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN）  1 € 22,81 € 28
NA DOPYT
19 S01C005A1002 FRONT SUPPORT UPPER CONNECTING PLATE（RED）  1 € 22,81 € 28
NA DOPYT
18 S01C00500002 R/B S05-C021000-DB0-00 FRAME FRONT SUPPORT ASSEMBLY (BLACK)  1 € 26,86 € 33
NA DOPYT
17 Inner hexagon screws M6×1.6 (Ref. č 17) T03000007002 Inner hexagon screws M6×1.6  18 € 2,18 € 3
SKLADOM
16 S01C00700003 R/B S05-C030000-PH1-00 BUMPER TRIM PANEL（SILVER GRAY）  1 € 46,20 € 57
NA DOPYT
16 S01C00700002 BUMPER TRIM PANEL（FROSTED SILVER）  1 € 46,20 € 57
NA DOPYT
15 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 15) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  3 € 2,18 € 3
SKLADOM
14 Hexagon flange bolt M10×1.25×25 (Ref. č 14) GBT005789026 Hexagon flange bolt M10×1.25×25  5 € 2,48 € 3
SKLADOM
13 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 13) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  8 € 2,18 € 3
SKLADOM
12 S01C00600003 FRONT BUMPER (GREEN)  1 € 120 € 148
NA DOPYT
1_ S05B01000002 FRAME（RED)  1 € 3 867,36 € 4 757
SKLADOM
Kód produktu SEGWAY_2_229_UTV1000F-S3
typ rozkresu: FRAME PARTS
ZNACKA: SEGWAY
TYP: Villain SxS
MODEL: Villain SX10 (xxxx-2022)
