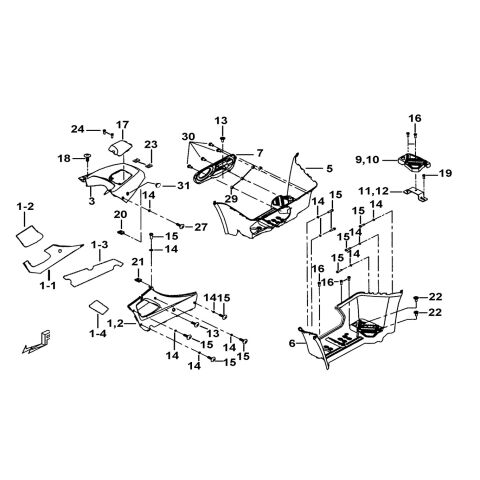

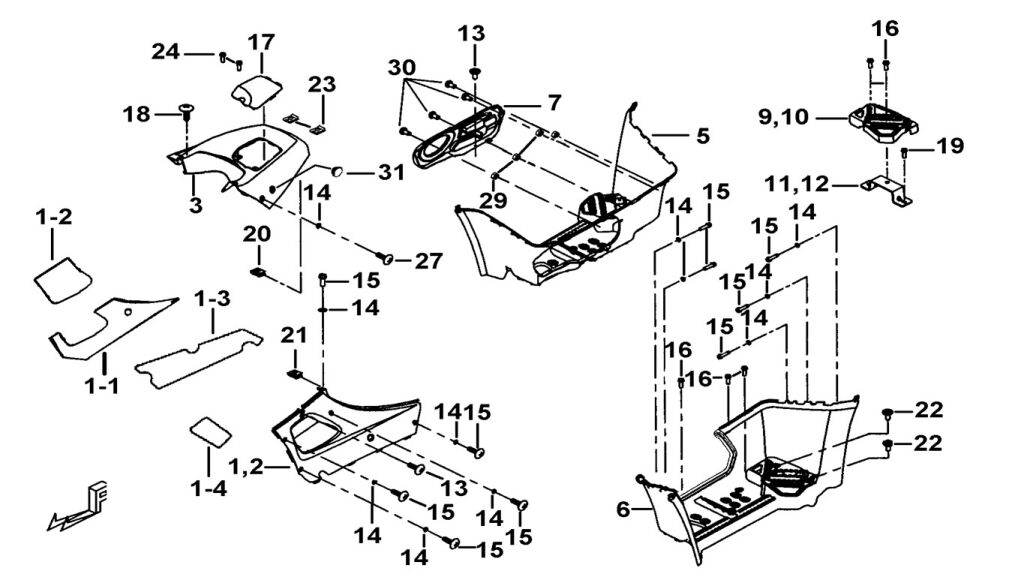

FOOT BOARD

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_4_222_EST-E2
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost

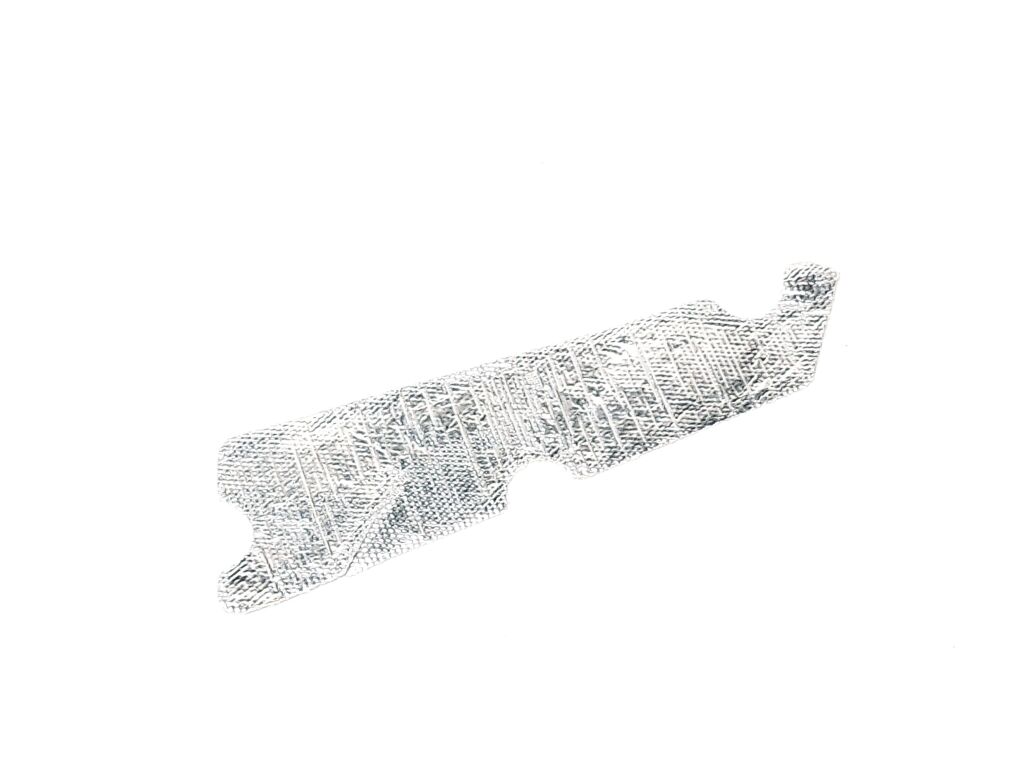

01.1 512584 HEAT INSULATION  1 € 30,58 € 38
NA DOPYT
16 BOLT M6X16L (Ref. č 16) S25602 BOLT M6X16L  10 € 2,40 € 3
SKLADOM
17A ACCESS COVER (Ref. č 17A) 512592BL ACCESS COVER

OPTION

1 € 13,22 € 16
NA DOPYT
18 SCREW, CROSS RECESSED, PAN HEA (Ref. č 18) S50509 SCREW, CROSS RECESSED, PAN HEA  2 € 2,40 € 3
SKLADOM
19 BOLT, FLANGE (Ref. č 19) S07601 BOLT, FLANGE

OPTION

4 € 2,40 € 3
SKLADOM
20 NUT, SPRING (Ref. č 20) GA552NT01 NUT, SPRING  2 € 2,40 € 3
SKLADOM
21 NUT, SPRING M6X1.0 (Ref. č 21) N32601 NUT, SPRING M6X1.0  2 € 2,40 € 3
NA DOPYT
22 SCREW, AN HEAD (Ref. č 22) GA555SC02 SCREW, AN HEAD  4 € 2,40 € 3
SKLADOM
24 SCREW, TAPPING (Ref. č 24) S50406 SCREW, TAPPING  2 € 2,40 € 3
NA DOPYT
27 BOLT, HEX SOCKET (Ref. č 27) S72601 BOLT, HEX SOCKET  2 € 2,40 € 3
SKLADOM
29 WASHER, M6X1S02 (Ref. č 29) GA556WS02 WASHER, M6X1S02  4 € 2,40 € 3
SKLADOM
30 FASTENER (Ref. č 30) 512486 FASTENER  4 € 2,40 € 3
SKLADOM
15 BOLT, HEX HEAD M6X16 (Ref. č 15) S72605 BOLT, HEX HEAD M6X16  20 € 2,40 € 3
SKLADOM
14 WASHER (Ref. č 14) GA555WS02 WASHER  22 € 2,40 € 3
SKLADOM
01.2 518003 HEAT INSULATION  1 € 6,20 € 8
NA DOPYT
01.3 HEAT INSULATION (Ref. č 01-3) 512596 HEAT INSULATION  1 € 19,42 € 24
SKLADOM
01.4 512597 HEAT INSULATION(2)  1 € 4,71 € 6
NA DOPYT

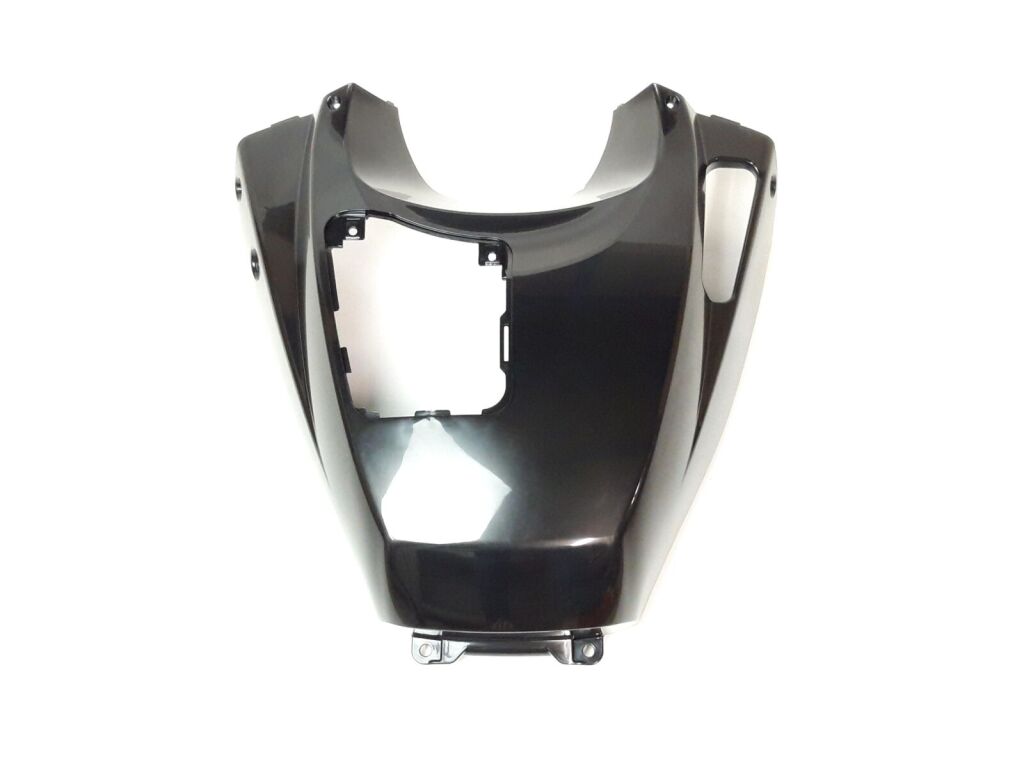

03A TOP COVER (Ref. č 03A) 512591BL TOP COVER

OPTION

1 € 47,52 € 58
NA CESTE
05 512572B R/B 511506B FOOT BOARD, RH. (BROACH)  1 € 87,27 € 107
NA DOPYT

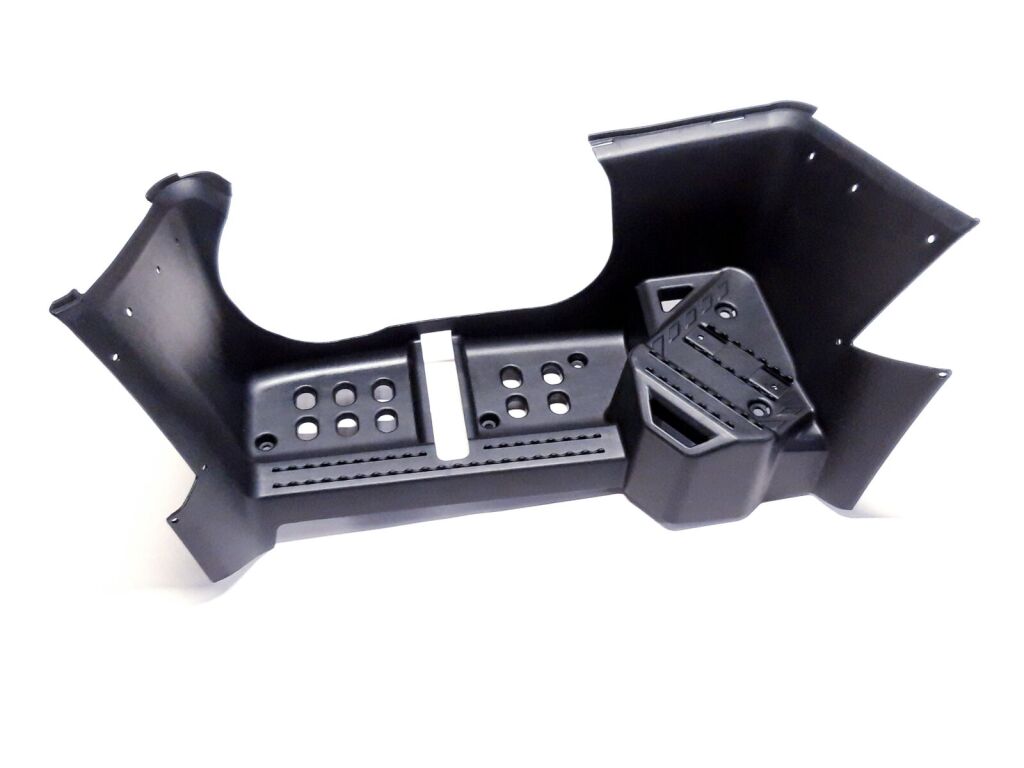

06 FOOT BOARD, LH. (Ref. č 06) 512548F FOOT BOARD, LH.

←001366

1 € 84,96 € 104
SKLADOM
06A FOOT BOARD ASSY., LH. (Ref. č 06A) 512548H-A FOOT BOARD ASSY., LH.

001367→

1 € 76,20 € 94
NA DOPYT
07 COVER, OIL LEVEL CHECKING (Ref. č 07) 512580 COVER, OIL LEVEL CHECKING  1 € 38,68 € 48
SKLADOM
09 PASSENGER FOOT REST (LH) ASSY (Ref. č 09) 512558A PASSENGER FOOT REST (LH) ASSY

OPTION

1 € 33,70 € 41
SKLADOM
10 PASSENGER FOOT REST (RH) ASSY (Ref. č 10) 512559A PASSENGER FOOT REST (RH) ASSY

OPTION

1 € 35,12 € 43
SKLADOM
11 FOOT REST ADAPTER (LH) (Ref. č 11) 512560 FOOT REST ADAPTER (LH)

OPTION

1 € 11,82 € 15
NA CESTE
12 FOOT REST ADAPTER (RH) (Ref. č 12) 512561 FOOT REST ADAPTER (RH)

OPTION

1 € 11,82 € 15
SKLADOM
31 RUBBER PLUG (Ref. č 31) 512599 RUBBER PLUG  1 € 2,40 € 3
SKLADOM
Kód produktu TGB_4_222_EST-E2
MODEL: BLADE 1000LT E2
typ rozkresu: BODY PARTS
ZNACKA: TGB
TYP: BLADE 1000
