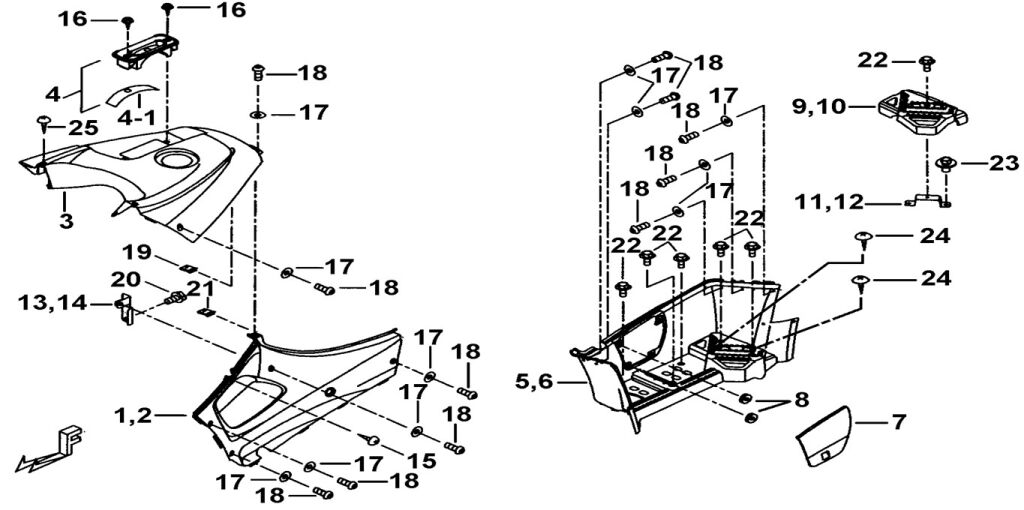

FOOT BOARD

TGB
Výrobca: TGB
Kód produktu: TGB_4_222_FBG-DL
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
01 512546C SIDE COVER, LH  1 € 181,82 € 220
NA DOPYT
14 BRKT., SIDE COVER, RH (Ref. č 14) 512527 BRKT., SIDE COVER, RH  1 € 2,40 € 2,90
SKLADOM
15 SCREW, TAPPING (Ref. č 15) S50406 SCREW, TAPPING  2 € 2,40 € 2,90
NA DOPYT
16 SCREW , OVAL HEAD M6X50 (Ref. č 16) S50501 SCREW , OVAL HEAD M6X50  2 € 2,40 € 2,90
SKLADOM
17 WASHER (Ref. č 17) GA555WS02 WASHER  22 € 2,40 € 2,90
SKLADOM
18 BOLT, HEX HEAD M6X16 (Ref. č 18) S72605 BOLT, HEX HEAD M6X16  22 € 2,40 € 2,90
SKLADOM
19 NUT, SPRING (Ref. č 19) GA552NT01 NUT, SPRING  2 € 2,40 € 2,90
SKLADOM
20 BOLT, FLANGE M6X12 (Ref. č 20) GA556SC01 BOLT, FLANGE M6X12  2 € 2,40 € 2,90
SKLADOM
21 NUT, SPRING M6X1.0 (Ref. č 21) N32601 NUT, SPRING M6X1.0  2 € 2,40 € 2,90
NA CESTE
22 BOLT M6X16L (Ref. č 22) S25602 BOLT M6X16L  10 € 2,40 € 2,90
SKLADOM
23 BOLT, FLANGE (Ref. č 23) S07601 BOLT, FLANGE

OPTION

4 € 2,40 € 2,90
SKLADOM
24 SCREW, AN HEAD (Ref. č 24) GA555SC02 SCREW, AN HEAD

OPTION

4 € 2,40 € 2,90
SKLADOM
13 BRKT., SIDE COVER, LH (Ref. č 13) 512526 BRKT., SIDE COVER, LH  1 € 2,40 € 2,90
SKLADOM
12 FOOT REST ADAPTER (RH) (Ref. č 12) 512561 FOOT REST ADAPTER (RH)

OPTION

1 € 11,82 € 14,30
SKLADOM
03 512545C FUEL TANK COVER, UPPER  1 € 180,33 € 218,20
SKLADOM
04 GEAR CHANCE INDICATOR SUPPORT (Ref. č 04) 512553 GEAR CHANCE INDICATOR SUPPORT  1 € 12,15 € 14,70
SKLADOM
04.1 PROTECTOR (Ref. č 04-1) 515411 PROTECTOR  1 € 4,55 € 5,50
SKLADOM
05 FOOT BOARD, LH (Ref. č 05) 512548A FOOT BOARD, LH  1 € 72,31 € 87,50
SKLADOM
06 512549A R/B 512572A FOOT BOARD, RH

←018799

1 € 79,26 € 95,90
NA DOPYT
06A 512572A R/B 511506A FOOT BOARD, RH

018800→

1 € 79,26 € 95,90
NA DOPYT
07 COVER, OIL LEVEL CHECKING (Ref. č 07) 512550 COVER, OIL LEVEL CHECKING  1 € 16,45 € 19,90
SKLADOM
08 RUBBER PLUG (Ref. č 08) 512543 RUBBER PLUG  4 € 2,40 € 2,90
SKLADOM
09 PASSENGER FOOT REST (LH) (Ref. č 09) 512558 PASSENGER FOOT REST (LH)

OPTION

1 € 25,79 € 31,20
SKLADOM
10 PASSENGER FOOT REST (RH) (Ref. č 10) 512559 PASSENGER FOOT REST (RH)

OPTION

1 € 22,40 € 27,10
SKLADOM
11 FOOT REST ADAPTER (LH) (Ref. č 11) 512560 FOOT REST ADAPTER (LH)

OPTION

1 € 11,82 € 14,30
SKLADOM
25 SCREW, CROSS RECESSED, PAN HEA (Ref. č 25) S50509 SCREW, CROSS RECESSED, PAN HEA  2 € 2,40 € 2,90
SKLADOM
