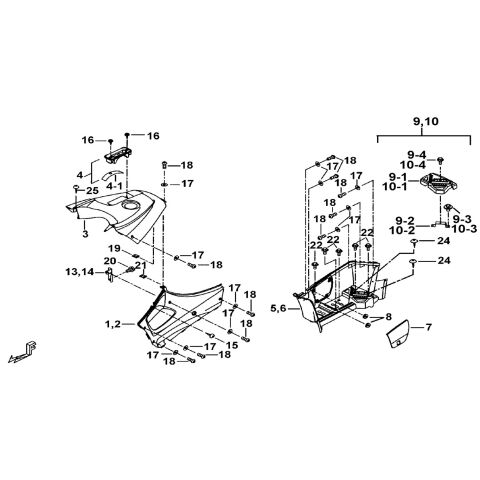

FOOT BOARD

TGB
  • Výrobca  TGB
  • Kód produktu  TGB_4_222_FTH-HDLE
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
04 GEAR CHANCE INDICATOR SUPPORT (Ref. č 04) 512553 GEAR CHANCE INDICATOR SUPPORT  1 € 12,15 € 15
SKLADOM
10.4 BOLT M6X16L (Ref. č 10-4) S25602 BOLT M6X16L

OPTION

1 € 2,40 € 3
SKLADOM
13 BRKT., SIDE COVER, LH (Ref. č 13) 512526 BRKT., SIDE COVER, LH  1 € 2,40 € 3
SKLADOM
14 BRKT., SIDE COVER, RH (Ref. č 14) 512527 BRKT., SIDE COVER, RH  1 € 2,40 € 3
SKLADOM
15 SCREW, TAPPING (Ref. č 15) S50406 SCREW, TAPPING  2 € 2,40 € 3
NA DOPYT
16 SCREW , OVAL HEAD M6X50 (Ref. č 16) S50501 SCREW , OVAL HEAD M6X50  2 € 2,40 € 3
SKLADOM
17 WASHER (Ref. č 17) GA555WS02 WASHER  22 € 2,40 € 3
SKLADOM
18 BOLT, HEX HEAD M6X16 (Ref. č 18) S72605 BOLT, HEX HEAD M6X16  22 € 2,40 € 3
Naskladňujeme
19 NUT, SPRING (Ref. č 19) GA552NT01 NUT, SPRING  2 € 2,40 € 3
SKLADOM
20 BOLT, FLANGE M6X12 (Ref. č 20) GA556SC01 BOLT, FLANGE M6X12  2 € 2,40 € 3
SKLADOM
21 NUT, SPRING M6X1.0 (Ref. č 21) N32601 NUT, SPRING M6X1.0  2 € 2,40 € 3
SKLADOM
24 SCREW, AN HEAD (Ref. č 24) GA555SC02 SCREW, AN HEAD  4 € 2,40 € 3
SKLADOM
09.3 BOLT, FLANGE (Ref. č 09-3) S07601 BOLT, FLANGE

OPTION

2 € 2,40 € 3
SKLADOM
10.2 FOOT REST ADAPTER (RH) (Ref. č 10-2) 512561 FOOT REST ADAPTER (RH)

OPTION

1 € 11,82 € 15
SKLADOM
04.1 PROTECTOR (Ref. č 04-1) 515411 PROTECTOR  1 € 4,55 € 6
SKLADOM
05 FOOT BOARD, LH (Ref. č 05) 512548A FOOT BOARD, LH  1 € 72,31 € 89
SKLADOM
06 511506A FOOT BOARD, RH.(BROACH)  1 € 72,31 € 89
SKLADOM
07 COVER, OIL LEVEL CHECKING (Ref. č 07) 512550 COVER, OIL LEVEL CHECKING  1 € 16,45 € 20
SKLADOM
08 RUBBER PLUG (Ref. č 08) 512543 RUBBER PLUG  4 € 2,40 € 3
SKLADOM
09 PASSENGER FOOT REST (LH) ASSY (Ref. č 09) 512558A PASSENGER FOOT REST (LH) ASSY

OPTION

1 € 33,70 € 41
SKLADOM
09.1 PASSENGER FOOT REST (LH) (Ref. č 09-1) 512558 PASSENGER FOOT REST (LH)

OPTION

1 € 25,79 € 32
SKLADOM
09.2 FOOT REST ADAPTER (LH) (Ref. č 09-2) 512560 FOOT REST ADAPTER (LH)

OPTION

1 € 11,82 € 15
NA DOPYT
10 PASSENGER FOOT REST (RH) ASSY (Ref. č 10) 512559A PASSENGER FOOT REST (RH) ASSY

OPTION

1 € 35,12 € 43
SKLADOM
10.1 PASSENGER FOOT REST (RH) (Ref. č 10-1) 512559 PASSENGER FOOT REST (RH)

OPTION

1 € 22,40 € 28
SKLADOM
25 SCREW, CROSS RECESSED, PAN HEA (Ref. č 25) S50509 SCREW, CROSS RECESSED, PAN HEA  2 € 2,40 € 3
SKLADOM ZA 24 dní
Kód produktu TGB_4_222_FTH-HDLE
typ rozkresu: BODY PARTS
ZNACKA: TGB
TYP: BLADE 600
MODEL: BLADE 600LT T3b
