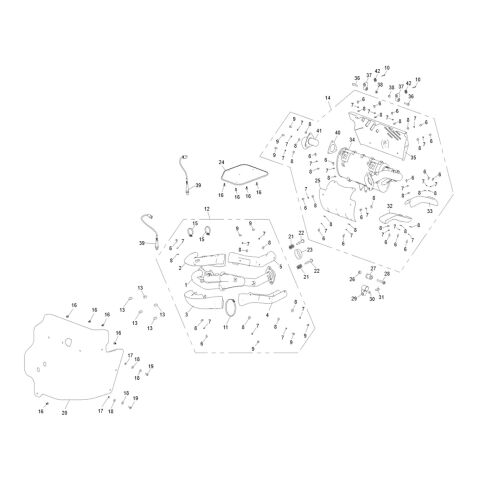

Exhaust system assembly

SEGWAY
  • Výrobca  SEGWAY
  • Kód produktu  SEGWAY_1_131_UTV1000
MODEL:
Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
42 LARGE WASHER A GRADE 8 (Ref. č 42) GBT000961003 LARGE WASHER A GRADE 8  2 € 2,48 € 3
SKLADOM
30 U05A31002001 U05 CYLINDER HANGING LINER  1 € 2,48 € 3
NA DOPYT
29 U05A31010002 U05 CYLINDER HANGING BRACKET  1 € 15,45 € 19
NA DOPYT

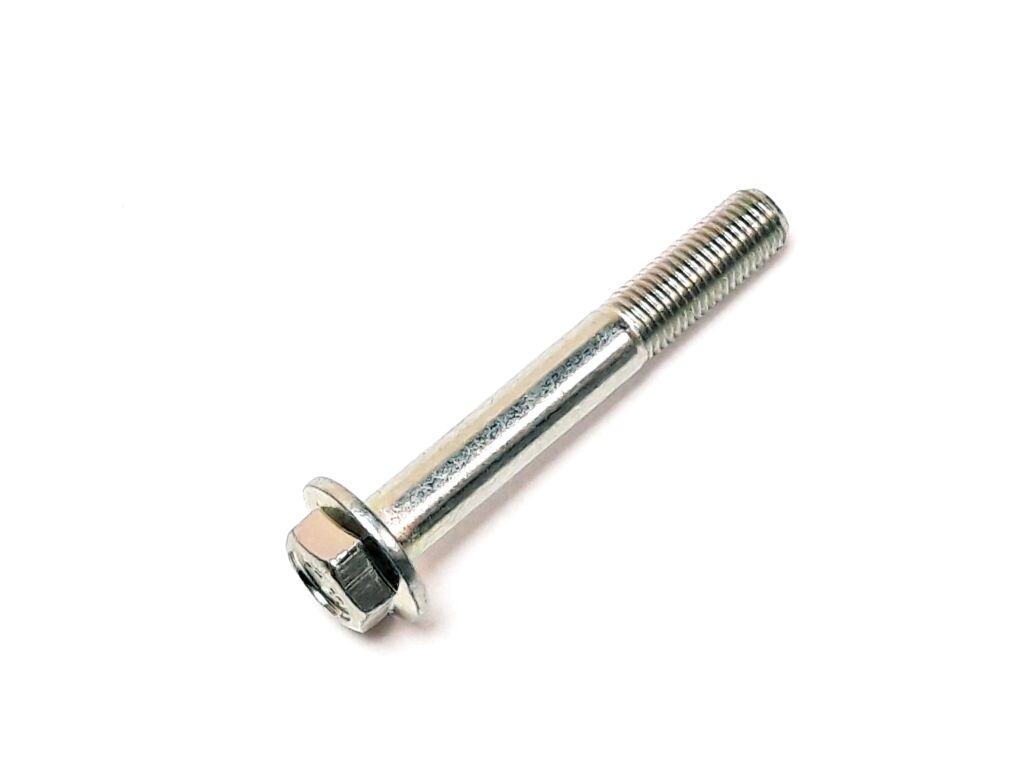

28 BOLT M10×1.25×70 (Ref. č 28) GBT005789062 BOLT M10×1.25×70  1 € 2,40 € 3
SKLADOM
27 ROCKER ARM BRACKET BUFFER BUSHING (Ref. č 27) A03A30001001 ROCKER ARM BRACKET BUFFER BUSHING  1 € 2,64 € 3
SKLADOM
26 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 26) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  1 € 2,18 € 3
SKLADOM
25 U05A31204001 U05 CYLINDER SIDE HEAT SHIELD  1 € 16,94 € 21
NA DOPYT
24 U09-A311050-000-00 CONNECTOR SHIELD  1 € 12,31 € 15
NA DOPYT
23 U05 GRAPHITE SEAL SLEEVE (Ref. č 23) U05A31001001 U05 GRAPHITE SEAL SLEEVE  1 € 5,79 € 7
SKLADOM
31 Hexagon flange bolt M8×25 (Ref. č 31) GBT005789016 Hexagon flange bolt M8×25  1 € 2,18 € 3
SKLADOM
32 U05A31203001 U05 ELBOW HEAT SHIELD 2  1 € 16,12 € 20
NA DOPYT
33 U05A31202001 U05 ELBOW HEAT SHIELD 1  1 € 18,60 € 23
NA DOPYT
41 U05A31310001 U05 SPARK ELIMINATOR WELD ASSY  1 € 16,12 € 20
NA DOPYT
40 U05A31205001 U05 MUFFLER LINER GASKET  1 € 5,21 € 6
NA DOPYT

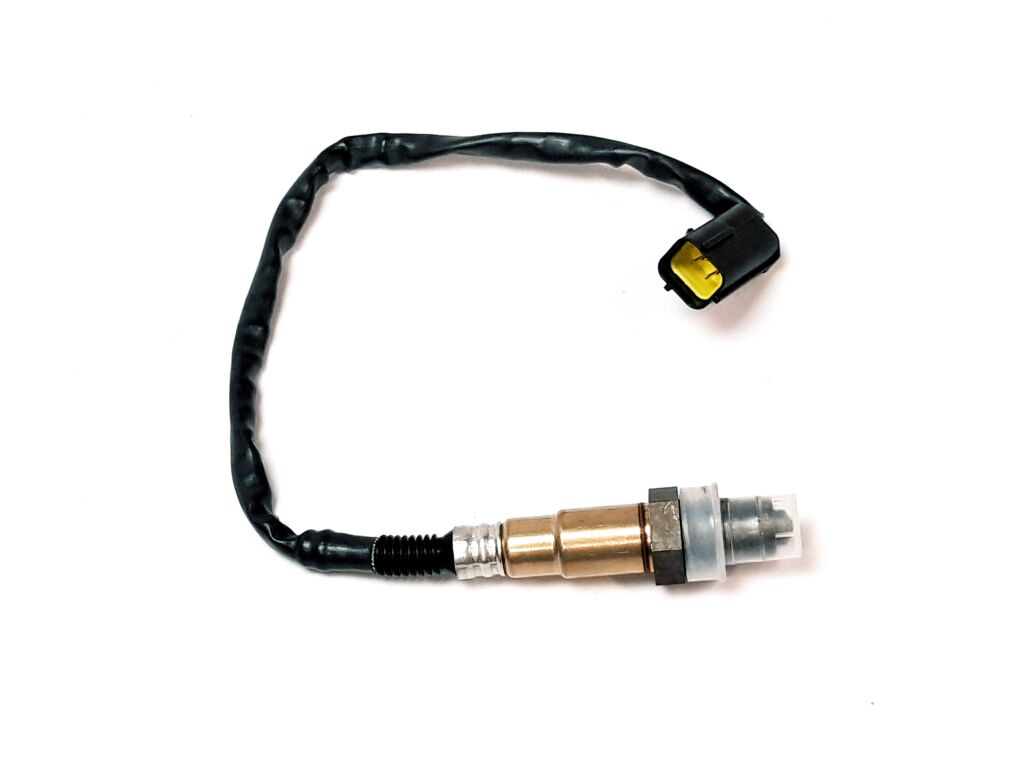

39 OXYGEN SENSOR (Ref. č 39) U01M44000001 OXYGEN SENSOR  2 € 124,88 € 154
SKLADOM
38 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 38) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  2 € 2,18 € 3
SKLADOM
37 CYLINDER HANGING LINER (Ref. č 37) U01-A3A3010-000-01 CYLINDER HANGING LINER  2 € 7,44 € 9
SKLADOM
36 HEXAGON FLANGE BOLT M8×40 (Ref. č 36) GBT005789019 HEXAGON FLANGE BOLT M8×40  2 € 2,18 € 3
SKLADOM
35 U05A31201001 U05 MUFFLER CYLINDER HEAT SHIELD  1 € 32,31 € 40
NA DOPYT
34 U05A31210001 U05 MUFFLER CYLINDER WELD ASSY  1 € 320,41 € 394
NA DOPYT

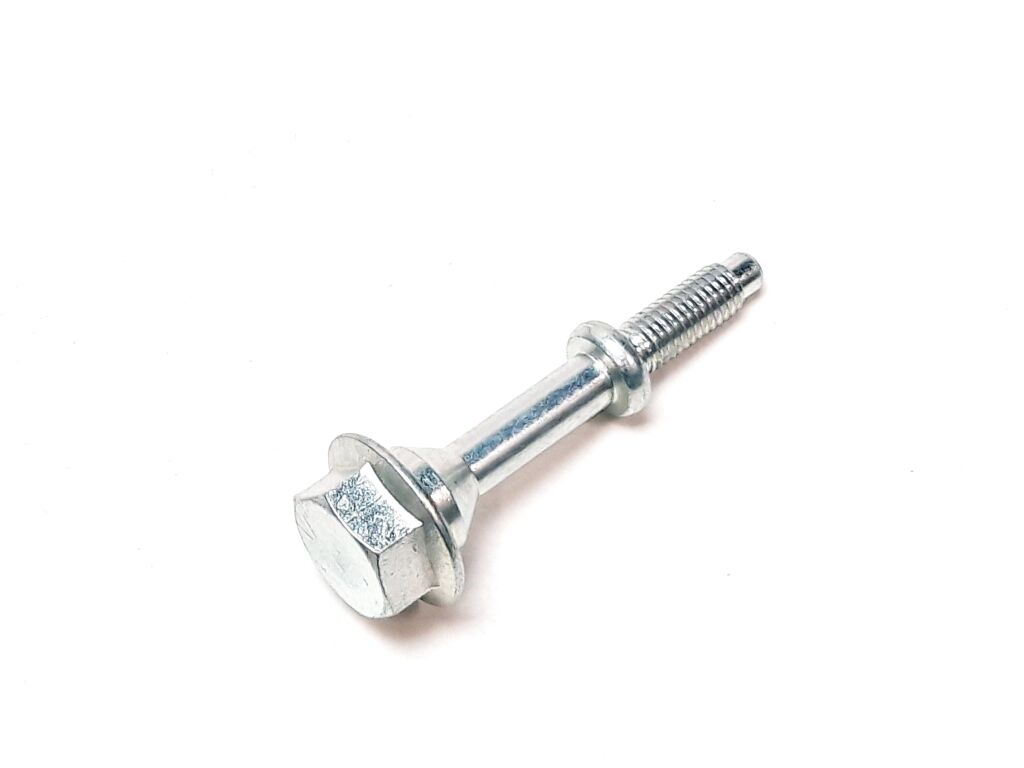

22 Bolt,exhaust pipe connect (Ref. č 22) A01A32004001 Bolt,exhaust pipe connect  2 € 2,18 € 3
SKLADOM
21 Spring,exhaust pipe install (Ref. č 21) A01A32005001 Spring,exhaust pipe install  2 € 3,32 € 4
SKLADOM
9 GBT166741060 BOLT M6×16  8 € 2,18 € 3
NA DOPYT
8 WASHER 6 (Ref. č 8) GBT000961007 WASHER 6  27 € 2,48 € 3
SKLADOM
7 WASHER 6 (Ref. č 7) GB0000093001 WASHER 6  27 € 2,48 € 3
SKLADOM
6 GBT166741059 BOLT M6×12  19 € 2,48 € 3
NA DOPYT
5 U09-A311030-000-00 HEADER HEAT SHIELD (REAR-LOWER)  1 € 46,45 € 57
NA DOPYT
4 U09-A311040-000-00 BACK UPPER HEAT SHIELD  1 € 43,64 € 54
NA DOPYT
3 U09-A311020-000-00 FRONT LOWER HEAT SHIELD  1 € 54,21 € 67
NA DOPYT
2 U09-A311010-000-00 FRONT UPPER HEAT SHIELD  1 € 56,45 € 69
NA DOPYT
10 GBT000091005 COTTER 2.5×20  2 € 2,48 € 3
NA DOPYT
11 A TYPE WORM DRIVE HOSE HOOP 120 (Ref. č 11) QCT000620017 A TYPE WORM DRIVE HOSE HOOP 120  1 € 2,48 € 3
SKLADOM
12 U09-A311000-000-00 MUFFLER FRONT SECTION ASSY  1 € 300,50 € 370
NA DOPYT
20 COCKPIT HEAT SHIELD (Ref. č 20) U09-A300002-000-03 COCKPIT HEAT SHIELD  1 € 70,50 € 87
SKLADOM
19 HEXAGON FLANGE BOLT M6×20 (Ref. č 19) GBT005789008 HEXAGON FLANGE BOLT M6×20  2 € 2,18 € 3
SKLADOM
18 WASHER Φ6 (Ref. č 18) GBT000961002 WASHER Φ6  4 € 2,48 € 3
SKLADOM
17 All metal hexagonal flange lock nut M6 (Ref. č 17) GBT061871002 All metal hexagonal flange lock nut M6  2 € 2,07 € 3
SKLADOM
16 COMBINATION BOLT M6×16 (Ref. č 16) T03000006002 COMBINATION BOLT M6×16  9 € 2,15 € 3
SKLADOM
15 A TYPE WORM DRIVE HOSE HOOP 50 (Ref. č 15) QCT000620004 A TYPE WORM DRIVE HOSE HOOP 50  2 € 2,48 € 3
SKLADOM
14 U05A31300001 U05 MUFFLER REAR SECTION ASSY  1 € 354,38 € 436
NA DOPYT
13 NUT (Ref. č 13) A03A30007001 NUT  5 € 2,48 € 3
SKLADOM
1 U09 MUFFLER FRONT WELD ASSY (Ref. č 1) U09A31110001 U09 MUFFLER FRONT WELD ASSY  1 € 129,01 € 159
NA DOPYT
Kód produktu SEGWAY_1_131_UTV1000
typ rozkresu: ENGINE PARTS
ZNACKA: SEGWAY
TYP: Fugleman UTV
MODEL: Fugleman UT10
