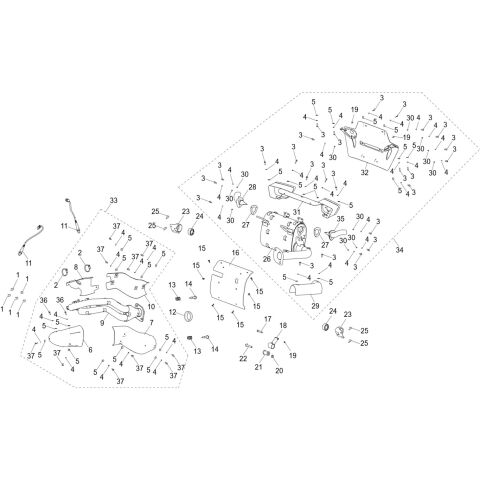

EXHAUST SYSTEM 2023MODEL

Výrobca SEGWAY
Kód produktu SEGWAY_1_129_UTV1000F-S3-23

Ref. č	Kód p.	Popis	p. ks	Cena za 1 ks	Dostupnost
1	A03A30007001	NUT	5	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
21	A03A30001001	ROCKER ARM BRACKET BUFFER BUSHING	1	Cena bez DPH € 2,64 Cena s DPH € 3	SKLADOM
22	GBT005789062	BOLT M10×1.25×70	1	Cena bez DPH € 2,40 Cena s DPH € 3	SKLADOM
23	S01C02900002	ENGINE UPPER SHOCK ABSORBER LOWER MOUNTING SEAT	2	Cena bez DPH € 12,93 Cena s DPH € 16	SKLADOM
24	S05-A380100-000-00	ENGINE UPPER DAMPING	2	Cena bez DPH € 6,09 Cena s DPH € 7	NA CESTE
25	GBT005789014	Bolt M8×16	4	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
26	S03-A312000-000-00	MUFFLER BARREL	1	Cena bez DPH € 235,45 Cena s DPH € 290	NA DOPYT
27	S03A31001001	TRIANGULAR GRAPHITE PAD	2	Cena bez DPH € 5,04 Cena s DPH € 6	NA DOPYT
28	S03A31400001	RIGHT SPARK ARRESTER	1	Cena bez DPH € 27,93 Cena s DPH € 34	NA DOPYT
29	S03-A310003-000-00	EXHAUST TAIL PIPE HEAT SHIELD	1	Cena bez DPH € 9,67 Cena s DPH € 12	NA DOPYT
30	GBT000971003	FLAT WASHER 6	10		NA DOPYT
31	S03A31700001	TAIL DECORATION COVER ASSEMBLY	1	Cena bez DPH € 141,16 Cena s DPH € 174	SKLADOM
32	S03A32000001	MUFFLER REAR DECORATIVE BOARD	1	Cena bez DPH € 61,90 Cena s DPH € 76	SKLADOM
33	S05-A318000-000-00	EXHAUST PIPE FRONT ASSEMBLY	1	Cena bez DPH € 244,05 Cena s DPH € 300	NA DOPYT
34	S05-A319000-000-00	MUFFLER BARREL ASSEMBLY	1	Cena bez DPH € 575,79 Cena s DPH € 708	NA DOPYT
35	S03A31300001	LEFT SPARK ARRESTER	1	Cena bez DPH € 27,93 Cena s DPH € 34	NA DOPYT
36	GBT005789143	HEXAGON FLANGE BOLT M6×14	2		NA DOPYT
20	GBT061832001	2-non-metallic insert hexagon flange bolt M10×1.25	1	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
19	GBT061871002	All metal hexagonal flange lock nut M6	3	Cena bez DPH € 2,07 Cena s DPH € 3	SKLADOM
18	S05-C008000-DB0-00	HANGING BUFFER BRACKET	1	Cena bez DPH € 8,51 Cena s DPH € 10	NA CESTE
2	QCT000620004	A TYPE WORM DRIVE HOSE HOOP 50	2	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
3	GBT005789007	Bolt M6×16	25	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
4	GB0000093001	WASHER 6	37	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
5	GBT000961007	WASHER 6	27	Cena bez DPH € 2,48 Cena s DPH € 3	SKLADOM
6	S05-A310050-000-00	HEADER PIPE FRONT HEAT SHIELD	1	Cena bez DPH € 41,90 Cena s DPH € 52	NA DOPYT
7	S05-A310060-000-00	REAR HEAT SHIELD OF EXHAUST FRONT PIPE	1	Cena bez DPH € 37,77 Cena s DPH € 46	NA DOPYT
8	S05-A310100-000-00	EXHAUST PIPE INNER GUARD	1	Cena bez DPH € 31,40 Cena s DPH € 39	NA DOPYT
9	S05A31100001	EXHAUST PIPE FRONT SECTION ASSEMBLY	1		NA DOPYT
10	S05A31007001	EXHAUST PIPE FRONT,INNER HEAT INSULATION BOARD	1	Cena bez DPH € 23,39 Cena s DPH € 29	NA DOPYT
11	U01M44000001	OXYGEN SENSOR	2	Cena bez DPH € 124,88 Cena s DPH € 154	SKLADOM
12	U05A31001001	U05 GRAPHITE SEAL SLEEVE	1	Cena bez DPH € 5,79 Cena s DPH € 7	SKLADOM
13	A01A32005001	Spring,exhaust pipe install	2	Cena bez DPH € 3,32 Cena s DPH € 4	SKLADOM
14	A01A32004001	Bolt,exhaust pipe connect	2	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
15	T03000006002	COMBINATION BOLT M6×16	6	Cena bez DPH € 2,15 Cena s DPH € 3	NA CESTE
16	S03-A310070-000-00	MUFFLER FRONT HEAT SHIELD	1	Cena bez DPH € 14,38 Cena s DPH € 18	SKLADOM
17	T03000006003	BOLT M6×40×10	1	Cena bez DPH € 1,74 Cena s DPH € 2	SKLADOM
37	GBT005789006	Bolt M6×12	10	Cena bez DPH € 2,18 Cena s DPH € 3	SKLADOM
