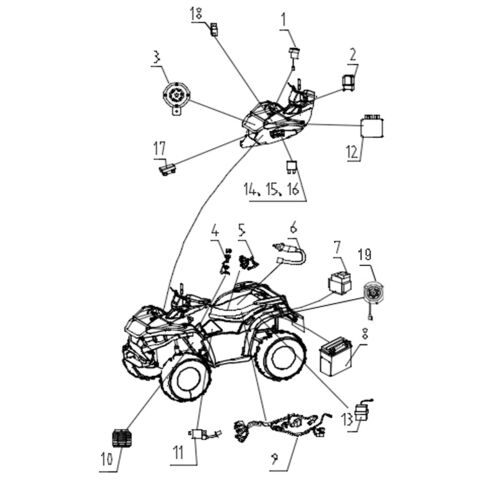

ELECTRICAL SYSTEM

LINHAI
Výrobca: LINHAI
Kód produktu: LINHAI_3_316_ATV300-D_EFI_T3b
MODEL:
300 T3b EFI 300 T3b EFI
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 FLASHER RELAY ASSY (FOR EUROPE) (Ref. č 1) 26456 FLASHER RELAY ASSY (FOR EUROPE)  1 € 25,04 € 30,30
NA DOPYT
13 REVERSE GEAR WARNING (FOR AWD) (Ref. č 13) 32038 REVERSE GEAR WARNING (FOR AWD)  1 € 35,37 € 42,80
SKLADOM
14 22020 15AMP FUSE  3 € 11,98 € 14,50
NA DOPYT
15 22021 3 AMP FUSE  1 € 11,98 € 14,50
NA DOPYT
17 ELECTRICAL DUMPAGE SWITCH (Ref. č 17) 70968 ELECTRICAL DUMPAGE SWITCH  1 € 113,88 € 137,80
SKLADOM
18 START RELAY (NEW) (CONTROL HIGH BEAM AND DIPPED BEAM) (Ref. č 18) 35656 START RELAY (NEW) (CONTROL HIGH BEAM AND DIPPED BEAM)  3 € 10,83 € 13,10
SKLADOM
19 Trailer cable socket (Ref. č 19) 84432 Trailer cable socket  1 € 102,24 € 123,71
SKLADOM
8 25337 BATTERY Of ATV300-D EFI T3b  1 € 185,70 € 224,70
NA DOPYT
12 ECU OF ATV300-D EFI T3 (MARKED /28561520/. /MT05.2/. SPEED LIMIT 43km/h) ATV 300-D (Ref. č 12) 25329 ECU OF ATV300-D EFI T3 (MARKED /28561520/. /MT05.2/. SPEED LIMIT 43km/h) ATV 300-D  1 € 205,79 € 249
SKLADOM
12 ECU OF ATV300-D EFI T3 (MARKED /25861520/. /MT05.02/. SPEED LIMIT 40km/h) ATV300-D (Ref. č 12) 25330 ECU OF ATV300-D EFI T3 (MARKED /25861520/. /MT05.02/. SPEED LIMIT 40km/h) ATV300-D  1 € 205,79 € 249
SKLADOM
16 84273 FUSE WIRE  2 € 2,40 € 2,90
NA DOPYT
12 ECU (MARKED /28265491/. /INT05/. FULL SPEED) USED FOR ATV500-D EFI T3. ATV500 PROMAX EFI T3. M550 (Ref. č 12) 35743 ECU (MARKED /28265491/. /INT05/. FULL SPEED) USED FOR ATV500-D EFI T3. ATV500 PROMAX EFI T3. M550  1 € 216,36 € 261,80
NA DOPYT
11 DELPHI IGNITION COIL (Ref. č 11) 70822D DELPHI IGNITION COIL  1 € 69,01 € 83,50
SKLADOM
1 FLASHER RELAY ASSY (Ref. č 1) 27438 FLASHER RELAY ASSY  1 € 12,64 € 15,30
SKLADOM
1 FLASHER RELAY ASSY (Ref. č 1) 73326 FLASHER RELAY ASSY  1 € 27,85 € 33,70
Naskladňujeme
2 EFI RELAY (Ref. č 2) 71474 EFI RELAY  1 € 9,59 € 11,60
SKLADOM
3 HORN (Ref. č 3) 32029 HORN  1 € 19,09 € 23,10
NA DOPYT
4 ACCESSORY SOCKET ASSY (Ref. č 4) 71973 ACCESSORY SOCKET ASSY  1 € 16,69 € 20,20
SKLADOM
5 EFI WIRE (Ref. č 5) 27682 EFI WIRE  1 € 121,57 € 147,10
NA CESTE
6 BRAKE SWITCH (USED FOR WATERPROOF PLUG IN UNIT) (Ref. č 6) 70405A BRAKE SWITCH (USED FOR WATERPROOF PLUG IN UNIT)  1 € 6,53 € 7,90
SKLADOM
7 STARTER RELAY (Ref. č 7) 71602 STARTER RELAY  1 € 17,77 € 21,50
SKLADOM

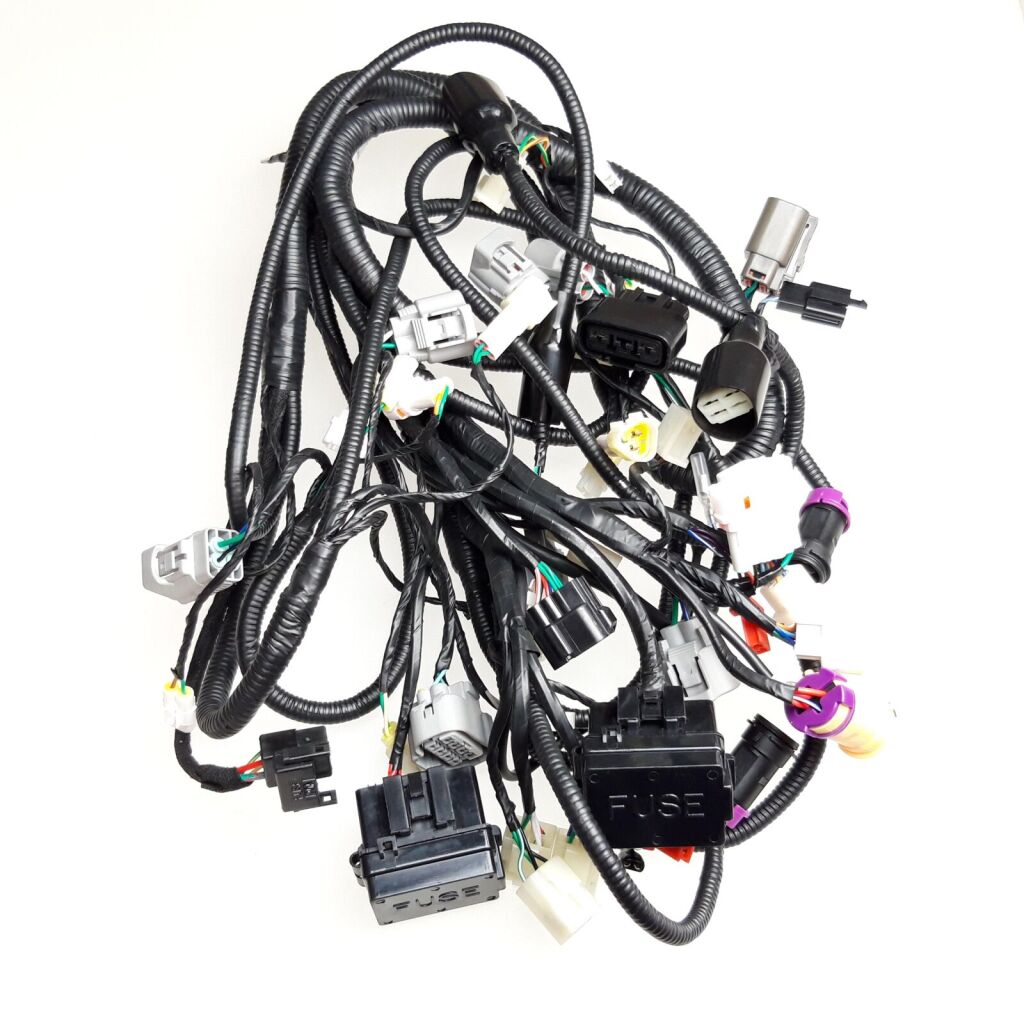

9 WIRING HARNESS (FOR EFI EUROPE) Of ATV300-D EFI T3b (Ref. č 9) 25328 WIRING HARNESS (FOR EFI EUROPE) Of ATV300-D EFI T3b  1 € 117,11 € 141,70
SKLADOM
10 REGULATOR RECTIFIER (Ref. č 10) 71603 REGULATOR RECTIFIER  1 € 88,18 € 106,70
SKLADOM
17 ELECTRICAL DUMPAGE SWITCH Of ATV300-D EFI T3b (Ref. č 17) 72278 ELECTRICAL DUMPAGE SWITCH Of ATV300-D EFI T3b  1 € 89,09 € 107,80
SKLADOM
