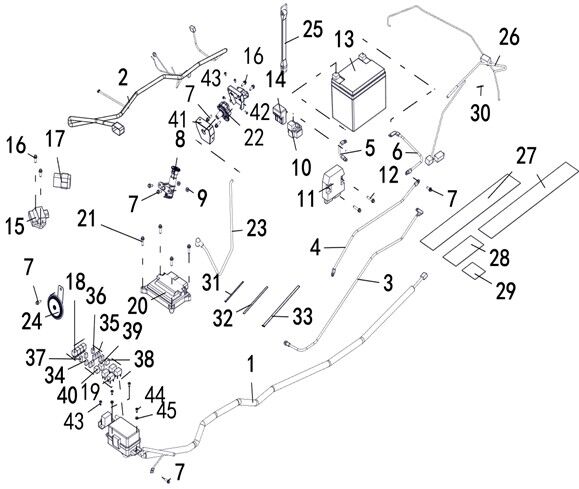

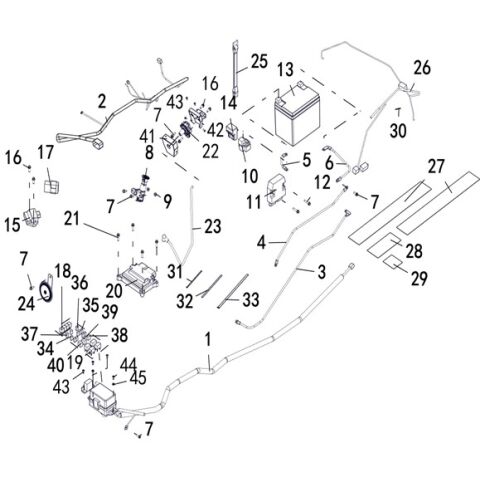

ELECTRICAL SYSTEM (ABS)

Ref. č Obr. Kód p. Popis p. ks Cena za 1 ks Dostupnost
45 WASHER 6 (Ref. č 45) 11391 WASHER 6  2 € 2,40 € 3
SKLADOM
33 Tie (Ref. č 33) 48294 Tie  3 € 2,89 € 4
NA DOPYT
32 55016 TIE 2  4 € 9,59 € 12
NA DOPYT
31 11334 Tie  10
NA DOPYT
30 CABLE CLAMP (Ref. č 30) 35247 CABLE CLAMP  5 € 3,22 € 4
SKLADOM
29 HEAT INSULATION FILM (60x75) (Ref. č 29) 65367 HEAT INSULATION FILM (60x75)  1 € 2,15 € 3
SKLADOM
28 HEAT INSULATION FILM (160x75) (Ref. č 28) 65366 HEAT INSULATION FILM (160x75)  1 € 2,15 € 3
SKLADOM
27 HEAT INSULATION FILM (500x75) (Ref. č 27) 65365 HEAT INSULATION FILM (500x75)  2 € 10,17 € 13
SKLADOM
26 TAILLIGHT TRANSITION LINE (Ref. č 26) 65364 TAILLIGHT TRANSITION LINE  1 € 39,26 € 48
SKLADOM
25 TIE, BATTERY (Ref. č 25) 65341 TIE, BATTERY  1 € 4,79 € 6
SKLADOM
34 10 AMP Fuse (Ref. č 34) 48361 10 AMP Fuse  6 € 11,98 € 15
SKLADOM
35 15 AMP Fuse (Ref. č 35) 48362 15 AMP Fuse  8 € 11,98 € 15
SKLADOM
44 SCREW M5×16 (Ref. č 44) 47789 SCREW M5×16  4 € 2,15 € 3
SKLADOM
43 11058 SCREW ST 4X10  4 € 8,02 € 10
NA DOPYT
42 IGNITION COIL SHIELD COVER REAR COVER ASSY (Ref. č 42) 65425 IGNITION COIL SHIELD COVER REAR COVER ASSY  1 € 1,40 € 2
SKLADOM
41 IGNITION COIL SHIELD COVER FRONT COVER (Ref. č 41) 65424 IGNITION COIL SHIELD COVER FRONT COVER  1 € 1,40 € 2
SKLADOM
40 40 AMP FUSE (Ref. č 40) 65346 40 AMP FUSE  2 € 4,96 € 6
SKLADOM
39 30 AMP FUSE (Ref. č 39) 65344 30 AMP FUSE  2 € 4,96 € 6
SKLADOM
38 FUSE WIRE (Ref. č 38) 84275 FUSE WIRE  2 € 2,40 € 3
SKLADOM
37 48364 30 AMP Fuse  2 € 11,98 € 15
NA DOPYT
36 48363 20 AMP Fuse  2 € 11,98 € 15
NA DOPYT
24 HORN（USED FOR EUROPE) (Ref. č 24) 70404 HORN（USED FOR EUROPE)  1 € 16,45 € 20
NA CESTĚ
23 65014 SPARK PLUG CAP (WITH WIRE)  1 € 15,37 € 19
NA CESTĚ
22 IGNITION COIL (Ref. č 22) 65013 IGNITION COIL  1 € 49,50 € 61
NA CESTĚ
10 STARTING RELAY (Ref. č 10) 65338 STARTING RELAY  1 € 17,93 € 22
SKLADOM ZA 11 dní
9 NUT M6 (Ref. č 9) 11233 NUT M6  2 € 1,98 € 2
SKLADOM
8 LOCK ASSY (Ref. č 8) 65343 LOCK ASSY  1 € 34,13 € 42
SKLADOM
7 Bolt M6X16 (Ref. č 7) 11495 Bolt M6X16  7 € 2,40 € 3
NA CESTĚ
6 NEGATIVE WIRE, BATTERY (Ref. č 6) 65351 NEGATIVE WIRE, BATTERY  1 € 15,37 € 19
SKLADOM
5 POSITIVE WIRE, BATTERY (Ref. č 5) 65350 POSITIVE WIRE, BATTERY  1 € 15,37 € 19
NA DOPYT
4 STARTING MOTOR CABLE NEGATIVE POLE (Ref. č 4) 65349 STARTING MOTOR CABLE NEGATIVE POLE  1 € 18,76 € 23
SKLADOM
3 STARTING MOTOR CABLE POSITIVE POLE (Ref. č 3) 65348 STARTING MOTOR CABLE POSITIVE POLE  1 € 27,27 € 34
SKLADOM
2 WIRING HARNESS FOR EFI (Ref. č 2) 65342 WIRING HARNESS FOR EFI  1 € 133,06 € 164
NA CESTĚ
11 RECTIFIER REGULATOR (Ref. č 11) 65339 RECTIFIER REGULATOR  1 € 59,67 € 73
SKLADOM ZA 11 dní
12 BOLT M6X30 (Ref. č 12) 11496 BOLT M6X30  2 € 2,40 € 3
SKLADOM
21 11539 Bolt M6X25  4 € 2,40 € 3
NA DOPYT
20 85186 ECU FOR LANDFORCE 650 ABS T3b (BOSCH UP6.0, FULL SPEED)  1
NA DOPYT
19 RELAY (5 PIN) (Ref. č 19) 65336 RELAY (5 PIN)  4 € 14,05 € 17
SKLADOM
18 RELAY (4 PIN) (Ref. č 18) 65337 RELAY (4 PIN)  4 € 14,05 € 17
SKLADOM
17 REVERSING BUZZER (Ref. č 17) 65354 REVERSING BUZZER  1 € 15,79 € 19
SKLADOM
16 Hexagon Flange Bolt M6×20 (Ref. č 16) 11459 Hexagon Flange Bolt M6×20  4 € 2,23 € 3
SKLADOM
15 FLASHER RELAY ASSY (Ref. č 15) 65353 FLASHER RELAY ASSY  1 € 25,62 € 32
SKLADOM
14 ELECTRICAL DUMPAGE SWITCH Of ATV300-D EFI T3b (Ref. č 14) 72278 ELECTRICAL DUMPAGE SWITCH Of ATV300-D EFI T3b  1 € 89,09 € 110
NA CESTĚ
13 73895 BATTERY (30Ah)  1 € 400,74 € 493
NA CESTĚ
1 65518 WIRING HARNESS (2420mm)  1
NA DOPYT
Kód produktu LINHAI_3_304_LF-650L-ABS
typ rozkresu: ELECTRICAL PARTS
ZNACKA: LINHAI
TYP: LINHAI 650
MODEL: Landforce 650L ABS
