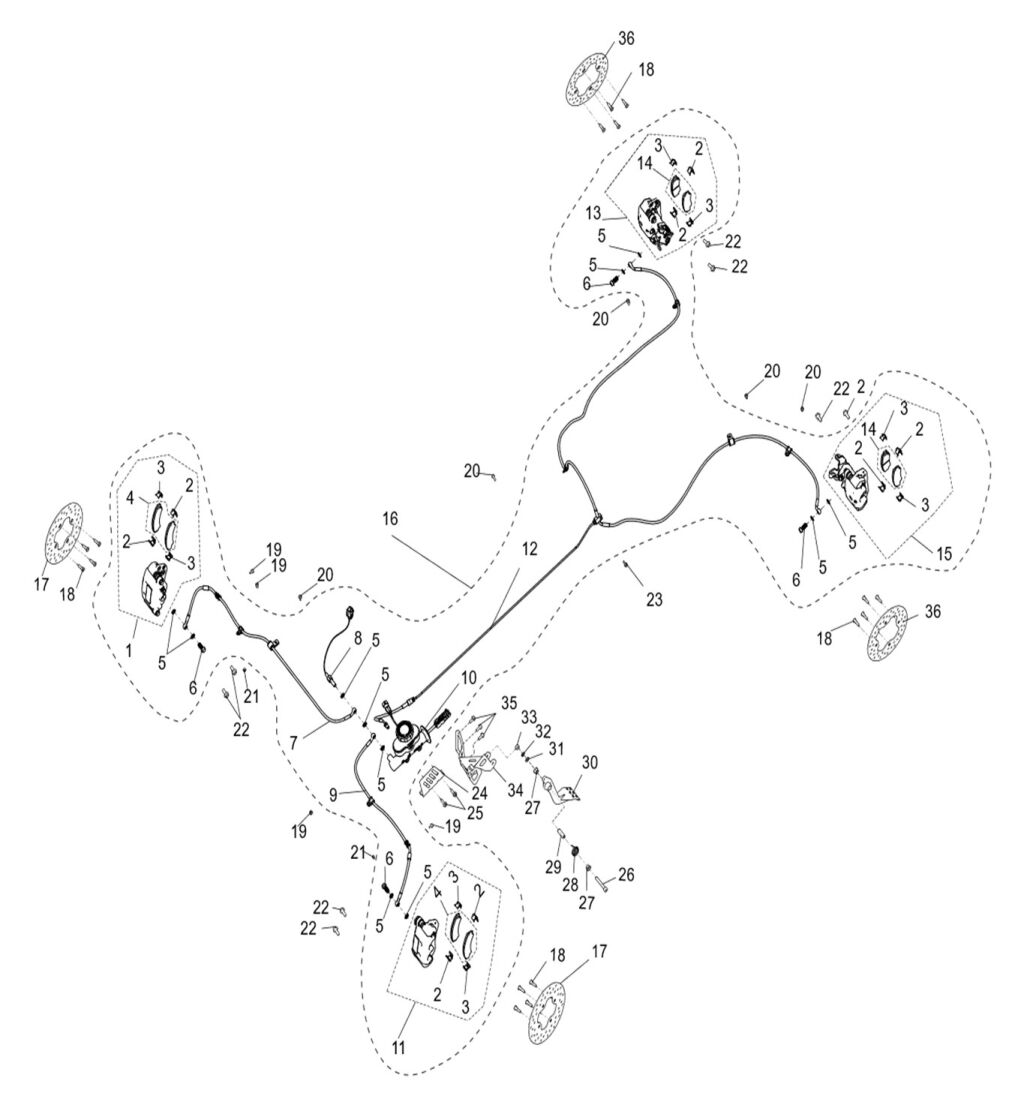

Driving brake

SEGWAY
Výrobca: SEGWAY
Kód produktu: SEGWAY_2_243_UTV1000
MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis p. ks Cena Dostupnost
1 FR BRAKE ASSY (Ref. č 1) U01E11200001 FR BRAKE ASSY  1 € 105,46 € 127,61
SKLADOM
20 Bolt M6×16 (Ref. č 20) GBT005789007 Bolt M6×16  5 € 2,44 € 2,95
SKLADOM
21 NUT M6 (Ref. č 21) GBT061771002 NUT M6  3 € 2,44 € 2,95
SKLADOM
22 Hexagon flange bolt M10×1.25×25 (Ref. č 22) GBT005789026 Hexagon flange bolt M10×1.25×25  8 € 2,44 € 2,95
SKLADOM
23 HEXAGON FLANGE BOLT M6×20 (Ref. č 23) GBT005789008 HEXAGON FLANGE BOLT M6×20  1 € 2,44 € 2,95
SKLADOM
24 U01_MAIN BRAKE PUMP GUARD BOARD (Ref. č 24) U01C00003002 U01_MAIN BRAKE PUMP GUARD BOARD  1 € 15,36 € 18,59
SKLADOM
25 Hexagon flange bolt M8×25 (Ref. č 25) GBT005789016 Hexagon flange bolt M8×25  2 € 2,44 € 2,95
SKLADOM
26 SCREW M10×1.25×65 (Ref. č 26) GBT000701008 SCREW M10×1.25×65  1 € 2,44 € 2,95
SKLADOM
27 Nylon bushing (Ref. č 27) A03E12201001 Nylon bushing  2 € 2,44 € 2,95
SKLADOM
28 U01_brake pedal spring 65Mn (Ref. č 28) U01E12003001 U01_brake pedal spring 65Mn  1 € 2,44 € 2,95
SKLADOM
29 U01_lining sleeve (Ref. č 29) U01E12004001 U01_lining sleeve  1 € 2,44 € 2,95
SKLADOM
30 U09_WELD BRAKE PEDAL (Ref. č 30) U09E12010002 U09_WELD BRAKE PEDAL  1 € 27,66 € 33,47
SKLADOM
31 WASHER 10 (Ref. č 31) GBT000971005 WASHER 10  1 € 2,44 € 2,95
SKLADOM
32 SPRING WASHER 10 (Ref. č 32) GB0000093005 SPRING WASHER 10  1 € 2,44 € 2,95
SKLADOM
33 NUT M10×1.25 (Ref. č 33) GBT006170001 NUT M10×1.25  1 € 2,44 € 2,95
SKLADOM
34 BRAKE PEDAL MOUNTING BASE BLACK PAINT (Ref. č 34) U01E12030002 BRAKE PEDAL MOUNTING BASE BLACK PAINT  1 € 31,02 € 37,53
SKLADOM
35 BOLT M8×20 (Ref. č 35) GBT005789015 BOLT M8×20  3 € 2,44 € 2,95
SKLADOM
19 Bolt M6×12 (Ref. č 19) GBT005789006 Bolt M6×12  4 € 2,44 € 2,95
SKLADOM
18 BOLT,FRONT BRAKE DISC (Ref. č 18) A03E10004001 BOLT,FRONT BRAKE DISC  16 € 2,44 € 2,95
SKLADOM
2 BRAKE PAD CLIP (Ref. č 2) S05E15C50001 BRAKE PAD CLIP  8 € 4,80 € 5,81
SKLADOM
3 BRAKE PAD CLIP A (Ref. č 3) S05E15C60001 BRAKE PAD CLIP A  8 € 4,80 € 5,81
SKLADOM
4 FRONT BRAKE PAD (Ref. č 4) S03E15A20001 FRONT BRAKE PAD  2 € 47,64 € 57,64
SKLADOM
5 GASKET (Ref. č 5) A03E11012001 GASKET  11 € 2,44 € 2,95
SKLADOM
6 BOLT INNER OIL (Ref. č 6) A03E11011001 BOLT INNER OIL  4 € 4,50 € 5,45
SKLADOM
7 FR BRAKE OIL PIPE (Ref. č 7) U01E11700001 FR BRAKE OIL PIPE  1 € 41,58 € 50,31
SKLADOM
8 HYDRAULIC INDUCTION SWITCH (Ref. č 8) A03E11005001 HYDRAULIC INDUCTION SWITCH  1 € 38,63 € 46,74
SKLADOM
9 FL BRAKE OIL PIPE (Ref. č 9) U01E11600001 FL BRAKE OIL PIPE  1 € 30,39 € 36,77
SKLADOM
10 FOOT BRAKE MAIN PUMP (Ref. č 10) U01E11500001 FOOT BRAKE MAIN PUMP  1 € 99,78 € 120,73
SKLADOM
11 FRONT LEFT BRAKE ASSEMBLY (Ref. č 11) U01E11100001 FRONT LEFT BRAKE ASSEMBLY  1 € 110,04 € 133,15
SKLADOM
12 REAR BRAKE OIL PIPE (Ref. č 12) U09E11800001 REAR BRAKE OIL PIPE  1 € 125,14 € 151,42
SKLADOM
13 RL BRAKE ASSY (Ref. č 13) U05E11300001 RL BRAKE ASSY  1 € 142,24 € 172,11
SKLADOM
14 REAR BRAKE PAD ASSY (Ref. č 14) S05E15C20001 REAR BRAKE PAD ASSY  2 € 35,67 € 43,16
SKLADOM
15 RR BRAKE ASSY (Ref. č 15) U05E11400001 RR BRAKE ASSY  1 € 142,24 € 172,11
SKLADOM

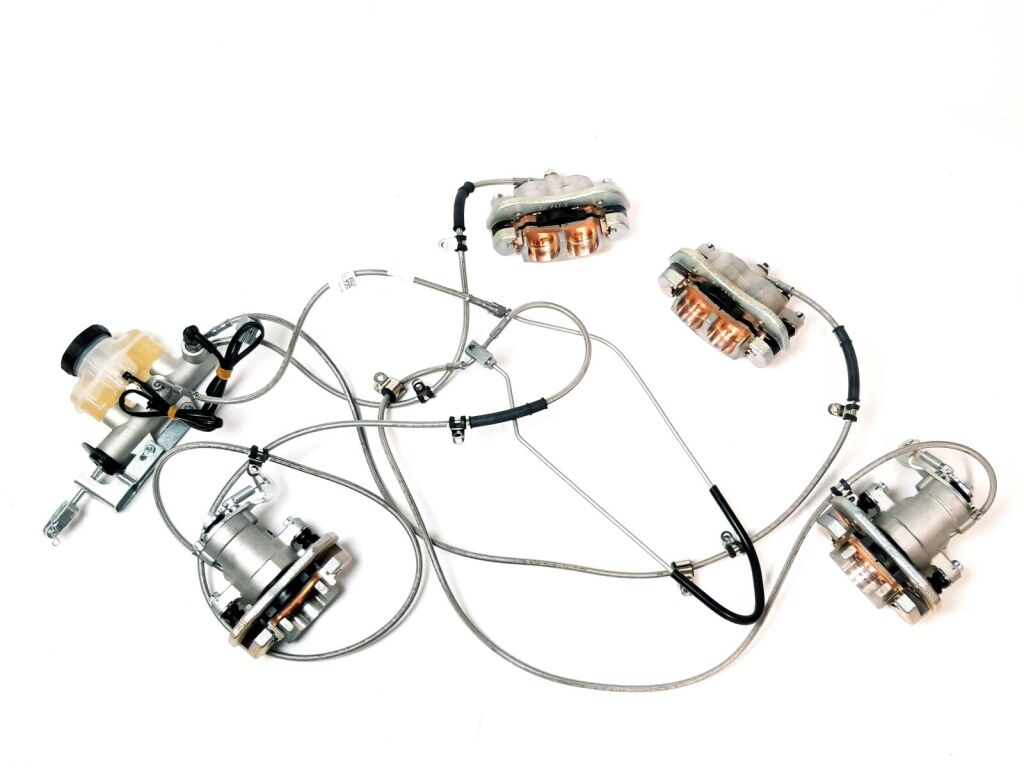

16 HYDRAULIC BRAKE ASSY_K (Ref. č 16) U09E11000001 HYDRAULIC BRAKE ASSY_K  1 € 741,55 € 897,28
SKLADOM
17 U01_FRONT BRAKE DISCφ248，PCD120 (Ref. č 17) U01E10001002 U01_FRONT BRAKE DISCφ248，PCD120  2 € 22,86 € 27,66
SKLADOM
36 U01_REAR BRAKE DISCφ240，PCD140 (Ref. č 36) U01E10002002 U01_REAR BRAKE DISCφ240，PCD140  2 € 20,86 € 25,24
SKLADOM
